TC9208 datasheet, PDF - EEWORLD Datasheet

TC9208: DescriptionHIGH TENSION SUSTAINING ANALOG FUNCTION SWITCH; File Size462KB，13 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Compare View All

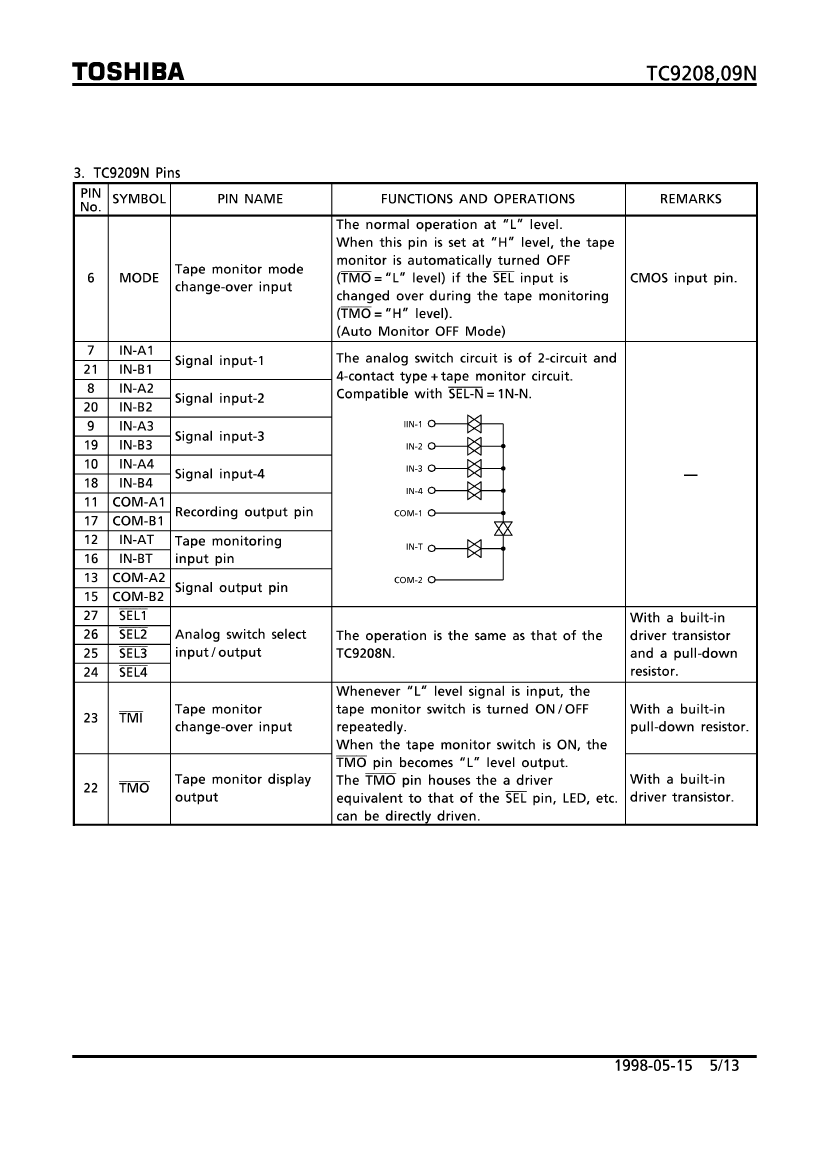

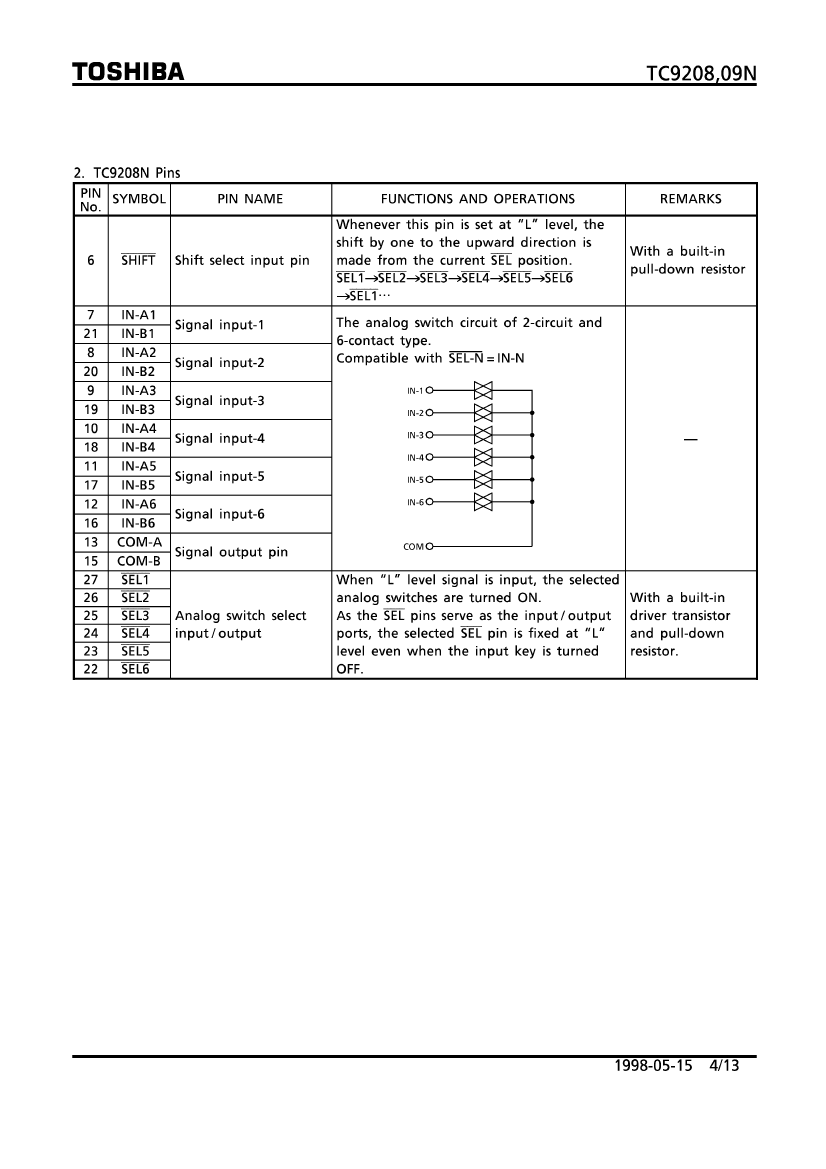

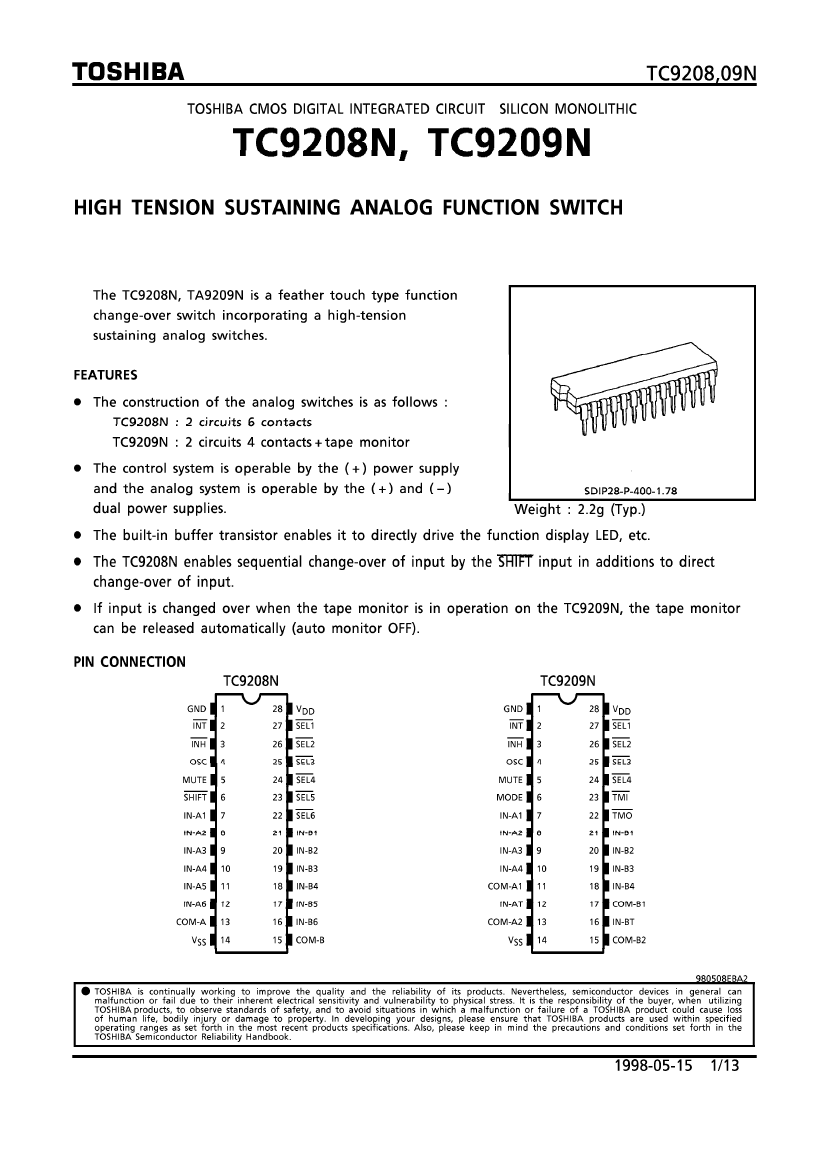

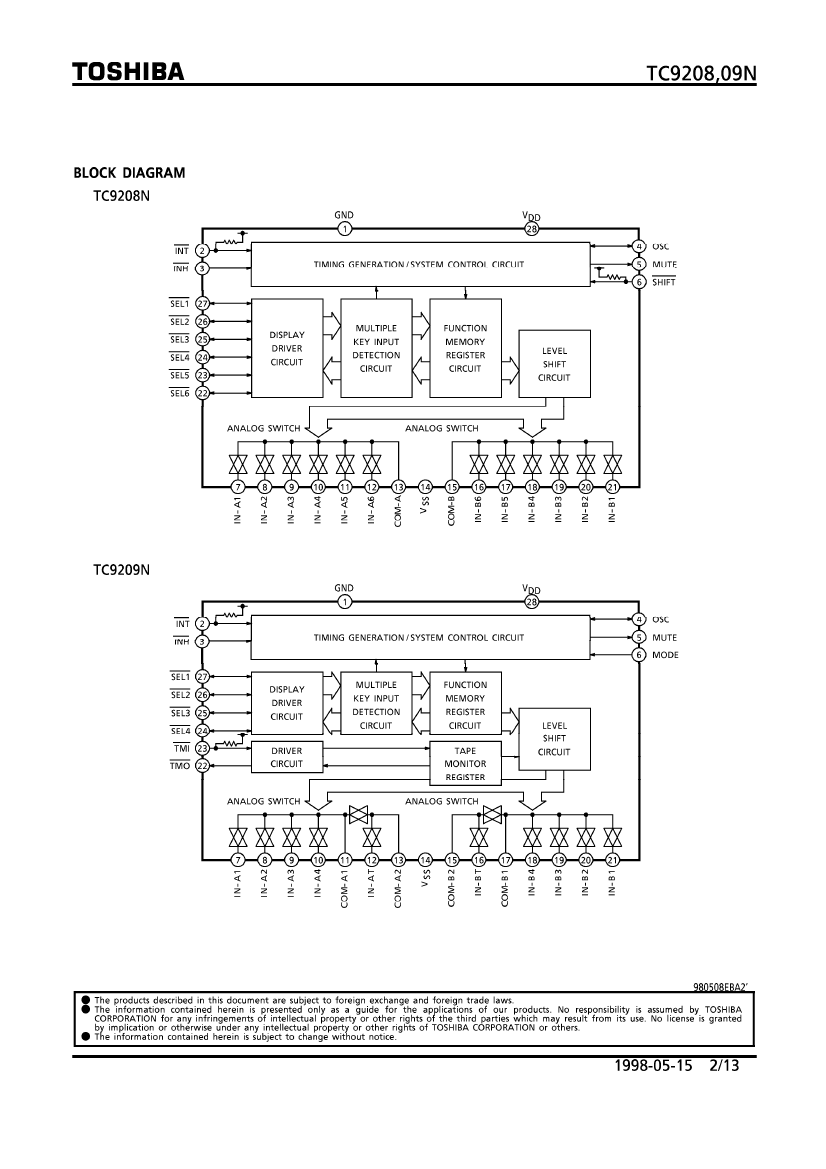

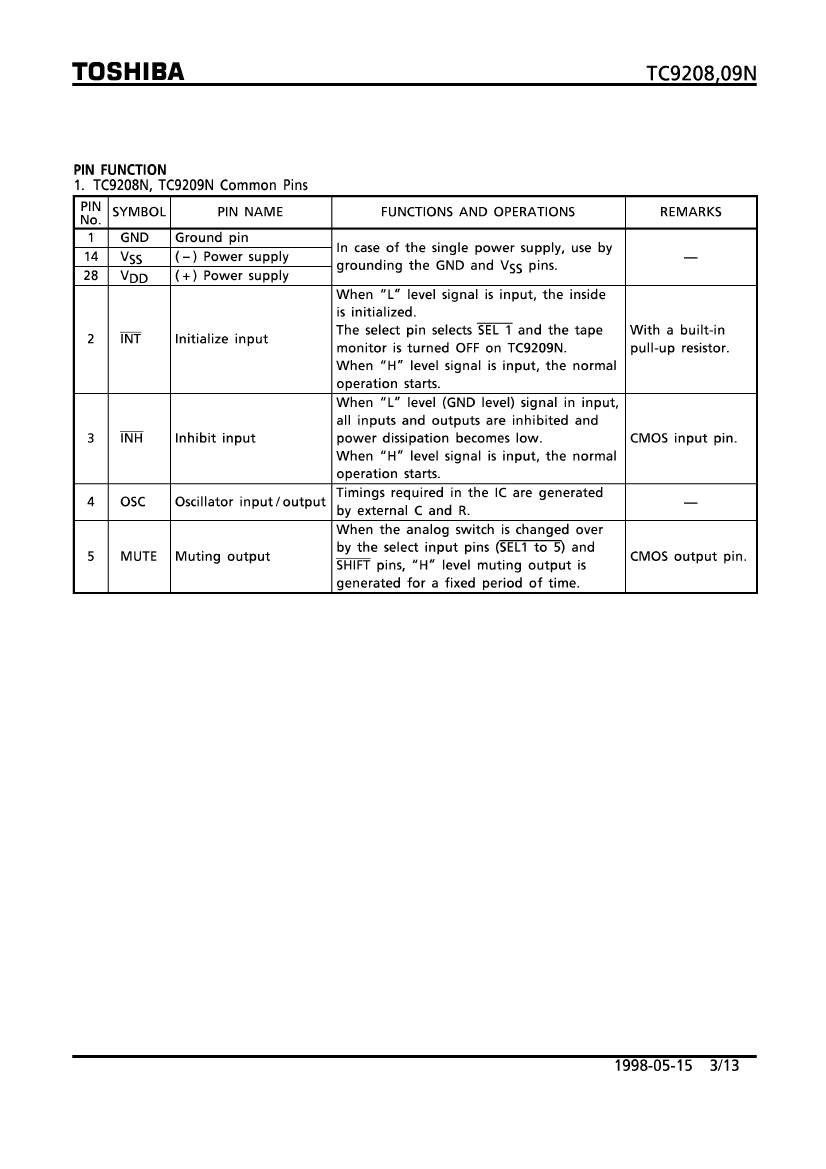

TC9208 Overview

HIGH TENSION SUSTAINING ANALOG FUNCTION SWITCH

	TC9208	TC9209N	TC9208N
Description	HIGH TENSION SUSTAINING ANALOG FUNCTION SWITCH	HIGH TENSION SUSTAINING ANALOG FUNCTION SWITCH	HIGH TENSION SUSTAINING ANALOG FUNCTION SWITCH
Parts packaging code	-	DIP	DIP
package instruction	-	SDIP, SDIP28,.4	SDIP, SDIP28,.4
Contacts	-	28	28
Reach Compliance Code	-	unknow	unknow
Analog Integrated Circuits - Other Types	-	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	-	R-PDIP-T28	R-PDIP-T28
JESD-609 code	-	e0	e0
length	-	25.6 mm	25.6 mm
Nominal Negative Supply Voltage (Vsup)	-	-15 V	-15 V
Number of channels	-	5	6
Number of functions	-	1	1
Number of terminals	-	28	28
Maximum on-state resistance (Ron)	-	100 Ω	100 Ω
Maximum operating temperature	-	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	SDIP	SDIP
Encapsulate equivalent code	-	SDIP28,.4	SDIP28,.4
Package shape	-	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH
power supply	-	+-15 V	+-15 V
Certification status	-	Not Qualified	Not Qualified
Maximum seat height	-	4.1 mm	4.1 mm
Maximum signal current	-	0.0001 A	0.0001 A
Maximum supply current (Isup)	-	1 mA	1 mA
Maximum supply voltage (Vsup)	-	34 V	34 V
Minimum supply voltage (Vsup)	-	16 V	16 V
Nominal supply voltage (Vsup)	-	15 V	15 V
surface mount	-	NO	NO
technology	-	CMOS	CMOS
Temperature level	-	INDUSTRIAL	INDUSTRIAL
Terminal surface	-	TIN LEAD	TIN LEAD
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	-	1.778 mm	1.778 mm
Terminal location	-	DUAL	DUAL
width	-	10.16 mm	10.16 mm
Base Number Matches	-	1	1
