SFE453226-182K-R-LF datasheet, PDF

Datasheet> All Categories > Passive components> inductor> SFE453226-182K-R-LF

SFE453226-182K-R-LF: DescriptionGeneral Purpose Inductor, 1800uH, 1 Element, Ferrite-Core, SMD, CHIP, 1813; CategoryPassive components inductor; File Size61KB，1 Pages; ManufacturerFenfa Electronics Ltd; Websitehttp://www.coilsfenfa.com

Download Datasheet Parametric View All

SFE453226-182K-R-LF Overview

General Purpose Inductor, 1800uH, 1 Element, Ferrite-Core, SMD, CHIP, 1813

SFE453226-182K-R-LF Parametric

Parameter Name	Attribute value
Maker	Fenfa Electronics Ltd
Reach Compliance Code	unknow
ECCN code	EAR99
core material	FERRITE
DC Resistance	45 Ω
Nominal inductance(L)	1800 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SFE453226
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rated current	35 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	1 MHz

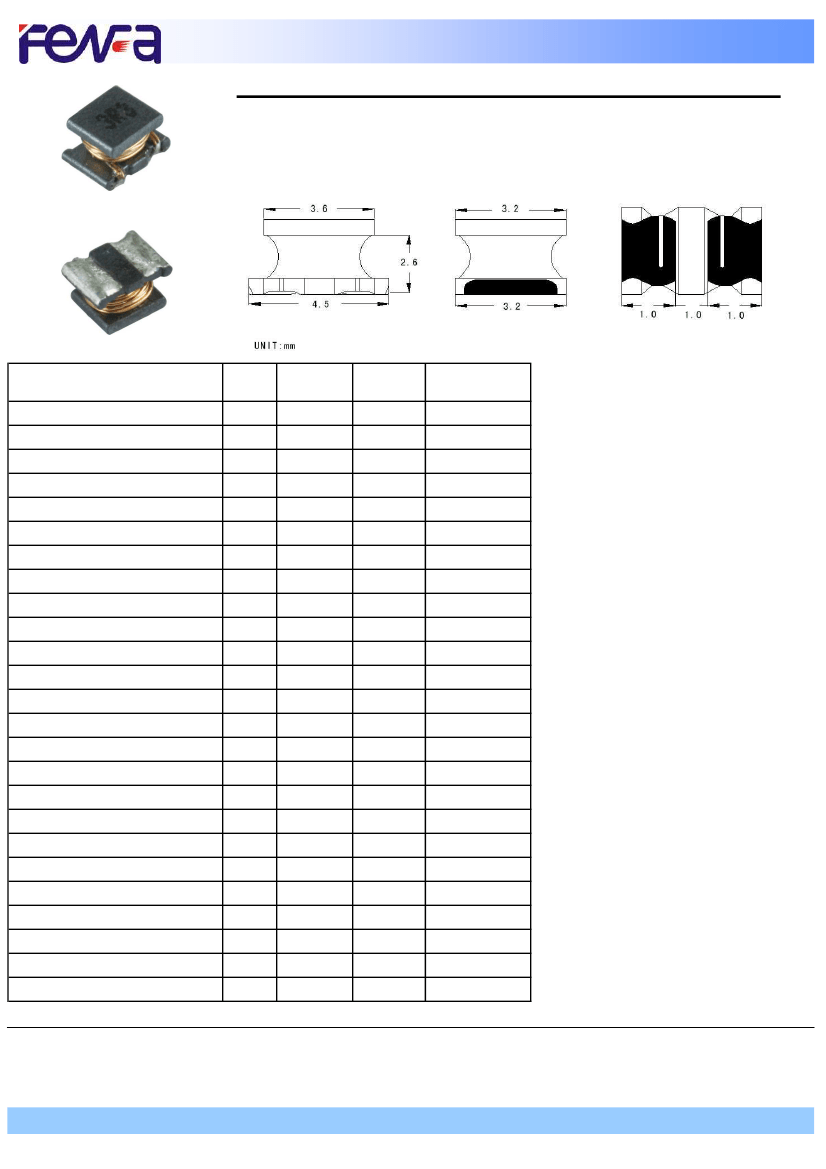

Preview

Download Datasheet

View All

SMD Power Inductors SFE453226 Series

SFE453226 series consists of miniature chip inductors wire

wound on a special ferrite core

1.High Q value at high frequencies and low DC resistance

2.Wide inductance range from 1.0 to 2200 micro H

PART NO

L(uH)

DCR max IDC max TEST FREQ.

(m )

(A)

(Hz)

SFE453226-1R0M-R-LF

1080

SFE453226-1R5M-R-LF

1.5

1000

SFE453226-2R2M-R-LF

2.2

110

900

SFE453226-3R3M-R-LF

3.3

130

800

SFE453226-4R7M-R-LF

4.7

150

750

SFE453226-6R8M-R-LF

6.8

200

720

SFE453226-100K-R-LF

240

650

SFE453226-150K-R-LF

320

570

SFE453226-220K-R-LF

600

420

SFE453226-330K-R-LF

1000

310

SFE453226-470K-R-LF

1100

280

SFE453226-680K-R-LF

1700

220

SFE453226-101K-R-LF

100

2200

190

SFE453226-151K-R-LF

150

3500

130

SFE453226-221K-R-LF

220

4000

110

SFE453226-331K-R-LF

330

6800

100

SFE453226-471K-R-LF

470

8500

SFE453226-561K-R-LF

560

14500

SFE453226-681K-R-LF

680

17000

SFE453226-821K-R-LF

820

20500

SFE453226-102K-R-LF

1000 25000

SFE453226-122K-R-LF

1200 30000

SFE453226-152K-R-LF

1500 37000

SFE453226-182K-R-LF

1800 45000

SFE453226-222K-R-LF

2200 50000

Special inquiries besides the above common used types

FENFA ELECTRONICS LTD.

Address: Rm 621, 6/F., Shing Yip Industrial Building,

19-21 Shing Yip Street, Kwun Tong, Hong Kong

Tel:

(852) 2372 0880, Fax: (852) 2372 0131

E-mail: sales@coilsfenfa.com

1M/1.0V

Packing :

1M/1.0V

Reel size:8 mm

1M/1.0V

Quantity: 2000PCS/Reel

1M/1.0V

can be met on your requirement.

1.Inductance tested at 100KHz,0.1V;

2.Inductance drop = 10% typ.

at rated Isat;

3.△T=40℃ rise typ. at Irms;

4.Operating temperature range

-40℃ to +125℃;

5. Electrical specifitions at +25℃;

http://www.coilsfenfa.com
