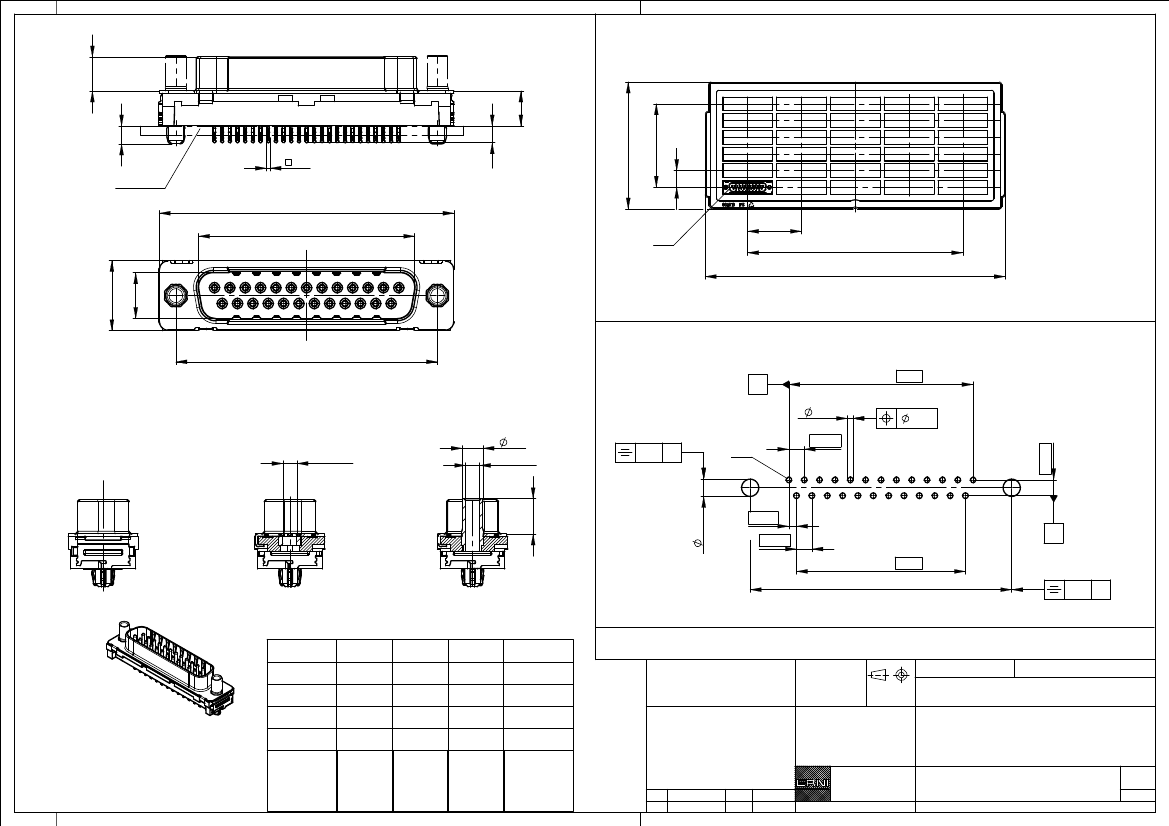

D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Press Fit Terminal, #4-40, Receptacle, ROHS COMPLIANT
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Provertha Connectors Cables & Solutions GmbH |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | compli |
| Other features | STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308 |
| body width | 0.496 inch |
| subject depth | 0.248 inch |
| body length | 2.087 inch |
| Body/casing type | RECEPTACLE |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | STAGGERED |
| Contact resistance | 10 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | YES |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | YES |
| Insulation resistance | 5000000000 Ω |
| insulator material | POLYBUTYLENE TEREPHTHALATE |
| JESD-609 code | e3 |
| MIL compliance | YES |
| Plug contact pitch | 0.109 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | #4-40 |
| Installation option 2 | THREADED |
| Installation method | STRAIGHT |
| Installation type | BOARD AND PANEL |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -65 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Rated current (signal) | 7.5 A |
| Guideline | UL,VDE,CSA |
| reliability | COMMERCIAL |
| Shell surface | TIN |
| Shell material | STEEL |
| Housing size | 3/B |
| Terminal length | 0.118 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 25 |
| UL Flammability Code | 94V-0 |
| 194376 | 194377 | 194378 | |
|---|---|---|---|
| Description | D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Press Fit Terminal, #4-40, Receptacle, ROHS COMPLIANT | D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Press Fit Terminal, M3, Receptacle, ROHS COMPLIANT | D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Press Fit Terminal, #4-40, Receptacle, ROHS COMPLIANT |
| Is it Rohs certified? | conform to | conform to | conform to |
| Maker | Provertha Connectors Cables & Solutions GmbH | Provertha Connectors Cables & Solutions GmbH | Provertha Connectors Cables & Solutions GmbH |
| package instruction | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| Reach Compliance Code | compli | compli | compli |
| Other features | STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308 | STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308 | STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308 |
| body width | 0.496 inch | 0.496 inch | 0.496 inch |
| subject depth | 0.248 inch | 0.248 inch | 0.248 inch |
| body length | 2.087 inch | 2.087 inch | 2.087 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD | NOT SPECIFIED | NOT SPECIFIED |
| Contact completed and terminated | Tin (Sn) | Tin (Sn) | Tin (Sn) |
| Contact point gender | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | 10 mΩ | 10 mΩ | 10 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| DIN compliance | YES | YES | YES |
| empty shell | NO | NO | NO |
| Filter function | NO | NO | NO |
| IEC compliance | YES | YES | YES |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| insulator material | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE |
| JESD-609 code | e3 | e3 | e3 |
| MIL compliance | YES | YES | YES |
| Plug contact pitch | 0.109 inch | 0.109 inch | 0.109 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO |
| Installation option 1 | #4-40 | M3 | #4-40 |
| Installation option 2 | THREADED | THREADED | THREADED |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD AND PANEL | BOARD AND PANEL | BOARD AND PANEL |
| PCB row number | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 2.8448 mm | 2.8448 mm | 2.8448 mm |
| Rated current (signal) | 7.5 A | 7.5 A | 7.5 A |
| Guideline | UL,VDE,CSA | UL,VDE,CSA | UL,VDE,CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell surface | TIN | TIN | TIN |
| Shell material | STEEL | STEEL | STEEL |
| Housing size | 3/B | 3/B | 3/B |
| Terminal length | 0.118 inch | 0.118 inch | 0.118 inch |
| Terminal pitch | 2.7686 mm | 2.7686 mm | 2.7686 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | 25 | 25 | 25 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 |
