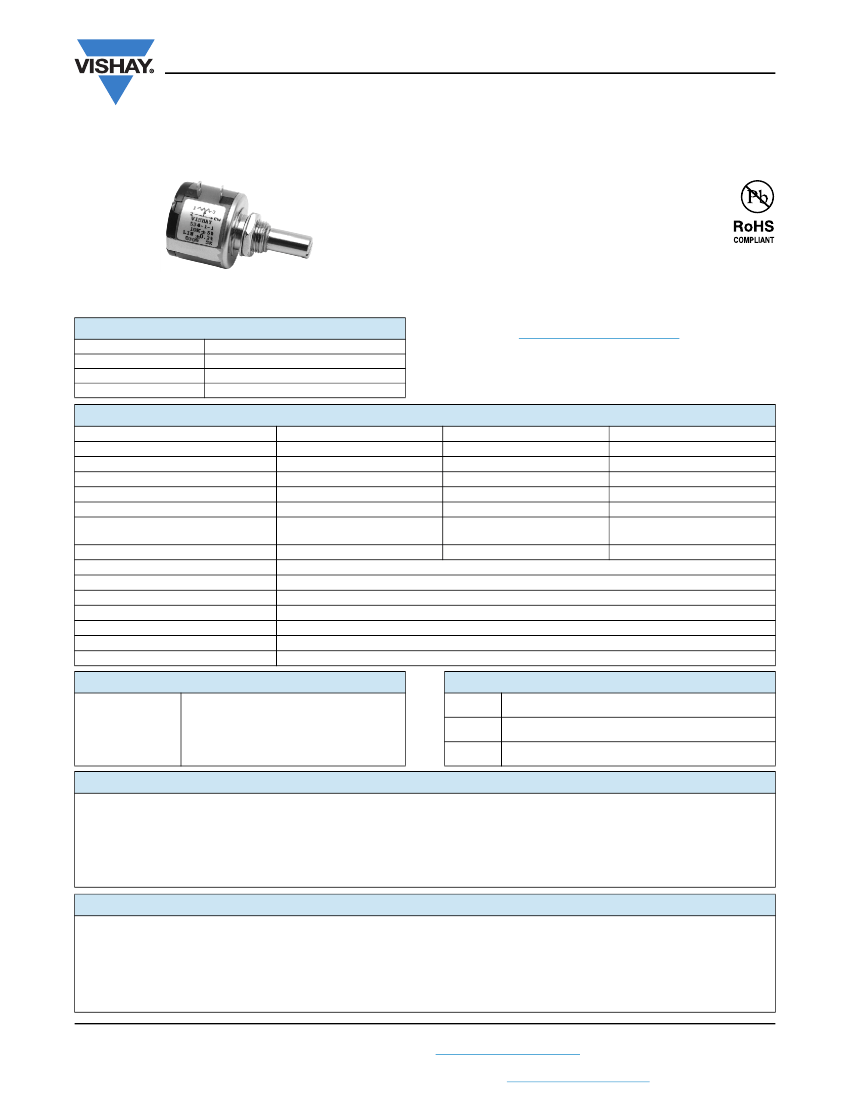

Model 533, 534, 535

www.vishay.com

Vishay Spectrol

(22.2 mm) Multi Turn Wirewound Potentiometer -

533: 3 Turns/534: 10 Turns/535: 5 Turns

FEATURES

•

Bushing and servo mount designs available

Special resistance tolerances to 1 %

Rear shaft extensions and support bearing

Metric shaft available

Dual gang configuration and concentric shafts

High torque, center tap, slipping clutch on request

Special markings and front shaft extensions

Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

Note

• The color of this product may either be black (US market) or blue

(other regions)

QUICK REFERENCE DATA

Sensor type

Output type

Market appliance

Dimensions

ROTATIONAL, multi turn wirewound

Output by turrets

Industrial

/ " (22.2 mm)

ELECTRICAL SPECIFICATIONS

PARAMETER

Resistance range - standard values

Capability range

Standard tolerance

Linearity (independent)

Noise

Rotation (electrical and mechanical)

Power rating (at 70 °C)

Insulation resistance

Dielectric strength

Absolute minimum resistance

Temperature coefficient

End voltage

Phasing

Taps

MODEL 533



to 20 k



to 60 k

±5%

± 0.25 %

100



ENR

1080°

+ 10°

- 0°

MODEL 534

100



to 100 k



to 200 k

±5%

± 0.25 %

100



ENR

3600°

+ 10°

- 0°

MODEL 535



to 50 k



to 100 k

±5%

± 0.25 %

100



ENR

1800°

+ 10°

- 0°

1.0 W

2.0 w

1.5 W

1000 M minimum 500 V

1000 V

RMS

minimum 60 Hz

Not to exceed linearity x total resistance or 1

,

whichever is greater

20 ppm/°C (standard values, wire only)

0.25 % of total applied voltage, maximum

CCW end points - section 2 phased to section 1 within ± 2°

Center tap only

MARKING

Manufacturer’s name and model number,

resistance value and tolerance, linearity

specification date code and terminal

identification.

Example of a marking for a standard part:

534-11103

RESISTANCE VALUES

533

(

534

(

535

(

50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K

100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K, 100K

50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K

Unit identification

ORDERING INFORMATION/DESCRIPTION

The Models 533 (3 turns), 534 (10 turns) and 535 (5 turns) can be ordered by stating

534

MODEL

MOUNTING

Bushing

Servo

NUMBER OF

SECTION

10K

OHMIC VALUE

SECTION N

20K

OHMIC VALUE

SECTION N

TOLERANCE ON

OHMIC VALUE

LINEARITY

± 0.25 % (STD)

BO10

PACKAGING

Box of

10 pieces

LEAD

FINISH

SAP PART NUMBERING GUIDELINES

534

MODEL

STYLE

Bushing

Servo

NUMBER OF

SECTION

103

OHMIC VALUE

SECTION N

103

= 10K

203

OHMIC VALUE

SECTION N

203

= 20K

TOLERANCE ON

OHMIC VALUE

± 5 %

± 1 %

LINEARITY

± 0.25 %

CUSTOM:

± 0.20 %

± 0.1 %

PACKAGING

Box of

10 pieces

Revision: 17-Apr-13

Document Number: 57065

For technical questions, contact:

sferprecisionpot@vishay.com
