MGDT-20-H-CF/T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MGDT-20-H-CF/T

MGDT-20-H-CF/T: DescriptionDC-DC Regulated Power Supply Module, 3 Output, 10W, Hybrid, ROHS COMPLIANT PACKAGE-8; CategoryPower/power management The power supply circuit; File Size560KB，14 Pages; ManufacturerGAIA Converter Inc; Websitehttps://gaia-converter.com; Environmental Compliance

Download Datasheet Parametric View All

MGDT-20-H-CF/T Overview

DC-DC Regulated Power Supply Module, 3 Output, 10W, Hybrid, ROHS COMPLIANT PACKAGE-8

MGDT-20-H-CF/T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	GAIA Converter Inc
Parts packaging code	MODULE
package instruction	, MODULE,8LEAD,1.8
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
Other features	+/-15V ADDITIONAL OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	9 V
Nominal input voltage	20 V
JESD-30 code	S-XDMA-P8
JESD-609 code	e3
length	50.8 mm
Maximum load regulation	2%
Number of functions	1
Output times	3
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	3 A
Maximum output voltage	5.1 V
Minimum output voltage	4.9 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Encapsulate equivalent code	MODULE,8LEAD,1.8
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	12.9 mm
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	10 W
Fine-tuning/adjustable output	NO
width	50.8 mm

Preview

Download Datasheet

View All

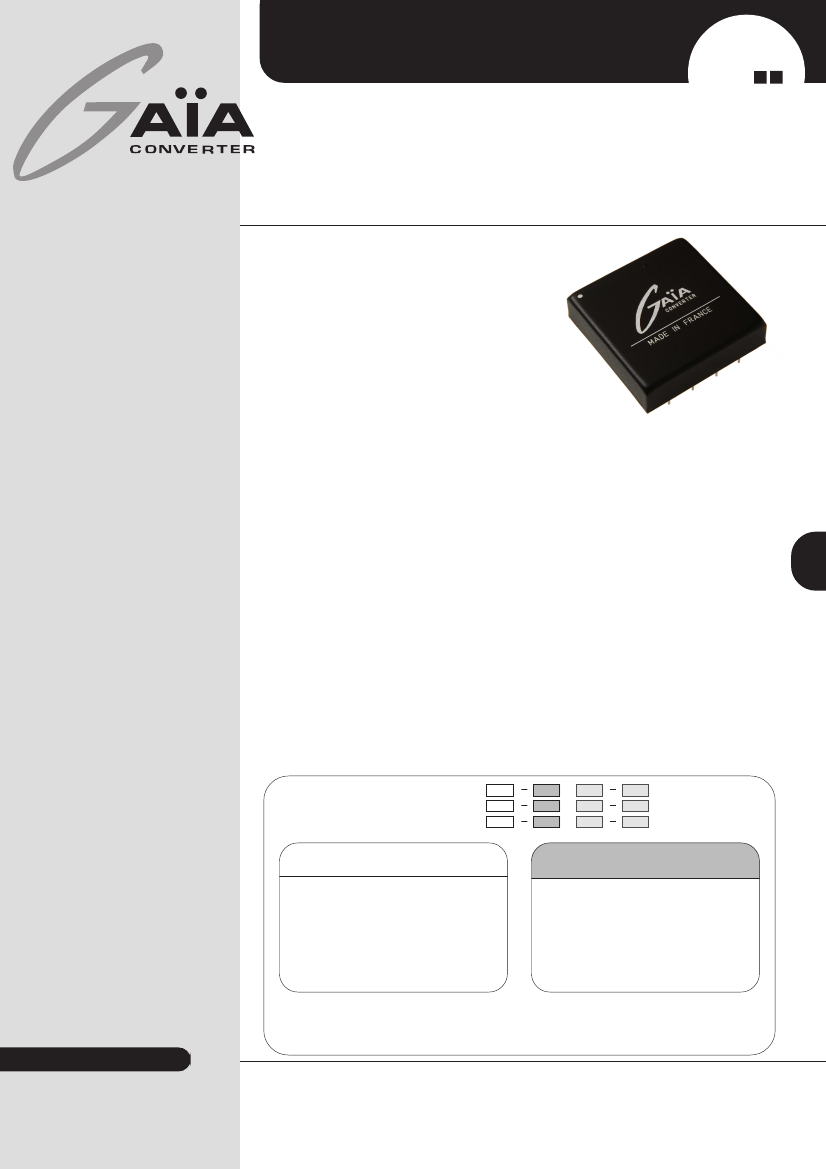

Hi-Rel DC/DC CONVERTER

MGDM-20 : 20W POWER

Hi-Rel

Grade

Single, Bi & Triple Outputs

Metallic Case - 1 500 VDC Isolation

• 28Vdc input compliant with MIL-STD-704 D/E

• Nominal power up to 20 W

• Wide temperature range : -40°C/+105°C case

• High efficiency (typ. 84%)

• Soft start

• Galvanic isolation 1.500 VDC

• Integrated LC EMI filter

• Permanent short circuit protection

• No optocoupler for high reliability

• RoHS or Leaded process option

1-General

The MGDM-20 series is a complete line of high

performance DC/DC power modules designed for

aerospace, military and high-end industrial ap-

plications. These modules use a high frequency

fixed swiching technic at 480 KHz providing ex-

cellent reliability, low noise characteristics and

high power density. Standard models are

available with standard input voltage range of

4.5-5.5, 9-36 and 16-40 volts. The series include

single bi and triple output voltage choices of

3,3 , 5, 12, 15 volts.

No external heatsink is required for the MGDM-

20 series to supply 20W output power over the

full temperature range.

All the modules are designed with LC network

filters to minimize reflected input current ripple

and output voltage ripple.

The modules include a soft-start, an input

undervoltage lock-out, a permanent short cir-

cuit protection and an output overvoltage pro-

tection to ensure efficient module protections.

The soft-start allows current limitation and

eliminates inrush current during start-up. The

short circuit protection completely protects the

modules against short-circuits of any duration

by a shut-down and restores to normal when

the overload is removed.

The design has been carried out with surface

mount components and is manufactured in a

fully automated process to guarantee high

quality. Each module is tested with a GAIA

Converter automated test equipment.The mo-

dules are potted with a bi-component thermal

conductive compound and packaged in a metallic

case to ensure the module’s integrity under high

environmental conditions.

2-Product Selection

Single output model

Bi output model

Triple output model

: MGDS - 20 -

: MGDB - 20 -

: MGDT - 20 -

input

output

option

suffix

Input Voltage Range

Permanent

C : 4,5-5,5 VDC

H : 9-36 VDC

J : 16-40 VDC

* Consult factory

Output

B : 3,3 VDC

C : 5 VDC or +/-5VDC

E : 12 VDC or +/-12VDC

F : 15 VDC or +/-15VDC

BE : 3,3 VDC and +/-12 VDC

BF : 3,3 VDC and +/-15 VDC

CE : 5 VDC and +/-12 VDC

CF : 5 VDC and +/-15 VDC

Suffix :

nothing : RoHS process

-L : leaded process

(available in N. America)

Transient

n/a

40 VDC/100 ms *

50 VDC/100 ms *

Options :

/T : option for -55°C start up operating temperature

/S : option for screening and serialization

REDEFINING THE SOURCE OF POWER

Gaia Converter FC98-016.01/11 Revision N

For locations, phone, fax, E-Mail see back cover
