PUMA2U1000M-17 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> PUMA2U1000M-17

PUMA2U1000M-17: DescriptionEPROM, 32KX32, 170ns, CMOS, CPGA66; Categorystorage storage; File Size716KB，8 Pages; ManufacturerAPTA Group Inc

Download Datasheet Parametric Compare View All

PUMA2U1000M-17 Overview

EPROM, 32KX32, 170ns, CMOS, CPGA66

PUMA2U1000M-17 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	APTA Group Inc
package instruction	PGA, PGA66,11X11
Reach Compliance Code	unknow
Maximum access time	170 ns
I/O type	COMMON
JESD-30 code	S-XPGA-P66
JESD-609 code	e0
memory density	1048576 bi
memory width	32
Number of terminals	66
word count	32768 words
character code	32000
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	32KX32
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	PGA
Encapsulate equivalent code	PGA66,11X11
Package shape	SQUARE
Package form	GRID ARRAY
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.0008 A
Maximum slew rate	0.16 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR

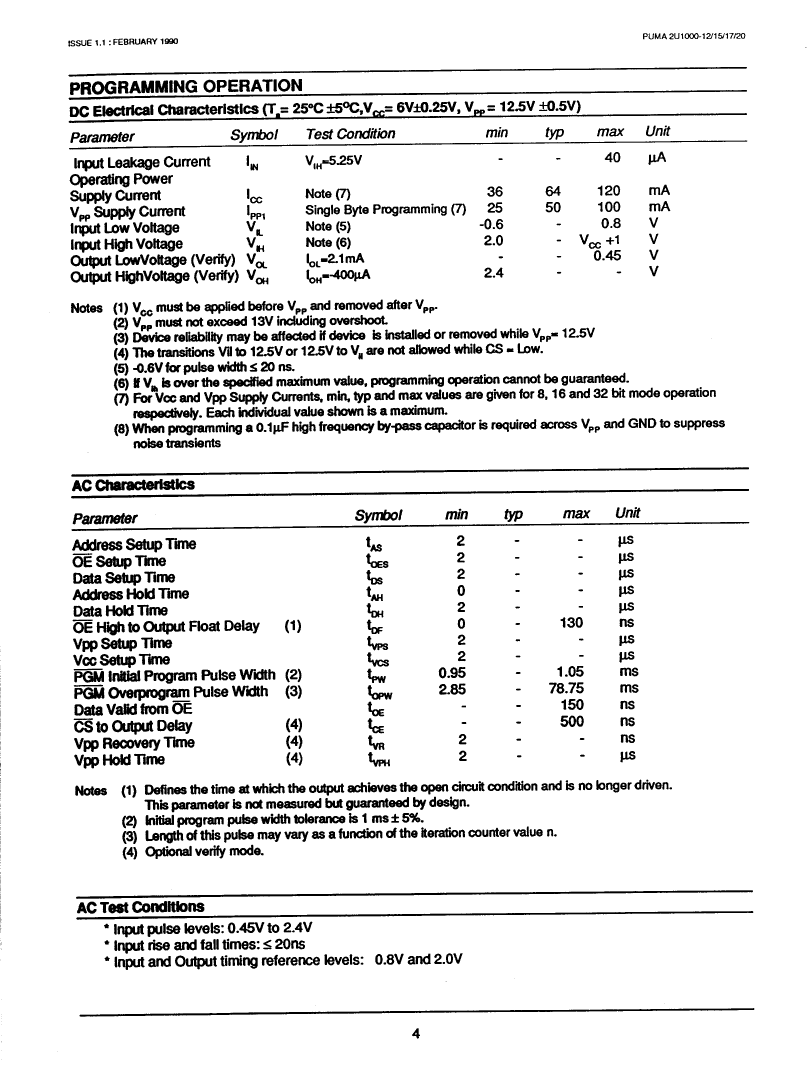

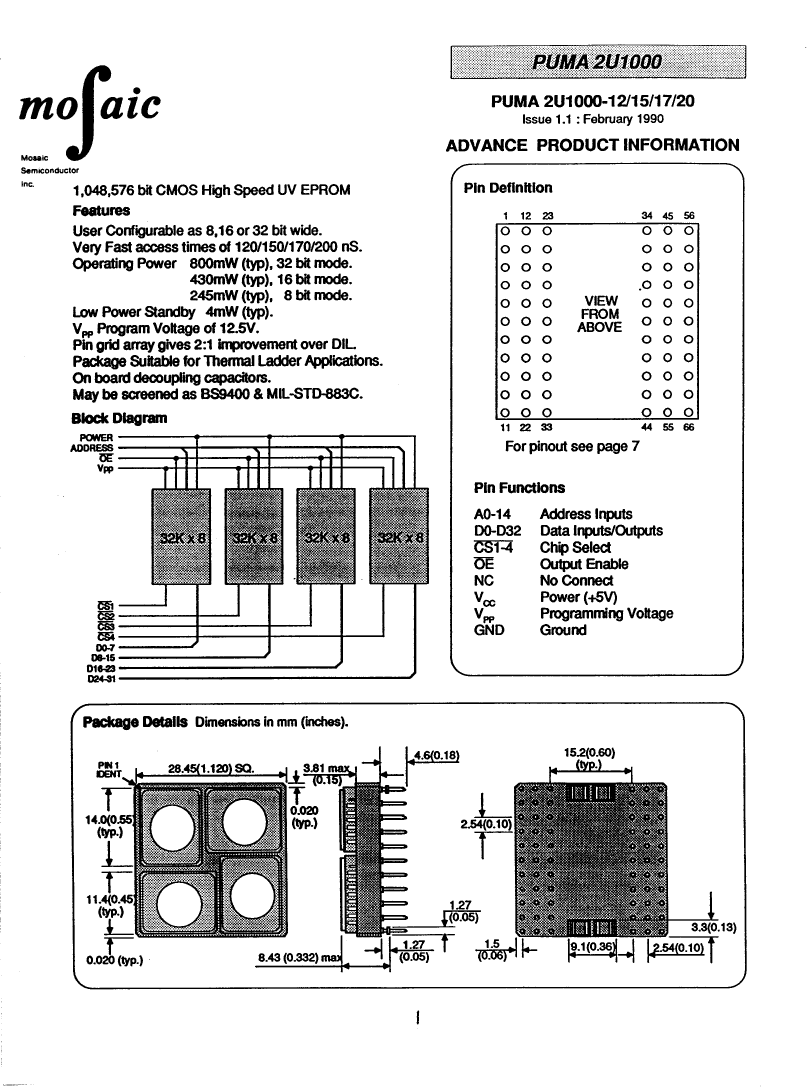

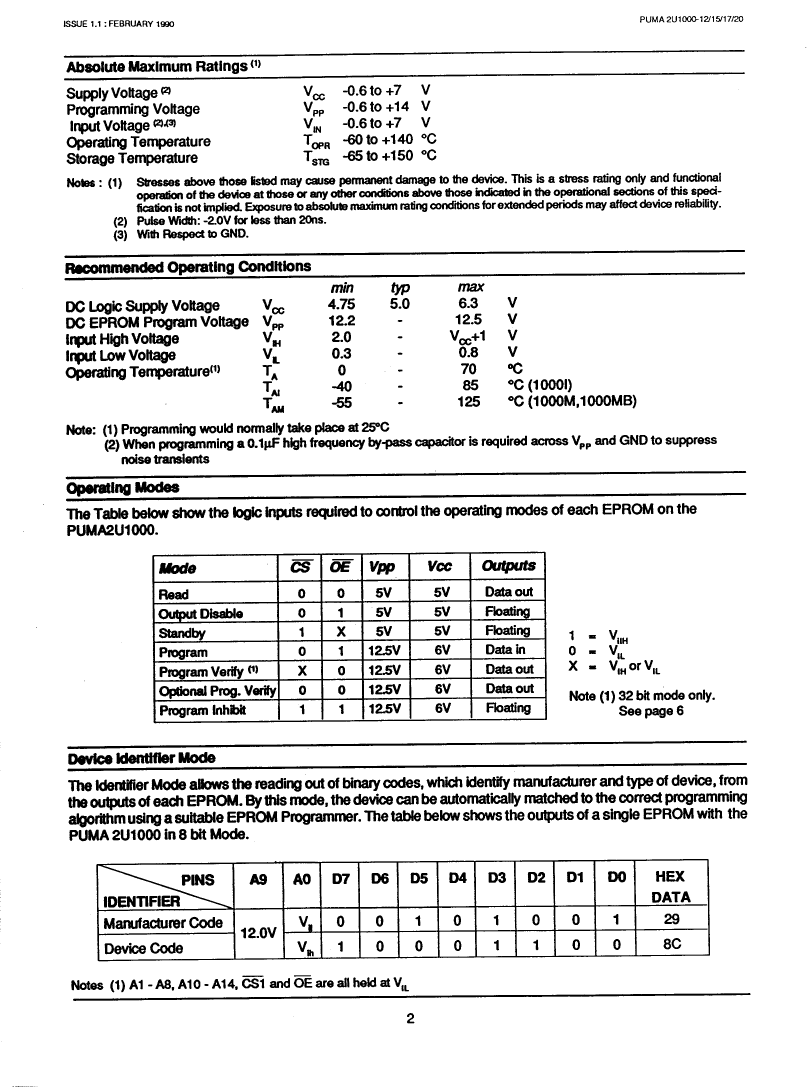

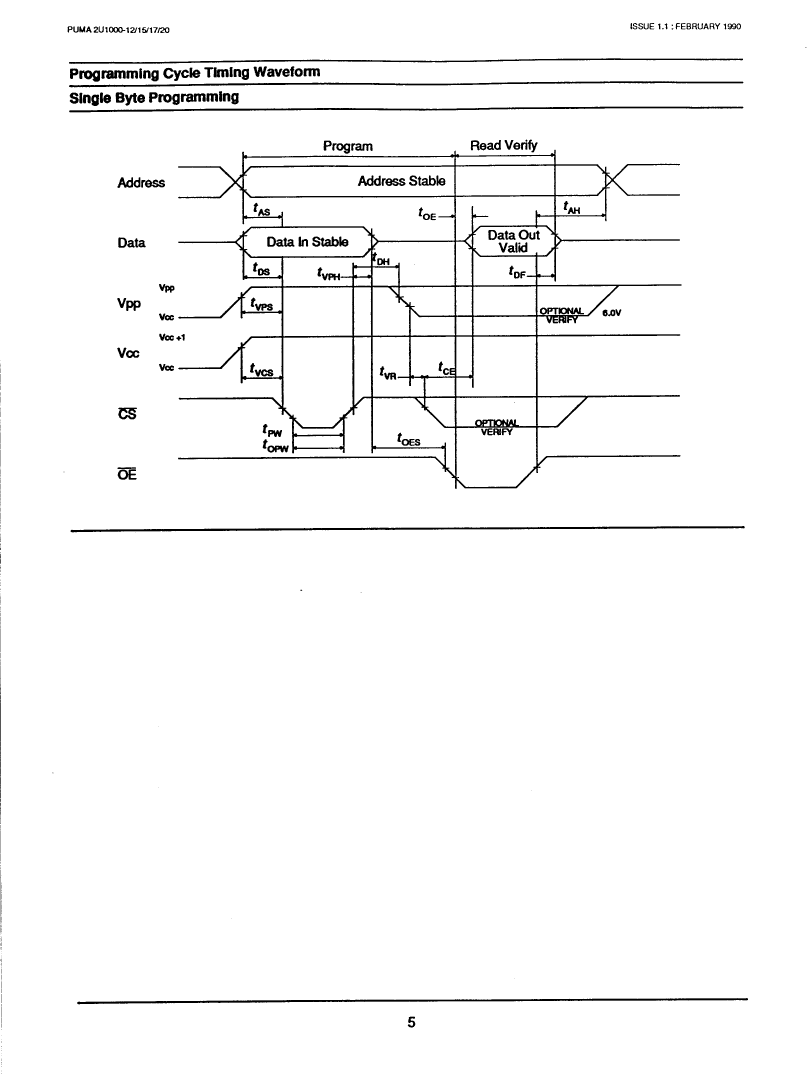

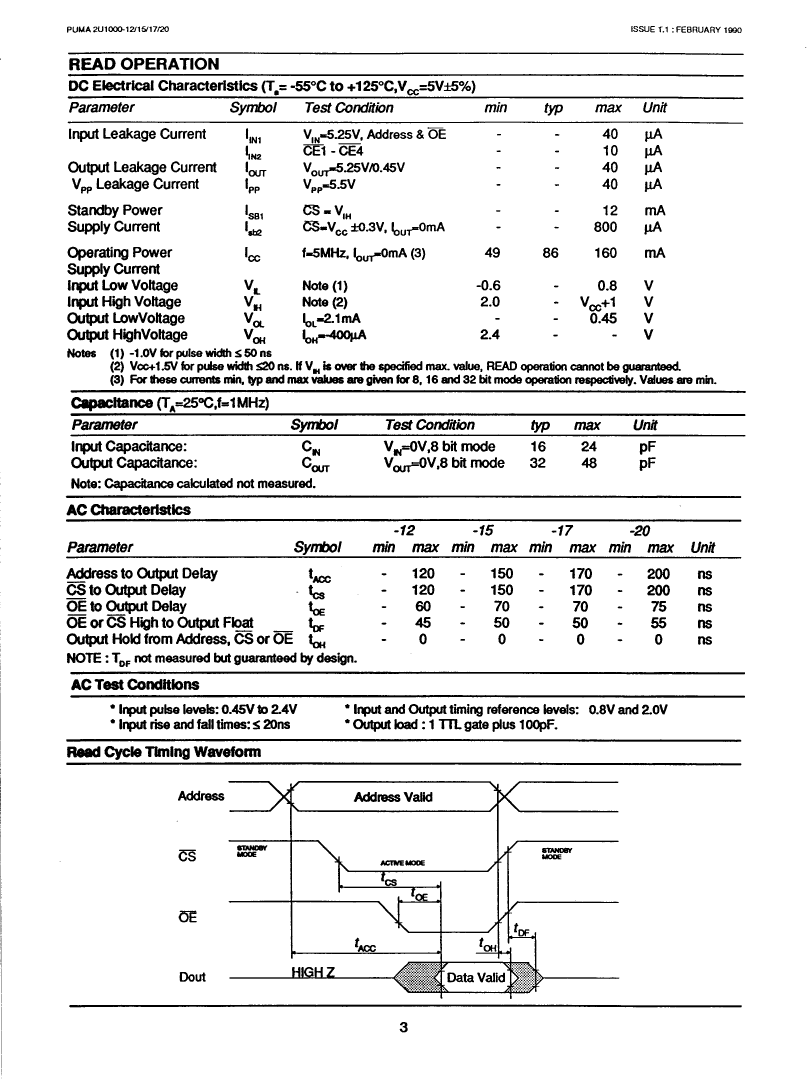

Preview

Download Datasheet

View All

PUMA2U1000M-17 Related Products

	PUMA2U1000M-17	PUMA2U1000M-15	PUMA2U1000MB-20	PUMA2U1000-20	PUMA2U1000M-12	PUMA2U1000MB-12	PUMA2U1000I-20	PUMA2U1000M-20	PUMA2U1000-12	PUMA2U1000MB-17
Description	EPROM, 32KX32, 170ns, CMOS, CPGA66	EPROM, 32KX32, 150ns, CMOS, CPGA66	EPROM, 32KX32, 200ns, CMOS, CPGA66	EPROM, 32KX32, 200ns, CMOS, CPGA66	EPROM, 32KX32, 120ns, CMOS, CPGA66	EPROM, 32KX32, 120ns, CMOS, CPGA66	EPROM, 32KX32, 200ns, CMOS, CPGA66	EPROM, 32KX32, 200ns, CMOS, CPGA66	EPROM, 32KX32, 120ns, CMOS, CPGA66	EPROM, 32KX32, 170ns, CMOS, CPGA66
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	PGA, PGA66,11X11	PGA, PGA66,11X11	PGA, PGA66,11X11	PGA, PGA66,11X11	PGA, PGA66,11X11	PGA, PGA66,11X11	PGA, PGA66,11X11	PGA, PGA66,11X11	PGA, PGA66,11X11	PGA, PGA66,11X11
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
Maximum access time	170 ns	150 ns	200 ns	200 ns	120 ns	120 ns	200 ns	200 ns	120 ns	170 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	S-XPGA-P66	S-XPGA-P66	S-XPGA-P66	S-XPGA-P66	S-XPGA-P66	S-XPGA-P66	S-XPGA-P66	S-XPGA-P66	S-XPGA-P66	S-XPGA-P66
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
memory density	1048576 bi	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bi	1048576 bi
memory width	32	32	32	32	32	32	32	32	32	32
Number of terminals	66	66	66	66	66	66	66	66	66	66
word count	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000	32000	32000	32000	32000	32000	32000
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	125 °C	125 °C	85 °C	125 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-40 °C	-55 °C	-	-55 °C
organize	32KX32	32KX32	32KX32	32KX32	32KX32	32KX32	32KX32	32KX32	32KX32	32KX32
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	PGA	PGA	PGA	PGA	PGA	PGA	PGA	PGA	PGA	PGA
Encapsulate equivalent code	PGA66,11X11	PGA66,11X11	PGA66,11X11	PGA66,11X11	PGA66,11X11	PGA66,11X11	PGA66,11X11	PGA66,11X11	PGA66,11X11	PGA66,11X11
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.0008 A	0.0008 A	0.0008 A	0.0008 A	0.0008 A	0.0008 A	0.0008 A	0.0008 A	0.0008 A	0.0008 A
Maximum slew rate	0.16 mA	0.16 mA	0.16 mA	0.16 mA	0.16 mA	0.16 mA	0.16 mA	0.16 mA	0.16 mA	0.16 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	INDUSTRIAL	MILITARY	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
Maker	APTA Group Inc	-	APTA Group Inc	APTA Group Inc	APTA Group Inc	APTA Group Inc	APTA Group Inc	APTA Group Inc	APTA Group Inc	APTA Group Inc
