SBMA125F10MM35V datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> SBMA125F10MM35V

SBMA125F10MM35V: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, AXIAL LEADED; CategoryPassive components capacitor; File Size62KB，3 Pages; ManufacturerFiradec; Environmental Compliance

Download Datasheet Parametric View All

SBMA125F10MM35V Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, AXIAL LEADED

SBMA125F10MM35V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Firadec
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	10 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e3
leakage current	0.005 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
surface mount	NO
Delta tangent	0.06
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

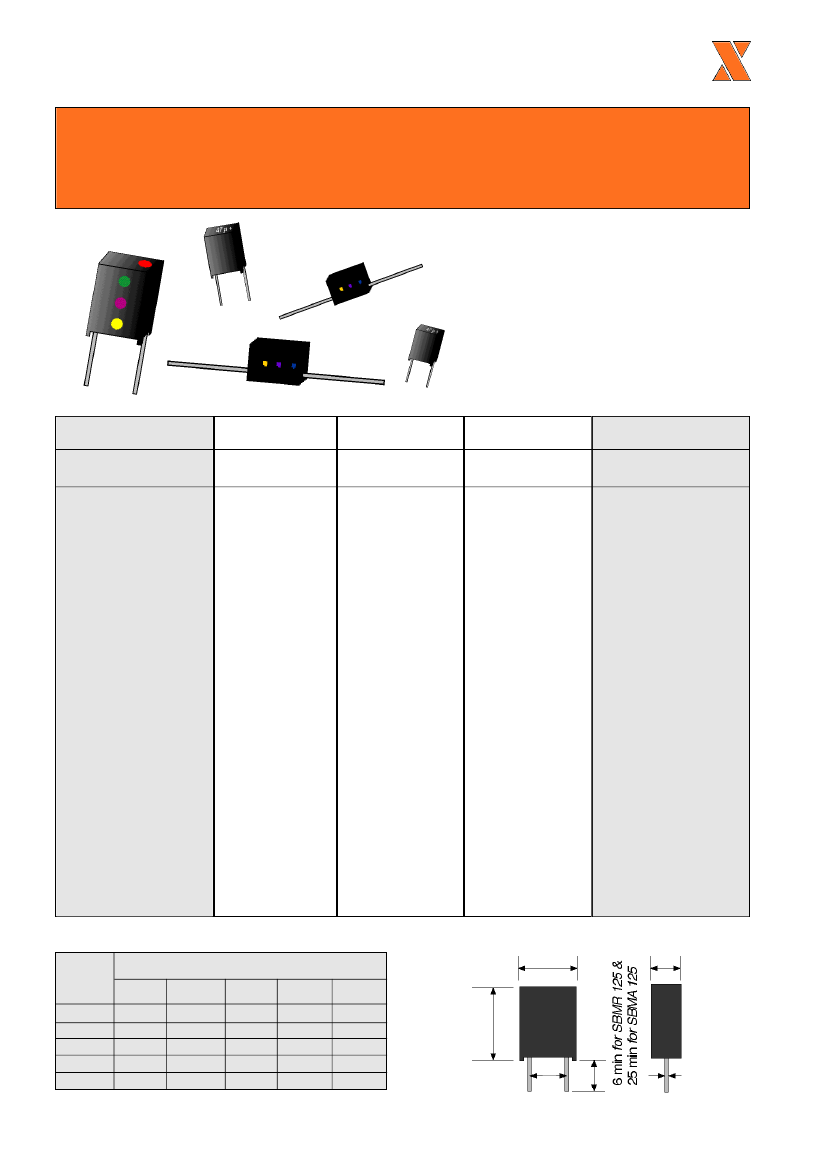

FIRADEC

CONDENSATEURS AU TANTALE

TANTALUM CAPACITORS

Condensateurs tantale à électrolyte solide

Boîtiers moulés

Sorties radiales ou axiales

Polarisés

Solid tantalum capacitors

Moulded cases

Radial leads / Axial leads

Polarised types

SBMR 125

- Radial

SBMA 125

- Axial

(Equivalent to TAH)

CARACTERISTIQUES ELECTRIQUES ET CLIMATIQUES

SBMR 125

ELECTRICAL AND CLIMATIC CHARACTERISTICS

TAH

For comparison

purpose

SBMA125

Spécification particulière

Température d’utilisation

Chaleur humide

Gamme de capacité

Tolérance

Gamme de tension

∆C

/ C maximum à -55°C

∆C

/ C maximum à +85°C

∆C

/ C maximum à +125°C

Tg∂ maximum à +20°C

Tg∂ maximum à -55°C

Tg∂ maximum à +85°C

Tg∂ maximum à +125°C

Courant de fuite max à +20°C

Courant de fuite max à +85°C

Courant de fuite max à +125°C

Impéd. max. (100kHz) à 20°C

Tension efficace maximum

Tenue en charge - décharge

Tension inverse max à +20°C

Tension inverse max à +85°C

Tension inverse max à +125°C

Surtension max à +85°C

Surtension max à +125°C

CECC 30201-003

-55°C +125°C

21 jours /

days

0,1µF...150µF

20%...10%

6,3V...50V

-10%

+12%

+15%

voir

/ see /

table

= 1,5 x lim20°C

= 2,0 x lim20°C

voir

/ see /

table

voir

/ see /

table

voir

/ see /

table-

voir

/ see /

table

CECC 30201-003

-55°C +125°C

21 jours /

days

0,1µF...150µF

20%...10%

6,3V...50V

-10%

+12%

+15%

voir

/ see /

table

= 1,5 x lim20°C

= 2,0 x lim20°C

voir

/ see /

table

voir

/ see /

table

voir

/ see /

table-

voir

/ see /

table

CECC 30201-048

-55°C +125°C

21 jours /

days

0,1µF...150µF

20%...10%

6,3V...35V

-12%

+12%

+15%

= 6, 8 or 10% (see table)

= 10, 11 or 13%

= 8,10 or12%

= 10, 11 or 13%

voir

/ see /

table

voir

/ see /

table

voir

/ see /

table

voir

/ see /

table

voir courbes /

see curves

non /

1,3 x U

Detail specification

Operating temperature

Damp heat

Capacitance range

Tolerance

Voltage range

Max capacitance change at -55°C

Max capacitance change at -85°C

Max capacitance change at -125°C

Maximum DF at +20°C

Maximum DF at -55°C

Maximum DF at +85°C

Maximum DF at +125°C

Max leakage current at +20°C

Max leakage current at +85°C

Max leakage current at +125°C

Max. impedance (100kHz) +20°C

Maximum ripple voltage

High surge current

Max reverse voltage at +20°C

Max reverse voltage at +85°C

Max reverse voltage at +125°C

Max surge voltage at 85°C

Max surge voltage at 125C

voir courbes /

see curves

voir courbes /

see curves

non /

---

1,3 x U

non /

---

1,3 x U

DIMENSIONS SBMR 125

Boîtier

Case code

L. max

3,3 /

3,2

4,9 /

4,8

6,0 /

5,7

6,1 /

5,9

9,8 /

9,6

Dimensions en mm

Dimensions in mm

H. max

4,4 /

4,2

5,9 /

5,8

E. max

2,1 /

1,9

2,1 /

2,0

e ±0,3

+10%

d -0,05

DIMENSIONS (TAH in italics)

2,54 /

2,5

0,3 /

0,25

3,81 /

3,8

0,3 /

0,25

5,08 /

4,6

5,08 /

5,0

7,62 /

7,6

0,4 /

0,4

0,4 /

0,4

0,4 /

0,4

7,6 /

7,4

3,0 /

2,9

8,1 /

7,9

3,5 /

3,4

12,3 /

12,1

4,1 /

3,9

MARQUAGE, CONDITIONNEMENT, CONSTRUCTION

voir caractéristiques générales

MARKING, PACKAGING, CONDTRUCTION :

see general characteristics
