Introduction
We at Component General, Inc. take pride in giving our customers more than just a high quality
product at a fair market price. We also provide a service -- specialized attention to individual
requirements. From inception in 1974, throughout the growth years and today, customer satisfaction
is the prime concern of Component General, Inc. management.
Component General, Inc. recently built a 19,000 Sq.Ft. modern facility in Odessa, Florida, 23 miles
north of Tampa Airport. We manufacture a broad line of stripline and coaxial resistors, terminations
and attenuators. We also maintain our own machine shop for making special request parts. With
in-house test equipment, the following tests are performed per customer requests and also for
verification of the performance of our products.
•
•
•
•
POWER BURN-IN
THERMAL SHOCK
SHORT TIME OVERLOAD
TEMPERATURE COEFFICIENT
•
•
•
•
SHEAR STRENGTH
HIGH TEMPERATURE EXPOSURE
LOAD LIFE
VSWR (NETWORK ANALYZER)
DC - 20 GHz
A
quality control program is in effect with procedures documented in accordance with
MIL-I-45208, MIL-STD-105, MIL-STD-45662 and MIL-Q-9858. All products are inspected 100%
during production and sampled on an AQL basis at final inspection.
THE FOLLOWING INFORMATION IS TO FACILITATE ORDERING:
Fax No.:
(727) 372-9096
(727) 376-6655
Telephone No.:
EMAIL:
Website:
sales@componentgeneral.com
www.componentgeneral.com
Mailing Address: 2445 Success Drive, Odessa, FL. 33556
Local Rep.:
Rep. sheets are available upon request.
Please State Required: P/N, Value, Tolerance & Quantity.
For special requirements and non-catalog features, please specify the Component General part
number, value, tolerance and identify the non-standard feature, with drawing if required. If the non-
standard feature can be specified in a few words, this will be sufficient. Component General will,
upon receipt of the order or upon your request, issue an in-house part number for the item.
Our engineering personnel will be most happy to discuss your requirements. Cross-reference sheets
are available to aid you if you have a competitive part number and need the Component General part
number.
Component General, Inc.
Phone (727) 376-6655 • Fax (727) 372-9096 • www.componentgeneral.com
W
H (MAX.)
B
W
H (MAX.)
B
15
GROUND
L
A
IN
GROUND
L
A
Power Chip Terminations & Resistors with Tabs
IN
FIG. 1.
FIG. 2.

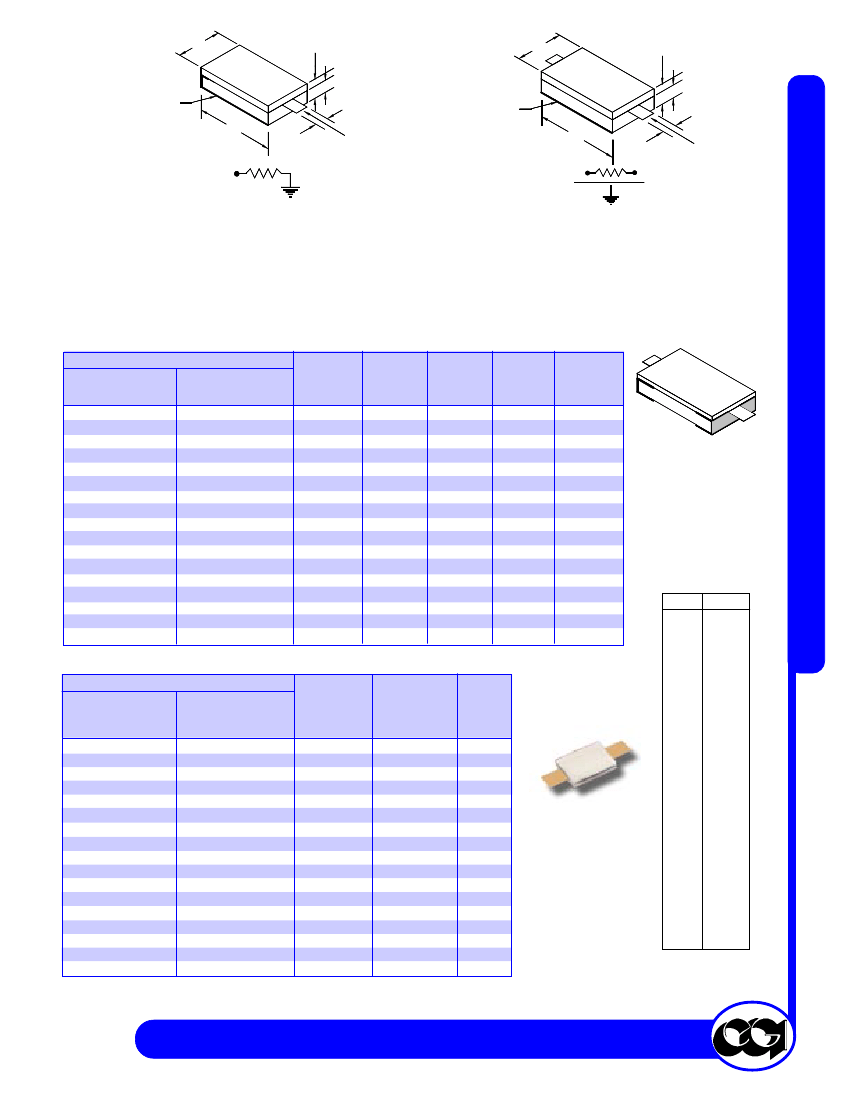

MECHANICAL SPECIFICATIONS
Substrate
Contact
Cover
Tolerance
:
:
:
:
Beryllium Oxide Ceramic.
Beryllium Copper - Gold Plated per MIL-G-45204.
Length .125" minimum; Thickness .004" ± .002".
Alumina Ceramic.
± .010" unless Specified.
CGI P/N
TERMINATION
RESISTOR
FIG. 1.
CCT-100-2
CCT-100-2B
CCT-230-1
CCT-230-2
CCT-250-1
CCT-250-1B
CCT-250-2
CCT-250-2B
CCT-250-2C
CCT-375-1
CCT-375-1B
CCT-375-2
CCT-375-3
CCT-500-1
CCT-625-1
CCT-625-2
CCT-1000-1
FIG. 2.
CCR-100-2
CCR-100-2B
CCR-230-1
N/A
CCR-250-1
CCR-250-1B
CCR-250-2
CCR-250-2B
CCR-250-2C
CCR-375-1
CCR-375-1B
N/A
N/A
CCR-500-1
CCR-625-1
CCR-625-2
CCR-1000-1
L
.200
.200
.350
.350
.250
.250
.375
.375
.375
.375
.375
.375
.375
.500
1.000
1.000
1.000
W
.100
.100
.230
.230
.250
.250
.250
.250
.250
.375
.375
.375
.375
.500
.625
.625
1.000
A
.040
.040
.040
.040
.060
.060
.120
.250
.120
.120
.120
.060
.120
.120
.250
.250
.250
B
.040
.060
.040
.040
.040
.060
.040
.130
.060
.040
.060
.040
.040
.040
.130
.130
.060
H
.070
.090
.070
.070
.070
.090
.070
.165
.090
.070
.090
.070
.070
.070
.170
.170
.090
This configuration is
available on all sizes.
Add the suffix -E to the P/N.
(eg. CCR-100-2B-E)
IN
.002
.004
.010
.040
.060
MM
.050
.102
.254
1.016
1.524
1.778
2.286
2.540
3.048
3.300
4.191
4.318
5.080
5.842
6.350
8.890
9.525
ELECTRICAL PERFORMANCE SPECIFICATIONS
CGI P/N
TERMINATION
FIG. 1.
CCT-100-2
CCT-100-2B
CCT-230-1
CCT-230-2
CCT-250-1
CCT-250-1B
CCT-250-2
CCT-250-2B
CCT-250-2C
CCT-375-1
CCT-375-1B
CCT-375-2
CCT-375-3
CCT-500-1
CCT-625-1
CCT-625-2
CCT-1000-1
*
RESISTOR
FIG. 2.
CCR-100-2
CCR-100-2B
CCR-230-1
N/A
CCR-250-1
CCR-250-1B
CCR-250-2
CCR-250-2B
CCR-250-2C
CCR-375-1
CCR-375-1B
N/A
N/A
CCR-500-1
CCR-625-1
CCR-625-2
CCR-1000-1
*
POWER
62
40
150
40
170
80
330
100
160
350
250
250
250
500
700
180
1000
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
W
RES.
(OHMS)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
STD.
TOL.
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
5%
.070
.090
.100
.120
.130
.165
.170
.200
.230
.250
.350
.375
.500 12.700
.625 15.875
1.000 25.400
Maximum power (watts) is based on 150°C maximum film temperature and derated linearly to zero at 200°C.
Power is based on infinite and ideal heat sink with the heat sink at 100ºC.
Component General, Inc.
Phone (727) 376-6655 • Fax (727) 372-9096 • www.componentgeneral.com
