201S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 201S

201S: DescriptionLinear Detector, 10MHz Min, 20000MHz Max, 20dBm Input Power-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size247KB，2 Pages; ManufacturerKrytar Inc

Download Datasheet Parametric Compare View All

201S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	201S	-	-	View	Buy Now

201S Overview

Linear Detector, 10MHz Min, 20000MHz Max, 20dBm Input Power-Max

201S Parametric

Parameter Name	Attribute value
Maker	Krytar Inc
Reach Compliance Code	unknow
Other features	SMC; 3.5 MM-M
structure	COAXIAL
Maximum input power (CW)	20 dBm
Maximum operating frequency	20000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-54 °C
Output polarity	NEGATIVE
RF/Microwave Device Types	LINEAR DETECTOR
Maximum voltage standing wave ratio	1.35

Preview

Download Datasheet

View All



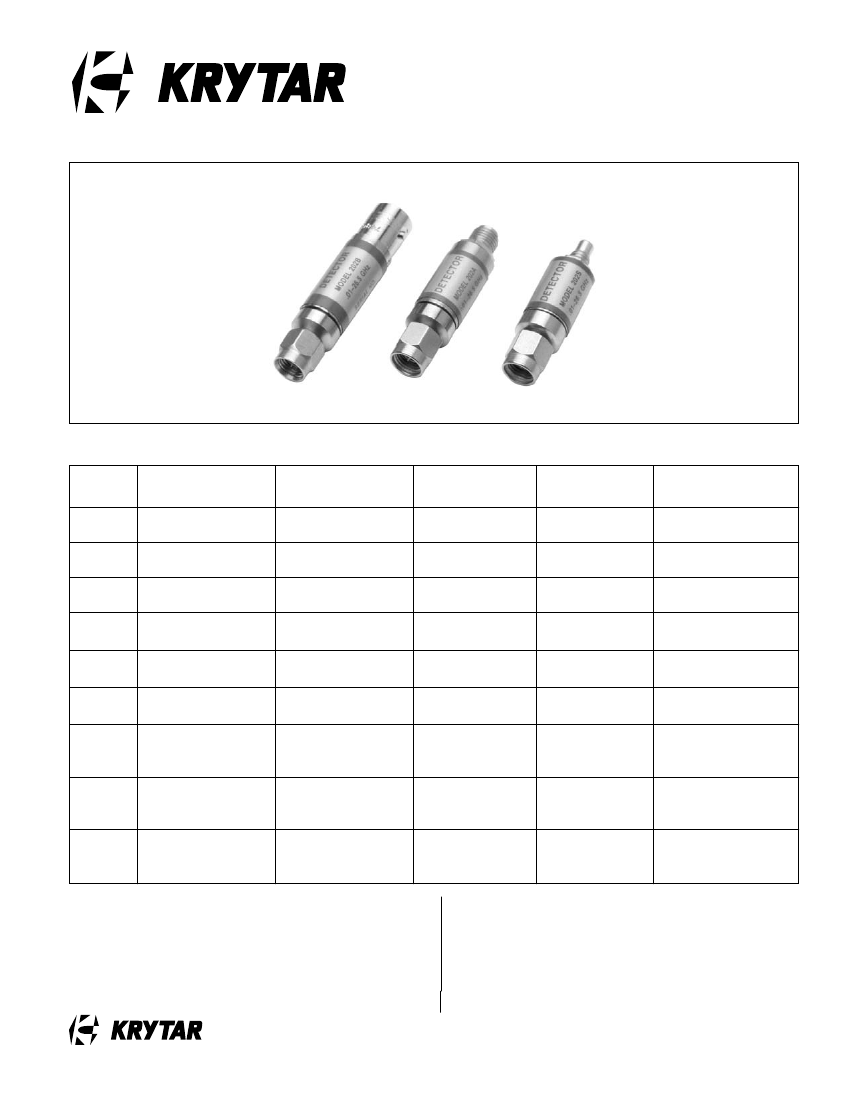

ZERO BIAS SCHOTTKY DETECTORS

10 MHz-20 GHz, 10 MHz-26.5 GHz

AND 10 MHz-40 GHz

DESIGNED FOR MIL ENVIRONMENTS

SPECIFICATIONS

MODEL

201A

201B

201S

202A

202B

202S

203A

203AK

203B

203BK

203S

203SK

FREQUENCY

RANGE

10 MHz - 20 GHz

10 MHz - 26.5 GHz

10 MHz - 40 GHz

FREQUENCY

RESPONSE

±0.5 dB

±0.5 dB to 20 GHz

±0.8 dB to 26.5 GHz

±0.5 dB to 20 GHz

±0.8 dB to 26.5 GHz

±0.5 dB to 20 GHz

±0.8 dB to 26.5 GHz

±0.5 dB to 20 GHz

±0.8 dB to 26.5 GHz

±1.5 dB to 40 GHz

±0.5 dB to 20 GHz

±0.8 dB to 26.5 GHz

±1.5 dB to 40 GHz

±0.5 dB to 20 GHz

±0.8 dB to 26.5 GHz

±1.5 dB to 40 GHz

0.5 mV/

30 pF

100 mW

-54º to +100º C

MAXIMUM

VSWR

1.35

1.35 to 20 GHz

1.5 to 26.5 GHz

1.35 to 20 GHz

1.5 to 26.5 GHz

1.35 to 20 GHz

1.5 to 26.5 GHz

1.35 to 20 GHz

1.5 to 26.5 GHz

2.0 to 40 GHz

1.35 to 20 GHz

1.5 to 26.5 GHz

2.0 to 40 GHz

1.35 to 20 GHz

1.5 to 26.5 GHz

2.0 to 40 GHz

OUTPUT

CONNECTOR

SMA Female

BNC Female

SMC Jack

SMA Female

BNC Female

SMC Jack

SMA Female

DIMENSIONS

1.57 in. x 0.4 in. dia.

1.85 in. x 0.4 in. dia.

1.45 in. x 0.4 in. dia.

1.57 in. x 0.4 in. dia.

1.85 in. x 0.4 in. dia.

1.45 in. x 0.4 in. dia.

1.57 in. x 0.4 in. dia.

10 MHz - 40 GHz

BNC Female

1.85 in. x 0.4 in. dia.

10 MHz - 40 GHz

SMC Jack

1.45 in. x 0.4 in. dia.

LOW LEVEL SENSITIVITY

OUTPUT CAPACITANCE

MAXIMUM INPUT

OPERATING TEMPERATURE



OUTPUT POLARITY

Negative

For positive output, add “P” to end of Model Number.

INPUT CONNECTOR

Models 201A, 201B, 201S, 202A, 202B, 202S

Models 203A, 203B, 203S

Models 203AK, 203BK, 203SK

3.5 mm Male

2.4 mm Male

2.92 mm Male

1288 Anvilwood Ave. • Sunnyvale, CA 94089 • (408) 734-5999 • FAX: (408) 734-3017

Toll Free 1 (877) 734-5999 • www.krytar.com

04/09

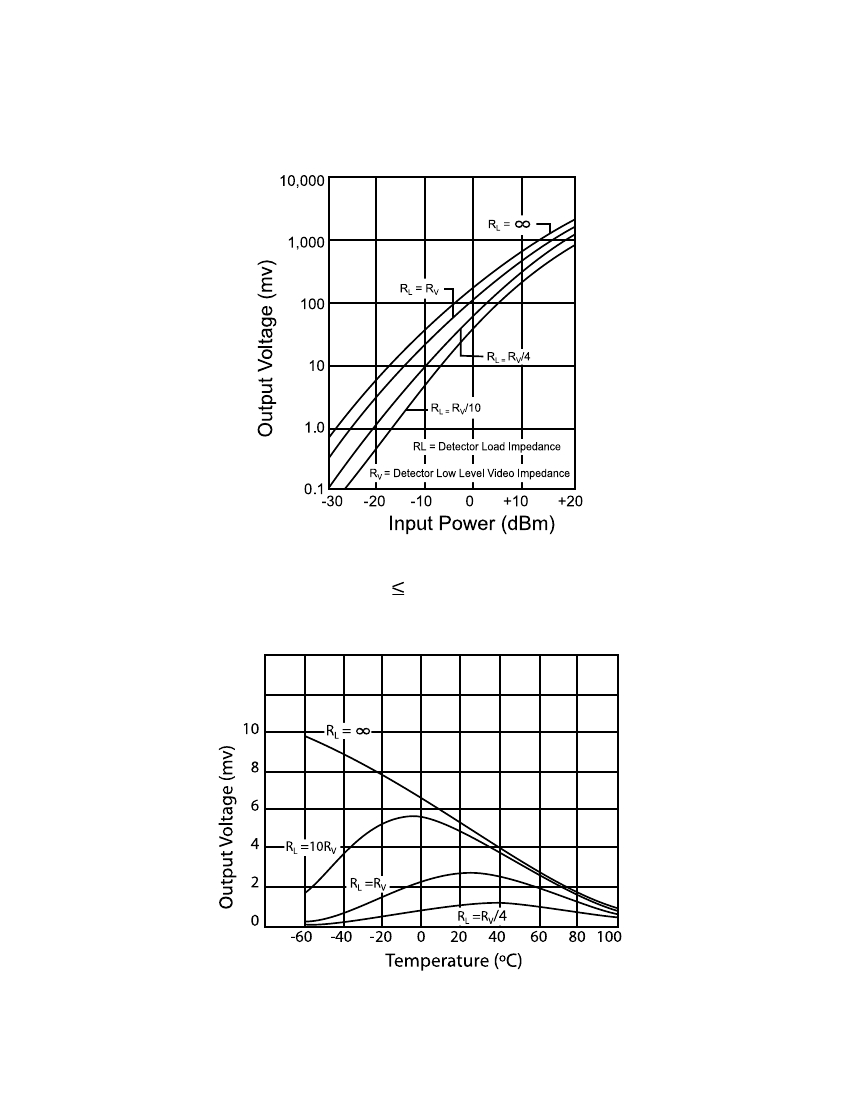

201S Related Products

	201S	203SK
Description	Linear Detector, 10MHz Min, 20000MHz Max, 20dBm Input Power-Max	Linear Detector, 10MHz Min, 40000MHz Max, 20dBm Input Power-Max
Maker	Krytar Inc	Krytar Inc
Reach Compliance Code	unknow	unknow
Other features	SMC; 3.5 MM-M	SMC; 2.92 MM-M
structure	COAXIAL	COAXIAL
Maximum input power (CW)	20 dBm	20 dBm
Maximum operating frequency	20000 MHz	40000 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-54 °C	-54 °C
Output polarity	NEGATIVE	NEGATIVE
RF/Microwave Device Types	LINEAR DETECTOR	LINEAR DETECTOR
Maximum voltage standing wave ratio	1.35	2
