MK Electric - Print Item Information
ITEM NUMBER: 5504S
CIRCUIT PROTECTION
SENTRY
ENCLOSURES IP30 ENCLOSURE
CARTON QUANTITY: 1

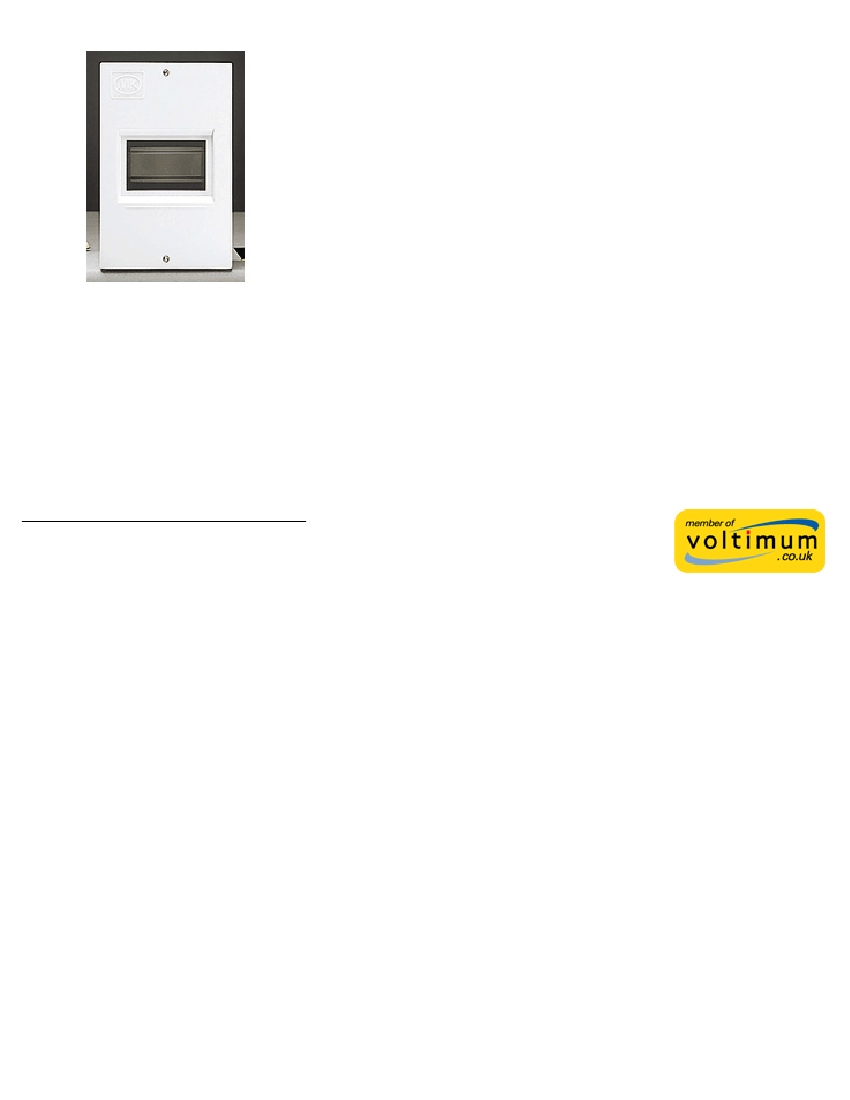

5504s
Metal
With mounting rail,
earth terminals and
moulded front plate
Four module
These enclosures will accommodate two or four
module Sentry RCDs or a combination of Sentry
modules, excluding contactors.
Dimensions:
5504s: 188 x 121 x 74mm
(width x height x depth)
Degree of Protection to
BS EN 60529: 1992
5504s: IP30
Precautions must be taken to maintain the IP rating.
eg. correct use of cable glands and knockouts
Click here to view the Honeywell privacy statement
Site designed & developed by viplondon
http://www.mkelectric.co.uk/products/print.asp?rangeid=1051&itemid=671208/02/2007 13:15:08

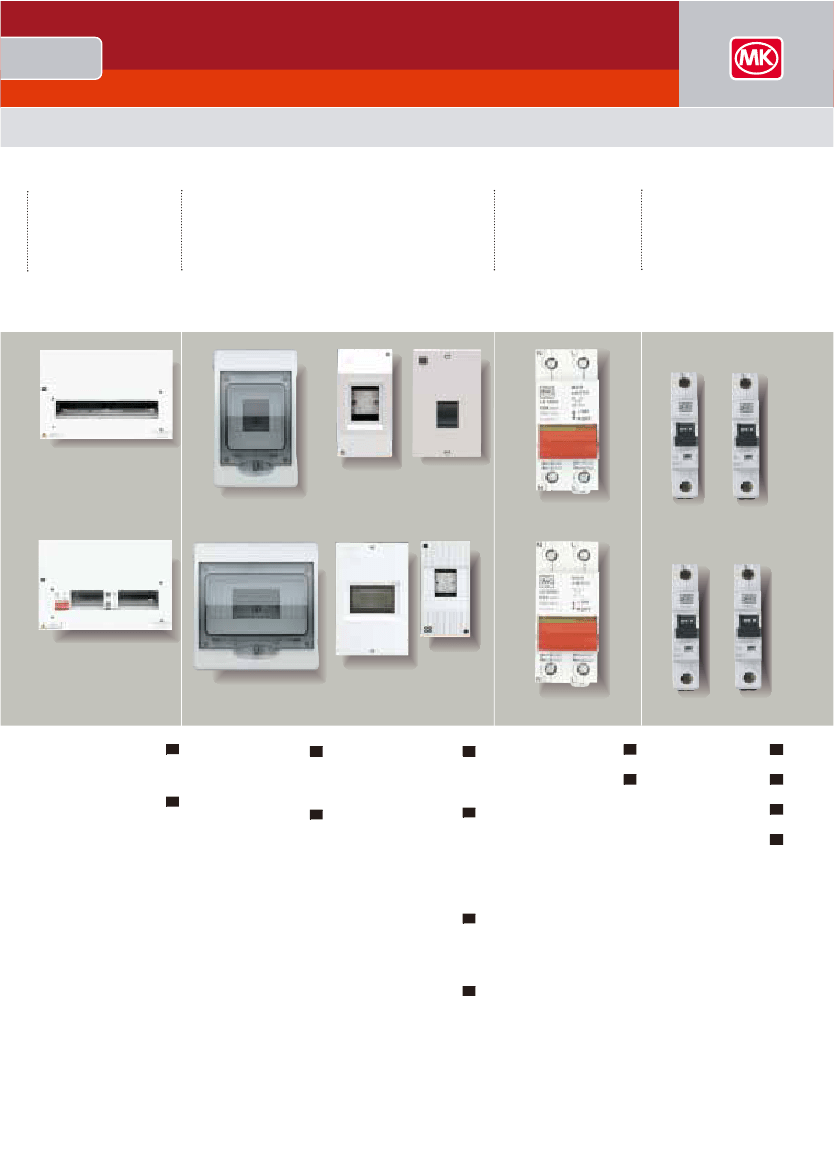

220
Sentry
CIRCUIT PROTECTION
www.mkelectric.co.uk
Skeleton Units
Enclosures
Switch
Disconnectors
Double Pole
MCBs
Single Pole
FOR MOUNTING IN A
MANTEL/CLIFTON TYPE
ENCLOSURE
IP65
WEATHERPROOF
ENCLOSURE
IP30 ENCLOSURE
TWO MODULE
TYPE B
ONE MODULE
6000s
5502s
5702s
K5592s
5500s
5903s
5906s
6001s
5704s
5504s
5604s
5560s
5910s
5916s
6000s
ACCEPTS 14
ONE MODULE PRODUCTS
(1 INTEGRAL NEUTRAL BAR)
1
5702s
WEATHERPROOF
COMPLETE WITH NEUTRAL AND
EARTH TERMINAL BLOCK
ACCEPTS UP TO 4 MODULES
1
5502s
INSULATED COMPLETE WITH
MOUNTING RAIL, NEUTRAL
AND EARTH TERMINALS
TWO MODULE
1
5500s
100A 230V
5
5
5903s
3A 230V
10
10
10
10
5560s
63A 230V
1
5906s
6A 230V
6001s
100A SWITCH DISCONNECTOR
AND 63A 30mA RCD.
ACCEPTS A FURTHER 10
ONE MODULE PRODUCTS
IN ANY CONFIGURATION OF
RCD PROTECTED
AND UNPROTECTED CIRCUITS
BETWEEN 2/8 AND 8/2
These units are suitable for use in
most Mantel and Clifton type
enclosures.
1
5704s
WEATHERPROOF
COMPLETE WITH NEUTRAL AND
EARTH TERMINAL BLOCK
ACCEPTS UP TO 8 MODULES
1
K5592s
RCBO ENCLOSURE – METAL
TWO AVAILABLE MODULES
SUITABLE FOR LIST NOS.
6932s, 6933s, 6934s, 6935s,
6936s, 6937s, 6938s
WITH MOUNTING RAIL,
EARTH TERMINALS AND
METAL FRONT PLATE
5910s
10A 230V
5916s
16A 230V
Typical applications for enclosures
are house extensions, garages and
small workshops.
These enclosures will accommodate
two or four module Sentry RCDs or
a combination of Sentry modules,
excluding contactors.
DIMENSIONS:
WIDTH
5702S: 200 x
5704S: 200 x
5502S: 149 x
5504S: 188 x
5604S: 160 x
K5592s:185 x
HEIGHT
123 x
195 x
76 x
121 x
85 x
119 x
DEPTH
112mm
112mm
76mm
74mm
68mm
66mm
5504s
METAL
WITH MOUNTING RAIL,
EARTH TERMINALS AND
MOULDED FRONT PLATE
FOUR MODULE
1
Factory assembled units are available
for specific installations.
DIMENSIONS:
WIDTH HEIGHT DEPTH
6000s: 222 x 333 x 90mm
6001s: 222 x 333 x 90mm
Degree of Protection to
BS EN 60529: 1992 IP30
Precautions must be taken to maintain
the IP rating, eg. correct use of cable
glands and knockouts.
BS EN 60439-3: 1994
Suitable for installation in Sentry
Consumer Units and two or four
module enclosures. Accepts direct
to busbar or cable-in / cable-out
connection. Category of duty:
AC22A for switching of resistive
and inductive loads.
Positive contact status indication in
accordance with 16th Edition IEE
Wiring Regulations
(537-02-03 and 537-03-02)
DIMENSIONS:
81 x 36 x 76mm
CABLE CAPACITY:
50mm
2
BS EN 60947-3: 1992
Suitable for installation in Sentry
Consumer Units and two or four
module enclosures.
Positive contact status indication in
accordance with 16th Edition IEE
Wiring Regulations
(537-02-03 and 537-03-02)
DIMENSIONS:
83 x 18 x 74mm
CABLE CAPACITY:
3, 6, 10, 16A: 35mm
2
Short-circuit breaking capacity: 6KA
BS EN 60898: 1991
Degree of Protection to
BS EN 60529: 1992
5702s: IP65
5704s: IP65
5502s: IP30
5504s: IP30
5604s: IP30
K5592s: IP30
1
INSULATED
WITH MOUNTING RAIL,
TWO INTEGRAL BLANKING PLATES
AND TAMPER-PROOFING
COMPONENTS
FOUR MODULE
K5592s suitable for Sentry Single
Module RCBO.
Precautions must be taken to
maintain the IP rating, eg. correct
use of cable glands and knockouts
IP65 enclosures to EN 60670
5604s
