TX914-2507V-020.0M datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> TX914-2507V-020.0M

Preview

TX914-2507V-020.0M: DescriptionTCVCXO, Sine,; CategoryPassive components oscillator; File Size627KB，4 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/; Environmental Compliance

Download Datasheet Parametric View All

TX914-2507V-020.0M Overview

TCVCXO, Sine,

TX914-2507V-020.0M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Connor-Winfield
Reach Compliance Code	unknow

TX914-2507V-020.0M Preview

TCXO - VCTCXO

Specification:

TX914- Sinewave Series

2111 Comprehensive Drive

Aurora, Illinois 60505

Phone: 630- 851- 4722

Fax: 630- 851- 5040

www.conwin.com

Description:

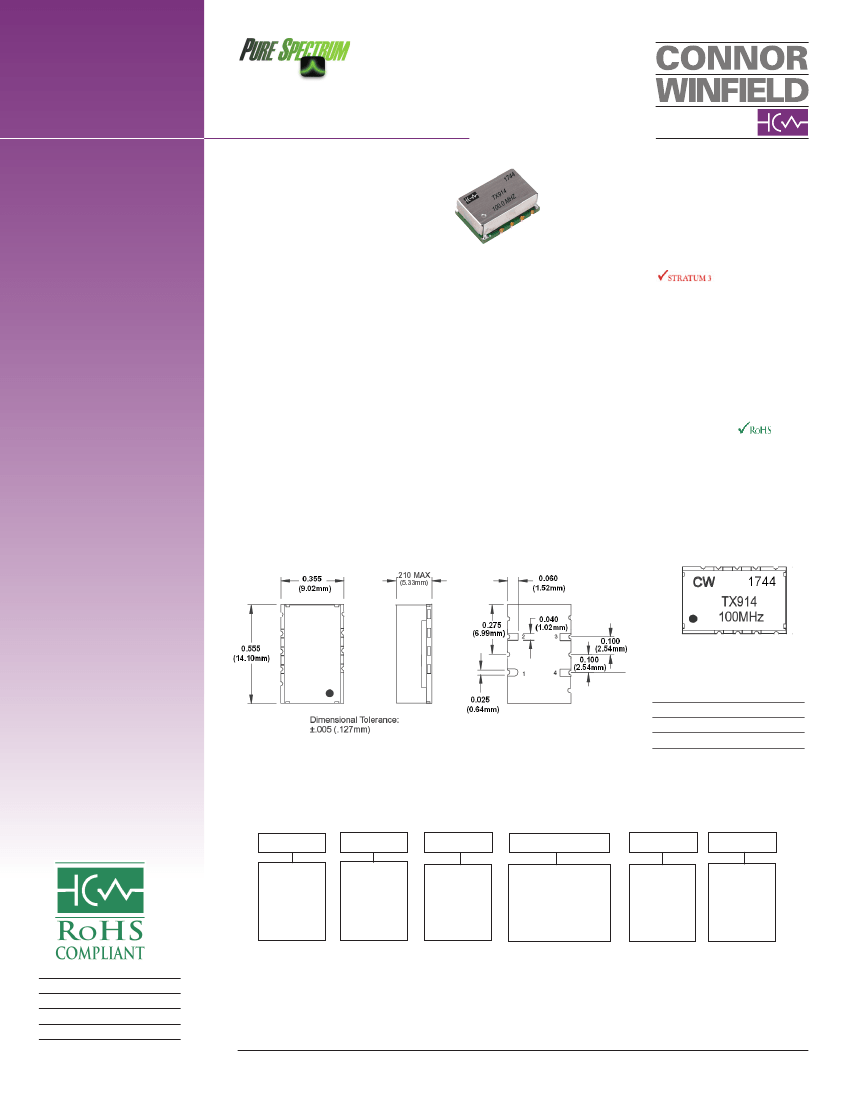

The Connor-Winfield's TX914

Sinewave Series of Temperature

Compensated Crystal Oscillators

and Voltage Controlled Temperature

Compensated Crystal Oscillators are

designed for use in S3 Telecom Applications. Through

the use of Analog Temperature Compensation, this

device is capable of holding sub 1-ppm stabilities over

the commercial or the industrial temperature ranges.

All models will meet ±4.6 ppm accuracies for twenty

years. STRATUM 3 compliant models are available.

The TX914 series provides temperature stabilities

in the range of ±0.28 ppm to ±2.50 ppm, over the

commercial, extended commercial or the industrial

temperature range.

The TX914 series is available with Sinewave output

along optional Electronic Frequency Tuning (VCTCXO).

These oscillators provide outstanding phase noise

characteristics that will meet the most stringent

requirements.

Features:

•

TCXO / VCTCXO

•

Frequency Range: 6.4 to 100 MHz

•

3.3 Vdc or 5.0 Vdc Operation

•

Sinewave Output

•

Frequency Stabilities Available:

±0.28ppm,

±0.5ppm,±1.0ppm or ±2.5ppm

•

Temperature Ranges Available:

0 to 70°C. -20 to 70°C or -40 to 85°C

•

Frequency Tolerance:

±4.60 ppm for 20 years.

•

Low Jitter <1ps RMS

•

Voltage Control on Pin 1

•

9x14mm footprint

•

RoHS Compliant / Lead Free

•

Recommended for New Designs

Package Outline

Marking Diagram

Pin Connections

1:

2:

3:

4:

NC or Voltage Control

Ground

Output

Vdd

Ordering Information

TX914-

Oscillator

Type

14 Pin DIP

TCXO or

VCTCXO

28

Frequency

Stability

28 = ±0.28 ppm

05 = ±0.50 ppm

10 = ±1.00 ppm

25 = ±2.50 ppm

0

Temperature

Range

0 = 0 to 70°C

1 = -20 to 70°C

2 = -40 to 85°C

7

Supply Voltage

Output Type

7 = 3.3 Vdc, Sinewave

8 = 5.0 Vdc, Sinewave

T

TCXO Type

T = TCXO

(Fixed Freq.)

(Voltage Controlled)

-020.0M

Output

Frequency

Format

-xxx.xM Min.*

-xxx.xxxxxxM Max*

*Min 1, Max 6

digits after the

decimal point.

M = MHz

V = VCTCXO

Bulletin

Page

Revision

Date

Tx437

1 of 4

01

09 Nov 2017

Example Part Numbers:

TX914-2807T-020.0M = 9x14mm package,

±0.28

ppm, 0 to 70°C, 3.3 Vdc, Sinewave Output, TCXO, Output Frequency 20.0 MHz

TX914-0528V-38.88M = 9x14mm package,

±0.50

ppm, -40 to 85°C, 5.0 Vdc, Sinewave Output, VCTCXO, 38.88 MHz

2111 Comprehensive Drive

Aurora, Illinois 60505

Phone: 630- 851- 4722

Fax: 630- 851- 5040

www.conwin.com

Parameter

Storage Temperature

Supply Voltage 3.3 Vdc (Vdd)

5.0 Vdc (Vdd)

Control Voltage (Vc)

Absolute Maximum Ratings

Minimum

-55

-0.5

Nominal

-

Maximum

125

4.5

7.0

Vdd+0.5

Units

°C

Vdc

Notes

Absolute Ratings: Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only. The functional

operation of the device at those or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to conditions outside

the "recommended operating conditions" for any extended period of time may adversely impact device reliability and result in failures not covered by warranty.

Parameter

Operating Specifications for TX914 Series

Minimum

Nominal

Maximum

50

60

100

1.0

0.28

0.50

1.00

2.50

0.32

50

3.0

4.60

Units

MHz

ppm

ppb

ppm

Notes

Frequency Range (Fo)

Stability Code 28

6.4

-

Stability Code 05

6.4

-

Stability Code 10

6.4

-

Stability Code 25

6.4

-

Frequency Calibration

-1.0

-

Frequency Stability vs. Change in Temperature: (See Ordering Information)

Stability Code 28

-0.28

-

Stability Code 05

-0.50

-

Stability Code 10

-1.00

-

Stability Code 25

-2.50

-

Holdover Stability (Stability code 28 only)

-0.32

-

Frequency Stability vs. Load

-50

-

Frequency Stability vs. Voltage

-50

-

Aging / Life (20 Years)

-3.0

-

Total Frequency Tolerance (20 Years)

-4.60

-

1

2

3

±5%

4

Parameter

Operating Temperature Ranges

Minimum

Nominal

-

Maximum

70

85

Units

°C

Notes

Operating Temperature Range: (See Ordering Information)

Temperature Code 0

0

Temperature Code 1

-20

Temperature Code 2

-40

Notes:

1.

Initial calibration @ 25°C. Specifications at time of shipment after 48 hours of operation

. For VCTCXO control voltage must be fixed.

2. Frequency stability vs. change in temperature. [±(Fmax - Fmin)/(2*Fo)].

3. Inclusive

of frequency stability, supply voltage change (±1%), aging, for 24 hours.

4. Inclusive of calibration @ 25°C, frequency vs. change in temperature, change in supply voltage (±5%), load change (±5%), shock and vibration and 20 years aging.

Bulletin

Page

Revision

Date

Specifications subject to change without notification. See Connor-Winfield's website for latest revision.

Not intended for life support applications.

Tx437

2 of 4

01

09 Nov 2017

2111 Comprehensive Drive

Aurora, Illinois 60505

Phone: 630- 851- 4722

Fax: 630- 851- 5040

www.conwin.com

Parameter

Supply Voltage: (Vdd) (See Ordering Information)

Supply Voltage Code 7

Supply Voltage Code 8

Supply Current Vdd = Nominal Voltage

Static Temperature Hysteresis

Jitter:

Period Jitter

Phase Jitter (BW: 12 KHz to Fo/2)

Typical SSB Phase Noise: (Fo = 20 MHz)

@ 10 Hz offset

@ 100 Hz offset

@ 1 KHz offset

@ 10 KHz offset

@ >100 KHz offset

Typical SSB Phase Noise: (Fo = 100 MHz)

@ 10 Hz

@ 100 Hz

@ 1 KHz

@ 10 KHz

@ >100 KHz

Start-Up Time

Operating Specifications

Minimum

3.13

4.75

-

-0.4

-

Nominal

3.30

5.00

6

-

3

0.5

-90

-120

-140

-150

-152

-65

-95

-120

-143

-150

-

Maximum

3.47

5.25

15

0.4

5

1.0

-

1

Units

Vdc

mA

ppm

ps RMS

dBC/Hz

ms

Notes

±5%

5

Parameter

Load

Output Voltage

Harmonics

Spuious

Sinewave Output Characteristics

Minimum

-

3.0

-

Nominal

50

6.0

-

Maximum

-

-30

-80

Units

Ohm

dBm

dBc

Notes

AC Coupled

Parameter

Voltage Control Input Characteristics (Pin 1) Optional

Minimum

Nominal

Maximum

3.00

4.5

-

Units

V

ppm

Ohms

%

Notes

Control Voltage Range: (Vc) Voltage Control Code V (See Ordering Information)

Vdd = 3.3 Vdc

0.30

1.65

Vdd = 5.0 Vdc

0.5

2.5

Frequency Pullability

±10.0

-

Input Impedance

100K

-

Linearity

±5

-

Slope

Positive Transfer Function

6

Package Characteristics

TX914-Series Package

Non-hermetic package consisting of an FR4 substrate with grounded metal cover

Environmental Characteristics

Shock

Sinusoidal Vibration

Random Vibration

Moisture

Marking Permanency

Solder Process

Notes:

500 G’s 1ms, Halfsine, 3 shocks per direction, per MIL-STD 202G, Method 213B Test Condition D.

0.06” D.A. or 10G’s Peak, 10 to 500 Hz, per MIL-STD-202G, Method 204D, Test Condition A.

5.35 G’s rms. 20 to 2000 Hz per MIL-STD-202G, Method 214,Test Condition 1A, 15 minutes each axis.

10 cycles, 95% RH, Per MIL-STD-202G, Method 112.

Per MIL-STD-202G, Method 215J.

RoHS compliant, lead free. See solder profile on page 4.

5. Frequency change after reciprocal temperature ramped over the operating range. Frequency measured before and after at 25°C.

6. Referenced to Fo.

Bulletin

Page

Revision

Date

Tx437

3 of 4

01

09 Nov 2017

Specifications subject to change without notification. See Connor-Winfield's website for latest revision.

Not intended for life support applications.

2111 Comprehensive Drive

Aurora, Illinois 60505

Phone: 630- 851- 4722

Fax: 630- 851- 5040

www.conwin.com

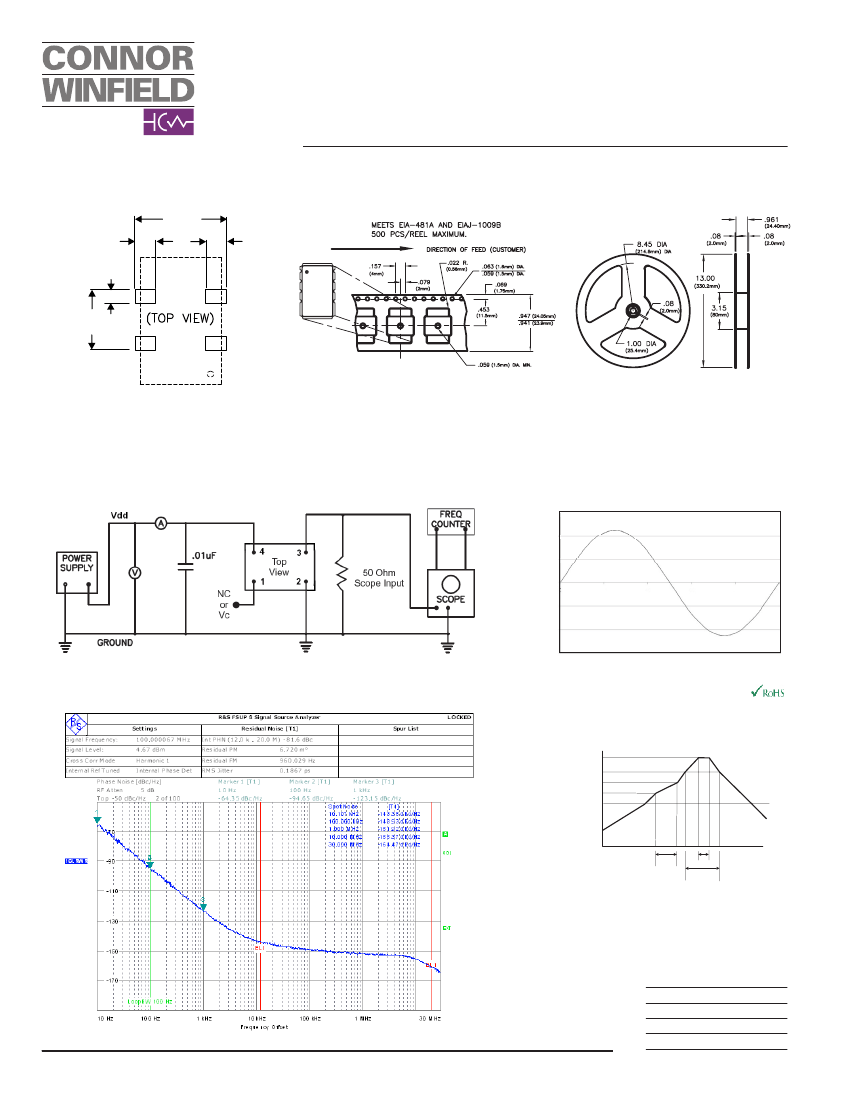

Suggested Pad Layout

Tape and Reel

Sinewave Test Circuit

Sinewave Output Waveform

Sinewave Output, 3 dBm minimum into 50 Ohms

Sinewave Output, 1 dBm minimum into 50 Ohms

Phase Noise Plot

RoHS Solder Profile

Temperature

260°C

220°C

180°C

150°C

120°C

260°C

0

10 s

Up to 120 s

60 to 90 s

Typical

Meets IPC/JEDEC J-STD-020C

Bulletin

Page

Revision

Date

Specifications subject to change without notification. See Connor-Winfield's website for latest revision.

Not intended for life support applications.

Tx437

4 of 4

01

09 Nov 2017

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
