Type 556
105
°C,
Computer Grade, Axial Leaded, Aluminum
105
°C,
Computer Grade
Type 556 capacitors are designed for data processing,
telecom and instrumentation applications requiring
smaller size with extended temperature range. They
have longer life and up to twice the ripple capability
of +85 °C capacitors.
Highlights
Small size
Extended life
Extended temperature
Twice ripple capability of +85 C capacitors
Designed for data processing, telecom
and instrumentation applications
Specifications
Operating Temperature Range:
Rated Voltage Range:
Capacitance:
Capacitance Tolerance:
Leakage Current:
Ripple Current:
40 °C to +105 °C
6.3 to 450 Vdc
1.5 F to 6,800 F
20%
3-20 Vdc 0.1 CV +2 A
25 Vdc & up 0.2 CV +2 A
Ambient Temperature
45 °C
1.50
Frequency
0-60 Vdc
61-150 Vdc
50 Hz
0.85
0.83
60 Hz
1.00
1.00
120 Hz
1.10
1.15
360 Hz 1 kHz
1.15
1.15
1.20
1.20
5 kHz
1.15
1.20
10 kHz+
1.15
1.20
55 °C
1.46
65 °C
1.32
75 °C
1.17
85 °C
1.00
95 °C
0.79
105 °C
0.50
Load Life:
Shelf Life:
Vibration:
4,000 h @ +105 °C, capacitance 20%, ESR 200% of limit, DCL 100% of limit
100 h at 105 °C, capacitance, ESR & DCL, initial requirements.
10 to 55 Hz; 0.06” and 10 g max, 2 h. in each plane
Outline Drawings
20 AWG 0.81
38 mm min.
L
38 mm min.
D
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800 • www.cde.com
Type 556
105
°C,
Computer Grade, Axial Leaded, Aluminum

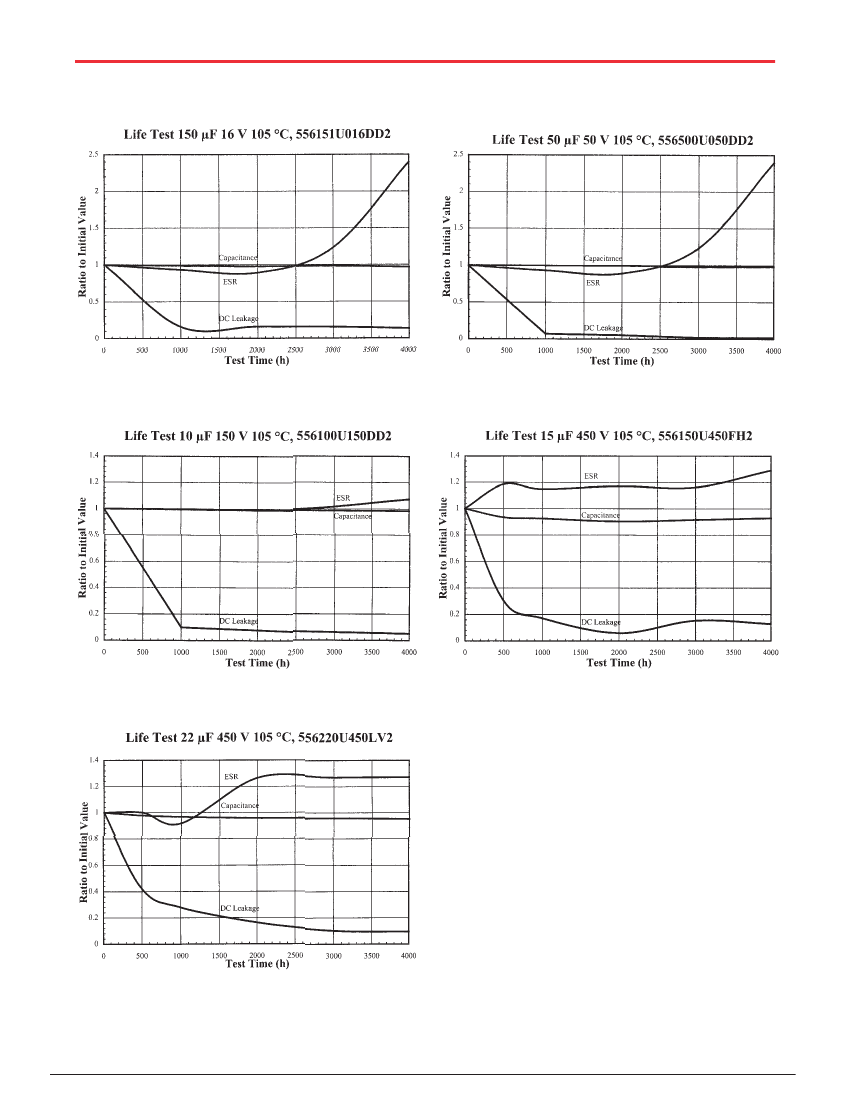

Typical Performance Curves
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800 • www.cde.com
Type 556
105
°C,
Computer Grade, Axial Leaded, Aluminum
Case Dimensions
Millimeters
Case
Code
BA
BB
CB
CC
DC
DD
DF
DH
MF
MH
EH
ER
FH
FR
LV
Nominal
Diameter (mm) Length (mm)
6.3
13.0
6.3
17.5
8.0
17.5
8.0
20.5
9.5
20.5
9.5
24.0
9.5
32.0
9.5
38.0
11.0
32.0
11.0
38.0
12.5
38.0
12.5
44.0
16.0
38.0
16.0
44.5
18.0
40.0
Insulated
Diameter (max) Length (max)
7.0
14.4
7.0
19.2
8.6
19.2
8.6
22.3
10.2
22.3
10.2
25.5
10.2
33.5
10.2
39.8
11.8
33.8
11.8
39.8
13.1
39.8
13.1
46.5
16.6
39.8
16.6
46.5
18.7
42.5
Insulated with
Epoxy Endseal
Diameter (max) Length (max)
7.0
15.9
7.0
20.7
8.6
20.7
8.6
23.8
10.2
23.8
10.2
27.0
10.2
35.0
10.2
41.3
11.8
35.0
13.1
41.3
13.1
41.3
13.1
48.0
16.6
41.3
16.6
48.0
18.7
43.0
Part Numbering System
556
Type
123
Capacitance
6R8=6.8
F
680=68
F
681=680
F
682=6800
F
123=12,000
F
M
Tolerance
M=
20%
6R3
Voltage
6R3=6.3
Vdc
063=63
Vdc
100=100
Vdc
LV
Case Code
2
Insulation
0=Bare
Can
1=Polyester
2=PVC
E
Epoxy Endseal
E
= Epoxy Endseal
(blank)
= No Epoxy
Ratings
Cap.
F
Catalog
Number
ESR Max.Ω
120 Hz
Ripple A
@ 85
°
C
120 Hz
Nominal
Size (mm)
DxL
Cap.
F
Catalog
Number
ESR Max.Ω
120 Hz
Ripple A
@ 85
°
C
120 Hz
Nominal
Size (mm)
DxL
6.3 Vdc (8 Vdc Surge)
120
220
330
470
820
1200
1800
2200
3900
4700
5600
6800
10000
12000
556121M6R3BA2
556221M6R3BB2
556331M6R3CB2
556471M6R3CC2
556821M6R3DC2
556122M6R3DD2
556182M6R3DF2
556222M6R3DH2
556392M6R3MH2
556472M6R3EH2
556562M6R3ER2
556682M6R3FH2
556103M6R3FR2
556123M6R3LV2
3.60
2.00
1.29
1.00
0.64
0.37
0.27
0.23
0.16
0.13
0.12
0.10
0.09
0.08
0.109
0.18O
0.255
0.338
0.480
0.570
0.800
1.080
1.280
1.640
1.780
2.000
2.350
2.580
6.3 x 13
6.3 x 17.5
8 x 17.5
8 x 20.5
9.5 x 20.5
9.5 x 24
9.5 x 32
9.5 x 38
11 x 38
12.5 x 38
12.5 x 44.5
16 x 38
16 x 44.5
18 x 44.5
1000
1500
1800
2200
3300
3300
4700
5600
8200
10000
10 Vdc (12 Vdc Surge) (cont’d)
556102M010DD2
556152M010DF2
556182M010DH2
556222M010MF2
556332M010EH2
556332M010MH2
556472M010ER2
556562M010FH2
556822M010FR2
556103M010LV2
0.41
0.30
0.27
0.19
0.14
0.15
0.12
0.10
0.09
0.08
0.560
0.785
1.030
1.160
1.600
1.380
1.780
2.000
2.340
2.550
9.5 x 24
9.5 x 32
9.5 x 38
11 x 32
12.5 x 38
11 x 38
12.5 x 44.5
16 x 38
16 x 44.5
18 x 40
12 Vdc (15 Vdc Surge)
100
180
220
390
560
820
1200
1500
556101M012BA2
556181M012BB2
556221M012CB2
556391M012CC2
556561M012DC2
556821M012DD2
556122M012DF2
556152M012DH2
3.71
2.12
1.65
1.00
0.66
0.45
0.32
0.28
0.108
0.168
0.245
0.330
0.425
0.550
0.760
0.955
6.3 x 13
6.3 x 1 7.5
8 x 17.5
8 x 20.5
9.5 x 20.5
9.5 x 24
9.5 x 32
9.5 x 38
10 Vdc (12 Vdc Surge)
100
180
270
390
680
556101M010BA2
556181M010BB2
556271M010CB2
556391M010CC2
556681M010DC2
3.70
2.08
1.60
0.96
0.57
0.109
0.175
0.250
0.350
0.440
6.3 x 13
6.3 x 17.5
8 x 17.5
8 x 20.5
9.5 x 20.5
