558-0601-003F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 558-0601-003F

558-0601-003F: Description558 Series Snap-in LED - .156â Mounting Hole; CategoryLED optoelectronic/LED photoelectric; File Size126KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

558-0601-003F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	558-0601-003F	-	-	View	Buy Now

558-0601-003F Overview

558 Series Snap-in LED - .156â Mounting Hole

558-0601-003F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compli
Other features	IC COMPATIBLE, HIGH RELIABILITY
color	YELLOW
color@wavelength	Ambe
Configuration	SINGLE
Maximum forward current	0.05 A
Maximum forward voltage	1.9 V
JESD-609 code	e1
Lens type	NONTINTED NONDIFFUSED
Nominal luminous intensity	200.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.78 mm
method of packing	BULK
peak wavelength	592 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal pitch	2.54 mm
perspective	45 deg
Base Number Matches	1

Preview

Download Datasheet

View All

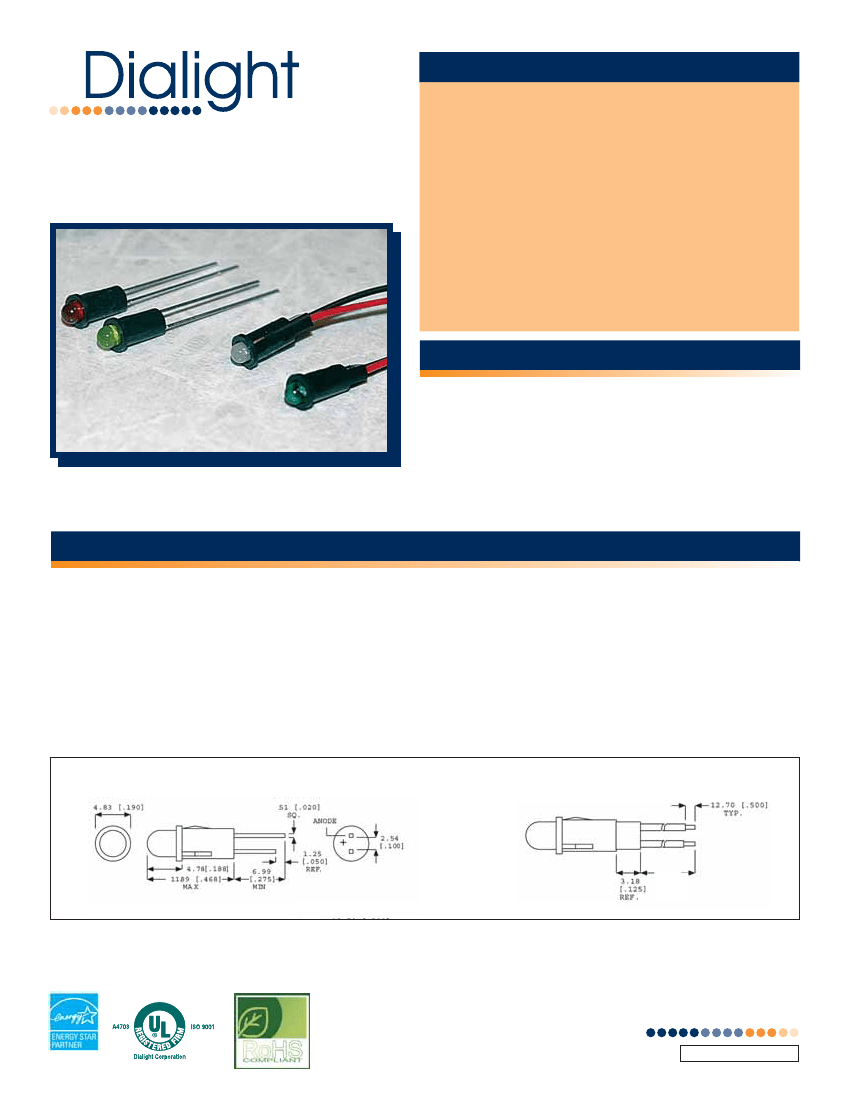

FEATURES / BENEFITS

RoHS compliant

Long life - typically 100K hours

558 Series

Daylight Viewable

High Brightness for daylight viewing

Non-tinted/Non-diffused or Tinted/Non-diffused LED

Low power consumption - uses up to 90% less energy

than an incandescent indicator

Front panel snap-in mounting requires no additional hardware

No heat generated

Resistant to shock and vibration

Termination - straight terminals for wire wrapping or

lead wire for soldering or optional terminals

Colors include - red, green, yellow. blue and white

Snap-in LED

Panel Mount Indicators

APPLICATIONS

Dialight's 558 series LED panel mount indicator is available with

a variety of LEDs including AlInGaP and InGaN technology for

high brightness applications, bicolor and integral resistors. These

indicators are designed for a variety of applications such as:

• Main and remote power indication

• Maintenance and warning indication

• Status indication

• Instrumentation

……..and many more!

SPECIFICATIONS

Voltage requirements:

2.1 - 3.5 VDC typical (current limiting resistor required)

Mounting hole size: 0.155 -0.158" (3.94 - 4.01 mm)

Panel thickness: 0.031-0.062" (.787 - 1.57 mm)

Housing: Black housing material meets

UL94V-0 and enhances LED contrast

Operating temperature: -55°C to +100°C

Storage temperature: -55°C to +100°C

Electrical connection

Straight terminals for wire wrapping or either

6 or 14 inch 26 AWG lead wire

STRAIGHT TERMINALS - TERMINATION OPTION 1

*26 AWG 6” WIRE LEADS - TERMINATION OPTION 3

26 AWG 14” WIRE LEADS - TERMINATION OPTION 7

Dimensions in mm [inches]

NOTE:

WIRE LEAD COLOR RED (ANODE) AND BLACK (CATHODE)

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

Please see back of page for part numbers and additional specifications.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEL558DV001_B
