23DH-40 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 23DH-40

23DH-40: DescriptionFixed Attenuator, 0MHz Min, 23000MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size63KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

23DH-40 Overview

Fixed Attenuator, 0MHz Min, 23000MHz Max, ROHS COMPLIANT PACKAGE

23DH-40 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	SMA-F; SMA-M, I/P POWER-MAX(PEAK)=250W
Nominal attenuation	40 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	23000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

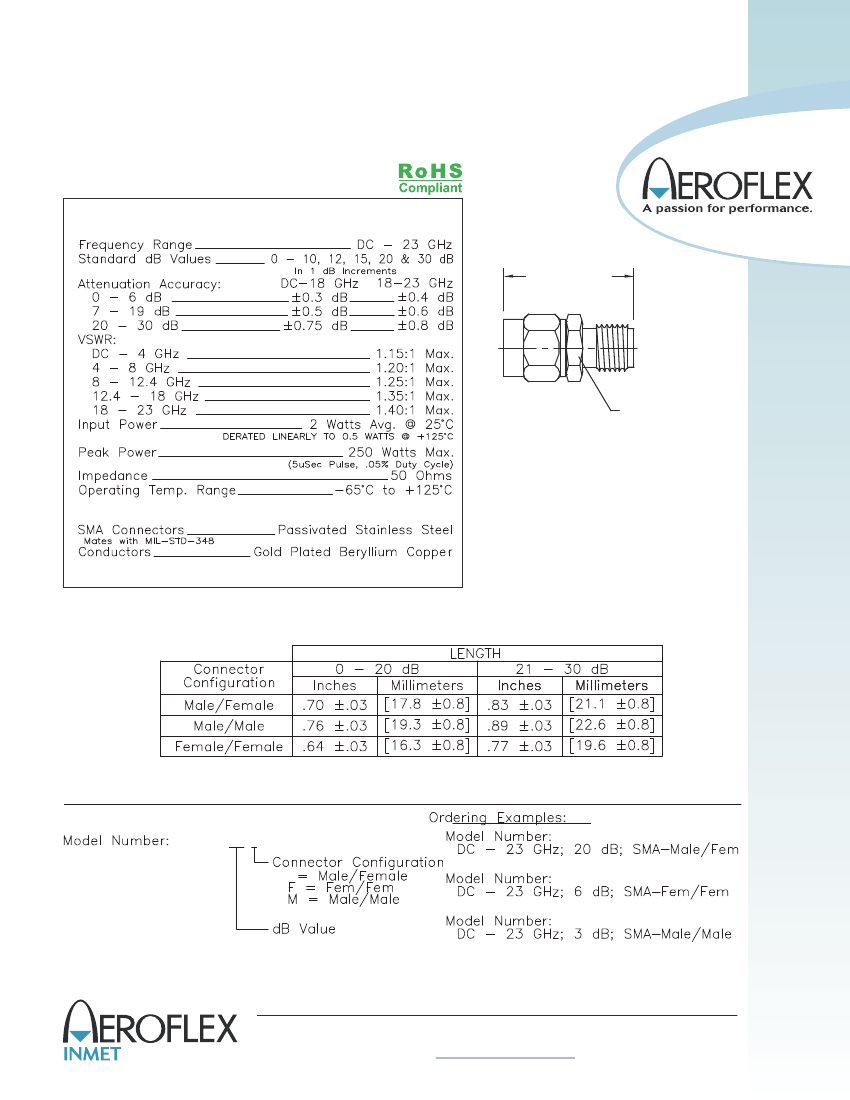

Preview

Download Datasheet

View All

DH ATTENUATORS

SMA, DC - 23 GHz, 2 Watts

SPECIFICATIONS:

Models: 23 DH-XX

Electrical:

LENGTH

SEE TABLE

5/16 [7.9] Hex

Note: Connectors are Epoxy Sealed

Mechanical:

HOW TO ORDER:

23DH-XXY

23DH-20

23DH-6F

23DH-3M

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

23DH-ATT: REV M

Aeroflex / Inmet, Inc.

300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet

• inmetsales@aeroflex.com

23DH-40 Related Products

	23DH-40	23DH-40F	23DH-40M
Description	Fixed Attenuator, 0MHz Min, 23000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 23000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 23000MHz Max, ROHS COMPLIANT PACKAGE
Reach Compliance Code	compli	compli	compli
Other features	SMA-F; SMA-M, I/P POWER-MAX(PEAK)=250W	SMA-F, I/P POWER-MAX(PEAK)=250W	SMA-M, I/P POWER-MAX(PEAK)=250W
Nominal attenuation	40 dB	40 dB	40 dB
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm
JESD-609 code	e4	e4	e4
Maximum operating frequency	23000 MHz	23000 MHz	23000 MHz
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR
Terminal surface	GOLD	GOLD	GOLD
Maximum voltage standing wave ratio	1.35	1.35	1.35
Base Number Matches	1	1	1
