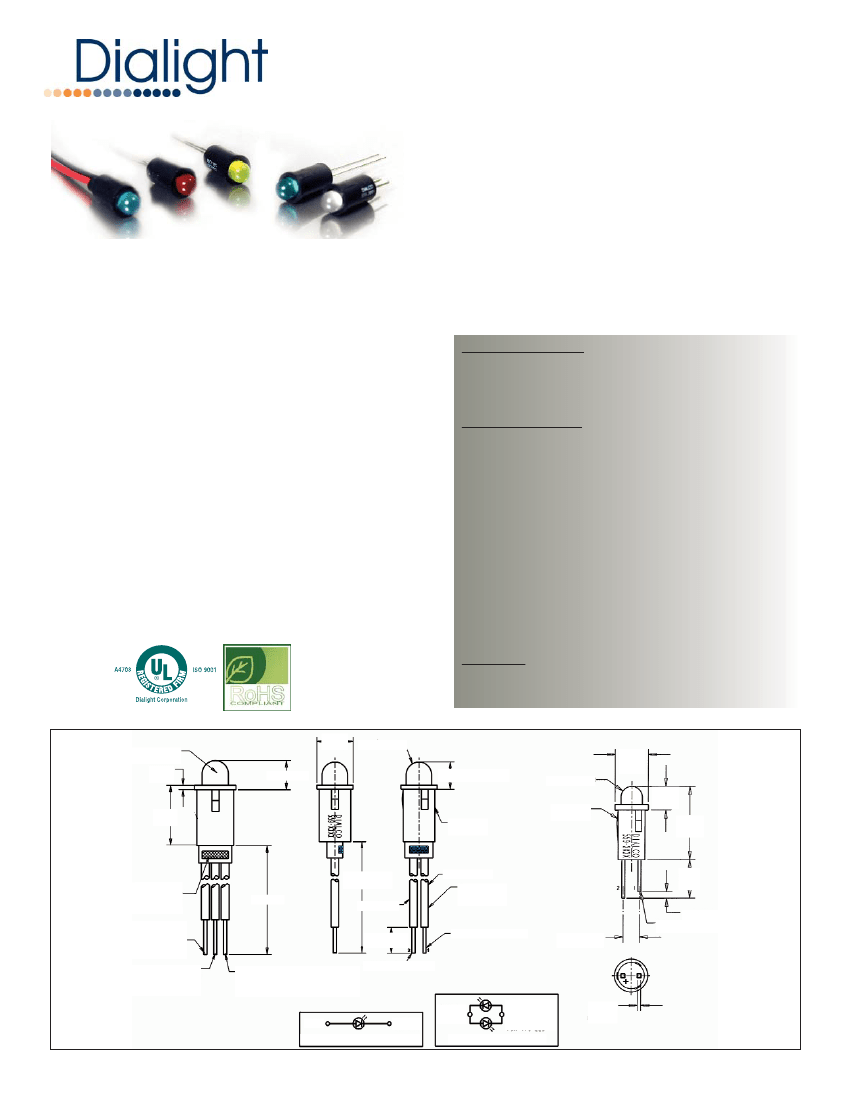

Application
Dialight's 559 series LED panel mount indicator is available with a variety
of LEDs including AlInGaP and InGaN technology for high brightness
applications, bicolor and integral resistors. These indicators are designed
for a variety of applications such as:
•
•
•
•
•
•
•
•
•
Fan tray assemblies
Datacenter Infrastructure (Servers and Storage)
Next-Gen Wireless Infrastructure
Electronic Test & Measurement Instruments
Communications Testing Equipment
Process controls
Automation
Medical Equipment
Handheld devices
559 Series
Snap-in LED - .250” Mounting Hole
Panel Mount Indicators
Features & Benefits
•
RoHS compliant
•
Long life - typically 100K hours
•
Low power consumption - uses up to 90% less energy
than an incandescent indicator
Mechanical Information
Mounting Hole Size:
Panel Thickness:
0.249 - 0.252" (6.32 - 6.40 mm)
0.031 - 0.062" (.787 - 1.57 mm)
Electrical Specifications
Operating Voltage:
1.6 - 2.3 VDC typical (current limiting resistor
required)
5 VDC typical (resistor not required)
12 VDC typical (resistor not required)
24 VDC typical (resistor not required)
See table
(-67°F to +212°F) -55°C to +100°C
•
Front panel snap-in mounting requires no additional hardware
•
No heat generated
•
Resistant to shock and vibration
•
Available in both 2 or 3 bicolor leaded versions
•
Termination - straight terminals for wire wrapping or
lead wire for soldering or optional terminals
Operating Temp:
Storage Temp:
•
T
hree leaded bicolor version allows for additional color variations
•
Available with PVC-free lead wires
Electrical connection:
Straight terminals for wire wrapping or either
6 or 14 inch 24 AWG lead wire
Leads:
Straight leads
2 leads
3 leads - common cathode
Construction
Housing:
Black housing material meets:
UL94V-0 and enhances LED contrast
LED 3 LEADED
BI-COLOR
.032
NOM.
ø.281
(7,14)
.212 MAX
ø5mm LED
.210 (5,33) MAX
ø.281
(7,14)
REF
ø5mm LED
HOUSING
(VALOX)
.210
(5,33)
Max
.625
(15,88)
Max
.438
NOM.
HOUSING
(VALOX)
ULTRASONIC CRIMP
OR EPOXY ON ALL
3 LEADS.
(SIDE OPTIONAL)
GREEN WIRE IS
GREEN ANODE
FOR
BOTH R/G AND Y/G
BI-COLOR LEDS
COMMON CATHODE
& BLACK WIRE LEAD
FOR BOTH R/G AND Y/G
BI-COLOR LEDS
See
Termination
A±.109
RED WIRE
.50±.03
(12,7±0,76)
BLACK WIRE
.50±.005
(1,47±0,127)
TYP
.
.300
(7,62)
MIN
.050 REF (1,27)
CATHODE LEAD (-)
CATHODE LEAD (-)
.125±.005
(3,17±0,12)
RED WIRE IS RED ANODE FOR
R/G BI-COLOR LEDS
RED WIRE IS YELLOW ANODE
FOR Y/G BI-COLOR LED
PIN 2
ANODE LEAD (+)
PIN 1
CATHODE
PIN 2
GREEN
CATHODE
PIN 1
RED CATHODE
FOR R/G LED
YELLOW CATHODE
FOR Y/G LED
.025 SQ
(0,64)
REF
SINGLE COLOR LED SCHEMATIC
BI-COLOR LED SCHEMATIC
www.dialight.com
