1N6053B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N6053B

1N6053B: DescriptionTrans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, DO-13, HERMETIC SEALED, METAL, AXIAL PACKAGE-2; CategoryDiscrete semiconductor diode; File Size195KB，4 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

1N6053B Overview

Trans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, DO-13, HERMETIC SEALED, METAL, AXIAL PACKAGE-2

1N6053B Parametric

Parameter Name	Attribute value
Parts packaging code	DO-13
package instruction	O-MALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW IMPEDANCE
Maximum breakdown voltage	42.9 V
Minimum breakdown voltage	35.1 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-13
JESD-30 code	O-MALF-W2
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Package body material	METAL
Package shape	ROUND
Package form	LONG FORM
polarity	BIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

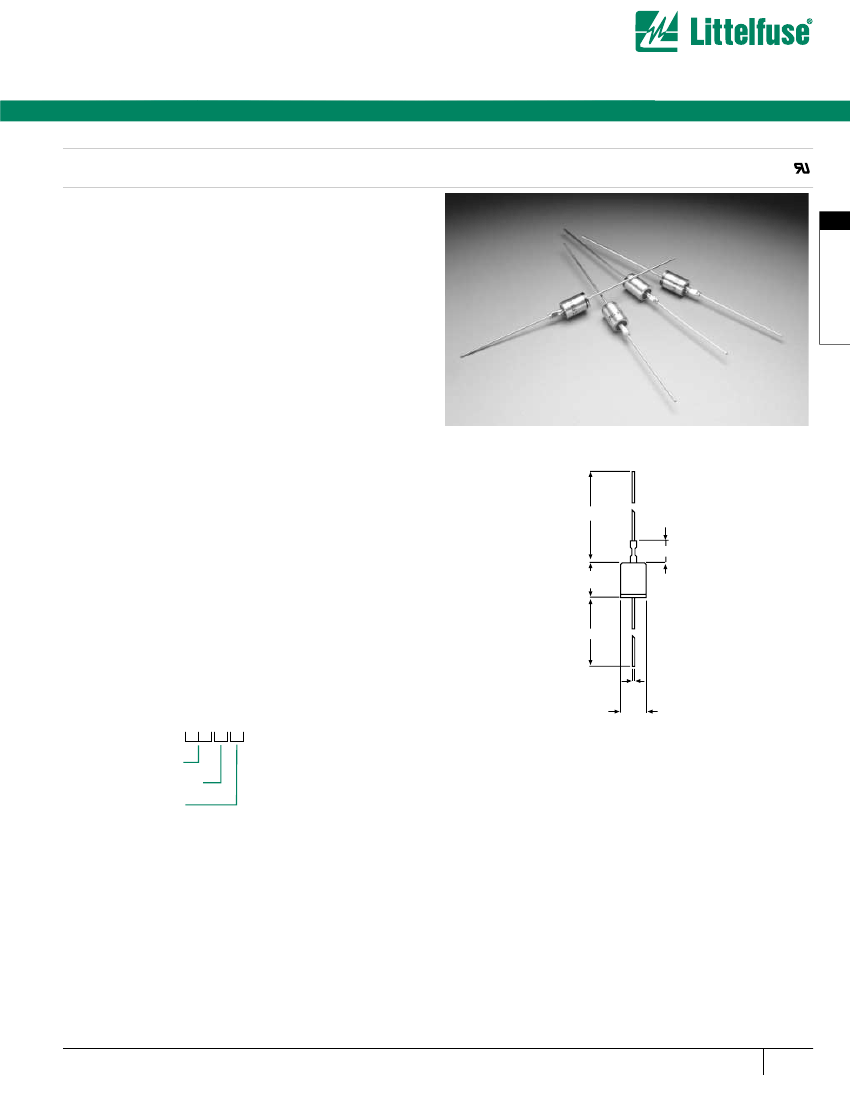

Silicon Avalanche Diodes

1500 Watt Metal Axial Leaded Transient Voltage Suppressors

1N60 Series

FEATURES

•

Hermetically sealed

•

Breakdown voltage range 6.8 - 200 volts

•

Glass passivated junction

•

Excellent clamping capability

•

Low zener impedance

•

100% surge tested

•

-55°C to +150°C

•

Bi-directional

SILICON DIODE

ARRAYS

Min 31.8

Max

5.33

7.5

9.0

Min 25.4

Max

0.8

5.58

MAXIMUM RATING

•

Peak Pulse Power (Ppk): 15000 Watts (10 x 1000µs)@25°C

(see diagram on page 3 for wave form)

•

1 watt steady state

•

Response time: 1 x 10

-12

seconds (theoretical)

•

Operating & storage temperature: -55°C to +150°C

MECHANICAL CHARACTERISTICS

•

Case: Metal hermetically sealed DO-13 package

•

Terminals: Axial leads, solderable per MIL-STD-202

Method 208

•

Solderable leads = 230°C for 10 seconds (1.59mm from case)

•

Weight: 1.5 grammes (approx)

Agency Approvals:

Recognized under the Components

Program of Underwriters Laboratories.

Agency File Number:

E128662

ORDERING INFORMATION

1N60 X X A

All dimensions in mm

Voltage Reference

5% Voltage Tolerance

Packaging Option

B = Bulk (500 pcs)

w w w. l i t t e l f u s e . c o m

317
