PBDF102 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PBDF102

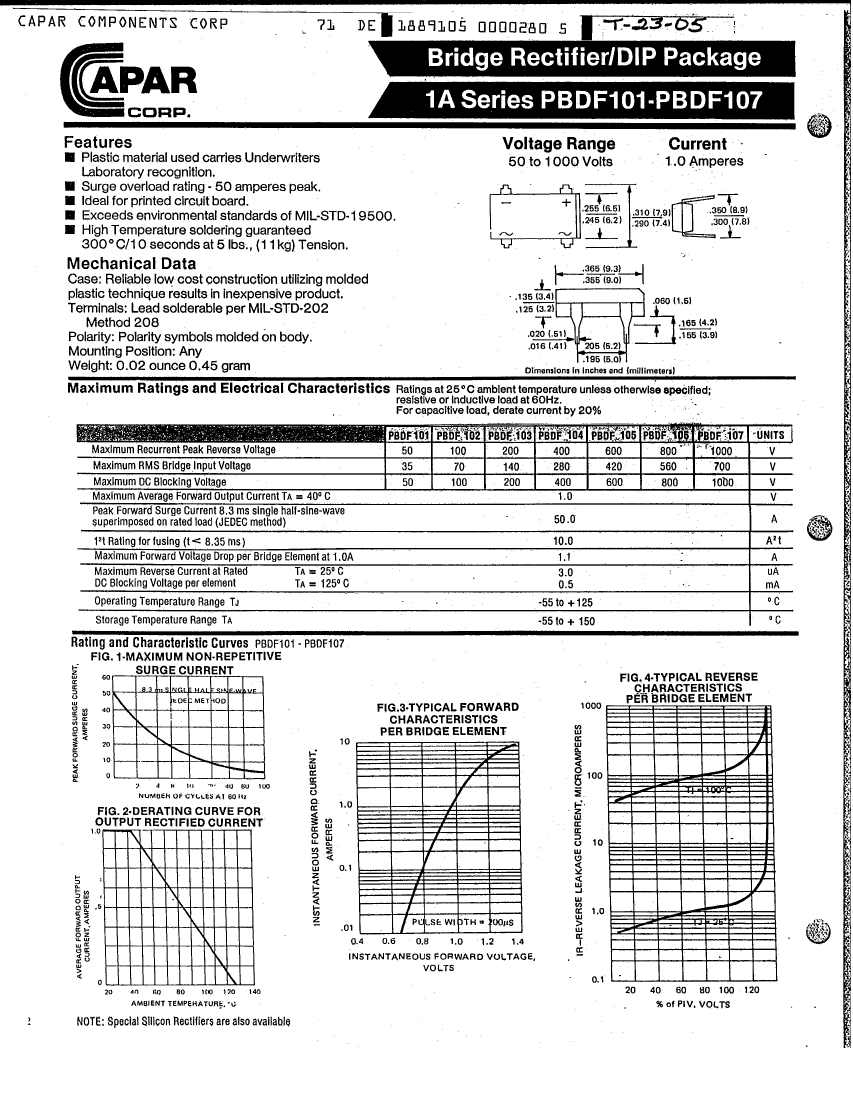

PBDF102: DescriptionBridge Rectifier Diode, 1A, 100V V(RRM),; CategoryDiscrete semiconductor diode; File Size81KB，1 Pages; ManufacturerCapar Components Corp

Download Datasheet Parametric Compare View All

PBDF102 Overview

Bridge Rectifier Diode, 1A, 100V V(RRM),

PBDF102 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Capar Components Corp
Reach Compliance Code	unknow
ECCN code	EAR99
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-609 code	e0
Maximum non-repetitive peak forward current	30 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	1 A
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

PBDF102 Related Products

	PBDF102	PBDF105	PBDF101	PBDF107	PBDF106	PBDF104	PBDF103
Description	Bridge Rectifier Diode, 1A, 100V V(RRM),	Bridge Rectifier Diode, 1A, 600V V(RRM),	Bridge Rectifier Diode, 1A, 50V V(RRM),	Bridge Rectifier Diode, 1A, 1000V V(RRM),	Bridge Rectifier Diode, 1A, 800V V(RRM),	Bridge Rectifier Diode, 1A, 400V V(RRM),	Bridge Rectifier Diode, 1A, 200V V(RRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknown	unknown	unknown	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Number of components	4	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Maximum repetitive peak reverse voltage	100 V	600 V	50 V	1000 V	800 V	400 V	200 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	Capar Components Corp	-	Capar Components Corp	Capar Components Corp	Capar Components Corp	Capar Components Corp	Capar Components Corp
