LRP
FEATURES
+105°C Screw
Terminal Aluminum
Electrolytic Capacitors
®
For filtering and extended life applications
I
High ripple current
I
High reiability
I
Capacitance range: 1,000µF to 150,000µF
I
Voltage range: 10 WVDC to 250 WVDC
I
Extended Life
SPECIFICATIONS
Capacitance Tolerance
Operating Temperature Range
Dissipation Factor
120Hz, 20°C
WVDC
tan
δ
WVDC
Leakage Current
Time
D=35
D=51
10
0.8
1.0
±20% at 120 Hz, 20°C
-40°C to +105°C(10V to 100V),
-25°C to +105°C(160V to 250V)
16
0.7
0.9
25
0.45
0.6
35
0.4
0.5
50
0.3
0.4
63
0.25
0.35
100
0.2
0.2
160
0.2
0.2
200
0.2
0.2
250
0.2
0.2
≤
250 WVDC
5 minutes
.02CV or 5,000µA
whichever is less
2,000 hours at +105°C with rated WVDC
Capacitors will meet the requirements listed below.
Load Life
Capacitance change
Dissipation factor
Leakage current
≤
20% of initial measured value
≤200%
of initial specified value
≤
100% of specified value
1,000 hours at + 105°C with no voltage applied.
Units will meet load life specifications
Shelf life
WVDC
Ripple Current
Multipliers
10 to 35V
50 to 100V
160 to 250V
Frequency (Hz)
60
0.9
0.9
0.8
Temperature (°C)
100k
1.1
1.15
1.35
120
1.0
1.0
1.0
1K
1.05
1.1
1.2
10k
1.1
1.15
1.3
+45
2.4
2.4
2.4
+65
2.1
2.1
2.1
+85
1.6
1.6
1.6
+105
1.0
1.0
1.0
®
3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com
LRP
WVDC
(SV)
µF
1000
1500
2200
3300
4700
5600
6800
8200
10000
15000
18000
22000
27000
33000
40000
47000
56000
68000
100000
150000
35x60
35x70
35x80
51x70
51x90
35x80
35x90
51x70
51x90
35x90
51x70
51x90
51x80
51x90
35x50
35x60
35x80
51x70
51x90
51x90
35x50
35x60
35x80
35x60
35x60
35x70
35x80
51x70
51x70
+105°C Screw
Terminal Aluminum
Electrolytic Capacitors

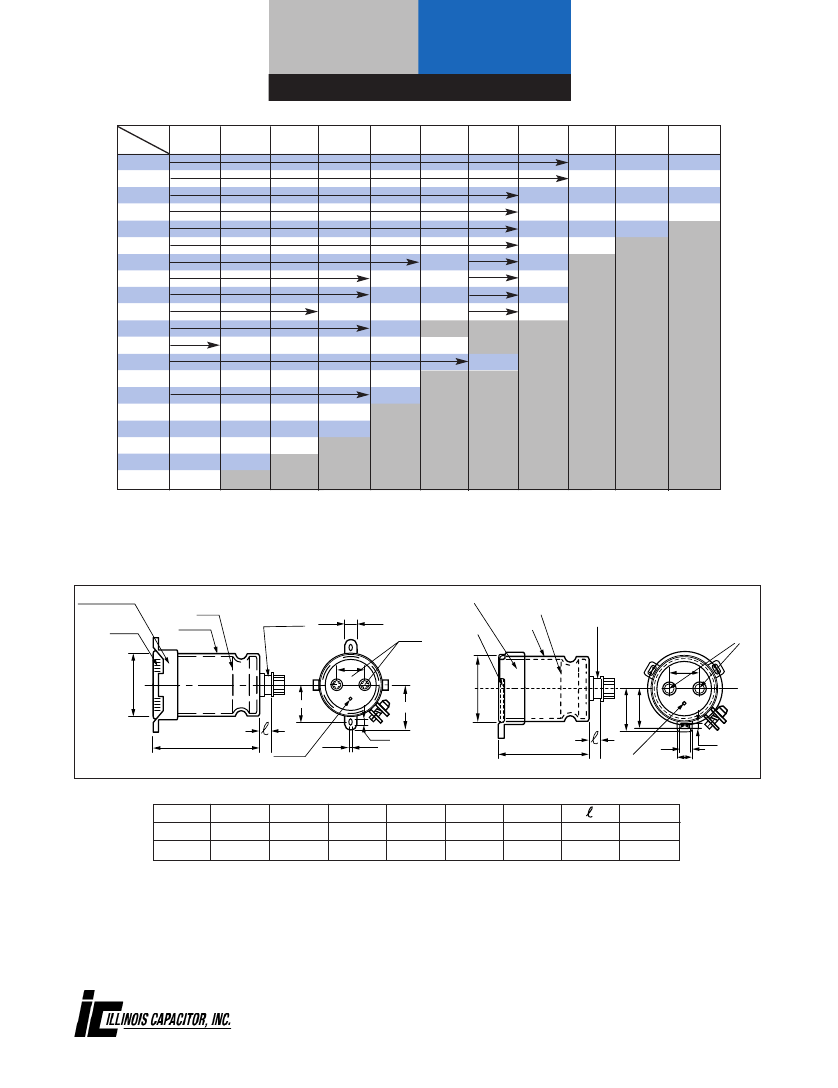

PHYSICAL DIMENSIONS
10
(13)
16
(20)
25
(32)
35
(44)
50
(63)
63
(79)
80
(100)
100
(125)
160
(200)
35x50
35x60
35x60
35x60
35x70
35x90
35x70
35x80
35x90
51x70
51x70
51x80
51x90
51x90
35x70
35x90
51x80
51x90
200
(250)
35x60
35x70
35x90
51x80
51x90
250
(300)
35x70
35x90
51x70
51x90
51x90
51x90
Convert to inches, divide by 25.4.
DxL(mm)
MountingClamp
Case
Plate
Sleeve
Screw
Terminal
W5
Bolt
Mounting Clamp
Case
Plate
Sleeve
Screw
Terminal
Bolt
120°
ØD+1(max)
P±1
ØD+1(max)
W1
±
1
W2
±
1
W3
W4
W2
±
1
W2
±
1
120°
120°
W4
W5
W3
L+2(max)
D = 35mm
Safety
Vent
L+2(max)
D = 51, 64, 77, 90
Safety
Vent
ØD
35
51
W1
24.0
32.5
W2
30.0
37.5
W3
7.0
4.5
W4
3.5
7.0
W5
10.0
13.0
P
12.7
21.8
6.5
6.5
Bolt
M5
M5
®
