566KXM050M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 566KXM050M

566KXM050M: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35 V, 330 uF, THROUGH HOLE MOUNT; CategoryPassive components capacitor; File Size411KB，3 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric View All

566KXM050M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	566KXM050M	-	-	View	Buy Now

566KXM050M Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35 V, 330 uF, THROUGH HOLE MOUNT

566KXM050M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Illinois Capacitor
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	56 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm
dielectric materials	ALUMINUM (WET)
ESR	2960.5 mΩ
JESD-609 code	e3
leakage current	0.028 mA
length	11 mm
Manufacturer's serial number	KXM
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Ammo Pack; Tape
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	211.75 mA
series	KXM
surface mount	NO
Delta tangent	0.1
Terminal surface	Matte Tin (Sn)
Terminal pitch	2.5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

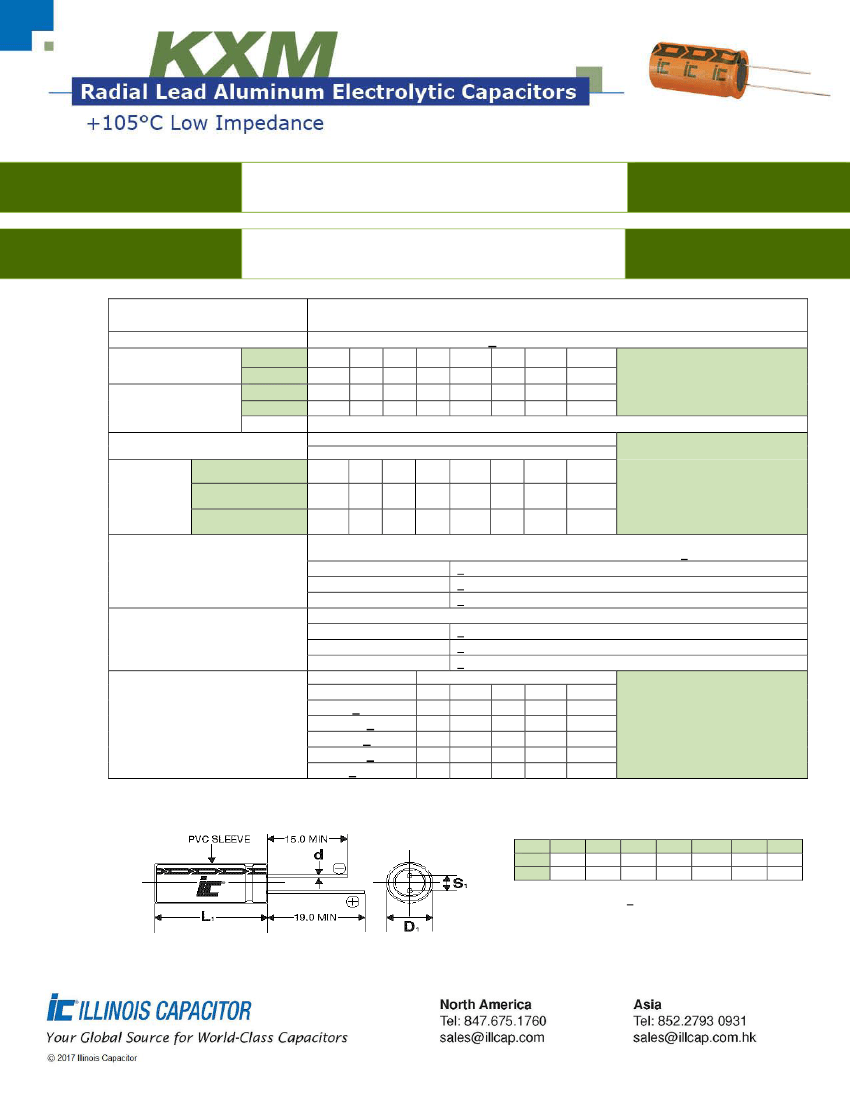

FEATURES

APPLICATIONS

Standardized Case Sizes

High Ripple Current

–

Multiple

Case Sizes

Bypass

–

Coupling

–

Filtering

–

De-coupling

Operating Temperature

Range

Capacitance Tolerance

WVDC

Surge Voltage

SVDC

WVDC

Dissipation

Tan δ

Factor

Leakage Current

Low

Temperature

Stability

Impedance

Ratio

(120 Hz)

-55°C to +105°C

+20% at 120 Hz, 20°C

6.3

7.9

6.3

.22

.19

.16

.14

.12

100

125

100

Add .02 for every 1000uF above 1000uF

2 Minutes

.01CV or 3uA, Whichever is greater

WVDC

-25°C to +20°C

-40°C to +20°C

6.3

100

Load Life

Shelf Life

5000 hours at 105°C with rated WVDC and ripple current applied

(4000 hrs for D=10, 3000 Hrs for D=8, 2000 Hrs for D<6.3)

Capacitance Change

<20% of initial measured value

Dissipation Factor

<200% of maximum specified value

Leakage Current

<100% of maximum specified value

1000 hours at 105°C with no voltage applied

Capacitance Change

<25% initial measured value

Dissipation Factor

<200% of maximum specified value

Leakage Current

<100% of maximum specified value

Frequency (Hz)

Ripple Current Multipliers

Capacitance

C<180

220<C<560

680<C<1800

2200<C<3900

C>4700

.75

.85

120

.75

.85

.75

.85

.87

.95

10k

.94

.95

.98

100k

1.0

6.3

2.0

2.5

3.5

5.0

0.5

0.6

=L+1.5 mm Max. (L<20mm)

=L+2.0 mm Max. (L>20mm)

=D+0.5 mm Max.

=S+0.5 mm

12.5

5.0

0.6

7.5

0.8

7.5

0.8

Feb-17
