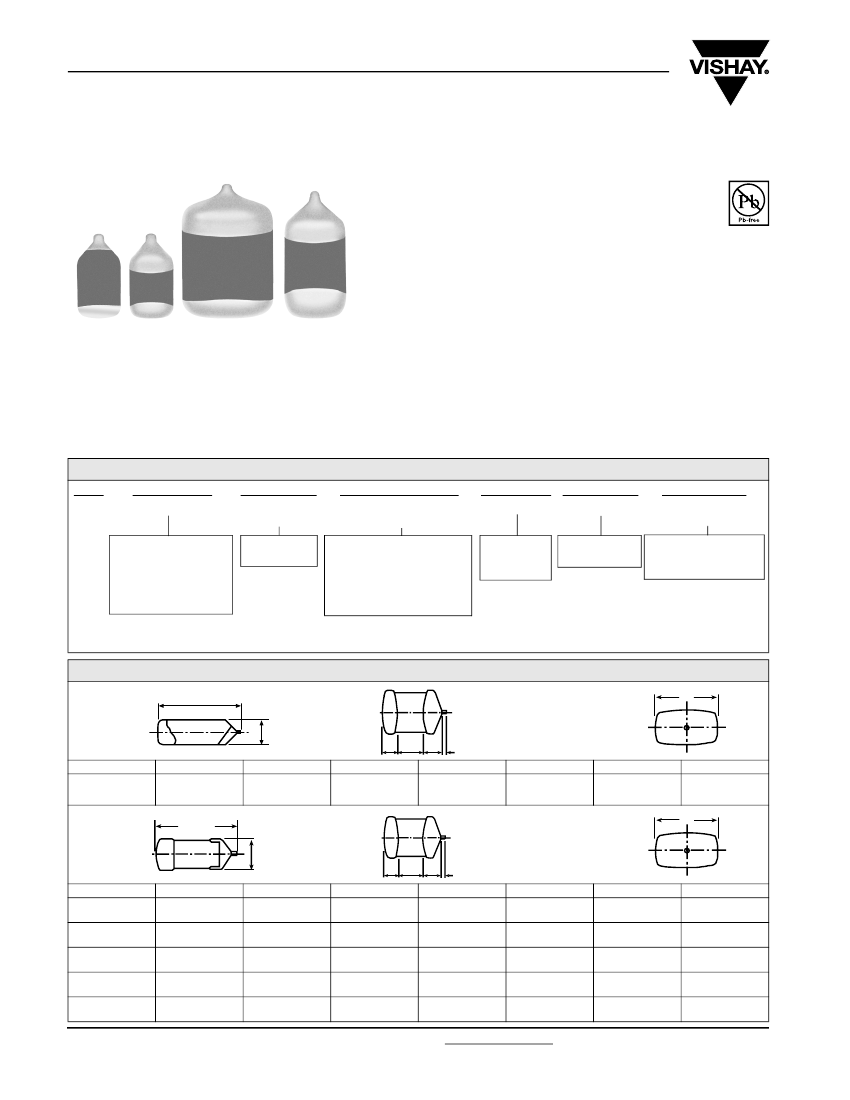

572D
Vishay Sprague
Solid Tantalum Chip Capacitors
T
ANTAMOUNT
®
,
Low Profile, Conformal Coated, Maximum CV
FEATURES
•
P case offers single-sided lead (Pb)-free
terminations
•
Wraparound lead (Pb)-free terminations:
Q, S, A, B and T
RoHS
COMPLIANT
P case
top
P case
bottom
B and T
cases
Q, S and
A cases
Images
not to
scale
•
Low Impedance
•
8 mm and 12 mm tape and reel packaging available per
EIA-481-1 and reeling per IEC 286-3
7" [178 mm] standard
13" [330 mm] available
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55 °C to + 85 °C
(to + 125 °C with voltage derating)
Note:
Refer to Doc. 40088
Capacitance Range:
2.2 µF to 220 µF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
4 WVDC to 25 WVDC
ORDERING INFORMATION
572D
TYPE
336
CAPACITANCE
X0
CAPACITANCE
TOLERANCE
X0 =
±
20 %
X9 = ± 10 %
6R3
DC VOLTAGE RATING
AT + 85 °C
This is expressed in volts. To
complete the three-digit
block, zeros precede the
voltage rating. A decimal
point is indicated by an "R"
(6R3 = 6.3 V).
A
CASE CODE
2
TERMINATION
T
REEL SIZE AND
PACKAGING
This is expressed in
picofarads. The first two
digits are the significant
figures. The third is the
number of zeros to
follow.
See Ratings
and Case
Codes Table
2 = 100 % Tin T
= Tape and Reel
4 = Gold Plated
7" [178 mm] Reel
W = 13" [330 mm] Reel
Note:
Preferred Tolerance and reel sizes are in bold
We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size
DIMENSIONS
in inches [millimeters]
L
H
A
CASE CODE
P
L (MAX.)
0.087 ± 0.012
[2.2 ± 0.3]
W
0.049 ± 0.012
[1.25 ± 0.3]
Single-side electrodes
(Both electrodes at
bottom side only)
W
B
C
D
B
0.031 ± 0.012
[0.8 ± 0.3]
C
0.031 ± 0.012
[0.8 ± 0.3]
D (REF.)
0.008
[0.2]
H
0.039 ± 0.008
[1.0 ± 0.2]
A
0.024 ± 0.012
[0.6 ± 0.3]
L
H
A
B
C
D
W
CASE CODE
Q
S
A
B
T
www.vishay.com
104
L (MAX.)
0.126 ± 0.008
[3.2 ± 0.2]
0.126 ± 0.012
[3.2 ± 0.3]
0.126 ± 0.012
[3.2 ± 0.3]
0.130 ± 0.012
[3.3 ± 0.3]
0.138 ± 0.008
[3.5 ± 0.2]
W
0.063 ± 0.008
[1.6 ± 0.2]
0.063 ± 0.012
[1.6 ± 0.3]
0.067 ± 0.012
[1.7 ± 0.3]
0.106 ± 0.012
[2.7 ± 0.3]
0.106 ± 0.008
[2.7 ± 0.2]
H
0.031 ± 0.008
[0.8 ± 0.2]
0.039 ± 0.008
[1.0 ± 0.2]
0.05 ± 0.012
[1.3 ± 0.3]
0.066 ± 0.012
[1.7 ± 0.3]
0.039 ± 0.008
[1.0 ± 0.2]
A
0.031 ± 0.008
[0.8 ± 0.2]
0.031 ± 0.012
[0.8 ± 0.3]
0.031 ± 0.012
[0.8 ± 0.3]
0.031 ± 0.012
[0.8 ± 0.3]
0.031 ± 0.008
[0.8 ± 0.2]
B
0.047 ± 0.008
[1.2 ± 0.2]
0.047 ± 0.012
[1.2 ± 0.3]
0.047 ± 0.012
[1.2 ± 0.3]
0.047 ± 0.012
[1.2 ± 0.3]
0.047 ± 0.008
[1.2 ± 0.2]
C
0.031 ± 0.008
[0.8 ± 0.2]
0.031 ± 0.012
[0.8 ± 0.3]
0.031 ± 0.012
[0.8 ± 0.3]
0.043 ± 0.012
[1.1 ± 0.3]
0.043 ± 0.008
[1.1 ± 0.2]
D (REF.)
0.008
[0.2]
0.008
[0.2]
0.008
[0.2]
0.008
[0.2]
0.008
[0.2]
For technical questions, contact: tantalum@vishay.com
Document Number: 40064
Revision: 07-Jan-08
572D
Solid Tantalum Chip Capacitors
Vishay Sprague
®
, Low Profile, Conformal Coated, Maximum CV
T
ANTAMOUNT
RATINGS AND CASE CODE
µF
2.2
4.7
6.8
10
15
22
33
47
68
100
220
330
4V
6.3 V
10 V
16 V
25 V
Q
A/S
A
A/B/T
P
A/P/Q/S
Q/S
S
A/B/T/S/Q*
B
P/A/S
S*
B
B/T
P
B/B**/T/S
T*
STANDARD RATINGS
CAPACITANCE
CASE CODE
(µF)
33
220
220
220
220
330*
33
33
33
33
47
47
68
100
100
100
100
100*
220
10
33
33
33
47*
68
100
100
22
22
22
2.2
4.7
4.7
10
P
B
B
T
S
T*
A
P
Q
S
Q
S
S
A
B
T
S
Q*
B
P
P
A
S
S*
B
B
T
A
B
T
Q
A
S
A
MAX. DF
MAX. ESR
MAX. DCL
AT + 25 °C
PART NUMBER
AT + 25 °C
AT + 25 °C
100 kHz (Ω)
(µA)
120 Hz (%)
4 WVDC AT + 85 °C, SURGE = 5.2 V . . . 2.7 WVDC AT + 125 °C, SURGE = 3.4 V
572D336X_004P2_001**
1.32
14
1.5
572D227X_004B2_
8.8
16
0.2
572D227X_004B2_001**
8.8
16
0.2
572D227X_004T2_
8.8
26
0.6
572D227X0004S2_
8.8
25
0.8
572D337X_004T2_*
13.2*
26*
0.8*
6.3 WVDC AT 85 °C, SURGE = 8 V . . . 4 WVDC AT + 125 °C, SURGE = 5 V
572D336X_6R3A2_
2.1
8
0.8
572D336X06R3P2_
2.1
14
1.5
572D336X_6R3Q2_
2.1
10
2.0
572D336X_6R3S2_
2.1
10
1.0
572D476X_6R3Q2_
3.0
10
1.1
572D476X_6R3S2_
3.0
10
0.9
572D686X06R3S2_
4.3
12
0.9
572D107X_6R3A2_
6.3
14
0.5
572D107X_6R3B2_
6.3
14
0.4
572D107X_6R3T2_
6.3
14
0.5
572D107X_6R3S2_
6.3
20
1.0
572D107X_ 6R3Q2_*
6.3*
25*
1.5*
572D227X_6R3B2_
13.9
16
0.2
10 WVDC AT + 85 °C, SURGE = 13 V . . . 7 WVDC AT + 125 °C, SURGE = 8 V
572D106X_010P2_
1.0
8
3.0
572D336X0010P2_
3.3
25
4.0
572D336X0010A2_
3.3
10
0.8
572D336X0010S2_
3.3
10
1.1
572D476X0010S2_*
4.7*
14*
1.1*
572D686X_010B2_
6.8
6
0.45
572D107X0010B2_
10
14
0.4
572D107X0010T2_
10.0
18
0.5
16 WVDC AT + 85 °C, SURGE = 20 V . . . 10 WVDC AT + 125 °C, SURGE = 12 V
572D226X_016A2_
3.5
8
1.4
572D226X_016B2_
3.5
6
0.5
572D226X_016T2_
3.5
8
1.0
25 WVDC AT + 85 °C, SURGE = 32 V . . . 17 WVDC AT + 125 °C, SURGE = 20 V
572D225X_025Q2_
0.65
6
5.0
572D475X_025A2_
1.2
6
2.0
572D475X_025S2_
1.2
8
4.0
572D106X_025A2_
2.5
10
3.5
MAX. RIPPLE
100 kHz
I
rms
(A)
0.13
0.63
0.63
0.37
0.26
0.56*
0.29
0.13
0.17
0.24
0.22
0.25
0.26
0.36
0.45
0.36
0.24
0.19*
0.63
0.09
0.08
0.29
0.23
0.23*
0.42
0.45
0.40
0.22
0.45
0.24
0.10
0.18
0.12
0.15
Note:
* Contact factory for availability
** Special Height: 572D227X_004B2_001, height = 1.7 mm Max.; 572D336X_004P2_001, height = 1.0 mm Max.
Document Number: 40064
Revision: 07-Jan-08
For technical questions, contact: tantalum@vishay.com
www.vishay.com
105
572D
Vishay Sprague
Solid Tantalum Chip Capacitors
T
ANTAMOUNT
®
, Low Profile, Conformal Coated, Maximum CV

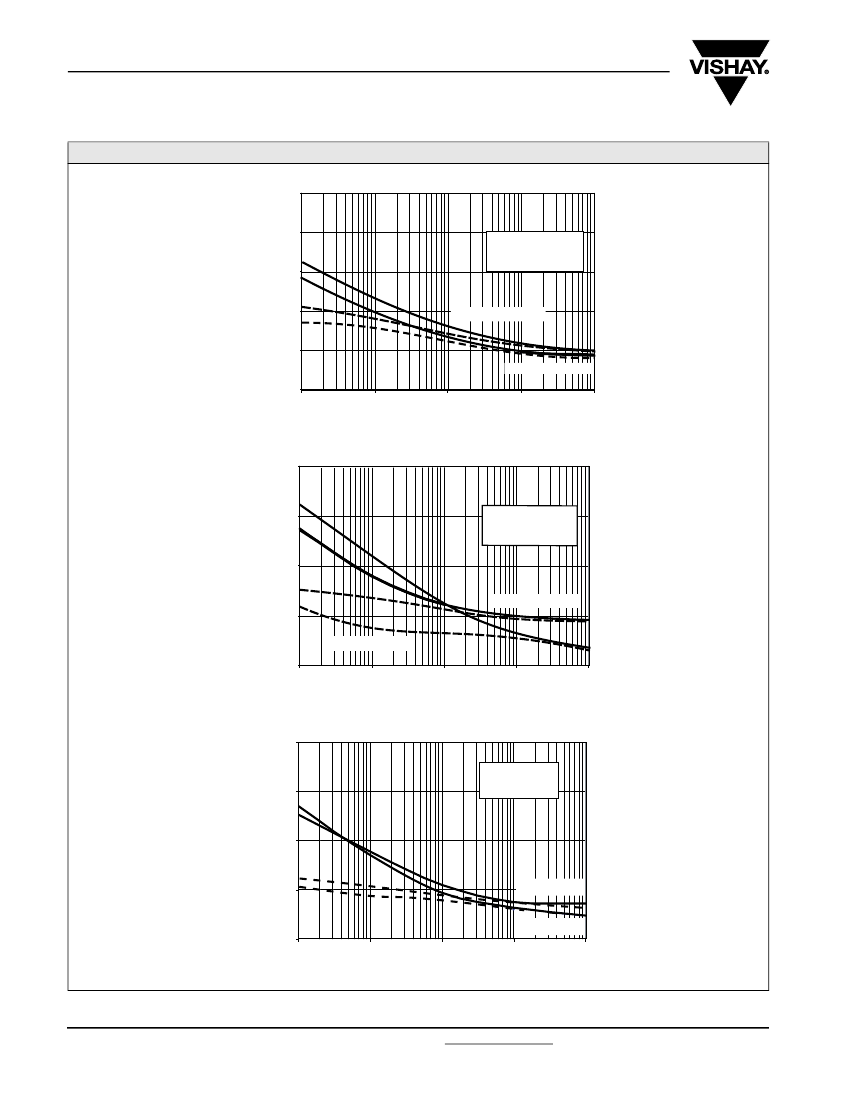

TYPICAL CURVES AT + 25 °C, IMPEDANCE AND ESR VS. FREQUENCY
“B” case
1000.0
100.0
__ __ __
10.0
__
IMPEDANCE
ESR
Ω
1.0
100 µF - 10 VDC
0.1
220 µF - 6 VDC
0.0
100
1K
10K
100K
1M
FREQUENCY IN Hz
“P” case
1000.0
100.0
__
__ __ __
Ω
10.0
IMPEDANCE
ESR
33 µF - 6 VDC
1.0
10 µF - 10 VDC
0.1
100
1K
10K
100K
1M
FREQUENCY IN Hz
“Q” case
1000.0
100.0
__ __ __
ESR
__
IMPEDANCE
Ω
10.0
1.0
47 µF - 6 VDC
33 µ - 6 VDC
0.1
100
1K
10K
100K
1M
FREQUENCY IN Hz
www.vishay.com
106
For technical questions, contact: tantalum@vishay.com
Document Number: 40064
Revision: 07-Jan-08
572D
Solid Tantalum Chip Capacitors
Vishay Sprague
®
, Low Profile, Conformal Coated, Maximum CV
T
ANTAMOUNT
TYPICAL CURVES AT + 25 °C, IMPEDANCE AND ESR VS. FREQUENCY
220 µF - 4 V T-Case
ESR/Z vs. Freq.
100
ESR
IMPEDANCE
10
Ω
1
0
0.01
0.10
1.00
10.00
100.00
1000.00
FREQUENCY IN kHz
220 µF - 4 V S-Case
ESR/Z vs. Freq.
100
10
ESR
IMPEDANCE
Ω
1
0
0.01
0.10
1.00
10.00
100.00
1000.00
FREQUENCY IN kHz
Document Number: 40064
Revision: 07-Jan-08
For technical questions, contact: tantalum@vishay.com
www.vishay.com
107
