PDM4M4120S25AM Overview

SRAM Module, 4MX8, 25ns, CMOS

PDM4M4120S25AM Parametric

Parameter Name	Attribute value
Maker	Paradigm Technology Inc
package instruction	,
Reach Compliance Code	unknow
ECCN code	3A991.B.2.A
Maximum access time	25 ns
Other features	CONFIGURABLE AS 1M X 32
JESD-30 code	R-XSMA-N72
memory density	33554432 bi
Memory IC Type	SRAM MODULE
memory width	8
Number of functions	1
Number of terminals	72
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX8
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	SINGLE

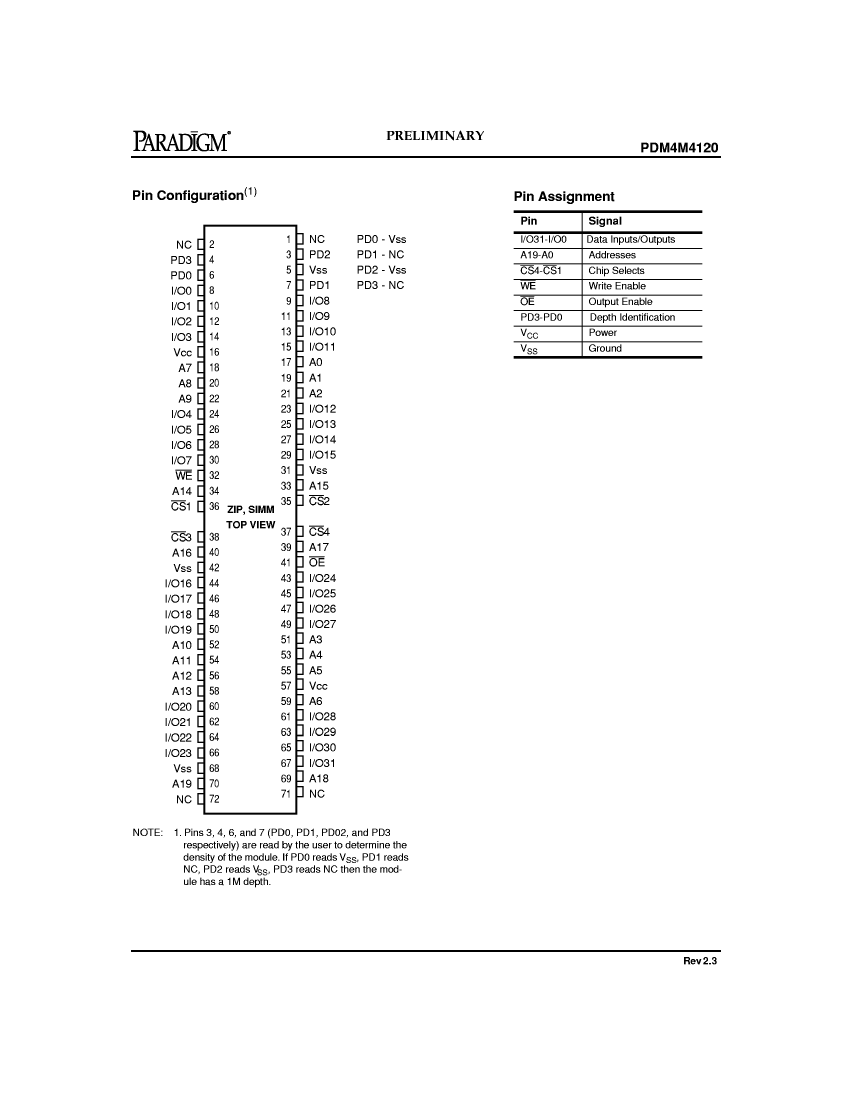

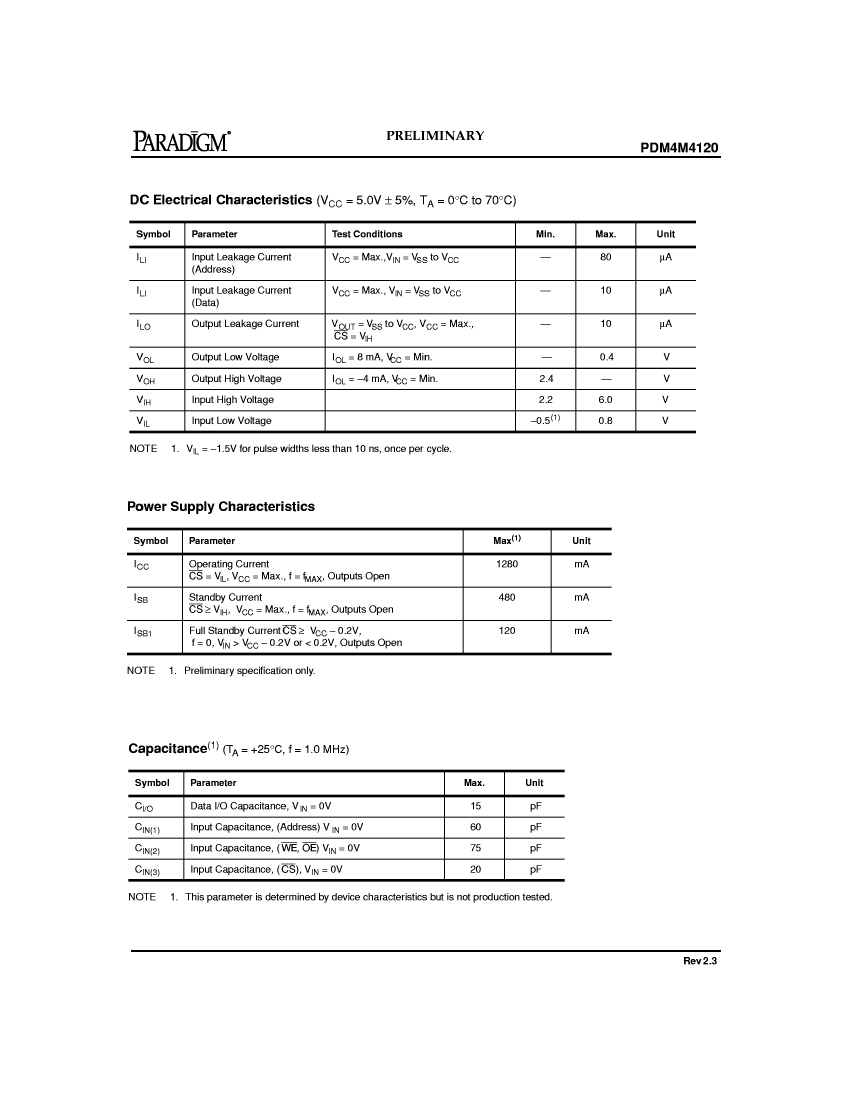

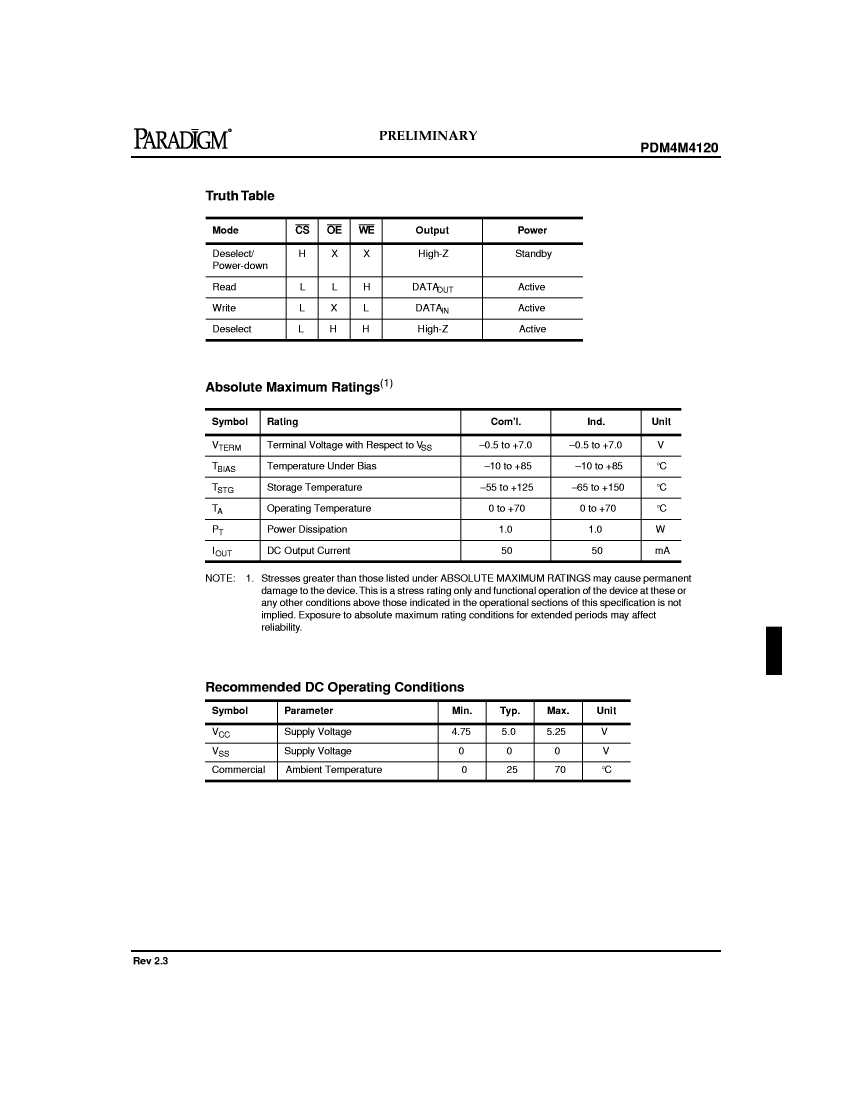

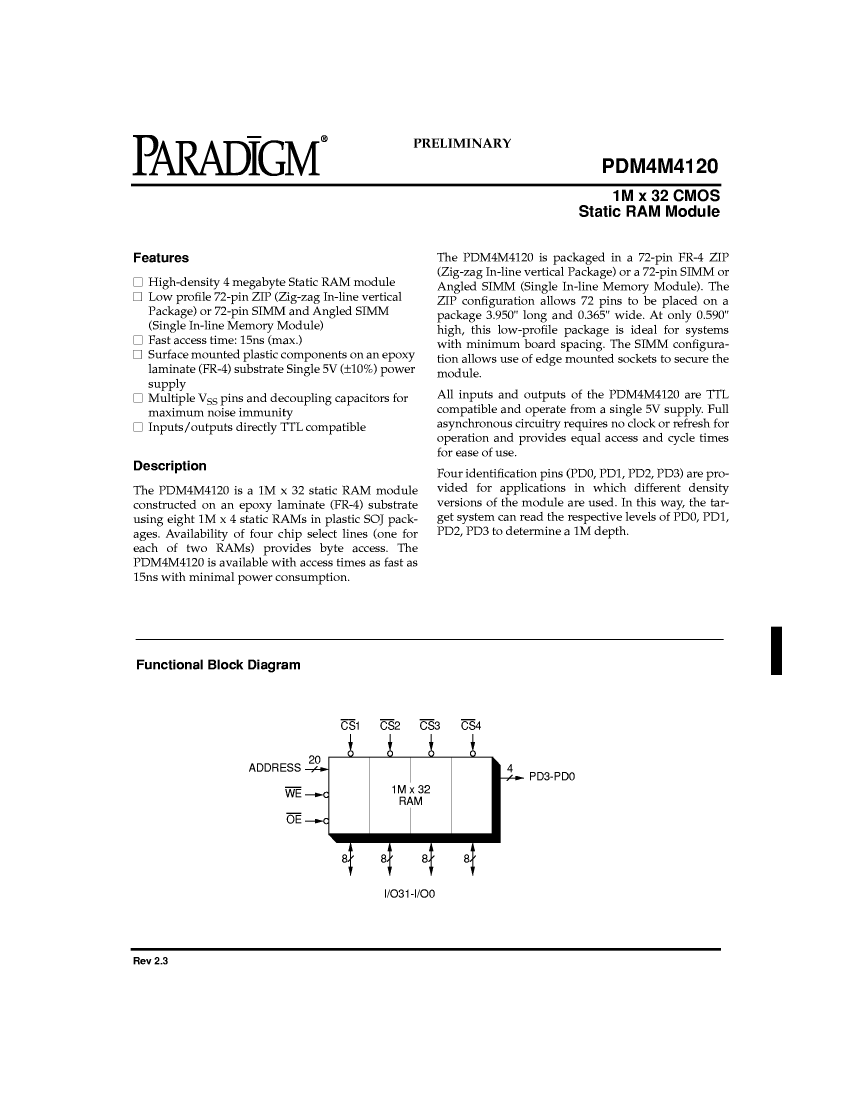

Preview

Download Datasheet

View All

PDM4M4120S25AM Related Products

	PDM4M4120S25AM	PDM4M4120S25M	PDM4M4120S15M	PDM4M4120S20M	PDM4M4120S25Z	PDM4M4120S15Z	PDM4M4120S20Z	PDM4M4120S15AM	PDM4M4120S20AM
Description	SRAM Module, 4MX8, 25ns, CMOS	SRAM Module, 4MX8, 25ns, CMOS	SRAM Module, 4MX8, 15ns, CMOS	SRAM Module, 4MX8, 20ns, CMOS	SRAM Module, 4MX8, 25ns, CMOS	SRAM Module, 4MX8, 15ns, CMOS	SRAM Module, 4MX8, 20ns, CMOS	SRAM Module, 4MX8, 15ns, CMOS	SRAM Module, 4MX8, 20ns, CMOS
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	25 ns	25 ns	15 ns	20 ns	25 ns	15 ns	20 ns	15 ns	20 ns
Other features	CONFIGURABLE AS 1M X 32	CONFIGURABLE AS 1M X 32	CONFIGURABLE AS 1M X 32	CONFIGURABLE AS 1M X 32	CONFIGURABLE AS 1M X 32	CONFIGURABLE AS 1M X 32	CONFIGURABLE AS 1M X 32	CONFIGURABLE AS 1M X 32	CONFIGURABLE AS 1M X 32
JESD-30 code	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XZMA-T72	R-XZMA-T72	R-XZMA-T72	R-XSMA-N72	R-XSMA-N72
memory density	33554432 bi	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	72	72	72	72	72	72	72	72	72
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000	4000000	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX8	4MX8	4MX8	4MX8	4MX8	4MX8	4MX8	4MX8	4MX8
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	ZIG-ZAG	ZIG-ZAG	ZIG-ZAG	SINGLE	SINGLE
Maker	Paradigm Technology Inc	-	Paradigm Technology Inc	-	-	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc
