50526-02611-001: DescriptionCard Edge Connector, 26 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size156KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

50526-02611-001 Overview

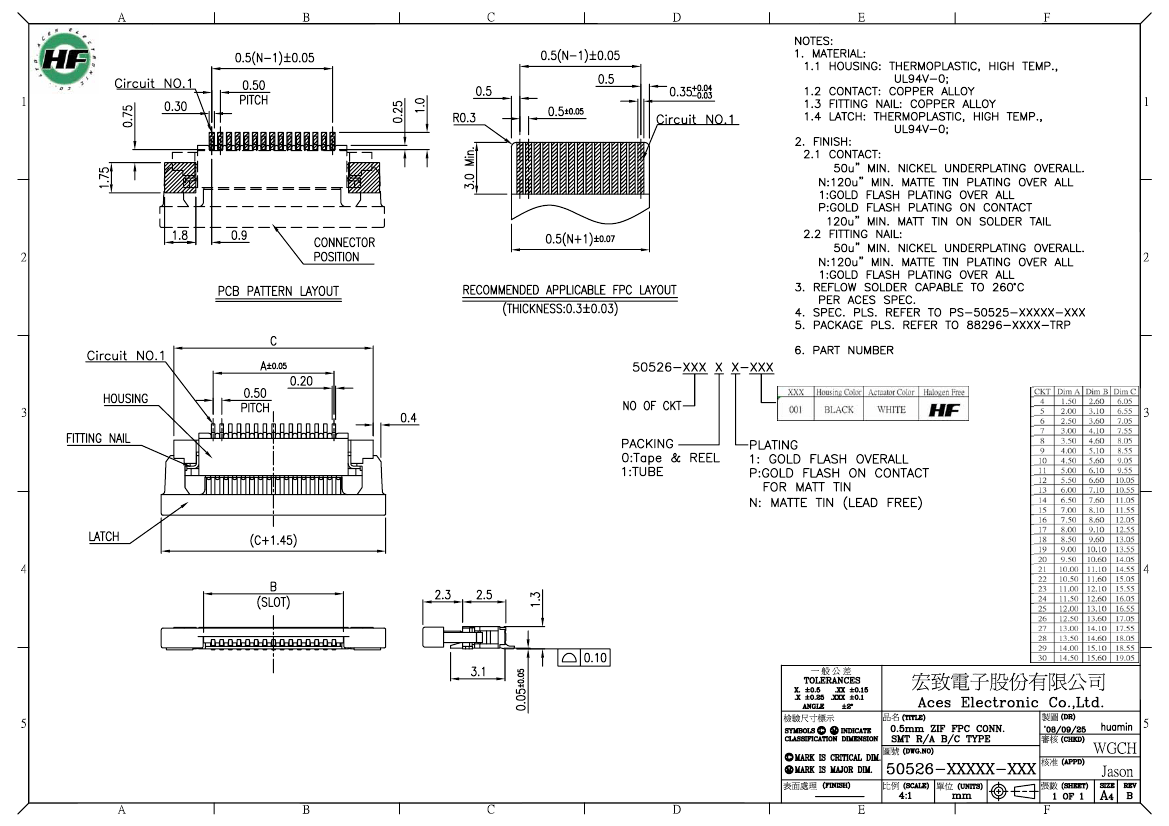

Card Edge Connector, 26 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknow
Board mount options	FITTING NAIL
body width	0.051 inch
subject depth	0.122 inch
body length	0.671 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation option 2	LATCH
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	26
