88421-7001-BS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 88421-7001-BS

88421-7001-BS: DescriptionBoard Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size141KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

88421-7001-BS Overview

Board Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

88421-7001-BS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknow
Board mount options	PEG
body width	0.161 inch
subject depth	0.075 inch
body length	0.791 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	88421
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.5974 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	70

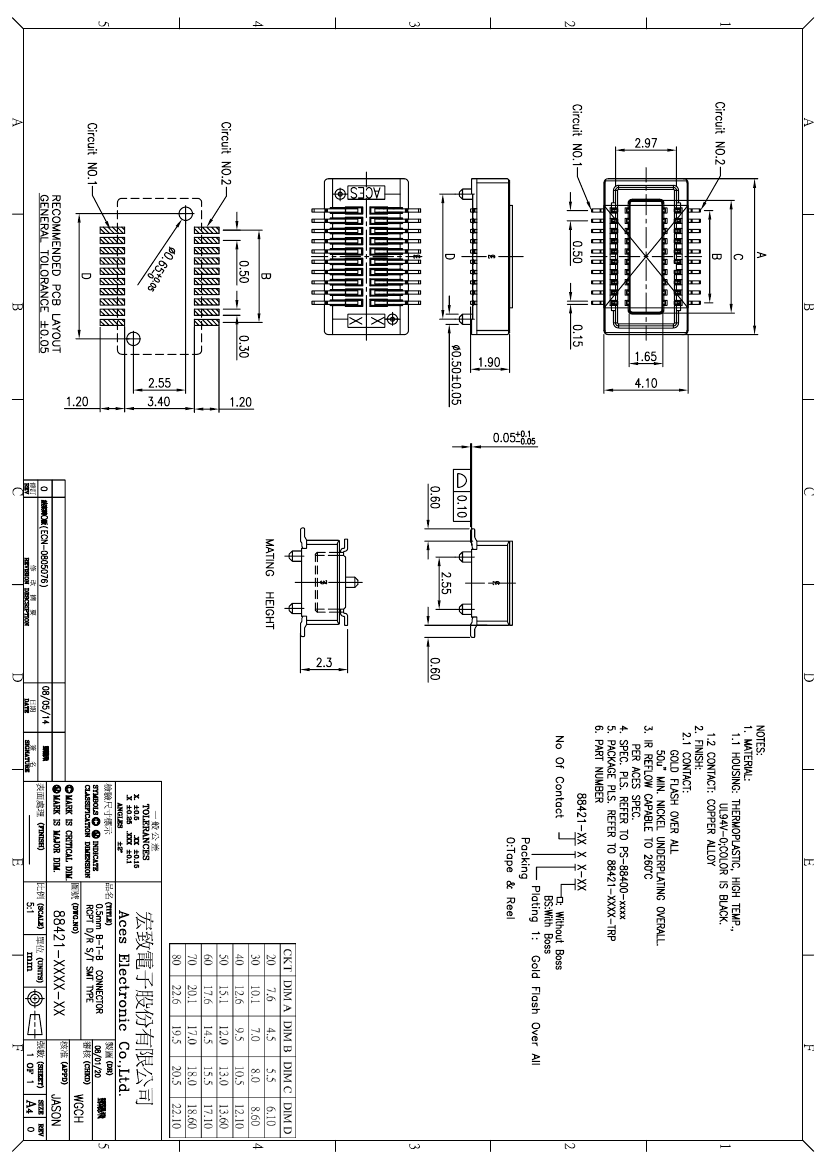

Preview

Download Datasheet

View All

88421-7001-BS Related Products

	88421-7001-BS	88421-2001-BS	88421-2001	88421-7001	88421-3001
Description	Board Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle	Board Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	unknown	unknown	unknow	unknown
body width	0.161 inch	0.161 inch	0.161 inch	0.161 inch	0.161 inch
subject depth	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch
body length	0.791 inch	0.299 inch	0.299 inch	0.791 inch	0.398 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Contact style	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
JESD-609 code	e4	e4	e4	e4	e4
Manufacturer's serial number	88421	88421	88421	88421	88421
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.5974 mm	4.5974 mm	4.5974 mm	4.5974 mm	4.5974 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	70	20	20	70	30
Maker	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	-
