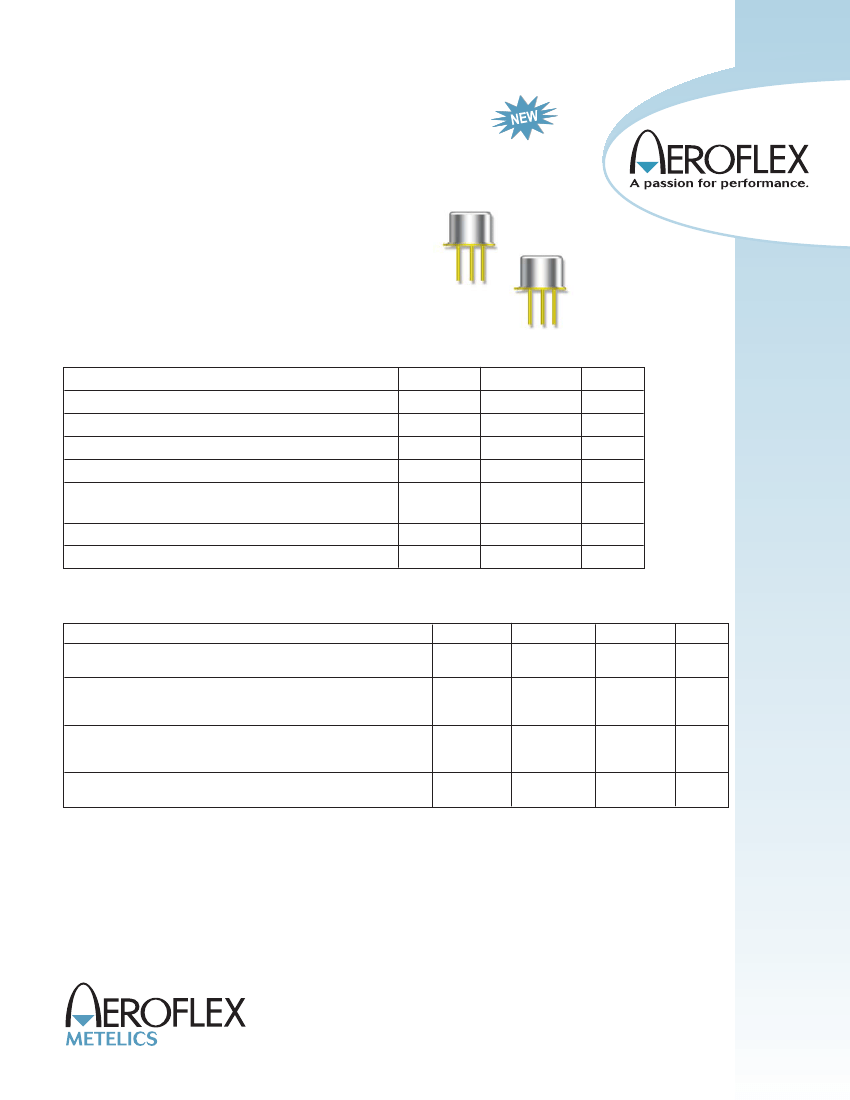

NPN Power Silicon Transistor
2N5152, 2N5152L & 2N5154, 2N5154L
Features
•
•
Available in commercial, JAN, JANTX, JANTXV, JANS
and JANSR 100K rads (Si) per MIL-PRF-19500/544
TO-5 Package: 2N5152L, 2N5154L
TO-39 (TO-205AD) Package: 2N5152, 2N5154
Maximum Ratings (TC = +25°C unless otherwise noted)
Ratings
Collector - Emitter Voltage
Collector - Base Voltage
Emitter - Base Voltage
Collector Current
Total Power Dissipation
@ TA = +25 °C
@ TC = +25 °C
Symbol
VCEO
VCBO
VEBO
IC
PT
Top, Tstg
R
θJC
Value
80
100
5.5
2.0
1.0
10
-65 to +200
10
Units
Vdc
Vdc
Vdc
Adc
W
°C
°C/W
Operating & Storage Temperature Range
Thermal Resistance, Junction-to-Case
Electrical Characteristics (TA = +25°C unless otherwise noted)
OFF Characteristics
Collector - Emitter Breakdown Voltage
IC = 100 mAdc, IB = 0
Emitter - Base Cutoff Current
VEB = 4.0 Vdc, IC = 0
VEB = 5.5 Vdc, IC = 0
Collector - Emitter Cutoff Current
VCE = 60 Vdc, VBE = 0
VCE = 100 Vdc, VBE = 0
Collector - Emitter Cutoff Current
VCE = 40 Vdc, IB = 0
Symbol
V(BR)CEO
IEBO
Mimimum
80
---
Maximum
---
1.0
1.0
1.0
1.0
50
Units
Vdc
μAdc
mAdc
μAdc
mAdc
μAdc
ICES
---
ICEO
---
Revision Date: 4/15/2014
1
2N5152, 2N5154
2N5152L, 2N5154L
Electrical Characteristics -con’t
ON Characteristics
Forward Current Transfer Ratio
IC = 50 mAdc, VCE = 5.0 Vdc
IC = 2.5 Adc, VCE = 5.0 Vdc
IC = 5.0 Adc, VCE = 5.0 Vdc
Collector - Emitter Saturation Voltage
IC = 2.5 Adc, IB = 250 mAdc
IC = 5.0 Adc, IB = 500 mAdc
Emitter - Base Voltage Non-Saturation
IC = 2.5 Adc, VCE = 5.0 Vdc
Emitter - Base Saturation Voltage
IC = 2.5 Adc, IB = 250 mAdc
IC = 5.0 Adc, IB = 500 mAdc
2N5152
2N5154
2N5152
2N5154
2N5152
2N5154
VCE(sat)
Symbol
Mimimum
Maximum
Units
HFE
20
50
30
70
20
40
---
---
---
---
---
---
90
200
---
---
0.75
1.5
1.45
1.45
2.2
Vdc
VBE(ON)
VBE(sat)
Vdc
Vdc
DYNAMIC Characteristics
Magnitude of Common Emitter Small-Signal Short-Circuit
Forward Current Transfer Ratio
IC = 500 mAdc, VCE= 5.0 Vdc, f = 10 MHz
2N5152
2N5154
Small-signal short Circuit FOlWard-Current Transfer Ratio
IC = 100 mAdc, VCE = 5 Vdc, f= 1KHz
2N5152
2N5l54
Output Capacitance
VCB = 10 Vdc, IE = 0, f = 1.0 MHz
| hfe |
6
7
20
50
---
---
---
---
---
250
pF
hfe
Cobo
ton
toff
ts
tf
SWITCHING Characteristics
Turn-On Time
IC = 5.0 Adc; IB1 = 500 mAdc
Turn-off Time
RL = 6
Ω
Storage Time
IB2 = -500 mAdc
Fall Time
VBE(OFF) = 3.7 Vdc
---
---
---
---
0.5
1.5
1.4
0.5
μs
μs
μs
μs
SAFE OPERATING AREA
DC Tests:
Test 1:
Test 2:
Test 3:
TC = +25 °C, 1 Cycle, t = 1.0 s
VCE = 5.0 Vdc, IC = 2.0 Adc
VCE = 32.0 Vdc, IC = 310 mAdc
VCE = 80 Vdc, IC = 12.5 mAdc
2
603-641-3800 • 888-641--SEMI (7364) • metelics-sales@aeroflex.com • www.aeroflex.com/metelics
Revision Date: 4/22/2014
2N5152, 2N5154
2N5152L, 2N5154L

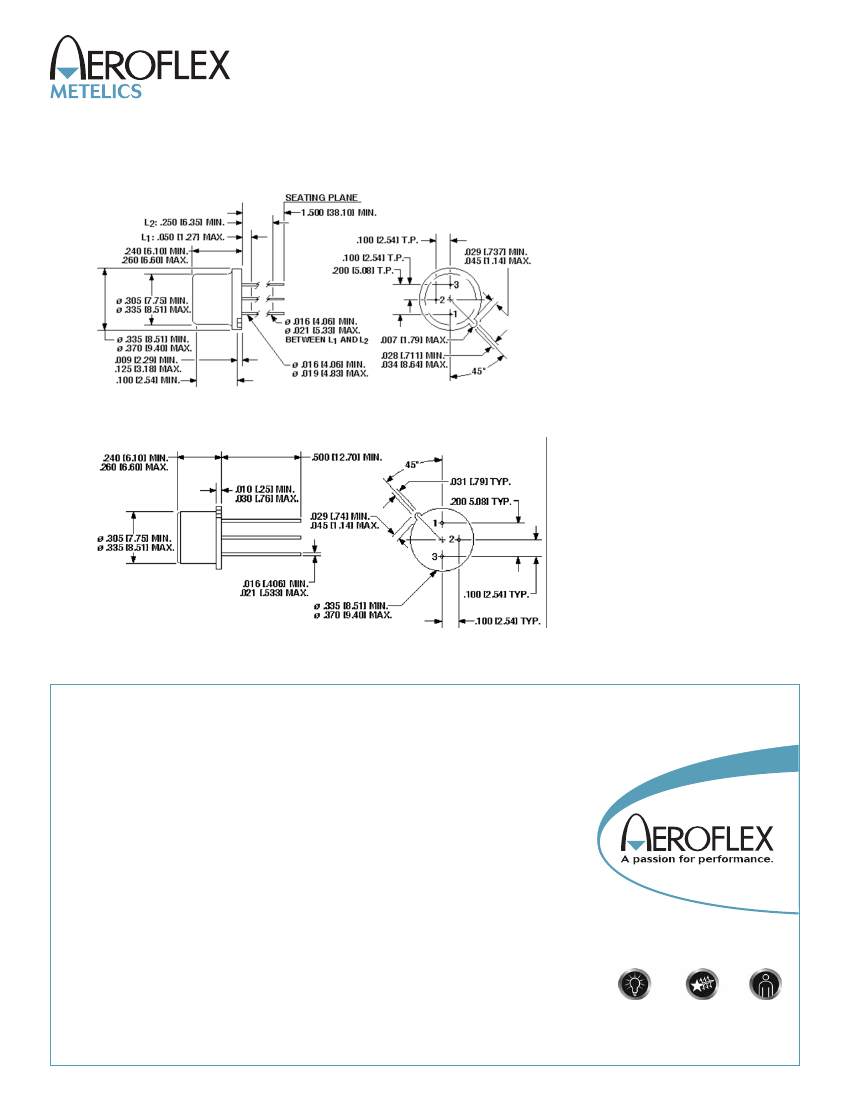

Outline Drawing
TO-5 Package: (2N5152L, 2N5154L)
TO-39 (TO-205AD) Package: (2N5152, 2N5154)
NOTE: Dimensions in Inches [mm]
Aeroflex / Metelics, Inc.
975 Stewart Drive,
Sunnyvale, CA 94085
Tel: (408) 737-8181
Fax: (408) 733-7645
Sales: 888-641-SEMI (7364)
Hi-Rel Components
9 Hampshire Street,
Lawrence, MA 01840
Tel: (603) 641-3800
Fax: (978) 683-3264
www.aeroflex.com/metelics-hirelcomponents
54 Grenier Field Road,
Londonderry, NH 03053
Tel: (603) 641-3800
Fax: (603)-641-3500
ISO 9001: 2008 certified companies
www.aeroflex.com/metelics
metelics-sales@aeroflex.com
Aeroflex / Metelics, Inc. reserves the right to make changes to any products and services
herein at any time without notice. Consult Aeroflex or an authorized sales representative to
verify that the information in this data sheet is current before using this product. Aeroflex
does not assume any responsibility or liability arising out of the application or use of any
product or service described herein, except as expressly agreed to in writing by Aeroflex;
nor does the purchase, lease, or use of a product or service from Aeroflex convey a license
under any patent rights, copyrights, trademark rights, or any other of the intellectual rights
of Aeroflex or of third parties.
Copyright 2010 Aeroflex / Metelics. All rights reserved.
Revision Date: 4/22/2014
