5082SE-P05.0GF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 5082SE-P05.0GF

Preview

5082SE-P05.0GF: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 20W, Hybrid, HERMETIC SEALED, PACKAGE-12; CategoryPower/power management The power supply circuit; File Size296KB，2 Pages; ManufacturerModular Devices Inc.

Download Datasheet Parametric View All

5082SE-P05.0GF Overview

DC-DC Regulated Power Supply Module, 1 Output, 20W, Hybrid, HERMETIC SEALED, PACKAGE-12

5082SE-P05.0GF Parametric

Parameter Name	Attribute value
Maker	Modular Devices Inc.
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	16 V
Minimum input voltage	11 V
Nominal input voltage	12 V
JESD-30 code	R-XDFM-P12
Number of functions	1
Output times	1
Number of terminals	12
Maximum output voltage	6 V
Minimum output voltage	4 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal form	PIN/PEG
Terminal location	DUAL
total dose	100k Rad(Si) V
Maximum total power output	20 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

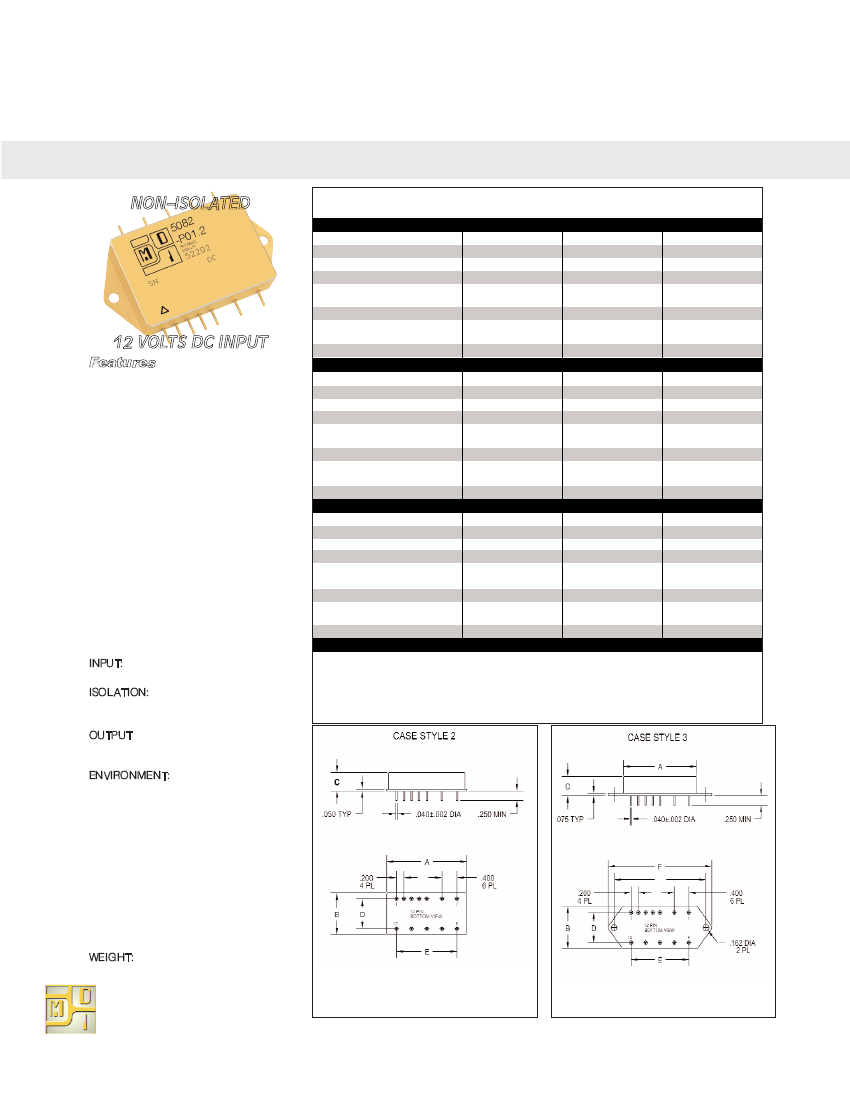

8-20 WATT HYBRID

POINT OF LOAD DC–DC REGULATORS

NON–ISOLATED

SERIES 5082

POSITIVE OUTPUT CONVERTERS

PARAMETER

CONDITION

Output voltage

(Trim Range)

Output current

V

in min

— V

in max

Efficiency

P

out

= max rated load

P

out

= max rated load

Line regulation

V

in min

— V

in max

Load regulation P

out

= 10% to F.L.

F.L. BW 2 MHz

Output ripple

mVpp

External Output Cap (µF)

POSITIVE OUTPUT CONVERTERS

PARAMETER

CONDITION

Output voltage

(Trim Range)

Output current

V

in min

— V

in max

Efficiency

P

out

= max rated load

P

out

= max rated load

Line regulation

V

in min

— V

in max

Load regulation P

out

= 10% to F.L.

F.L. BW 2 MHz

mVpp

Output ripple

External Output Cap (µF)

POSITIVE OUTPUT CONVERTERS

PARAMETER

CONDITION

Output voltage

(Trim Range)

Output current

V

in min

— V

in max

Efficiency

P

out

= max rated load

P

out

= max rated load

Line regulation

V

in min

— V

in max

Load regulation P

out

= 10% to F.L.

F.L. BW 2 MHz

mVpp

Output ripple

External Output Cap (µF)

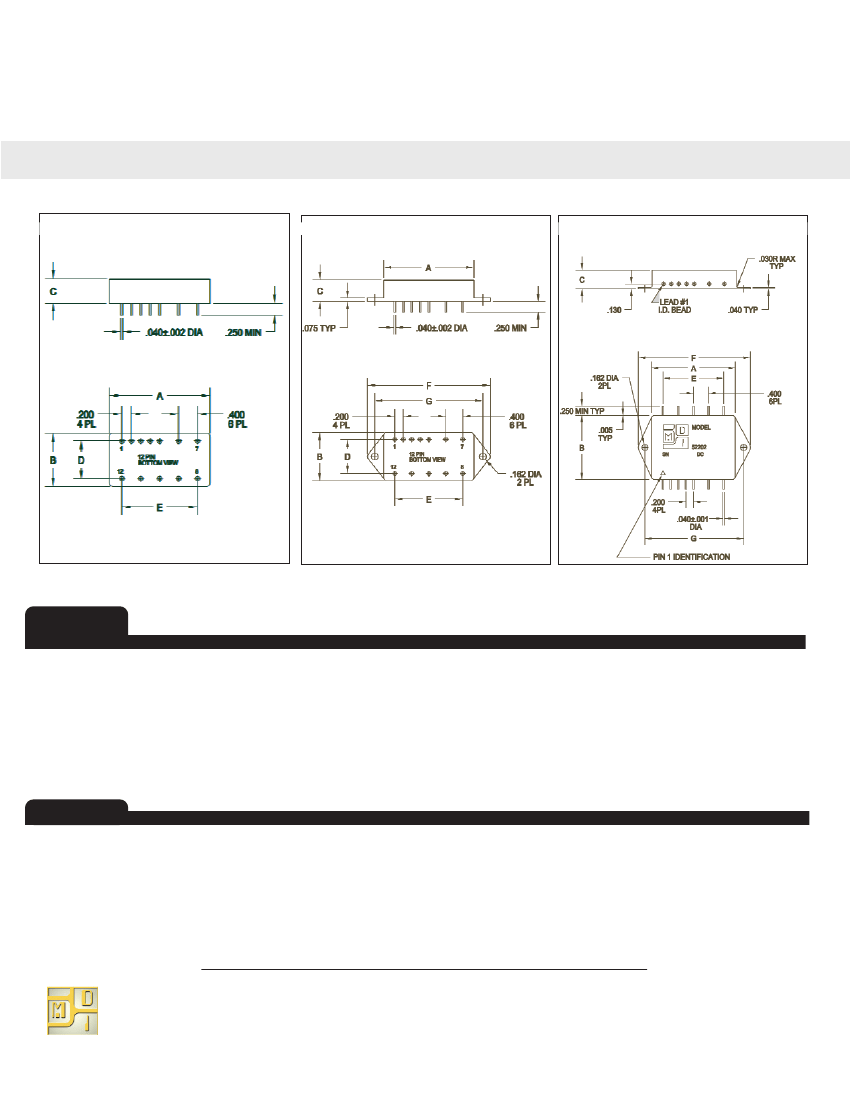

Model No.

Case Style

5082

2

5082 F

3

5082 G

5

5082 GF

6

5082 UF

8

5082-P01 (8W)

MIN

TYP

MAX

+0.9

+1.0

+1.1

—

8A

—

80%

—

10mV

20

30mV

—

5082-P01.2 (10W)

MIN

TYP

MAX

+1.0

+1.2

+1.4

—

8A

—

81%

—

10mV

20

30mV

—

5082-P01.5 (12W)

MIN

TYP

MAX

+1.3

+1.5

+1.7

—

8A

—

81%

—

10mV

20

30mV

—

Features

12 VOLTS DC INPUT

• Rad Hard: TID > 100kRad(Si)

• 2:1 margin: Operates beyond 200kRad

TID

• No SEE:LET > 82MeV*cm2/mg

• Proton Resistant: No optocouplers used

• Synchronous rectification for high

efficiency

• Non-isolated for intermediate bus

applications

• Adjustable output voltage trim

• Thick Film Hybrid DC-DC Regulator

• “Inhibit-not” function

• 200kHz operation

• Sync input 1:1, 195-210 kHz

• Full hermetic package, solder seal and

seam welded; PC and Chassis mount

options

1000

—

4000

5082-P01.8 (14W)

MIN TYP MAX

+1.6 +1.8 +2.0

—

8A

—

82%

—

10mV 50mV

20

—

1000

—

4000

5082-P02.0 (16W)

MIN TYP MAX

+1.8 +2.0 +2.3

—

8A

—

82%

—

10mV 50mV

20

—

1000

—

4000

5082-P02.5 (20W)

MIN TYP MAX

+2.2 +2.5 +3.0

—

8A

—

83%

—

20mV 100mV

25

—

1000

—

4000

5082-P03.3 (20W)

MIN TYP MAX

+3.0 +3.0 +4.0

—

6A

—

88%

—

25mV 125mV

30

—

1000

—

4000

5082-P05.0 (20W)

MIN TYP MAX

+4.0 +5.0 +6.0

—

4A

—

89%

—

50mV 250mV

50

—

1000

—

4000

5080-P07.5 (20W)

MIN TYP MAX

+6.5 +7.5 +8.5

—

2.7A

—

89%

—

65mV 300mV

50

—

2000

INPUT:

Specifications

12 VDC nominal

11 to 16 VDC continuous

Range:

ISOLATION:

Input-Output: Non-Isolated

Input and Output to case: 100 VDC

OUTPUT

:

External capacitance recommended for

specified performance

1000

—

Pin Count

12

4000

500

—

2000

500

—

Mounting

Solder Sealed Flangeless PCB Mount

Solder Sealed PCB Mount with Flange

Seam Weld Flangeless PCB Mount

Seam Weld PCB Mount with Flange

Seam Weld Chassis Mount with Flange

ENVIRONMENT:

Storage temperature: -55°C to +150°C

Shock:

50 G's

Acceleration:

500 G's

Vibration:

30 G's

Grades EU, R & S:

Full Output Power at T

case

= +85°C

Linearly derates to zero at

T

case

= +115°C

Grades RE & SE:

Full Power Output at T

case

= +125°C

Linearly derates to zero at

T

case

= +135°C

WEIGHT:

50 grams typical

™

Modular Devices, Inc •

One Roned Road

•

Shirley, New York 11967

•

E-mail sales@mdipower.com

•

Fax 631.345.3106

• Tel 631.345.3100

Page 1 of 2

Released 2010-11-01
