A72
FIlM-FOIl POlyPROPylene CAPACITOR
HIgH CURRenT APPlICATIOnS
Typical applications:
switching spikes suppression and
resonant capacitor in SMPS, deflection circuits in TV-sets (S-
correction and fly-back tuning), applications with high voltage
and high current.
PRoDUCT CoDe:
A72
KP series
D max
Ød ±0.05
5
0.5
>5 ≤ 7
0.6
>7<16
0.8
≥16
1
All dimensions are in mm.
PRODUCT CODe SySTeM
The part number, comprising 14 digits, is formed as follows:
1
2
3
4
5
6
7
8
9
10 11
12
13
14
geneRAl TeCHnICAl DATA
Dielectric:
polypropylene film.
Plates:
Winding:
leads:
metal foil for 1 section;
metal foil + metallized film for 2 sections.
non-inductive type.
tinned wire.
A 7 2
Digit 1 to 3
Digit 4
-
series code.
d.c. rated voltage:
e =100V I = 250V M= 400V
P =630V Q =1000V s =1500V U = 2000V
Digit 5
Length (mm):
F=11; H=14; K=20.5; Q=28; T=33
Digit 6 to 9
Digits 7 - 8 - 9 indicate the first three digits of
Capacitance value and the 6th digit indicates
the number of zeros that must be added to
obtain the Rated Capacitance in pF.
Digit 10 to 11 Mechanical version and/or packaging (table1)
Digit 12
Identifies the dimensions and electrical
characteristics.
Digit 13
Internal use
Digit 14
Capacitance tolerance:
J=5%; K=10%; M=20%.
Table 1 (for more detailed information, please refer to page 14).
Standard
packaging style
Reel Ø 355 mm
Loose
Ordering code
(Digit 10 to 11)
Protection:polyester
tape wrapping and thermosetting resin
end fill.
Marking:
manufacturer’s logo, series (1.72), dielectric
code (KP), capacitance, tolerance, D.C. rated
voltage.
55/105/56 IeC 68-1
Climatic category:
Operating temperature range:
-55 to +105°C
Related documents:
IeC 60384-13
26
AA
69
09/2008
A72
FIlM-FOIl POlyPROPylene CAPACITOR
HIgH CURRenT APPlICATIOnS
PRoDUCT CoDe:
A72
polypropylene
film dielectric
metal foil
1 section
(100-250-400Vdc)
Rated
Cap.
4700 pF
6800 pF
0.010
µF
Rated
Cap.
2200
3300
4700
6800
0.010
0.015
pF
pF
pF
pF
µF
µF
100Vdc/63Vac
D max
5.0
5.0
5.0
L max
11.0
11.0
11.0
Max
dv/dt
(V/µs)
3000
3000
3000
Max
dv/dt
(V/µs)
5000
5000
4500
4500
4500
4500
Max
dv/dt
(V/µs)
13000
13000
13000
13000
13000
13000
13000
13000
13000
13000
6500
6500
6500
6500
6500
Max K
0
(V
2
/µs)
0.60 e6
0.60 e6
0.60 e6
Max K
0
(V
2
/µs)
2.50 e6
2.50 e6
2.30 e6
2.30 e6
2.30 e6
2.30 e6
Max K
0
(V
2
/µs)
10.0 e6
10.0 e6
10.0 e6
10.0 e6
10.0 e6
10.0 e6
10.0 e6
10.0 e6
10.0 e6
10.0 e6
5.2 e6
5.2 e6
5.2 e6
5.2 e6
5.2 e6
Part number
A72eF1470
--
0
--
A72eF1680
--
0
--
A72eF2100
--
0
--
Part number
A72IF 1220
--
0
--
A72IF 1330
--
0
--
A72II 1470
--
0
--
A72II 1680
--
0
--
A72II 2100
--
0
--
A72II 2150
--
0
--
Part number
A72ΜF
0047
--
0
--
A72ΜF
0068
--
0
--
A72ΜF
0100
--
0
--
A72ΜF
0150
--
0
--
A72ΜF
0220
--
0
--
A72ΜF
0330
--
0
--
A72ΜF
0470
--
0
--
A72ΜF
0680
--
0
--
A72ΜF
1100
--
0
--
A72ΜF
1150
--
0
--
A72MI 1220
--
0
--
A72MI 1330
--
0
--
A72MI 1470
--
0
--
A72MI 1680
--
0
--
A72MI 2100
--
0
--
Rated
Cap.
0.015
0.022
0.033
0.047
0.068
0.10
0.15
0.22
0.33
µF
µF
µF
µF
µF
µF
µF
µF
µF
630Vdc/300Vac
D max
8.5
9.5
9.0
10.0
11.5
13.5
14.0
16.5
19.5
L max
20.5
20.5
28.0
28.0
28.0
28.0
33.0
33.0
33.0
KP series
polypropylene film dielectric
metal foil
single sided metallized
polypropylene film
2 sections
(630-1000-1500-2000Vdc)
Max
dv/dt
(V/µs)
4300
4300
2600
2600
2600
2600
1800
1800
1800
Max
dv/dt
(V/µs)
14000
14000
5000
5000
5000
5000
5000
3700
3700
3700
Max
dv/dt
(V/µs)
17000
17000
6000
6000
6000
6000
6000
4500
4500
4500
Max
dv/dt
(V/µs)
27000
27000
27000
9800
9800
9800
9800
7000
7000
7000
7000
Max K
0
(V
2
/µs)
5.4 e6
5.4 e6
3.3 e6
3.3 e6
3.3 e6
3.3 e6
2.3 e6
2.3 e6
2.3 e6
Max K
0
(V
2
/µs)
28.0 e6
28.0 e6
10.0 e6
10.0 e6
10.0 e6
10.0 e6
10.0 e6
7.4 e6
7.4 e6
7.4 e6
Max K
0
(V
2
/µs)
51 e6
51 e6
18 e6
18 e6
18 e6
18 e6
18 e6
13 e6
13 e6
13 e6
Max K
0
(V
2
/µs)
108 e6
108 e6
108 e6
39 e6
39 e6
39 e6
39 e6
28 e6
28 e6
28 e6
28 e6
Part number
A72PK 2150
--
0
--
A72PK 2220
--
0
--
A72PQ2330
--
0
--
A72PQ2470
--
0
--
A72PQ2680
--
0
--
A72PQ3100
--
0
--
A72PT 3150
--
0
--
A72PT 3220
--
0
--
A72PT 3330
--
0
--
Part number
A72QK 1330
--
0
--
A72QK 1470
--
0
--
A72QQ1680
--
0
--
A72QQ2100
--
0
--
A72QQ2150
--
0
--
A72QQ2220
--
0
--
A72QQ2330
--
0
--
A72QT 2470
--
0
--
A72QT 2680
--
0
--
A72QT 3100
--
0
--
Part number
A72sK 1220
--
0
--
A72sK 1330
--
0
--
A72sQ1470
--
0
--
A72sQ1680
--
0
--
A72sQ2100
--
0
--
A72sQ2150
--
0
--
A72sQ2220
--
0
--
A72sT 2330
--
0
--
A72sT 2470
--
0
--
A72sT 2680
--
0
--
Part number
A72UK 1100
--
0
--
A72UK 1150
--
0
--
A72UK 1220
--
0
--
A72UQ1330
--
0
--
A72UQ1470
--
0
--
A72UQ1680
--
0
--
A72UQ2100
--
0
--
A72UT 2150
--
0
--
A72UT 2220
--
0
--
A72UT 2330
--
0
--
A72UT 2470
--
0
--
250Vdc/125Vac*
D max
5.0
5.0
7.0
7.0
7.5
8.5
L max
11.0
11.0
16.5
16.5
16.5
16.5
Rated
Cap.
3300
4700
6800
0.010
0.015
0.022
0.033
0.047
0.068
0.10
pF
pF
pF
µF
µF
µF
µF
µF
µF
µF
1000Vdc/400Vac
D max
8.5
9.5
8.0
8.5
10.0
11.0
13.0
14.0
16.0
19.0
L max
20.5
20.5
28.0
28.0
28.0
28.0
28.0
33.0
33.0
33.0
Rated
Cap.
47
68
100
150
220
330
470
680
1000
1500
2200
3300
4700
6800
0.010
pF
pF
pF
pF
pF
pF
pF
pF
pF
pF
pF
pF
pF
pF
µF
400Vdc/160Vac
D max
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
6.5
6.5
7.0
8.0
9.0
L max
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
16.5
16.5
16.5
16.5
16.5
Rated
Cap.
2200
3300
4700
6800
0.010
0.015
0.022
0.033
0.047
0.068
pF
pF
pF
pF
µF
µF
µF
µF
µF
µF
1500Vdc/450Vac
D max
8.0
9.5
8.5
8.5
9.5
11.0
12.5
13.5
16.0
18.0
L max
20.5
20.5
28.0
28.0
28.0
28.0
28.0
33.0
33.0
33.0
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%); M (±20%)
All dimensions are in mm.
Rated
Cap.
1000
1500
2200
3300
4700
6800
0.010
0.015
0.022
0.033
0.047
pF
pF
pF
pF
pF
pF
µF
µF
µF
µF
µF
2000Vdc/500Vac
D max
8.5
9.5
11.0
9.0
9.5
11.0
13.0
13.5
16.0
20.0
22.5
L max
20.5
20.5
20.5
28.0
28.0
28.0
28.0
33.0
33.0
33.0
33.0
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%); M (±20%)
If the working voltage (V) is lower than the rated voltage (V
R
), the capacitor may work at higher dv/dt. In this case the maximum value
allowed is obtained multiplying the above value (see table dv/dt) with the ratio V
R
/V. The dv/dt test is carried out at 2 times the above
values.
The pulse characteristic K
0
depends on the voltage wave-form and in any case it cannot overcome the value given in the above table.
*Not suitable for across-the-line applications. Please refer to Interference suppression Capacitors (page 145).
Note:
09/2008
70
A72
FIlM-FOIl POlyPROPylene CAPACITOR
HIgH CURRenT APPlICATIOnS
PRoDUCT CoDe:
A72
KP series
eleCTRICAl CHARACTeRISTICS
Rated voltage (V
R
):
100 Vdc - 250 Vdc - 400 Vdc
for 1 section.
630Vdc- 1000Vdc-1500Vdc-2000Vdc
for 2 sections.
Rated temperature (T
R
):
+85°C
Temperature derated voltage:
for temperatures between +85°C and +105°C a decreasing
factor of 1.25% per degree °C on the rated voltage V
R
(d.c.
and a.c.) has to be applied.
Capacitance range:
47pF to 0.015µF for 1 section
1000pF to 0.33µF for 2 sections
Capacitance values:
e6 series (IeC 63 Norm)
Capacitance tolerances
(measured at 1 kHz):
±5% (J); ±10% (K); ±20% (M).
Total self-inductance
(L):
max 1 nH per 1 mm lead and capacitor length.
Dissipation factor (DF):
tgδ 10
-4
at +25°C ±5°C
kHz
010
100
C≤0.1
µ
F
≤05
≤10
>0.1
µ
F
≤05
TeST MeTHOD AnD PeRFORMAnCe
Damp heat, steady state:
Temperature:
Relative humidity (RH):
Test duration:
Performance
Test conditions
+40°C
±
2°C
93%
±
2%
56 days
Capacitance change |∆C/C|:
≤
2%
DF change (∆tg
δ
):
≤
5x10
-4
at 1kHz
≥
50% of initial limit.
Insulation resistance:
endurance:
Temperature:
Test duration:
Voltage applied:
Performance
Test conditions
+85°C
1000 h
1.5xV
R
Capacitance change |∆C/C|:
≤
2%
DF change (∆tg
δ
):
≤
5x10
-4
at 1kHz
≥
50% of initial limit.
Insulation resistance:
Resistance to soldering heat:
Test conditions
solder bath temperature:
+260°C
±
5°C
Dipping time (with heat screen):10 s
±
1 s
Performance
Insulation resistance:
Test conditions
Temperature:
Voltage charge time:
Voltage charge:
Performance
+25°C±5°C
1 min
100Vdc
Capacitance change |∆C/C|:
≤
1%
DF change (∆tg
δ
):
≤
5x10
-4
at 1kHz
≥
initial limit.
Insulation resistance:
long term stability
(after two years):
Storage:
standard environmental conditions (see page 12).
Performance
≥1x10
5
MΩ (Typ.value: 5x10
5
MΩ)
Test voltage between terminations:
2xV
R
applied for 2 s at +25°C±5°C.
Capacitance change |∆C/C|:
≤
0.5%
71
09/2008
A72
FIlM-FOIl POlyPROPylene CAPACITOR
HIgH CURRenT APPlICATIOnS
PRoDUCT CoDe:
A72
KP series

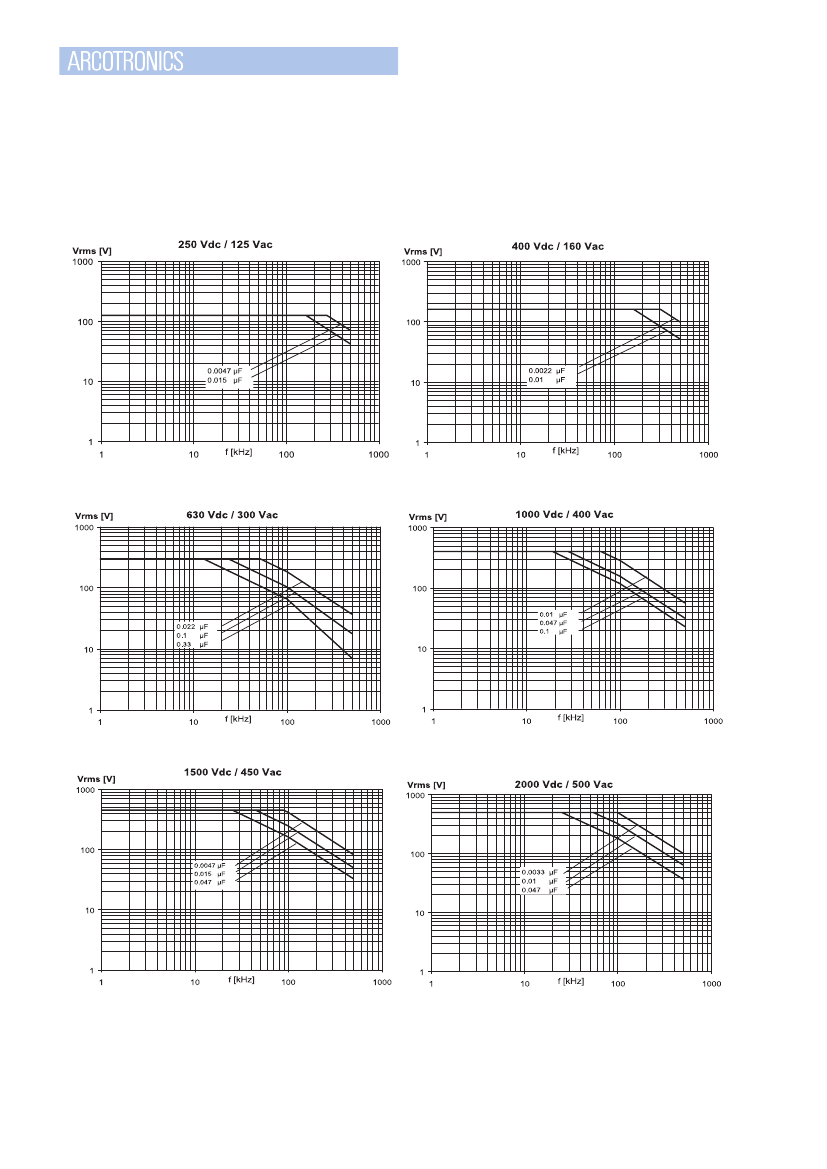

MAX. VoLTAGe (Vr.m.s.) VeRsUs FReQUeNCY (sinusoidal wave-form / Th
≤
40°C)
09/2008
72
A72
FIlM-FOIl POlyPROPylene CAPACITOR
HIgH CURRenT APPlICATIOnS
PRoDUCT CoDe:
A72
KP series

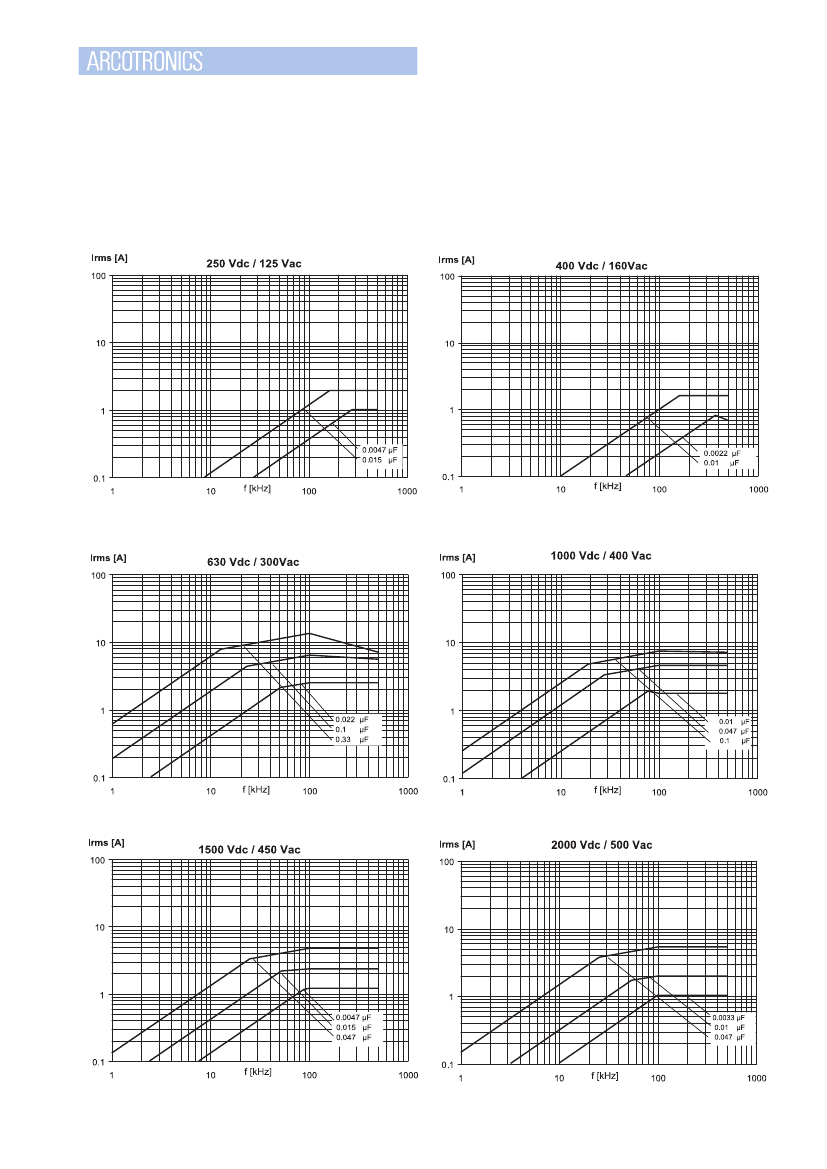

MAX. CURReNT (Ir.m.s.) VeRsUs FReQUeNCY (sinusoidal wave-form / Th
≤
40°C)
73
09/2008
