P6KE62CA

Description
Transient Voltage Suppressor, Bi-directional; Max Peak Repetitive Reverse Voltage: 600; Max TMS Bridge Input Voltage: 53; Max DC Reverse Voltage: 1; Sn/Pb - Pb-free
CategoryDiscrete semiconductor    diode
File Size1MB,5 Pages
ManufacturerDigitron
Websitehttp://www.digitroncorp.com
Download Datasheet Parametric View All

P6KE62CA Online Shopping

Suppliers Part Number Price MOQ In stock
P6KE62CA - - View Buy Now

P6KE62CA Overview

Transient Voltage Suppressor, Bi-directional; Max Peak Repetitive Reverse Voltage: 600; Max TMS Bridge Input Voltage: 53; Max DC Reverse Voltage: 1; Sn/Pb - Pb-free

P6KE62CA Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerDigitron
package instructionO-XALF-W2
Reach Compliance Codeunknow
Maximum breakdown voltage65.1 V
Minimum breakdown voltage58.9 V
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 codeDO-15
JESD-30 codeO-XALF-W2
JESD-609 codee0
Maximum non-repetitive peak reverse power dissipation600 W
Number of components1
Number of terminals2
Maximum operating temperature175 °C
Minimum operating temperature-65 °C
Package body materialUNSPECIFIED
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityBIDIRECTIONAL
Maximum power dissipation5 W
Maximum repetitive peak reverse voltage53 V
surface mountNO
technologyAVALANCHE
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperatureNOT SPECIFIED
High-reliability discrete products
and engineering services since 1977
FEATURES
P6KE6.8-P6KE440A
600W TRANSIENT VOLTAGE SUPPRESSORS
Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.
For Bidirectional construction, indicate a C or CA suffix after part number, i.e. P6KE6.8CA.
SPECIFICATION FEATURES
Standard Zener Voltage Range
Peak Power
Maximum Clamp Voltage
Low Leakage
Maximum Temperature Coefficient Specified
Response Time is Typically < 1 ns
6.8 to 440 volts
600 watts @ 1 ms
@ peak pulse current
< 5µA above 10 volts
MAXIMUM RATINGS
Rating
Peak Power Dissipation
(1)
@ T
L
≤ 25°C
Steady State Power Dissipation
@ T
L
≤ 75°C, Lead Length = 3/8”
Derated above T
L
= 75°C
Forward Surge Current
(2)
@ T
A
= 25°C
Operating and Storage Temperature Range
Forward Voltage @ 25°C:
(unidirectional only)
Symbol
P
PK
P
D
50
I
FSM
T
J
, T
stg
100
-65 to +175
mW/◌°C
ۜ
Amps
°C
Value
600
5
Unit
Watts
Watts
3.5V maximum @ 100A peak impulse of 8.3ms half-sine wave
Lead temperature not less than 1/16” from the case for 10 seconds : 230°C

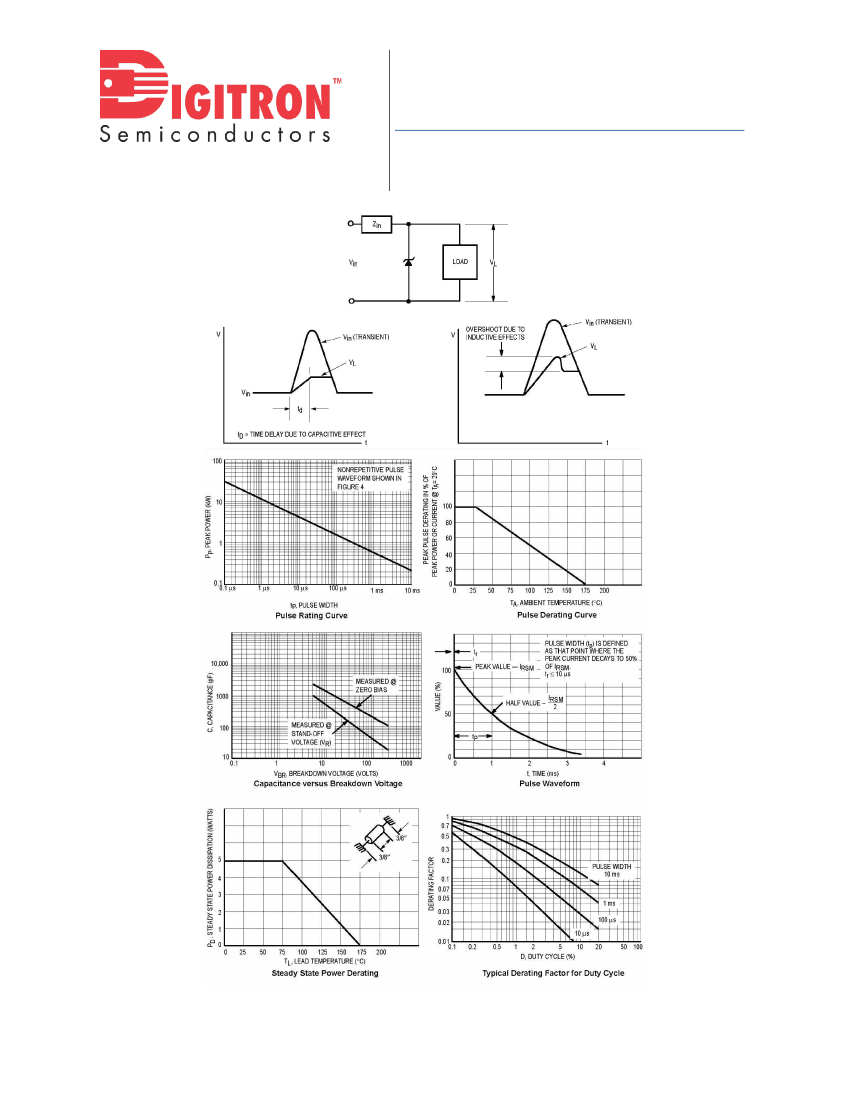

Note 1: Non repetitive current pulse per Figure 4 and derated above T
A
= 25°C per Figure 2.
Note 2: ½ sine wave (or equivalent square wave), PW 8.3 ms, duty cycle = 4 pulses per minute maximum.
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise specified)
Breakdown Voltage
Part
Number
V
BR
(Volts)
Min
V
DC
P6KE6.8
P6KE6.8A
P6KE7.5
P6KE7.5A
P6KE8.2
P6KE8.2A
P6KE9.1
P6KE9.1A
P6KE10
P6KE10A
P6KE11
6.12
6.45
6.75
7.13
7.38
7.79
8.19
8.65
9.0
9.5
9.9
Nom
V
DC
6.8
6.8
7.5
7.5
8.2
8.2
9.1
9.1
10.0
10.0
11.0
Max
V
DC
7.48
7.14
8.25
7.88
9.02
8.61
10.0
9.55
11.0
10.5
12.1
Test
Current
I
(BR)
mA
10
10
10
10
10
10
1
1
1
1
1
Rated
Stand Off
Voltage
V
WM
V
5.50
5.80
6.05
6.40
6.63
7.02
7.37
7.78
8.10
8.55
8.92
Maximum
Standby
Current
I
D
@ V
WM
µA
1000
1000
500
500
200
200
50
50
10
10
5
Maximum
Clamping
Voltage
V
C
@ I
PP
V
10.8
10.5
11.7
11.3
12.5
12.1
13.8
13.4
15.0
14.5
16.2
Peak Pulse
Current
I
PP
A
56.0
57.0
51.0
53.0
48.0
50.0
44.0
45.0
40.0
41.0
37.0
Maximum
Temperature
Coefficient of
V
BR
αV(BR)
(%/°C)
0.057
0.057
0.061
0.061
0.065
0.065
0.068
0.068
0.073
0.073
0.075
Rev. 20160115
