PJ2700 Series
Low Noise CMOS Positive Voltage Regulators
T
he PJ2700 series are highly precise, low noise, ultra low
power
consumption,
positive
voltage
regulators
TO-92
Pin 1.Gnd
2. In
3. Out
manufactured using CMOS and laser trimming technologies.
The series provides large currents with a significantly small
dropout voltage. The PJ2700 consists of a current limiter
circuit, a driver transistor, a precision reference voltage and an
error amplifier. Output voltage is selectable in 0.1V steps
between 2.0V ~ 6.0V in TO-92, SOT-89 and SOT-23 packages are
available.
SOT-89
FEATURES
Maximum Output Current:300mA
Dropout Voltage :300mV @ 100mA
Maximum Operating Voltage : 10V
Output Voltage Range :2.0V~6.0V(selectable in 0.1V steps)
Highly Accurate : ±2%
Low Power Consumption : TYP 2µA at Vout=5.0V
Operational Temperature Range : -20℃ ~ 85℃
Ultra Small Packages : TO-92, SOT-89, SOT-23
Applications
Mobile phones
Cordless phones
Cameras, video recorders
Portable games
Portable AV equipment
CD-Rom, DVD and LAN Card
Battery powered equipment
Device
PJ27xxCT
PJ27xxCY
PJ27xxCX
SOT-23
Pin 1. Gnd
2. In
3. Out
(Heatsink surface connected to Pin 2)
Pin 1. Gnd
2. Out
3. In
ORDER INFORMATION
Operation Temperature
-20℃ ~ +85
o
C
Package
TO-92
SOT-89
SOT-23
Remark: xx is output voltage, ex 33 = 3.3V, 25 = 2.5V

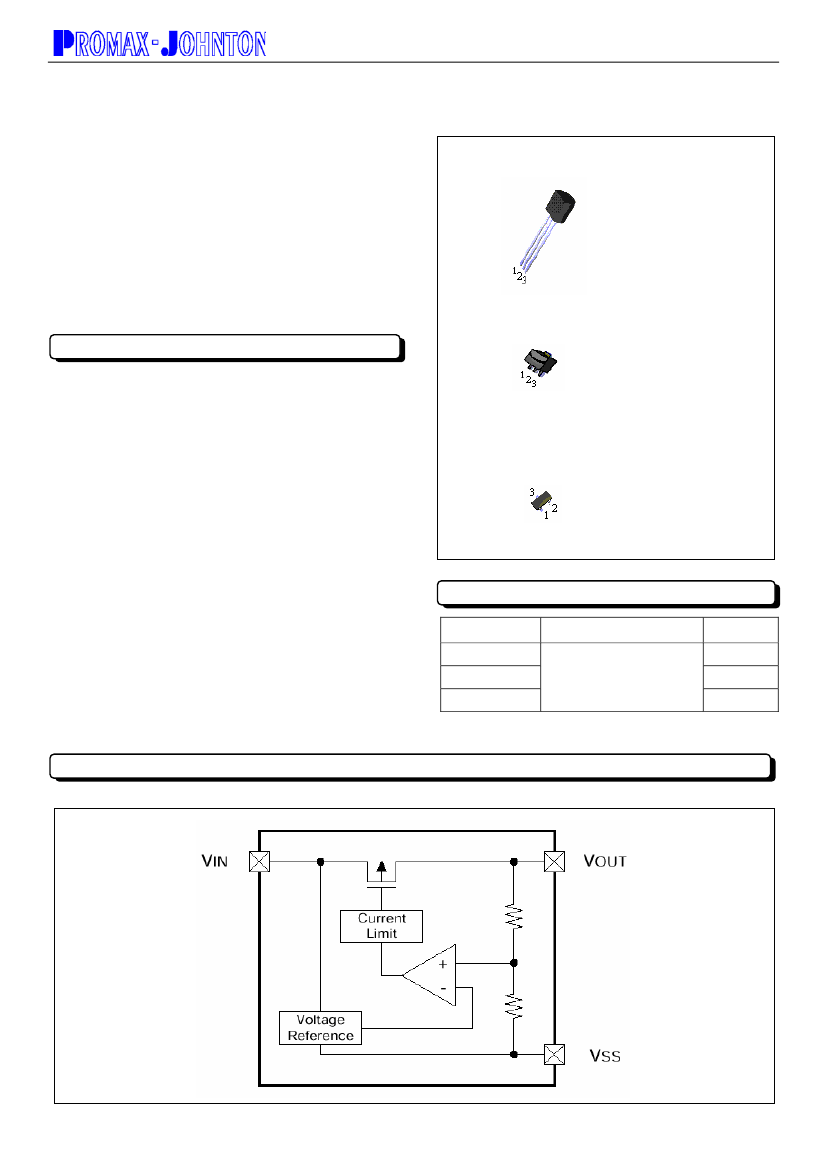

BLOCK DIAGRAM
1-5
2002/10.rev.A
PJ2700 Series
Low Noise CMOS Positive Voltage Regulators
ABSOLUTE MAXIMUM RATINGS
Parameter
Input Voltage
Output Current
Output Voltage
Power Dissipation
TO-92
SOT-89
SOT-23
Symbol
V
IN
I
OUT
V
OUT
Pd
Topr
Tstg
Value
10
300
Vss-0.3 ~ V
IN
+0.3
625
550
300
-20 ~ +85
-40 ~ +125
Unit
V
mA
V
mW
Operating Temp
Storage Temp
℃
℃
ELECTRICAL CHARACTERISTICS
Parameter
Output Voltage
Symbol
V
OUT
(E)
(Note 2)
Maximum Output Current
Load Regulation
I
OUT
max
∆V
OUT
Vdif 1
Dropout Voltage (Note3)
Vdif 2
Vdif 3
Supply Current
Line Regulation
Iss
∆V
OUT
∆V
IN
·
V
OUT
V
IN
(Ta = +25°C, Cin = Cout = 1uF unless otherwise noted)
Conditions
I
OUT
=40mA
V
IN
=V
OUT
+ 1V
V
IN
= V
OUT
+ 1V,
V
IN
= V
OUT
+ 1V
1mA≦I
OUT
≦100mA
I
OUT
=80mA
I
OUT
=160mA
Iout=300mA
V
IN
= V
OUT
+ 1V
I
OUT
=40mA
V
OUT
+ 1V≦Vin
≦10V
--
I
OUT
=40mA
-40 C≦Topr
≦85
C
o
o
Min
-2%
300
--
Typ
--
--
45
200
Max
+2%
--
90
360
700
950
5.0
0.3
10
--
Unit
V
mA
mV
Circuit
2
2
--
--
450
800
mV
2
--
--
--
--
3.0
0.2
--
±100
µA
%/V
V
ppm/
o
C
1
2
--
2
Input Voltage
Output Voltage
Temperature Characteristics
∆V
OUT
∆Topr
·
V
OUT
Note:
1. V
OUT
(T)=
Specified Output Voltage.
2. V
OUT
(E)
=Effective output Voltage (i.e. the output voltage when “V
OUT
(T)+1.0” is provided while maintaining a certain
I
OUT
value).
3. Vdif={V
IN
1(Note5)- V
OUT
1(Note4)}
4. V
OUT
1=A voltage equal to 98% of the output voltage when a stabilized (V
OUT
(T)
+1.0V) is input.
5. V
IN
=The input voltage at the time V
OUT
1
is output (input voltage has been gradually reduced).
2-5
2002/10.rev.A
PJ2700 Series
Low Noise CMOS Positive Voltage Regulators
TYPICAL APPLICATIONS
MEASURING CIRCUITS
Measuring Circuit 1: Supply Current
Measuring Circuit 2: Output Voltage, Oscillation Check, Line Regulation, Dropout Voltage, Load Regulation
3-5
2002/10.rev.A
