427-2-015-0-T-KR datasheet, PDF

Datasheet> All Categories > The connector> The connector> 427-2-015-0-T-KR

427-2-015-0-T-KR: DescriptionBoard Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric View All

427-2-015-0-T-KR Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking

427-2-015-0-T-KR Parametric

Parameter Name	Attribute value
Maker	MPE-Garry GmbH
Reach Compliance Code	compli
body width	0.134 inch
subject depth	0.213 inch
body length	0.925 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	424VAC V
insulator material	THERMOPLASTIC
Manufacturer's serial number	427
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.2446 mm
Termination type	SURFACE MOUNT
Total number of contacts	15

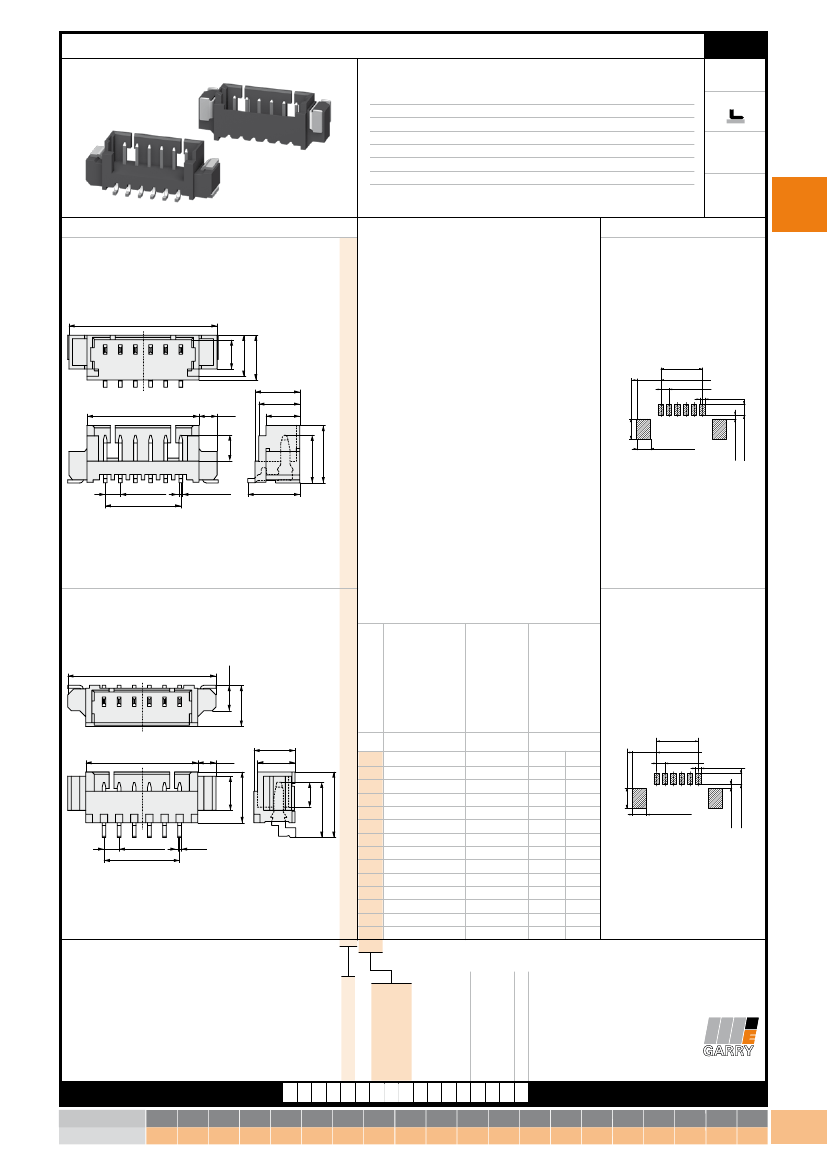

427-2-015-0-T-KR Preview

Pin Header SMD Shrouded 1,25 mm

Rated current

1,0 A

Rated voltage

100 V

RMS

/ V

Withstand voltage

300 V

RMS

for one minute

Material contact

Copper alloy

Material insulator

High temp. thermoplast UL94V-0

Operating temperature -40°C to +105°C

Max. processing temper. 260°C for 10 seconds

All dimensions in mm.

Series

427

pitch

termination

1,25

MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de

max.

pincount

Variation

PCB Layout

015

Product

group

A ±0,30

3,40

3,70

2,42

B ±0,20

1,50

2,15

3,70

3,40

2,80

1,25 ±0,05

1,25x(n-1) ±0,15

0,30 ±0,02

4,20 ±0,25

3,95

4,75

2,10 ±0,10

3,40

2,10

A ±0,30

available in variation

no. of contacts

see figure left

B ±0,20

1,50

2,83

4,20

2,13

4,54

5,40

1,25 ±0,05

1,25x(n-1) ±0,15

0,30

002

003

004

005

006

007

008

009

010

011

012

013

014

015

7,25

8,50

9,75

11,00

12,25

13,50

14,75

16,00

17,25

18,50

19,75

21,00

22,25

23,50

4,25

5,50

6,75

8,00

9,25

10,50

11,75

13,00

14,25

15,50

16,75

18,00

19,25

20,50

3,00 ±0,10

3,40

3,10

1,25x(n-1) ±0,15

3,60 ±0,10

1,25 ±0,05

0,81 ±0,10

0,60 ±0,10

1,60 ±0,10

2,10 ±0,10

Plating:

T = Sn

Packaging:

S = Standard

R = Reel

Packaging (S,R)

Cap (0,1)

No. of contacts

(only for variation 1)

Cap:

0 = Without cap

1 = With cap

Plating contact

Variation (1,2)

0,60 ±0,10

1,60 ±0,10

CS021012_V3

3,00 ±0,10

1,25x(n-1) ±0,15

3,60 ±0,10

1,25 ±0,05

0,81 ±0,10

www.mpe-connector.de

Order code:

Mating series

see page

427-?-???-0-T-K??

425

6-3

3-11
