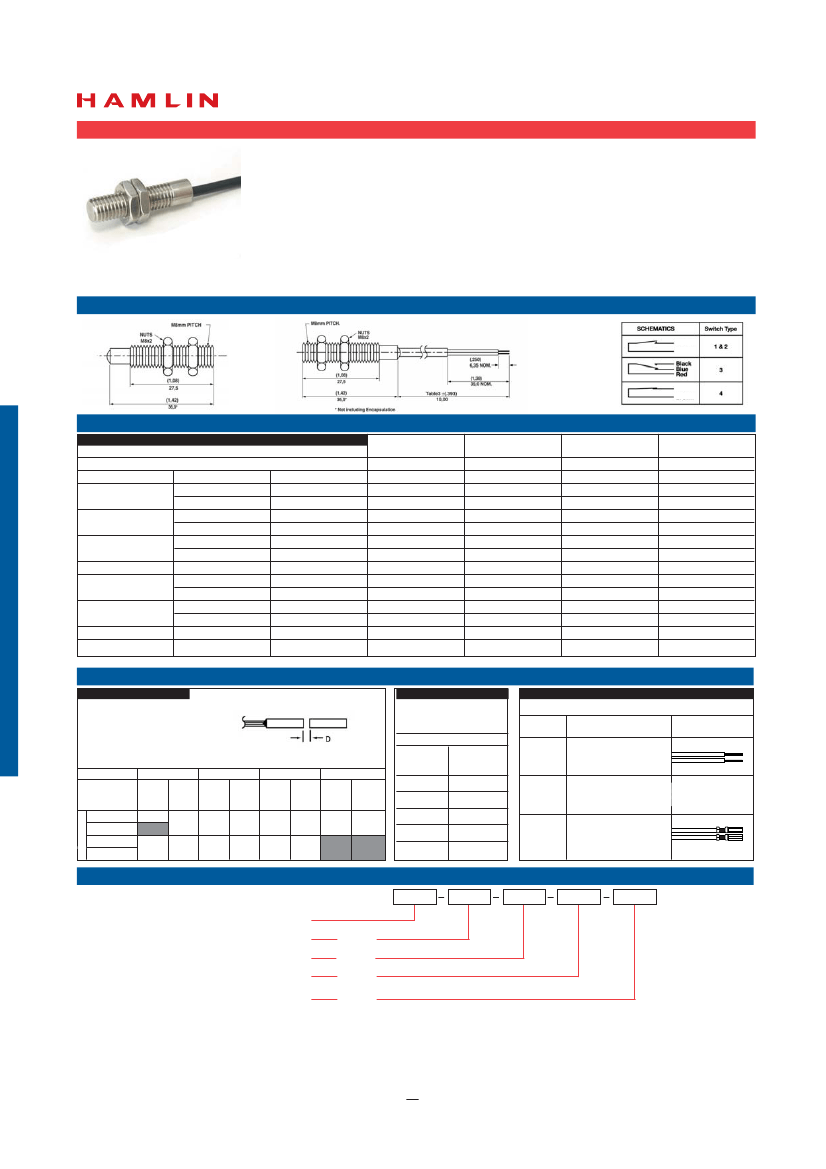

59060 Stainless Steel Threaded Barrel Features and Benefits
Features
•
2 part magnetically operated
proximity sensor
•
Stainless steel threaded barrel with
retaining nuts
•
M8 thread
•
Choice of normally open or high
voltage contacts
•
Customer defined sensitivity
•
Choice of cable length and
connector
Benefits
•
Robust construction makes this
sensor well suited to harsh
industrial environments
•
Simple installation and adjustment
using supplied retaining nuts
•
No standby power requirement
•
Operates through non-ferrous materials
such as wood, plastic or aluminium
Applications
•
Position and limit
•
Security systems
•
Linear actuator
•
Industrial process control
DIMENSIONS (in) mm
Red
Blue
Red
Blue
CUSTOMER OPTIONS - Switching Specifications
TABLE 1
Contact Type
Switch Type
Power
Voltage
Current
Resistance
Capacitance
Temperature
Time
Shock
Vibration
Switching
Breakdown
Switching
Carry
Contact, Initial
Insulation
Contact
Operating
Storage
Operate
Release
11ms 1⁄2 sine
50-2000 Hz
Watt - max.
Vdc - max.
Vdc - min.
A - max.
A - max.
Ω
- max.
Ω
- min.
pF - typ.
°C
°C
ms - max.
ms - max.
G - max.
G - max.
Form A
Normally
Open
1
10
200
250
0.5
1.2
0.2
10
10
0.3
-40 to +105
-65 to +105
1.0
1.0
100
30
Normally Open
High Voltage
2
10
300
450
0.5
1.5
0.2
10
10
0.2
-20 to +105
-65 to +105
1.0
1.0
100
30
Change
Over
3
5
175
200
0.25
1.5
0.2
10
9
0.3
-40 to +105
-65 to +105
3.0
3.0
50
30
Normally
Closed
4
5
175
200
0.25
1.5
0.2
10
9
0.3
-40 to +105
-65 to +105
3.0
3.0
50
30
CUSTOMER OPTIONS - Sensitivity, Cable Length and Termination Specification
TABLE 2
Sensitivity Options:-
Activate Distances are approximate
using Hamlin 57060 actuator
as illustrated
Switch AT before modification
TABLE 3
Cable Type:-
24 AWG 7/32 PVC 105
o
C
DOUBLE INSULATED
TABLE 4
Termination Options:-
SELECT
OPTION
DESCRIPTION
(2
WIRE VERSIONS ILLUSTRATED
)
Standard Lengths
SELECT
OPTION
CABLE
LENGTH
Select Option
Switch
Type
1
2
3
4
S
Pull In
AT
Range
Activate
Distance
d
(in) mm
(.472)
12,0
(.413)
10,5
Pull In
AT
Range
17-23
20-25
T
Activate
Distance
d
(in) mm
(.354)
9,0
(.295)
7,5
Pull In
AT
Range
22-28
25-30
U
Activate
Distance
d
(in) mm
(.276)
7,0
(.236)
6,0
Pull In
AT
Range
27-33
V
Activate
Distance
d
(in) mm
(.217)
5,5
01
02
03
04
05
(in)
mm
A or F Tinned or untinned leads
(3,94) 100
(11,81) 300
(19,69) 500
(29,53) 750
(39,37) 1000
C
6.35mm fastons
B
Crimped terminals
Normally Open 12-18
High Voltage
Change Over
15-20
Normally Closed
ORDERING INFORMATION
N.B. 57060 actuator sold separately
59060
59036
Table 1
Table 2
Table 3
Table 4
X
X
XX
X
Series 59060
Switch Type
Sensitivity
Cable Length
Termination
Hamlin USA
Hamlin UK
Hamlin Germany
Hamectrol France
ISSUE No: 4 DATE: 1/5/3
Tel:
Tel:
Tel:
Tel:
+1 920 648 3000
•
Fax: +1 920 648 3001
•
Email: sales.us@hamlin.com
+44 (0)1379 649700
•
Fax: +44 (0)1379 649702
•
Email: sales.uk@hamlin.com
+49 (0) 6181 953660
•
Fax: +49 (0) 6181 9536666
•
Email: sales.de@hamlin.com
+33 (0) 1 4687 0202
•
Fax: +33 (0) 1 4686 6786
•
Email: sales.fr@hamlin.com
26
DETAILS PROVIDED ON THIS DATA SHEET ARE PROVIDED FOR
INFORMATION PURPOSES ONLY AND SHOULD NOT BE RELIED
UPON AS BEING ACCURATE FOR ANY PARTICULAR PURPOSE.
Product performance may be affected by the application to which the
product is put. Upon request, HAMLIN will assist purchasers by
providing information specific to any particular application. HAMLIN
disclaims any and all liability whatsoever for any purchaser’s reliance
upon the information contained on this data sheet without further
consultation with authorised representatives of HAMLIN.
