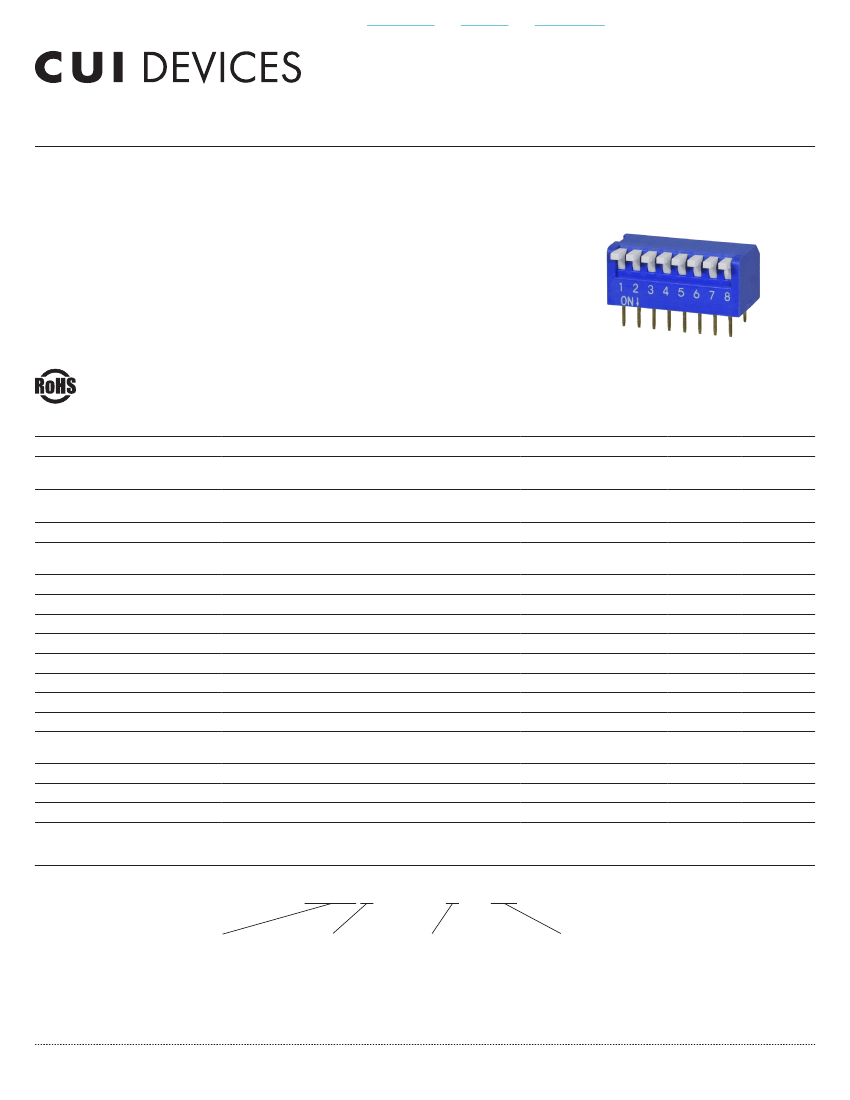

SERIES:
DS02-254
│
DESCRIPTION:
DIP SWITCH
FEATURES
• 2.54 mm pitch
• convex or flat bottom option
• 2~12 pole options
• raised or flat actuator option
• through hole
SPECIFICATIONS
parameter
rated voltage (per pole)
rated current (per pole)
withstanding voltage
contact resistance
insulation resistance
operating force
switch travel angle
operating temperature
storage temperature
life
flammability rating
RoHS
UL94V-0
yes
-40
-40
2000
conditions/description
switching
non-switching
switching
non-switching
for 1 minute
initial
after life test
at 500 Vdc
100
1000
20
85
85
300
50
100
min
typ
max
24
50
25
100
units
Vdc
Vdc
mA
mA
Vac
mΩ
mΩ
MΩ
g
°
°C
°C
cycles
SOLDERABILITY
parameter
hand soldering
1
wave soldering
1
Notes:
conditions/description
for maximum 3 seconds
for maximum 5 seconds
min
315
240
typ
320
250
max
325
260
units
°C
°C
1. Keep in “off” position during soldering.
PART NUMBER KEY
DS02
X
- 254 -
X
L -
XX
BE
Base Number
Base:
“blank” = Flat
C
2
= Convex
Actuator:
1 = Raised
2 = Flat
No. of Poles:
02
07
03
08
04
10
05
12
06
Notes:
2. Convex base only available in poles 3~12.
cuidevices.com
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
SERIES:
DS02-254
│
DESCRIPTION:
DIP SWITCH
date
11/21/2019│
page
2 of 3

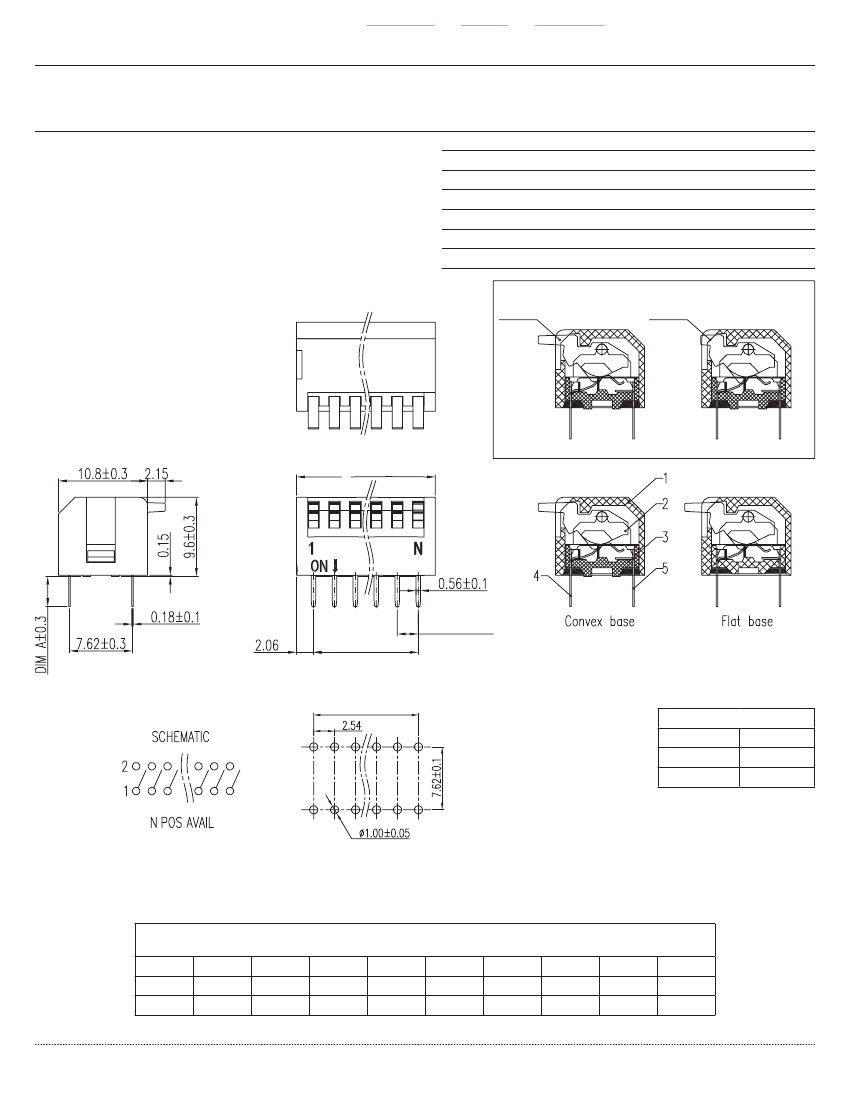

MECHANICAL DRAWING
units: mm
tolerance:
0.5<X≤3.0: ±0.15 mm
3.0<X≤6.0: ±0.20 mm
6.0<X≤30.0: ±0.25 mm
30.0<X≤120.0: ±0.30 mm
120.0<X≤400.0: ±0.50 mm
X>400.0: ±0.80 mm
unless otherwise noted
ITEM
1
2
3
4
5
DESCRIPTION
housing
actuator
base
pin 1
pin 2
MATERIAL
PBT (UL94V-0)
PBT (UL94V-0)
PBT (UL94V-0)
copper alloy
copper alloy
PLATING/COLOR
blue
white
black
gold
gold
Raised Actuator
Flat Actuator
L=PxN+1.57±0.3
B=2.54x(N-1)±0.2
P=2.54±0.1
B=2.54x(N-1)±0.1
PIN LENGTH, A (mm)
Long Pin
Flat Base
Convex Base
3.80
3.65
Recommended PCB Layout
Top View
This series is constructed of single piece modules where L is the total length, P is the pitch, and N is
the number of poles.
N
L
B
02
6.65
2.54
03
9.19
5.08
04
11.73
7.62
05
14.27
10.16
06
16.81
12.70
07
19.35
15.24
08
21.89
17.78
10
26.97
22.86
12
32.05
27.94
cuidevices.com
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
SERIES:
DS02-254
│
DESCRIPTION:
DIP SWITCH
date
11/21/2019│
page
3 of 3
REVISION HISTORY
rev.
1.0
description
initial release
The revision history provided is for informational purposes only and is believed to be accurate.
date
11/21/2019
CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website.
CUI Devices reserves the right to make changes to the product at any time without notice. Information provided by CUI Devices is believed to be accurate and reliable. However, no
responsibility is assumed by CUI Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI Devices products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any
component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or
effectiveness.
cuidevices.com
