LL3301TF065QG datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> LL3301TF065QG

Preview

LL3301TF065QG: DescriptionKeypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 0.64N, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size115KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

LL3301TF065QG Overview

Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 0.64N, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT

LL3301TF065QG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	E-Switch
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Actuator type	SQUARE TYPE
body width	6 mm
body height	3.6 mm
Body length or diameter	6 mm
Circuit configuration	1X1
Maximum contact bounce time	10 ms
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC
Maximum contact voltage (DC)	12 V
JESD-609 code	e4
Manufacturer's serial number	LL
Installation features	SURFACE MOUNT-STRAIGHT
Number of switches	1
Maximum operating force	0.64 N
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal surface	Silver (Ag)
Termination type	SOLDER

Preview

Download Datasheet

View All

7153 Northland Dr., Brooklyn Park, MN 55428 Phone: (763)-504-3525 Fax: (763-531-8235)

www.e-switch.com

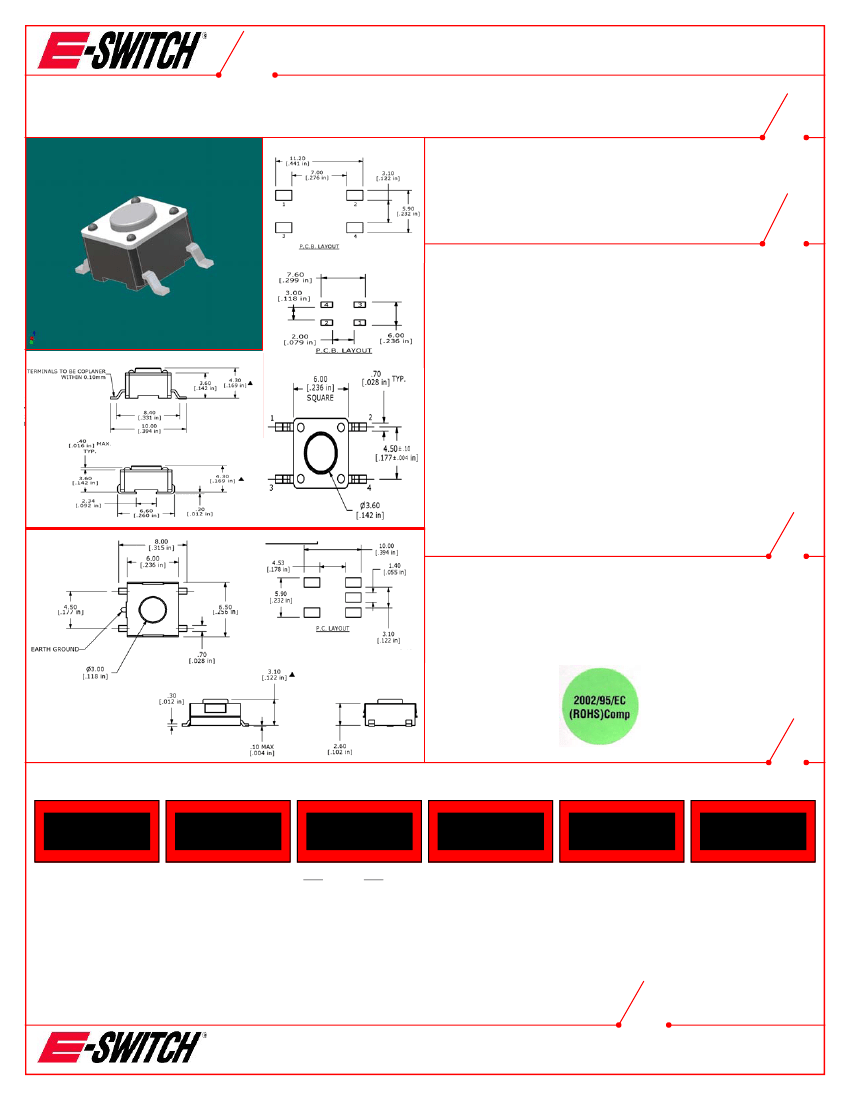

LL SERIES LONG LIFE SMT TACTILE SWITCHES

MECHANICAL SPECIFICATIONS

Mechanical Life:

Static Load:

Force:

Gull Wing

5 Million Cycles

2000 grams for 15 seconds

65 Grams

ELECTRICAL SPECIFICATIONS

Contact Rating:

Contact Resistance

(Initial Max.):

“End of Life”:

Insulation Resistance

(min. @100V):

Dielectric Strength

(50Hz.,1 Min.):

Bounce:

12VDC, 50mA

50mΩ @ 5VDC,10mA

Avg. 1Ω See note*

(TTL/CMOS Compatible)

100MΩ

250VAC

<10m Sec. Max

Gull Wing

J Lead

LL3301

*Due to normal contact wear, resistance at the end of life may be as high as 10Ω.

ENVIRONMENTAL SPECIFICATIONS

Operating Temp:

Storage Temp:

-20°C to +70°C Silver

-30°C to +80°C

LL3303

How To Order

SERIES

MODEL

ACTUATOR

HEIGHT

3301

3303

A=5.0mm

(NONE)

B=9.5mm

=3.1MM

C=8.0mm

A=3.4MM

D=13.0mm

E=7.3mm

F=7.0mm

□

= Square Snap-on

N=4.3mm

actuator head—

Height is 7.3mm.

P=8.5mm

T=2.4mm

□

SP=2.8mm

□

GRAM

FORCE

F065

CONTACT

MATERIAL

Q=Silver

TERMINATION

G= Gull Wing

J= J Lead *

* Not Available for

LL3303

LL

3301

3303

7153 Northland Dr., Brooklyn Park, MN 55428

Phone: 763-504-3525 fax: 763-531-8235

www.e-switch.com
