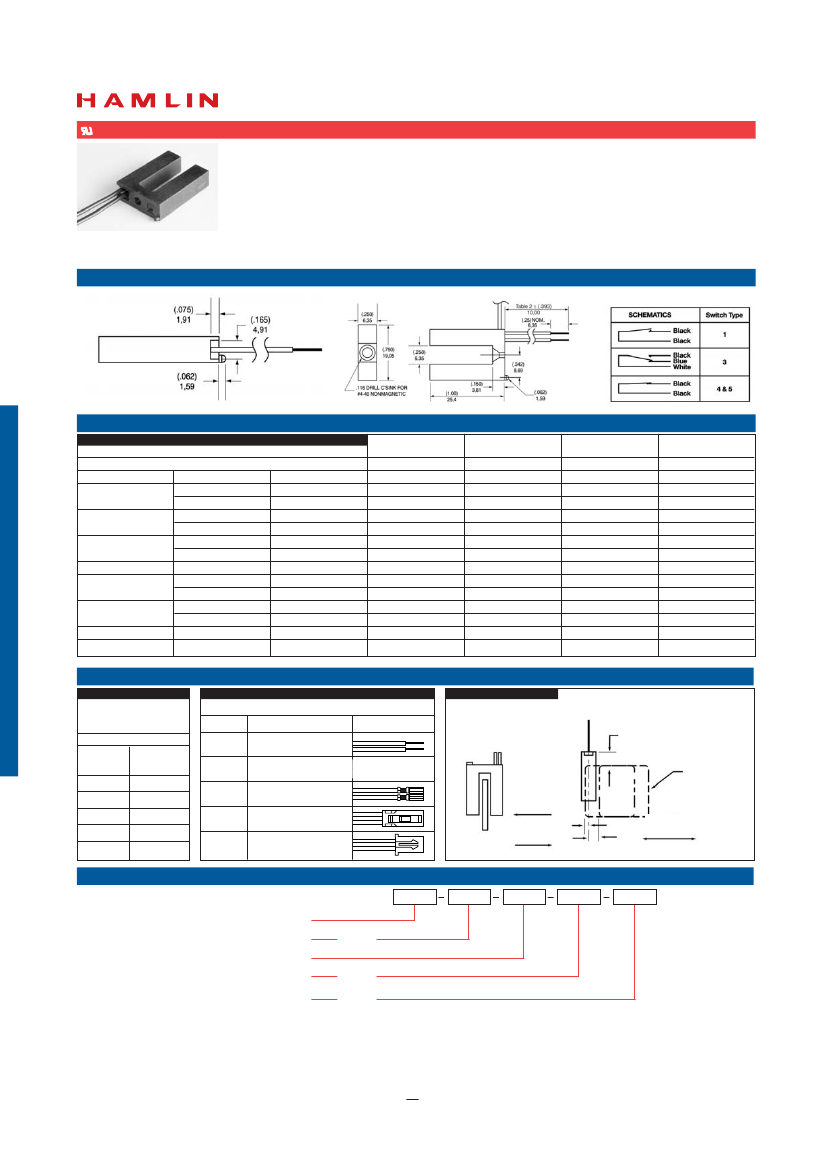

59085 Sensor
59085 Vane Sensor Features and Benefits
Features
•
Sensor and magnet contained in
single housing
•
Sensor operates when ferrous vane
passes through slot
•
Normally open, normally closed or
change over options
•
Choice of cable length and
connector
Benefits
•
Quick and reliable single screw
mounting with location feature
•
No standby power requirement
•
Hermetically sealed, magnetically
operated contacts continue to
operate long after optical and other
technologies fail due to
contamination
Applications
•
•
•
•
•
Position and limit sensing
Security system switch
Linear actuators
Industrial process control
Shaft rotation sensing
DIMENSIONS (in) mm
CUSTOMER OPTIONS - Switching Specifications
TABLE 1
Contact Type
Switch Type
Power
Voltage
Current
Resistance
Capacitance
Temperature
Time
Shock
Vibration
Switching
Breakdown
Switching
Carry
Contact, Initial
Insulation
Contact
Operating
Storage
Operate
Release
11ms 1⁄2 sine
50-2000 Hz
Watt - max.
Vdc - max.
Vdc - min.
A - max.
A - max.
Ω
- max.
Ω
- min.
pF - typ.
°C
°C
ms - max.
ms - max.
G - max.
G - max.
Form A
Normally
Open
1
5
175
200
0.25
1.5
0.2
10
9
0.3
-40 to +105
-65 to +105
3.0
3.0
50
30
Change
Over
3
5
175
200
0.25
1.5
0.2
10
9
0.3
-40 to +105
-65 to +105
3.0
3.0
50
30
Normally
Closed
4
10
200
250
0.5
1.2
0.2
10
10
0.3
-40 to +105
-65 to +105
1.0
1.0
100
30
Normally
Closed H.V.
5
10
300
450
0.5
1.5
0.2
10
10
0.2
-20 to +105
-65 to +105
1.0
1.0
100
30
CUSTOMER OPTIONS - Cable Length and Termination Specification
TABLE 2
Cable Type:-
24 AWG 7/32 PVC 105
o
C
UL1430/UL1569
TABLE 3
Termination Options:-
SELECT
OPTION
DESCRIPTION
(2
WIRE VERSIONS ILLUSTRATED
)
ACTIVATION
Standard Lengths
SELECT
OPTION
CABLE
LENGTH
A or F Tinned or untinned leads
B
C
D
E
Crimped terminals
6.35mm fastons
AMP MTE 2.54mm pitch
JST XHP 2.5mm pitch
.285 (7.3)
MAX
(in)
01
02
03
04
05
mm
(3,94) 100
(11,81) 300
(19,69) 500
(29,53) 750
(39,37) 1000
Mu METAL
1.0 SQ x .062
MUST OPERATE
MUST RELEASE
VANE
MOVEMENT
ORDERING INFORMATION
59085
59036
Series 59085
Switch Type
Sensitivity
Cable Length
Termination
Hamlin USA
Hamlin UK
Hamlin Germany
Hamectrol France
ISSUE No: 4 DATE: 1/5/3
X
T
XX
X
Table 1
Table 2
Table 3
DETAILS PROVIDED ON THIS DATA SHEET ARE PROVIDED FOR
INFORMATION PURPOSES ONLY AND SHOULD NOT BE RELIED
UPON AS BEING ACCURATE FOR ANY PARTICULAR PURPOSE.
Product performance may be affected by the application to which the
product is put. Upon request, HAMLIN will assist purchasers by
providing information specific to any particular application. HAMLIN
disclaims any and all liability whatsoever for any purchaser’s reliance
upon the information contained on this data sheet without further
consultation with authorised representatives of HAMLIN.
