EB13D1
Series
• Low Jitter
•
Pb-free ceramic
SMD package
• 3.3V supply voltage
•
LVHCMOS Output
• Stability to 20ppm
• Standby Function
• Available in tube or tape and reel
NOTES
Pb
EB13D1
H 1.3
L 5.0
W 3.2
OSCILLATOR
__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
ELECTRICAL SPECIFICATIONS
Frequency Range
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
DD
)
Input Current
19.440MHz to 100.000MHz
0°C to 70°C
-40°C to 85°C
-55°C to 125°C
3.3V
DC
±10%
10mA Maximum
25mA Maximum
35mA Maximum
±100ppm, ±50ppm, ±25ppm or
±20ppm Maximum
Frequency Tolerance / Stability
19.440MHz to 34.999MHz
35.000MHz to 49.999MHz
50.000MHz to 100.000MHz
Inclusive of all conditions: Calibration Tolerance at 25°C,
Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, First Year Aging
at 25°C, Shock, and Vibration
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Rise / Fall Time
20% to 80% of Waveform from 19.440MHz to 35.000MHz
20% to 80% of Waveform from 35.001MHz to 80.000MHz
20% to 80% of Waveform from 80.001MHz to 100.000MHz
Duty Cycle
at 50% of Waveform
at 50% of Waveform
Load Drive Capability
< 35.000MHz
> 35.001MHz
Tri-State Input Voltage
No Connection
V
IH
:≥90% of V
DD
V
IL
:≤10% of V
DD
Standby Current
Disabled Output: High Impedance
Start Up Time
RMS Phase Jitter
19.440MHz to 40.000MHz, F
J
= 12kHz to 20MHz
40.001MHz to 70.000MHz, F
J
= 12kHz to 20MHz
70.001MHz to 100.000MHz, F
J
= 12kHz to 20MHz
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
90% of V
DD
Min. I
OH
= -8mA
10% of V
DD
Max. I
OL
= +8mA
6 nSec Maximum
4 nSec Maximum
2 nSec Maximum
50 ±10(%)
50 ±5(%)
30pF HCMOS Load Maximum
15pF HCMOS Load Maximum
Enables Output
Enables Output
Disables Output: High Impedance
10µA Maximum
10 mSec Maximum
5 pSec Maximum
3 pSec Maximum
1 pSec Maximum
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EB13D1
CERAMIC
3.3V
OS2U
01/04
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
PART NUMBERING GUIDE
EB13D1 F 2 H - 40.000M TR
FREQUENCY TOLERANCE / STABILITY
C=±100ppm Maximum over 0°C to +70°C
D=±50ppm Maximum over 0°C to +70°C
E=±25ppm Maximum over 0°C to +70°C
F=±20ppm Maximum over 0°C to +70°C
G=±100ppm Maximum over -40°C to +85°C
H=±50ppm Maximum over -40°C to +85°C
J=±25ppm Maximum over -40°C to +85°C
K=±20ppm Maximum over -40°C to +85°C
PACKAGING OPTIONS
Blank=Bulk, TR=Tape and Reel (Standard)
FREQUENCY
OUTPUT CONTROL FUNCTION
H=Tri-State
DUTY CYCLE
1=50 ±10(%)
2=50 ±5(%)

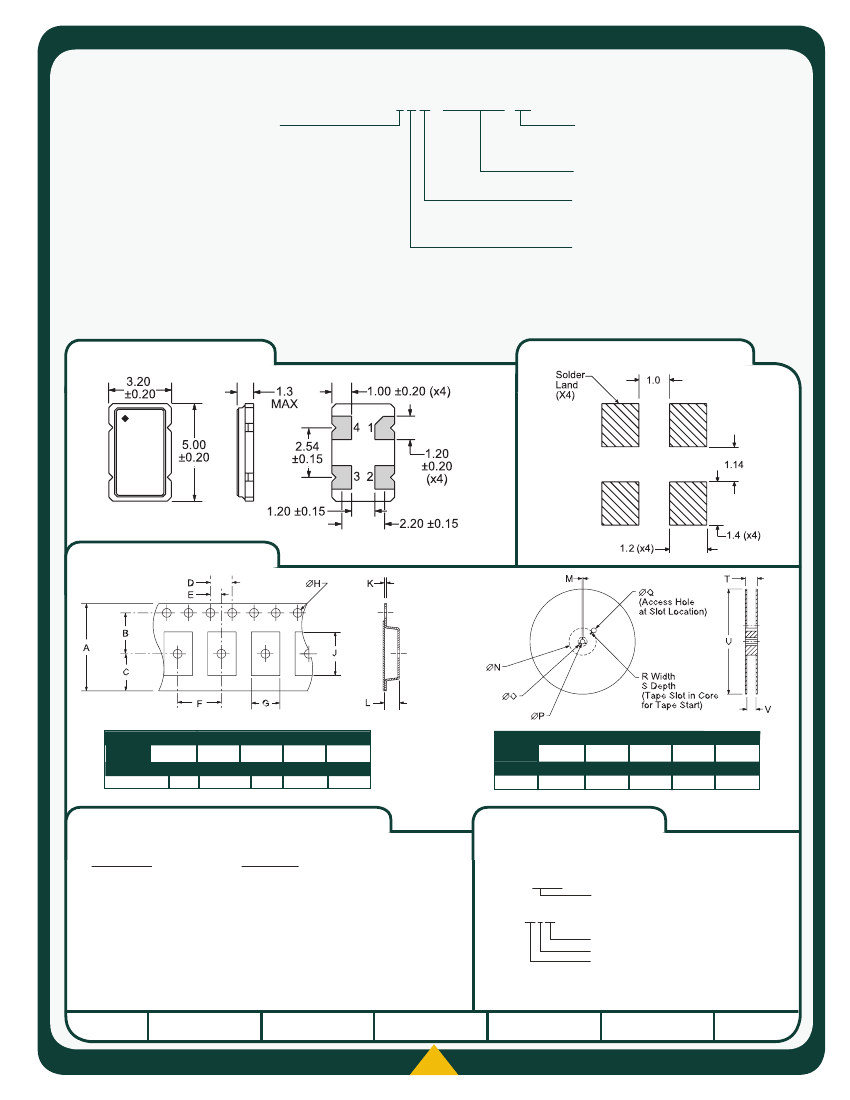

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Pin 1: Tri-State
Pin 2: Case Ground
Pin 3: Output
Pin 4: Supply Voltage
Tolerances = ±0.1
TAPE
A
12.0±0.2
B
5.5±0.1
C
6.5±0.1
D
4.0±0.1
E
2.0±0.1
F
REEL
M
1.5 MIN
N
50 MIN
O
U
180 MAX
P
V
12.4+2-0
Q
40 MIN
QTY/REEL
1,000
20.2 MIN 13.0±0.2
F
8.0±0.1
G
H
J
A0*
K
0.30 ±0.05
L
K0*
R
2.5 MIN
S
10 MIN
T
18.4 MAX
B0* 1.5 +0.1-0.0
*Compliant to EIA 481A
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
MARKING SPECIFICATIONS
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-202, Method 210
MIL-STD-202, Method 215
Line 1: E XX.XXX
Frequency in MHz (5 Digits Maximum + Decimal)
Line 2: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EB13D1
CERAMIC
3.3V
OS2U
01/04
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
