EB13E2E2H-10.000MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EB13E2E2H-10.000MTR

EB13E2E2H-10.000MTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, 10MHz, LVHCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size182KB，3 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EB13E2E2H-10.000MTR Overview

CRYSTAL OSCILLATOR, CLOCK, 10MHz, LVHCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

EB13E2E2H-10.000MTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compli
Other features	TAPE AND REEL; TRI-STATE ENABLE/DISABLE FUNCTION
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Manufacturer's serial number	EB13E2
Installation features	SURFACE MOUNT
Nominal operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVHCMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 0.9mm
longest rise time	5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	52.5/47.5 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

EB13E2

Series

• RoHS Compliant (Pb-Free)

• Ceramic SMD package

• 3.3V Supply Voltage

• LVHCMOS output

• Stability to ±25ppm

• Standby Function

• Available on Tape and Reel

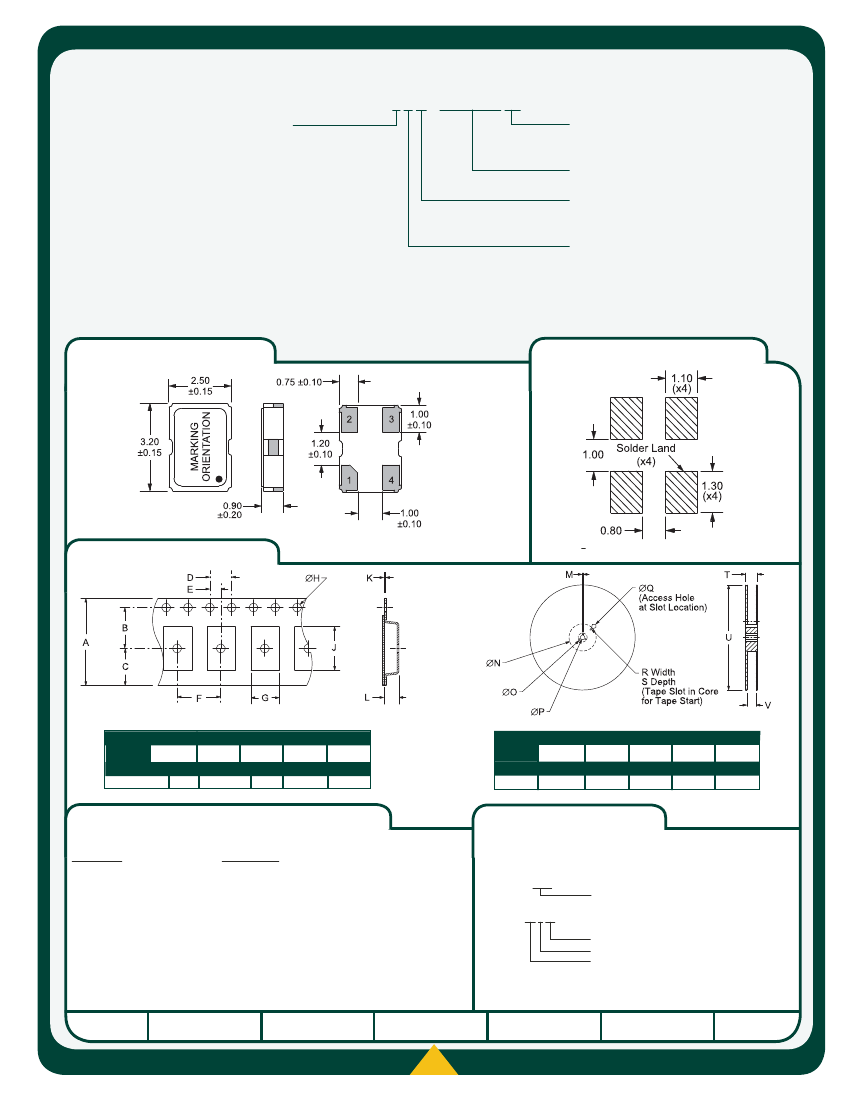

NOTES

EB13E2

H 0.9

L 3.2

W 2.5

OSCILLATOR

__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range (F

)

1.8432MHz, 2.5MHz, 2.765MHz, 3MHz, 3.072MHz, 3.125MHz, 3.25MHz, 3.5795MHz, 3.6864MHz,

3.75MHz, 4MHz, 4.032MHz, 4.125MHz, 5MHz, 5.5MHz, 5.53MHz, 6MHz, 6.144MHz, 6.25MHz,

6.75MHz, 7.159MHz, 7.25MHz, 7.3728MHz, 8MHz, 8.064MHz, 8.25MHz, 8.2944MHz, 10MHz,

11.059MHz, 11.2896MHz, 12MHz, 12.288MHz, 12.8MHz , 13MHz, 13.5MHz, 14.3181MHz,

14.31818MHz, 14.746MHz, 15MHz, 16MHz, 16.9344MHz, 20MHz, 22MHz, 22.1184MHz, 24MHz,

24.576MHz, 25MHz, 26MHz, 27MHz, 28.375MHz, 28.636MHz, 29.4912MHz, 30MHz, 32MHz, 33MHz,

33.333MHz, 40MHz, 41.010MHz, 44MHz, 48MHz, 50MHz, 54MHz, 64MHz, 66MHz, 66.6666MHz,

72MHz, and 75MHz

-20°C to 70°C

-40°C to 85°C

-55°C to 125°C

3.3V

±5%

7mA Maximum

1.8432MHz to 20.000MHz

13mA Maximum

20.001MHz to 40.000MHz

19mA Maximum

40.001MHz to 60.000MHz

24mA Maximum

60.001MHz to 75.000MHz

±100ppm, ±50ppm, or ±25ppm

Inclusive of all conditions: Calibration Tolerance at 25°C,

Maximum

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, First Year

Aging at 25°C, Shock, and Vibration

90% of V

Minimum (I

= -4mA)

10% of V

Maximum (I

= +4mA)

5 nSeconds Maximum

20% to 80% of Waveform

50 ±5(%)

at 50% of Waveform

15pF HCMOS Load Maximum

Enables Output

No Connection

Enables Output

: >80% of V

Disables Output: High Impedance

: <20% of V

10μA Maximum

Disabled Output: High Impedance

10 mSeconds Maximum

1 pSeconds Maximum

= 12kHz to 20MHz

SERIES

PACKAGE

VOLTAGE

CLASS

REV

DATE

Operating Temperature Range (OTR)

Storage Temperature Range (STR)

Supply Voltage (V

)

Input Current (I

)

Frequency Tolerance/Stability

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time (T

)

Duty Cycle (SYM)

Load Drive Capability (C

LOAD

)

Tri-State Input Voltage

Standby Current

Start Up Time (T

)

RMS Phase Jitter

MANUFACTURER
