EB71F51D28CN2-FREQ-CL125 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EB71F51D28CN2-FREQ-CL125

EB71F51D28CN2-FREQ-CL125: DescriptionOCXO, CLOCK, 1.544MHz - 44.736MHz, HCMOS OUTPUT, DIP-14; CategoryPassive components oscillator; File Size245KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com

Download Datasheet Parametric View All

EB71F51D28CN2-FREQ-CL125 Overview

OCXO, CLOCK, 1.544MHz - 44.736MHz, HCMOS OUTPUT, DIP-14

EB71F51D28CN2-FREQ-CL125 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ECLIPTEK
Reach Compliance Code	unknow
Other features	AT-CUT CRYSTAL
Ageing	0.5 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.28%
Frequency Stability - Voltage	0.02 ppm
input power	1.5 W
JESD-609 code	e0
Manufacturer's serial number	EB71F51
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	44.736 MHz
Minimum operating frequency	1.544 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	15 pF
Oven power supply voltage	5V
physical size	20.3mm x 13.0mm x 10.0mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Preheating power	2.5 W
Maximum warm-up time	3 Minute

Preview

Download Datasheet

View All

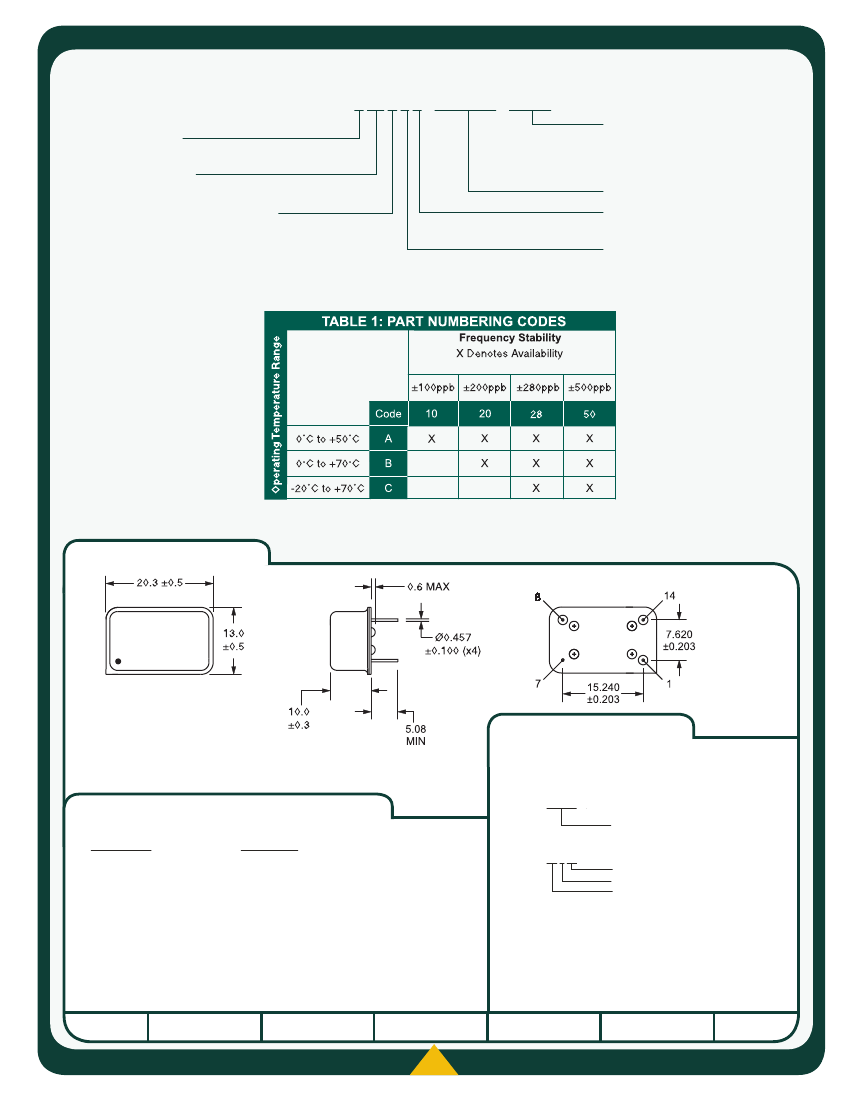

EB71F51

Series

• Oven Controlled Crystal Oscillator (OCXO)

• AT-Cut output

• HCMOS output

• 5.0V supply voltage

• 14 pin DIP package

• External control voltage option available

• Stability to 100ppb

• Custom lead length, gull wing options available

ELECTRICAL SPECIFICATIONS

Frequency Range

Operating Temperature Range (OTR)

Storage Temperature Range

Supply Voltage (V

)

Frequency Tolerance / Stability

vs. Initial Tolerance

vs. Temperature Stability

vs. Vdd

vs. Load

vs. Aging (1 Day)

vs. Aging (1 Year)

vs. Aging (10 Years)

Crystal Cut

Warm Up Time

Power Consumption

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

EB71F51

H 10.0

L 20.3

W 13.0

OSCILLATOR

1.544MHz to 44.736MHz

0°C to 50°C, 0°C to 70°C, or -20°C to 70°C

-55°C to 125°C

5.0V

±5%

at Nominal V

and V

, at 25°C

at Nominal V

and V

±5%

Vload ±5%

after 72 Hours of Operation

to ±500ppb of Final Frequency at 1 Hour at 25°C

at Steady State, at 25°C

During Warm Up, at 25°C

= -8mA

= +8mA

< 10.000MHz Measured at 20% to 80% of Waveform

> 10.000MHz Measured at 20% to 80% of Waveform

Measured at 50% of Waveform

2.0ppm, 1.5ppm, 1.0ppm , or 500ppb

±100ppb, ±200ppb, ±280ppb, or ±500ppb

±20ppb Maximum

±30ppb Maximum

±500ppb Maximum

±3.0ppm Maximum

AT-Cut

3 Minutes Maximum

1.5 Watts Maximum

2.5 Watts Maximum

-0.5V

Minimum

0.5V

Maximum

10 nSec Maximum

6 nSec Maximum

50 ±5(%)

15pF HCMOS Load

±7ppm Minimum, ±20ppm Maximum

0.0V

to V

2.5V

±2.0V

Positive Transfer Characteristic

±10% Maximum

10kOhms Typical

-95dBc/Hz

-120dBc/Hz

-130dBc/Hz

-135dBc/Hz

-140dBc/Hz

VOLTAGE

CLASS

REV

DATE

Duty Cycle

Load Drive Capability

Referenced to F

at V

= 2.5V

; V

=5.0V

over OTR

Frequency Deviation

Control Voltage Range

Control Voltage (V

)

Transfer Function

Linearity

Input Impedance

Typical Phase Noise (at 12.800MHz)

at 10Hz Offset

at 100Hz Offset

at 1kHz Offset

at 10kHz Offset

at 100kHz Offset
