EQUJ32C2F1H-12.688656M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EQUJ32C2F1H-12.688656M

EQUJ32C2F1H-12.688656M: DescriptionLVDS, Temperature Compensated Voltage Controlled Quartz Crystal Clock Oscillators TCVCXO LVDS (DS) 2.5Vdc 6 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD) 12.688656MHz ±2.5ppm over -10°C to +60°C; CategoryPassive components oscillator; File Size964KB，7 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric Compare View All

EQUJ32C2F1H-12.688656M Overview

LVDS, Temperature Compensated Voltage Controlled Quartz Crystal Clock Oscillators TCVCXO LVDS (DS) 2.5Vdc 6 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD) 12.688656MHz ±2.5ppm over -10°C to +60°C

EQUJ32C2F1H-12.688656M Parametric

Parameter Name	Attribute value
Brand Name	Ecliptek
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Parts packaging code	SMD 2.5mm x 3.2mm
Contacts	6
Manufacturer packaging code	SMD 2.5mm x 3.2mm
Reach Compliance Code	_compli
Other features	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; BULK
Ageing	1 PPM/YEAR
Maximum control voltage	2.5 V
Minimum control voltage	0.5 V
maximum descent time	0.5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	8 ppm
frequency stability	2.5%
Manufacturer's serial number	EQUJ32
Installation features	SURFACE MOUNT
Nominal operating frequency	12.688656 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	LVDS
Output load	100 OHM

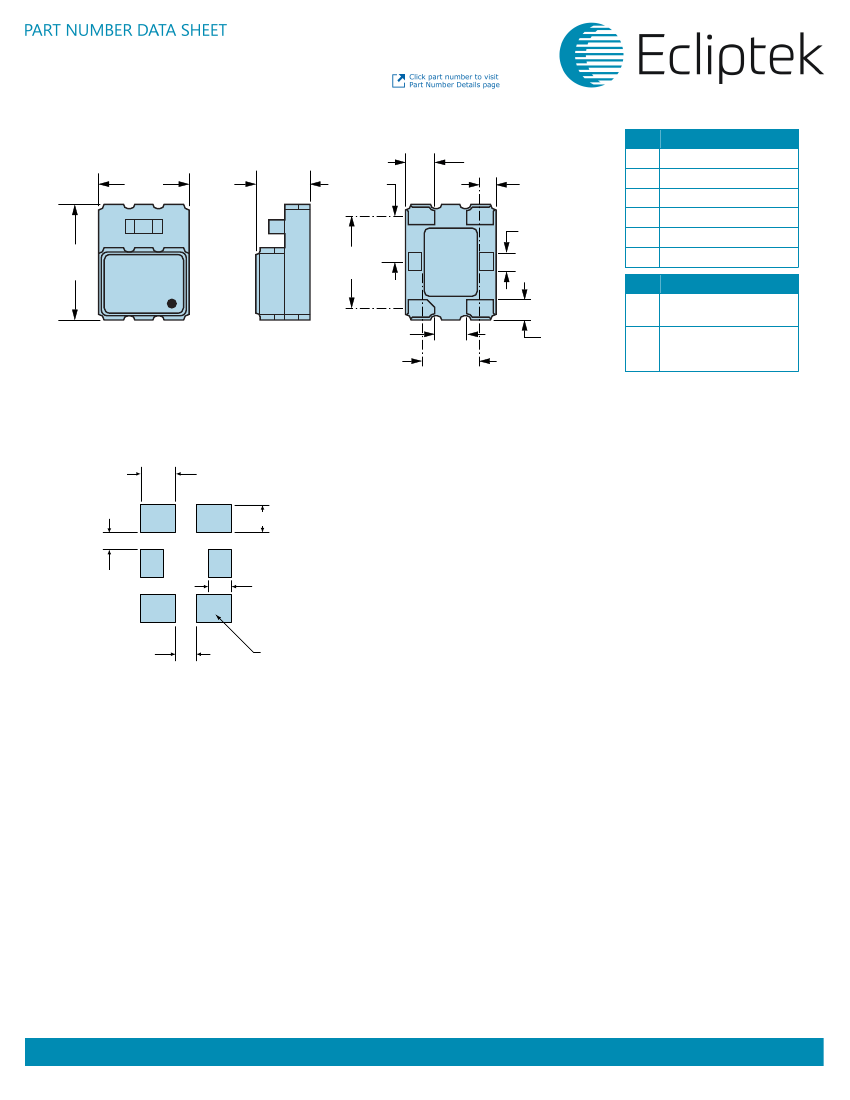

physical size	3.2mm x 2.5mm x 1.7mm
longest rise time	0.5 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

EQUJ32C2F1H-12.688656M

REGULATORY COMPLIANCE

2011/65 +

2015/863

(Data Sheet downloaded on Aug 30, 2020)

191 SVHC

ITEM DESCRIPTION

Temperature Compensated Voltage Controlled Quartz Crystal Clock Oscillators TCVCXO LVDS (DS) 2.5Vdc 6 Pad 2.5mm x

3.2mm Ceramic Surface Mount (SMD) 12.688656MHz -10°C to +60°C

ELECTRICAL SPECIFICATIONS

Nominal Frequency

Frequency Stability

Frequency Stability vs. Frequency

Tolerance

Frequency Stability vs. Input Voltage

Frequency Stability vs. Load

Frequency Stability vs. Reflow

Frequency Stability vs. Aging

Operating Temperature Range

Supply Voltage

Input Current

Output Voltage Logic High (Voh)

Output Voltage Logic Low (Vol)

Differential Output Error (dVod)

Differential Output Voltage (Vod)

Offset Voltage (Vos)

Rise/Fall Time

Duty Cycle

Offset Error (dVos)

Load Drive Capability

Output Logic Type

Control Voltage

Frequency Deviation

Linearity

Transfer Function

Modulation Bandwidth

Input Impedance

Phase Noise

12.688656MHz

±2.5ppm Maximum (Inclusive of Operating Temperature Range, at Vdd=2.5Vdc, at Vc=1.5Vdc)

±2.0ppm Maximum (at 25°C ±2°C, at Vdd=2.5Vdc, at Vc=1.5Vdc ±0.1Vdc, Pre-Reflow)

±0.2ppm Maximum (±5%)

±0.2ppm Maximum (±2pF)

±1.0ppm Maximum (at 25°C, 24 hours after reflow, 1 time)

±1ppm/Year Maximum (at 25°C)

-10°C to +60°C

2.5Vdc ±5%

25mA Maximum (Unloaded)

1.425Vdc Typical

1.075Vdc Typical

50mVdc Maximum

200mVdc Minimum, 350mVdc Typical, 454mVdc Maximum

1.125Vdc Minimum, 1.250Vdc Typical, 1.375Vdc Maximum

500pSec Maximum (Measured at 10% to 90% of Waveform)

50 ±5(%) (Measured at 50% of Waveform)

50mVdc Maximum

100 Ohms Between Output and Complementary Output

LVDS

1.5Vdc ±1.0Vdc

±8ppm Minimum

10% Maximum

Positive Transfer Characteristic

10kHz Minimum (Measured at -3dB)

1MOhms Minimum

-64dBc/Hz at 10Hz offset; -96dBc/Hz at 100Hz offset; -124dBc/Hz at 1kHz offset; -131dBc/Hz at 10kHz offset; -

132dBc/Hz at 100kHz offset; -149dBc/Hz at 1MHz offset; -157dBc/Hz at 10MHz offset; -159dBc/Hz at 20MHz offset (All

Values are Typical)

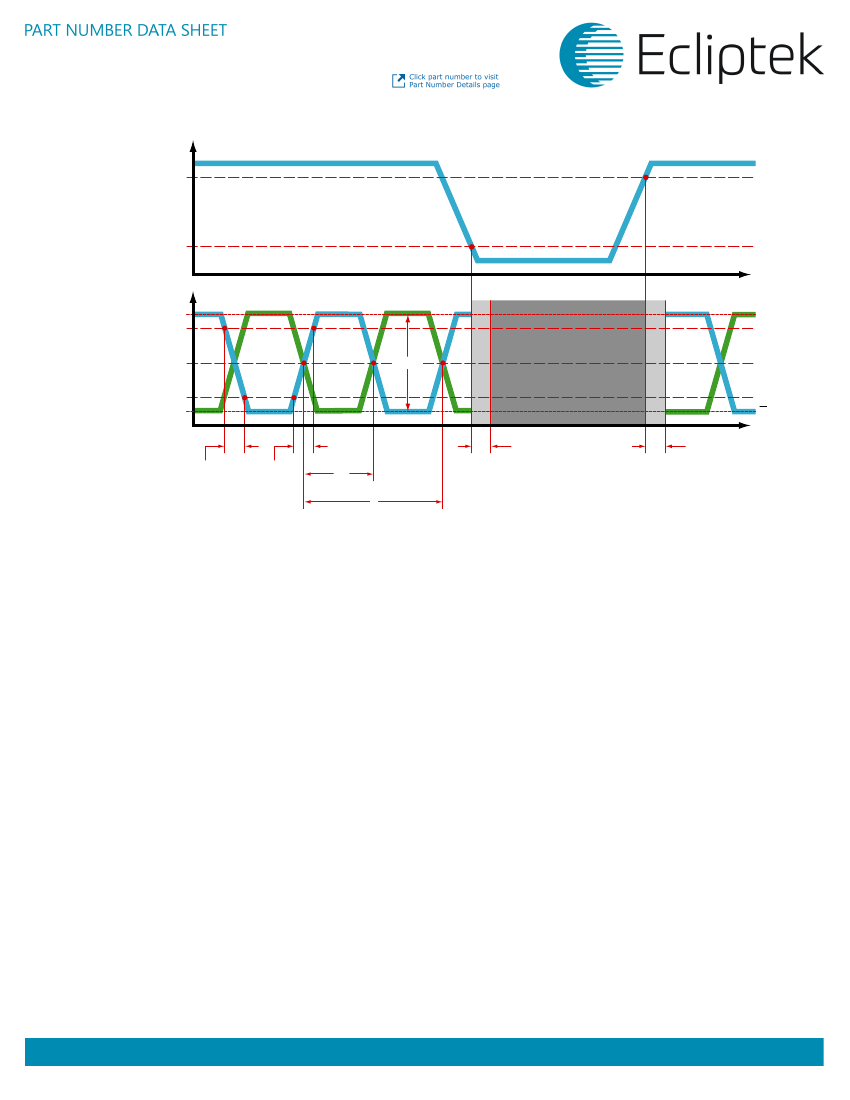

Output Enable (OE)

90% of Vdd Minimum or No Connect to Enable Output and Complementary Output

10% of Vdd Maximum to Disable Output and Complementary Output (High Impedance)

100nSec Maximum

50nSec Maximum

15mA Maximum (Without Load (Pin 2 = Ground))

1.5pSec Maximum (Fj=12kHz to 20MHz (Random))

Output Control Function

Output Control Input Voltage Logic

High (Vih)

Output Control Input Voltage Logic

Low (Vil)

Output Enable Time

Output Disable Time

Output Enable Current

RMS Phase Jitter

www.ecliptek.com | Specification Subject to Change Without Notice | Revision A 09/09/2015 | Page 1 of 7

Ecliptek, LLC

5458 Louie Lane, Reno, NV 89511

1-800-ECLIPTEK or 714.433.1200
