35M-2726-83-141-02: DescriptionRF Connector, Female, Panel Mount, Cable Mount, Jack; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerMidwest Microwave

Download Datasheet Parametric Compare View All

35M-2726-83-141-02 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35M-2726-83-141-02	-	-	View	Buy Now

35M-2726-83-141-02 Overview

RF Connector, Female, Panel Mount, Cable Mount, Jack

35M-2726-83-141-02 Parametric

Parameter Name	Attribute value
Maker	Midwest Microwave
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STANDARD: MIL-C-39012
Body/casing type	JACK
Connector type	RF CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	35M
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	YES

Preview

Download Datasheet

View All

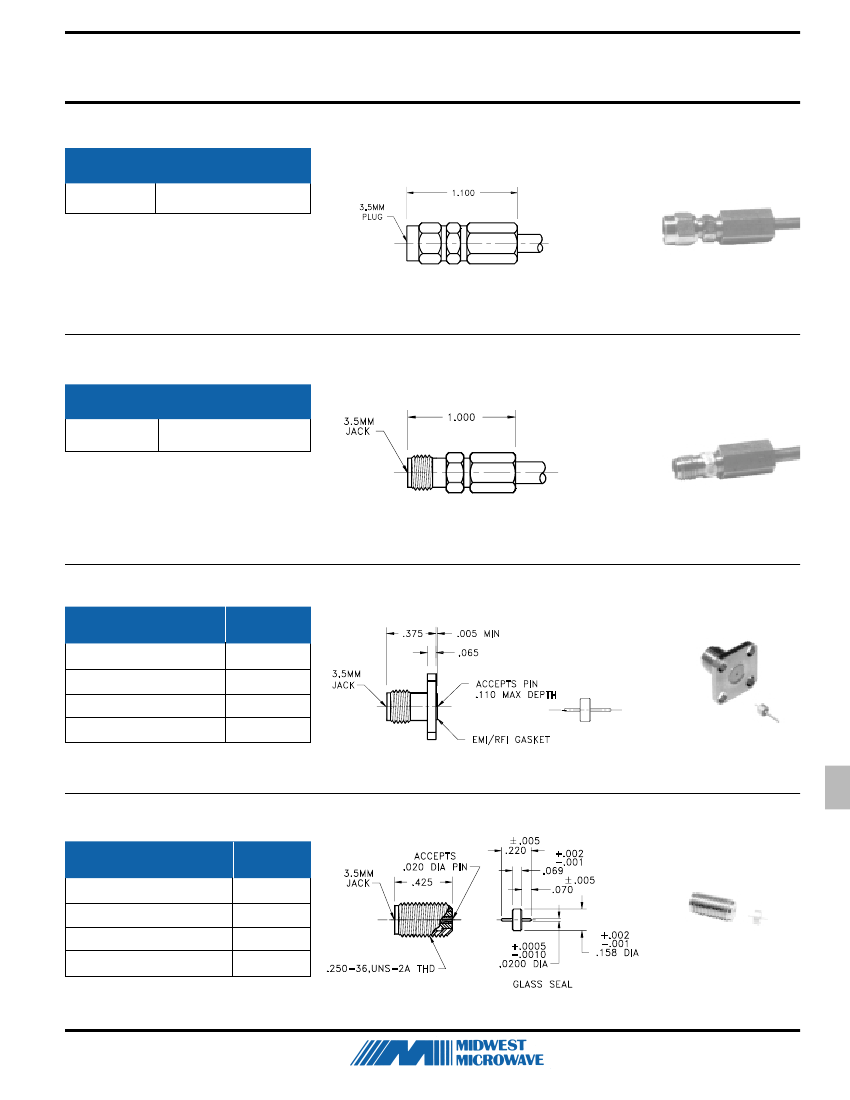

Connectors

Cable Type

.141 Semi-rigid

3.5 mm Precision Connectors

Straight Male Cable Plug for .141 Dia. Semi-rigid Cable

Model Number

35M-2725-79-141-02

Straight Bulkhead Female Cable Jack for .141 Dia. Semi-rigid Cable

Cable Type

.141 Semi-rigid

Model Number

35M-2726-83-141-02

Straight Flange Mount Female Jack - Field Replaceable Drop-in Hermetic - 4 Hole

Model Number

Accepts

Pin Dia 'A'

.012

.015

.018

.020

Drop-in glass

Hermetic Seal

35M-5572-15-DRP-02

35M-5573-15-DRP-02

35M-5574-15-DRP-02

35M-5575-15-DRP-02

Note: Two Hole flange versions are also available. To specify, change fifth digit from "5" to "2". Example: 35M-5272-15-DRP-02.

Recomended Mounting Hole Detail I on page 207. Detail interface dimensions can be found in the appendix.

Straight Panel Feedthru Female Jack - Field Replaceable Drop-in Hermetic

Model Number

Accepts

Pin Dia 'A'

.012

.015

.018

.020

35M-5972-12-DRP-02

35M-5973-12-DRP-02

35M-5974-12-DRP-02

35M-5975-12-DRP-02

Note: Standard finish for all models on this page is passivated stainless steel. For gold plating, change -02 suffix to -00.

Recomended Mounting Hole Detail I on page 207. Detail interface dimensions can be found in the appendix.

221

35M-2726-83-141-02 Related Products

	35M-2726-83-141-02	35M-2725-79-141-02	35M-5273-15-DRP-02
Description	RF Connector, Female, Panel Mount, Cable Mount, Jack	RF Connector, Male, Cable Mount, Plug	RF Connector, Female, Panel Mount, Receptacle
Reach Compliance Code	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012
Body/casing type	JACK	PLUG	RECEPTACLE
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact point gender	FEMALE	MALE	FEMALE
Coupling type	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO	NO
Manufacturer's serial number	35M	35M	35M
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Options	GENERAL PURPOSE	GENERAL PURPOSE	HERMETIC
Panel mounting	YES	NO	YES
Maker	Midwest Microwave	Midwest Microwave	-
Installation type	CABLE	CABLE	-
