DC Blocks

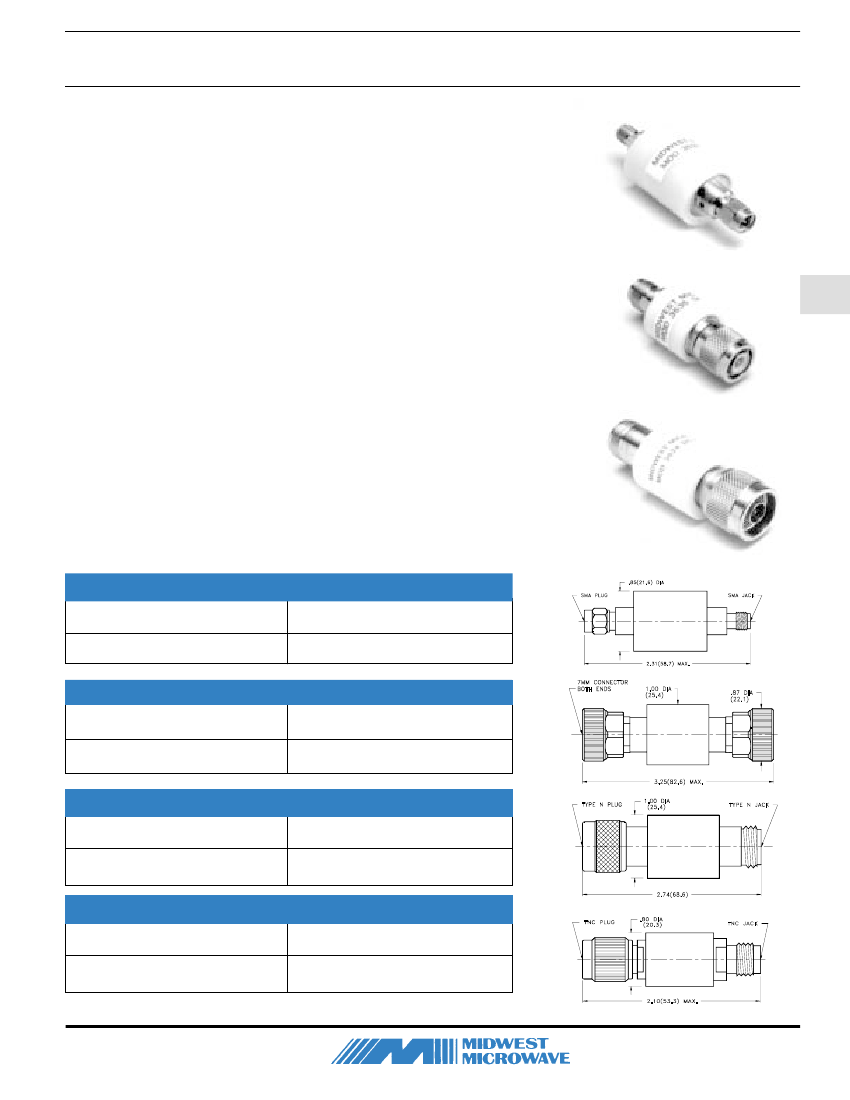

Midwest Microwave's high performance Inside/Outside DC Blocks pass all
frequencies from 100 Mhz to 8.0 GHz and 100 MHz to 12.4 GHz while exhibiting
low insertion loss and low VSWR. The units pose a very high insertion loss to
frequencies such as 60 Hz, 120 Hz, 400 Hz, and 1 KHz. They are designed for
laboratory, production line, or system use and are available in all of the popular
connector interfaces. They are manufactured using rugged stainless steel and
are 100 % tested to assure dependable high quality performance.
SMA • 7mm • N • TNC Types
SPECIFICATIONS
Frequency:
0.1 - 8.0 GHz and 0.1 - 12.4 GHz
VSWR:
1.20 max @ 0.01 - 8.0 GHz
Impedance:
50 Ohms
Insertion Loss:
0.5 dB max
Isolation:
> 65 dB @ 1 KHz
DC Working Voltage:
200 Volts
Operating Temperature Range:
-20
o
C to +125
Finish:
Passivated Stainless Steel
100 MHz - 8.0 GHz
Male / Female
DCB-3540-IO-SMA-02
o
C
SMA Type
100 MHz - 12.4 GHz
Male / Female
DCB-3537-IO-SMA-02
100 MHz - 8.0 GHz
Male / Female
DCB-3541-IO-7MM-02
7 mm
100 MHz - 12.4 GHz
Male / Female
DCB-3548-IO-7MM-02
100 MHz - 8.0 GHz
Male / Female
DCB-3542-IO-NNN-02
N Type
100 MHz - 12.4 GHz
Male / Female
DCB-3524-IO-NNN-02
100 MHz - 8.0 GHz
Male / Female
DCB-3543-IO-TNC-02
TNC Type
100 MHz - 12.4 GHz
Male / Female
DCB-3534-IO-TNC-02
Note: BNC, SC, and HN Types are also available, substitute BNC, SSC, or HHN for NNN in the Model Numbers.
