Couplers
500 MHz to 18.0 GHz Performance
0
o
or 180
o
Phase Difference
Low VSWR - High Isolation
Rugged StriplineConstruction
Meets MIL-E-5400 and MIL-E-16400
3 dB 180
o
Hybrids- Crossover Type
Excellent Phase and Amplitude Balance
Midwest Microwave's series of 3 dB 180
o
Hybrid Couplers may be used as a
power divider or combiner. A microwave signal applied at the sum
(Σ)
port will
result in two equal amplitude, in phase signals at the output ports. Conversely,
a microwave signal applied at the difference (∆) port will result in two equal
amplitude but 180
o
out of phase signals at the output ports.
ELECTRICAL SPECIFICATIONS
FR E QU E N C Y
R AN GE
(GH z )
C AS E
S TYLE
MOD E L
N U MB E R
AMP LITU D E
B ALAN C E
(dB )
IN S E R TION
LOS S
(dB ) max
IS OLATION
(dB ) min
VS WR
max
P OWE R (In)
Avg
P eak
(W) (kW)
.50-1.0
1.0-2.0
2.0-4.0
2.6-5.2
4.0-8.0
7.0-12.4
7.0-18.0
12.4-18.0
4.0-12.4
1
2
3
4
4
6
6
6
5
HYB-5410-X3-SMA-79
HYB-5411-X3-SMA-79
HYB-5412-X3-SMA-79
HYB-5413-X3-SMA-79
HYB-5414-X3-SMA-79
HYB-5415-X3-SMA-79
HYB-5416-X3-SMA-79
HYB-5417-X3-SMA-79
HYB-5423-X3-SMA-79
0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.6
0.6
0.4
0.5
0.7
0.7
0.7
0.8
1.2
1.2
1.0
25
25
22
20
20
17
14
12
17
INCHES (mm)
1.30
1.35
1.35
1.35
1.35
1.45
1.70
1.70
1.50
30
30
30
30
30
30
30
30
30
3
3
3
3
3
3
3
3
3

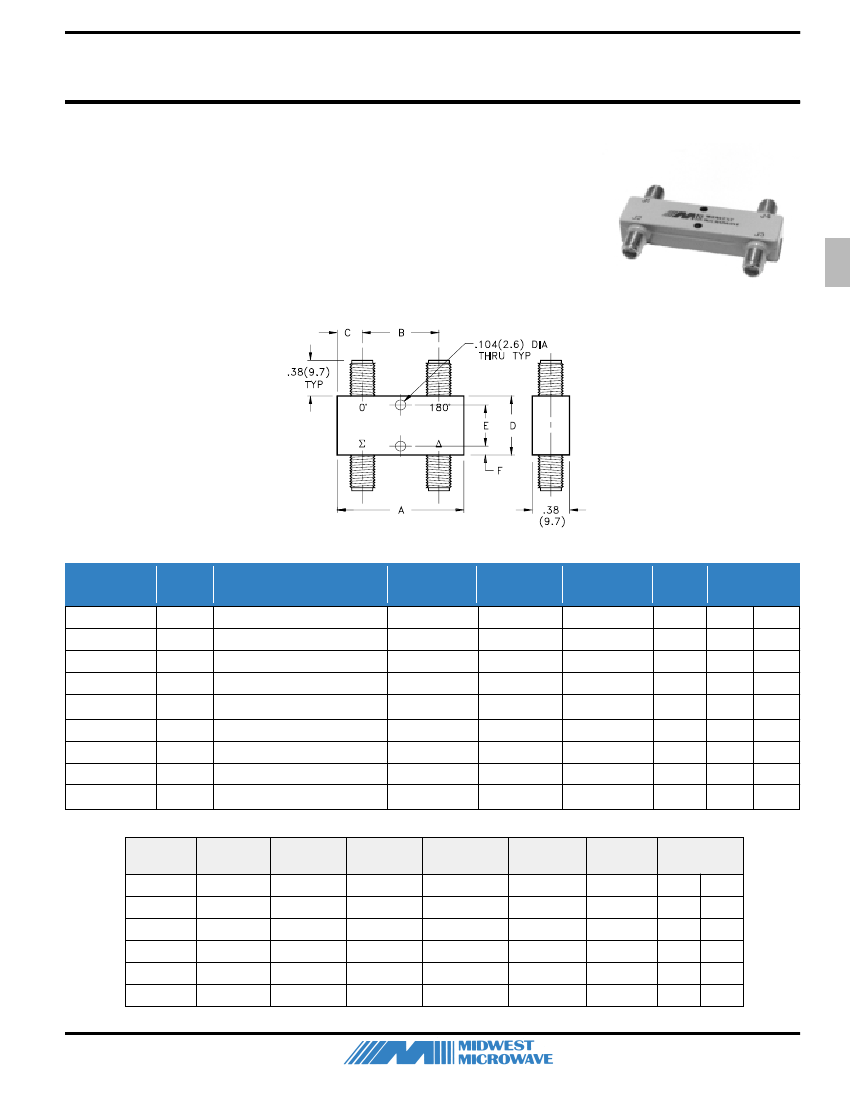

MECHANICAL SPECIFICATIONS
-
C ASE
STYLE
1
2
3
4
5
6
A
3.25 (82.6)
2.00 (50.8)
1.44 (36.5)
1.25 (31.8)
1.50 (38.1)
1.25 (31.8)
B
2.5 (63.5)
1.25 (31.8)
0.69 (17.5)
0.50 (12.7)
0.75 (19.1)
0.50 (12.7)
C
0.50 (12.7)
0.50 (12.7)
0.38 (9.7)
0.38 (9.7)
0.38 (9.7)
0.38 (9.7)
D
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.00 (25.4)
1.00 (25.4)
E
1.00 (25.4)
1.00 (25.4)
1.00 (25.4)
1.00 (25.4)
0.75 (19.1)
0.75 (19.1)
F
0.13 (3.2)
0.13 (3.2)
0.13 (3.2)
0.13 (3.2)
0.13 (3.2)
0.13 (3.2)
WEIGH T
Oz
Gr
2.8
2.0
1.5
1.5
1.2
1.1
70
47
38
38
34
31
Note: TNC or Type N output connectors are available by substituting "TNC" or "NNN" for "SMA" in the Model Number.
