MIL-C-39012/83-3005

Description
RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal
CategoryThe connector    The connector
File Size197KB，2 Pages
ManufacturerMidwest Microwave
Download Datasheet Parametric Compare View All

MIL-C-39012/83-3005 Overview

RF SMA Connector, Female, Panel Mount, Cable Mount, Solder Terminal

MIL-C-39012/83-3005 Parametric

Parameter NameAttribute value
MakerMidwest Microwave
Reach Compliance Codeunknow
ECCN codeEAR99
Connector typeRF SMA CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceYES
Manufacturer's serial numberMIL-C-39012/83
Installation methodSTRAIGHT
Installation typeCABLE
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeSOLDER

Preview

Download Datasheet
QPL
SMA Connectors
MIL-C-39012/83*
for Semi - Rigid Cable

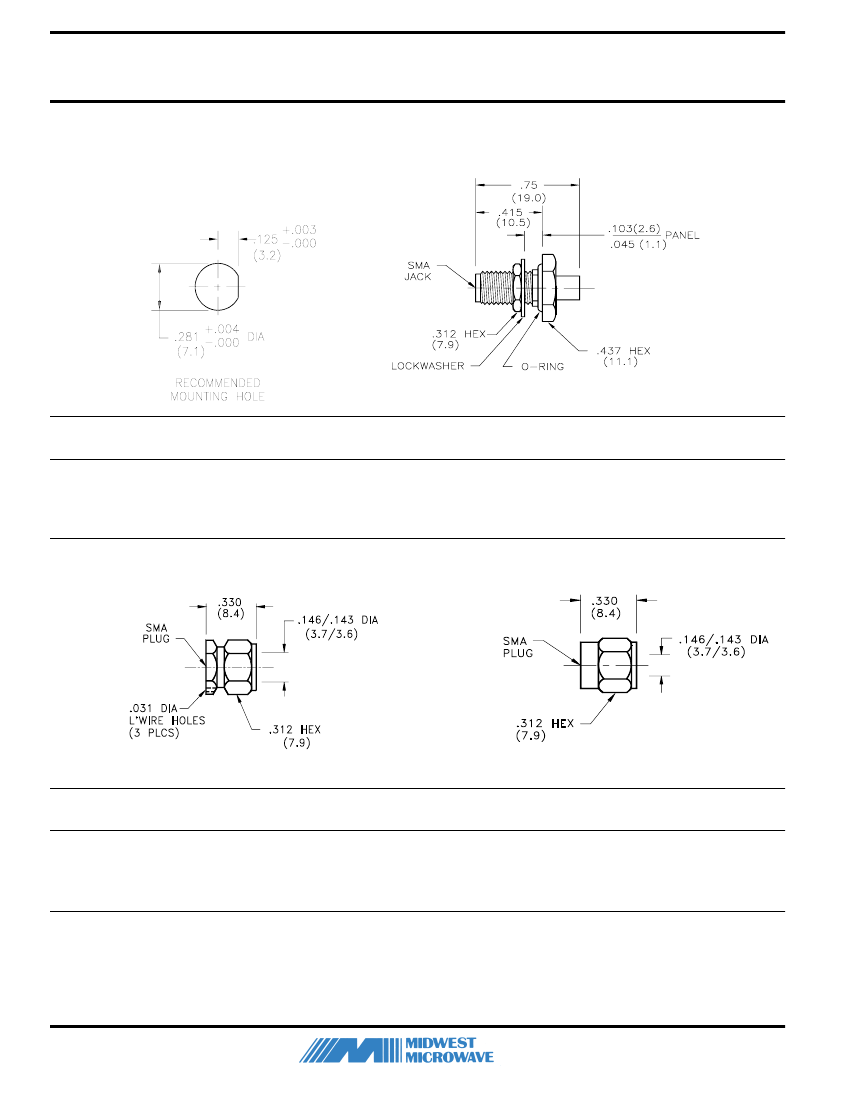

FIGURE 1
MILITARY
PART NO.
- 3005
- 3006
- 3007
- 3008
MIDWEST
PART NO.
M39012/83-3005
M39012/83-3006
M39012/83-3007
M39012/83-3008
FIGURE
1
1
1
1
ASSEMBLY
PROCEDURE
SMA -067
SMA -068
SMA -069
SMA -070
CATEGORY
E
E
E
E
CABLE
TYPE
XII
XIII
XII
XIII
COMMERCIAL
ALTERNATE
SMA-0085-83-000-00
SMA-0141-83-000-00
SMA-4085-83-000-00
SMA-4141-83-000-00
MIL-C-39012/92
FIGURE 1
FIGURE 2
MILITARY
PART NO.
- B3001
- B3003
- B3101
- B3103
MIDWEST
PART NO.
M39012/92B-3001
M39012/92B-3003
M39012/92B-3101
M39012/92B-3103
FIGURE
1
1
2
2
ASSEMBLY
PROCEDURE
SMA-022
SMA-022
SMA-022
SMA-022
CATEGORY
E
E
E
E
CABLE
TYPE
XIII
XIII
XIII
XIII
COMMERCIAL
ALTERNATE
SMA-0141-92-000-02
SMA-0141-92-000-02
SMA-0141-92-000-02
SMA-0141-92-000-02
Notes:
1. Coupling nut is passivated and lockwire safety holes are not used on - 3100 series part numbers.
2. Connector housings are gold plated for soldering of cable outer conductor (Mil-C-39012/55D Amendment 1, Note 9).
3. * Qualification to MIL-C-39012/92 is complete, but /83 is in-process at time of printing. Please contact Midwest Microwave for current status.
4. See Appendix for description of connector interfaces, categories and cable types.
