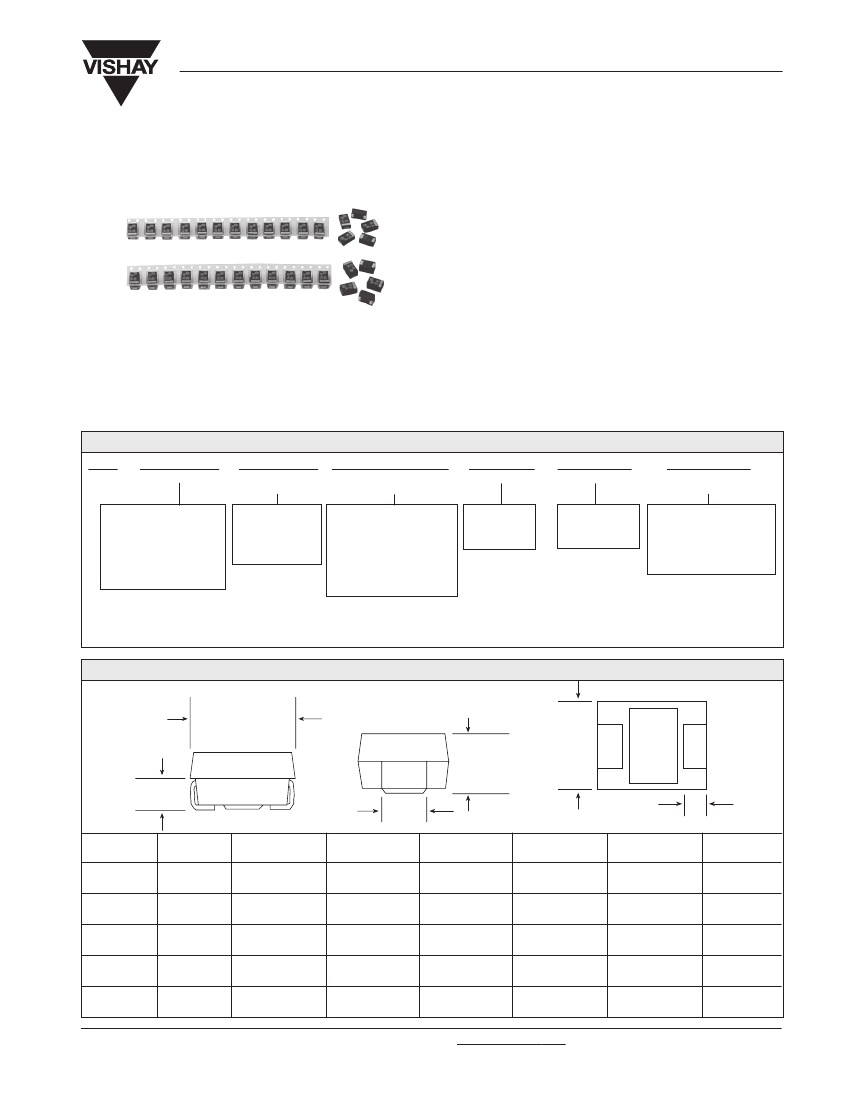

593D
Vishay Sprague
Solid Tantalum Chip Capacitors
Tantamount
®
Commercial, Surface Mount
for Switch Mode Power Supplies and Converters
FEATURES
•
Molded case available in five case codes.
•
Compatible with "High Volume" automatic pick and place
equipment.
•
High Ripple Current carrying capability.
•
Low ESR.
•
Meets EIA 535BAAE and IEC Specification QC300801/
US0001.
PERFORMANCE/ELECTRICAL CHARACTERISTICS
Operating Temperature:
- 55°C to + 85°C.
(To +125°C with voltage derating.)
Capacitance Range:
0.47µF to 680µF.
Capacitance Tolerance:
±
20%,
±
10% standard.
Compliant Terminations
100% Surge Current Tested (C, D, & E Case Sizes)
Voltage Rating:
4 WVDC to 50 WVDC.
ORDERING INFORMATION
593D
TYPE
107
CAPACITANCE
X9
CAPACITANCE
TOLERANCE
X0 =
±
20%
X9 =
±
10%
X5 =
±
5%
(Special Order)
010
DC VOLTAGE RATING
@ + 85°C
This is expressed in
volts. To complete the
three-digit block, zeros
precede the voltage
rating. A decimal point is
indicated by an "R"
(6R3 = 6.3 volts).
D
CASE CODE
See Ratings
and Case
Codes Table.
2
TERMINATION
2 = Solderable
coating.
Standard.
W
REEL SIZE AND
PACKAGING
T = Tape and reel*
7" [178mm] reel
W = 13" [330mm] reel
*Cathode nearest
sprocket hole.
This is expressed
in picofarads. The first
two digits are the
significant figures. The
third is the number of
zeros to follow.
Note:
Preferred Tolerance and reel sizes are in bold.
We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size. Voltage
substitutions will be marked with the higher voltage rating.
DIMENSIONS
in inches [millimeters]
L
W
H
T
H
M
IN
.
Tw
CASE
CODE
A
B
C
D
E
EIA
SIZE
3216
3528
6032
7343
7343H
P
L
0.126
±
0.008
[3.2
±
0.20]
0.138
±
0.008
[3.5
±
0.20]
0.236
±
0.012
[6.0
±
0.30]
0.287
±
0.012
[7.3
±
0.30]
0.287
±
0.012
[7.3
±
0.30]
W
0.063
±
0.008
[1.6
±
0.20]
0.110
±
0.008
[2.8
±
0.20]
0.126
±
0.012
[3.2
±
0.30]
0.170
±
0.012
[4.3
±
0.30]
0.170
±
0.012
[4.3
±
0.30]
H
0.063
±
0.008
[1.6
±
0.20]
0.075
±
0.008
[1.9
±
.20]
0.098
±
0.012
[2.5
±
0.30]
0.110
±
0.012
[2.8
±
0.30]
0.158
±
0.012
[4.0
±
.30]
P
0.031
±
0.012
[0.80
±
0.30]
0.031
±
0.012
[0.80
±
0.30]
0.051
±
0.012
[1.3
±
0.30]
0.051
±
0.012
[1.3
±
0.30]
0.051
±
0.012
[1.3
±
0.30]
Tw
0.047
±
0.004
[1.2
±
0.10]
0.087
±
0.004
[2.2
±
0.10]
0.087
±
0.004
[2.2
±
0.10]
0.095
±
0.004
[2.4
±
0.10]
.095
±
0.004
[2.4
±
0.10]
T
H
(MIN)
0.028
[0.70]
0.028
[0.70]
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
www.vishay.com
27
Document Number 40005
Revision 01-Mar-04
For technical questions, contact tantalum@vishay.com
593D
Vishay Sprague
RATINGS AND CASE CODES
µ
F
Std.
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
D
A
A
A/B
A*/B
B/C
B/C
B/C
C/D
D
D/E
D*/E
D
E
A
A
A/B
A*B
B/C
B/C
B/C
C/D
D/E
D/E
D*/E
E*
D
D
C
A
A
A
A/B
A/B
B/C
B/C
B*/C
C*/D
D/E
D/E
D*/E
E*
D
D
C
C
A
B
A
A
A/B
B
B/C
B*/C
C
D
D/E
D*/E
D
D
C
B
A
A
A
B
B
B/C
C
C
D/E
D/E
E
D
C
C
C
C
D
D/E
B
A
A
A
A
B
B
D
D
D
D/E
B
C
C
C
C
C
4V
Ext.
Std.
6.3V
Ext.
10V
Std.
Ext.
Std.
16V
Ext.
20V
Std.
Ext.
Std.
25V
Ext.
35V
Std.
Ext.
A
A
A
B
B
B
B
D
D
D
C
C
C
E
D/E
E
Std.
50V
Ext.
*Preliminary values, contact factory for availability.
CONSTRUCTION AND MARKING
CONSTRUCTION
MARKING
Capacitance Code,
pF
Vishay
Sprague
Logo
“A” Case
Polarity Band
Volts
4
6.3
10
16
20
25
35
50
G
J
A
C
D
E
V
T
Capacitance
Polarity
Band
B, C, D, E
Voltage
V 104
22
XX
Date Code
10
2
Vishay
Sprague
Logo
Cathode
Termination ( - )
Polarity
Stripe (+)
Epoxy Case
Voltage Code
Code
Tantalum
Capacitor
Element
Anode Weld
Positive
Termination
Marking:
Capacitor marking will include an anode (+) polarity band, capacitance
in microfarads and the voltage rating of + 85°C. 'A' Case capacitors use
a letter code for the voltage and EIA capacitance code.
The Sprague
®
trademark may be included if space permits.
Units rated at 6.3 V shall be marked 6 V.
A manufacturing date code is marked on all case codes.
Call the factory for further explanation.
www.vishay.com
28
For technical questions, contact tantalum@vishay.com
Document Number 40005
Revision 01-Mar-04
593D
Vishay Sprague
STANDARD / EXTENDED RATINGS
CAPACITANCE
(
µ
F)
15
22
33
33
47
68
68
100
100
150
150
150
220
220
330
470
470
680*
680
10
15
15
22
22
33
47
47
68
68
100
100
100
150
150
150
220
220
330
330
470
470
4.7
4.7
6.8
10
15
15
15
22
22
22
33
33
47
47
Document Number 40005
Revision 01-Mar-04
Max. ESR
Max. DF
@ + 25
°
@ + 25
°
C
CASE
100kHz
120 Hz
CODE
PART NUMBER
(Ohms)
(%)
4 WVDC @ + 85
°
C, SURGE = 5.2 V . . . 2.7 WVDC @ + 125
°
C, SURGE = 3.4 V
A
593D156X_004A2_
0.6
6
1.500
A
593D226X_004A2_
0.9
6
1.500
A
593D336X_004A2_
1.3
6
1.500
B
593D336X_004B2_
1.3
6
0.500
B
593D476X_004B2_
1.9
6
0.500
B
593D686X_004B2_
2.7
6
0.500
C
593D686X_004C2_
2.7
6
0.275
B
593D107X_004B2_
4.0
6
0.450
C
593D107X_004C2_
4.0
6
0.225
B
593D157X_004B2_
6.0
14
0.500
C
593D157X_004C2_
6.0
8
0.250
D
593D157X_004D2_
6.0
8
0.150
C
593D227X_004C2_
8.8
8
0.200
D
593D227X_004D2_
8.8
8
0.150
D
593D337X_004D2_
13.2
8
0.150
D
593D477X_004D2_
18.8
10
0.125
E
593D477X_004E2_
18.8
10
0.100
D*
593D687X_004D2_*
27.2*
12*
0.100*
E
593D687X_004E2_
27.2
12
0.100
A
A
A
A
B
B
B
C
B
C
B
C
D
C
D
E
D
E
D
E
E
E
A
A
A
A
A
A
B
A
B
C
B
C
B
C
6.3 WVDC @ + 85
°
C, SURGE = 8 V . . . 4 WVDC @ + 125
°
C, SURGE = 5 V
593D106X_6R3A2
0.6
6
2.000
593D156X_6R3A2_
0.9
6
2.000
593D156X_6R3A2_035
0.9
6
1.000
593D226X_6R3A2_
1.3
6
2.000
593D226X_6R3B2_
1.3
6
0.600
593D336X_6R3B2_
2.0
6
0.600
593D476X_6R3B2_
2.8
6
0.550
593D476X_6R3C2_
2.8
6
0.300
593D686X_6R3B2_
4.1
6
0.550
593D686X_6R3C2_
4.1
6
0.275
593D107X_6R3B2_
6.0
12
0.500
593D107X_6R3C2_
6.0
6
0.250
593D107X_6R3D2_
6.0
6
0.140
593D157X_6R3C2_
9.0
8
0.200
593D157X_6R3D2_
9.0
8
0.125
593D157X_6R3E2_
9.0
8
0.100
593D227X_6R3D2_
13.2
8
0.100
593D227X_6R3E2_
13.2
8
0.100
593D337X_6R3D2_
19.8
8
0.125
593D337X_6R3E2_
19.8
8
0.100
593D477X_6R3E2_
28.2
10
0.100
593D477X_6R3E2_035
28.2
10
0.065
10 WVDC @ + 85
°
C, SURGE = 13 V . . . 7 WVDC @ + 125
°
C, SURGE = 8 V
593D475X_010A2
0.5
6
3.000
593D475X_010A2_035
0.5
6
1.500
593D685X_010A2_
0.7
6
3.000
593D106X_010A2
1.0
6
2.000
593D156X_010A2_
1.5
6
2.000
593D156X_010A2_035
1.5
6
1.000
593D156X_010B2_
1.5
6
0.700
593D226X_010A2_
2.2
8
1.500
593D226X_010B2_
2.2
6
0.700
593D226X_010C2_
2.2
6
0.345
593D336X_010B2_
3.3
6
0.600
593D336X_010C2_
3.3
6
0.300
593D476X_010B2_
4.7
6
0.600
593D476X_010C2_
4.7
6
0.300
For technical questions, contact tantalum@vishay.com
Max. DC
Leakage
@ + 25
°
C
(
µ
A)
Max. RIPPLE
100kHz
Irms
(Amps)
0.22
0.22
0.22
0.41
0.41
0.41
0.63
0.43
0.66
0.41
0.66
1.00
0.74
1.00
1.00
1.10
1.28
1.28*
1.28
0.19
0.19
0.27
0.19
0.38
0.38
0.39
0.61
0.39
0.63
0.41
0.66
1.04
0.74
1.10
1.28
1.22
1.28
1.10
1.28
1.28
1.59
0.16
0.22
0.16
0.19
0.19
0.27
0.35
0.22
0.35
0.56
0.38
0.61
0.38
0.61
www.vishay.com
29
• Preliminary values, contact factory for availability. For 10% tolerance, specify “9”; for 20% tolerance, change to “0”.
Extended Ratings in bold print.
593D
Vishay Sprague
STANDARD / EXTENDED RATINGS
CAPACITANCE
(
µ
F)
47
47
47
68
68
100*
100
100
150
150
220
220
330
3.3
4.7
4.7
6.8
10
10
10
15
15
22
22
33*
33
33
33
47
47
68
100
100
150
Max. ESR
Max. DC
Max. DF
@ + 25
°
Leakage
@ + 25
°
C
CASE
100kHz
@ + 25
°
C
120 Hz
CODE
PART NUMBER
(
µ
A)
(Ohms)
(%)
10 WVDC @ + 85
°
C, SURGE = 13 V . . . 7 WVDC @ + 125
°
C, SURGE = 8 V
D
593D476X_010D2_
4.7
6
0.200
D
593D476X_010D2_035
4.7
6
0.140
D
593D476X_010D2_044
4.7
6
0.100
C
593D686X_010C2_
6.8
6
0.275
D
593D686X_010D2_
6.8
6
0.150
C*
593D107X_010C2_*
10*
8*
0.200*
D
593D107X_010D2_
10
6
0.100
D
593D107X_010D2_035
10
6
0.080
D
593D157X_010D2_
15
8
0.100
E
593D157X_010E2_
15
8
0.100
D
593D227X_010D2_
22
8
0.100
E
593D227X_010E2_
22
8
0.100
E
593D337X_010E2_
33
10
0.100
16 WVDC @ + 85
°
C, SURGE = 20 V . . .10 WVDC @ + 125
°
C, SURGE = 12 V
A
A
B
A
A
B
C
B
C
B
C
B*
C
D
D
C
D
D
D
E
E
593D335X_016A2_
593D475X_016A2_
593D475X_016B2_
593D685X_016A2_
593D106X_016A2_
593D106X_016B2_
593D106X_016C2_
593D156X_016B2_
593D156X_016C2_
593D226X_016B2_
593D226X_016C2_
593D336X_016B2_*
593D336X_016C2_
593D336X_016D2_
593D336X_016D2_035
593D476X_016C2_
593D476X_016D2_
593D686X_016D2_
593D107X_016D2_
593D107X_016E2_
593D157X_016E2_
0.5
0.8
0.8
1.1
1.6
1.6
1.6
2.4
2.4
3.5
3.5
5.3*
5.3
4.2
5.3
7.5
7.5
10.9
16
16
24
6
6
6
6
6
6
6
6
6
6
6
6*
6
4
6
6
6
6
8
8
8
3.500
2.500
1.500
3.000
1.700
0.800
0.450
0.800
0.400
0.700
0.350
0.700*
0.300
0.225
0.150
0.300
0.150
0.150
0.125
0.100
0.100
Max. RIPPLE
100kHz
Irms
(Amps)
0.87
1.04
1.22
0.63
1.00
0.74*
1.22
1.37
1.22
1.28
1.10
1.28
1.28
0.15
0.17
0.24
0.16
0.21
0.33
0.49
0.33
0.52
0.35
0.56
0.35*
0.61
0.82
1.00
0.61
1.00
1.00
1.10
1.28
1.28
20 WVDC @ + 85
°
C, SURGE = 26 V . . . 13 WVDC @ + 125
°
C, SURGE = 16 V
1.0
2.2
3.3
4.7
4.7
6.8
10
10
15
15
22
22
33
33
47
47
68
68
100
A
A
A
A
B
B
B
C
B
C
C
D
C
D
D
E
D
E
E
593D105X_020A2_
593D225X_020A2_
593D335X_020A2_
593D475X_020A2_
593D475X_020B2_
593D685X_020B2_
593D106X_020B2_
593D106X_020C2_
593D156X_020B2_
593D156X_020C2_
593D226X_020C2_
593D226X_020D2_
593D336X_020C2_
593D336X_020D2_
593D476X_020D2_
593D476X_020E2_
593D686X_020D2_
593D686X_020E2_
593D107X_020E2_
0.5
0.5
0.7
0.9
0.9
1.4
2.0
2.0
3.0
3.0
4.4
3.5
6.6
6.6
9.4
7.5
13.6
13.6
20
4
6
6
6
6
6
6
6
6
6
6
4
6
6
6
4
6
6
8
5.500
4.000
4.000
3.500
1.000
1.000
1.000
0.450
1.000
0.400
0.375
0.225
0.350
0.200
0.200
0.150
0.175
0.150
0.150
0.12
0.14
0.14
0.15
0.29
0.29
0.29
0.49
0.29
0.52
0.54
0.82
0.56
0.87
0.87
1.05
0.93
1.05
1.05
• Preliminary values, contact factory for availability. For 10% tolerance, specify “9”; for 20% tolerance, change to “0”.
Extended Ratings in bold print.
www.vishay.com
30
For technical questions, contact tantalum@vishay.com
Document Number 40005
Revision 01-Mar-04
593D
Vishay Sprague
STANDARD / EXTENDED RATINGS
CAPACITANCE
(
µ
F)
1.0
1.5
2.2
2.2
3.3
4.7
4.7
6.8
10
15
15
22
33
33
33
0.47
0.68
1.0
1.0
1.5
1.5
2.2
2.2
3.3
4.7
6.8
6.8
10
10
15
15
22
22
1.0
1.5
1.5
2.2
2.2
3.3
3.3
4.7
4.7
4.7
6.8
6.8
10
CASE
CODE
A
A
A
B
B
B
C
C
C
C
D
D
D
E
E
Max. DC
Leakage
@ + 25
°
C
(
µ
A)
Max. DF
@ + 25
°
C
120 Hz
(%)
Max. ESR
@ + 25
°
100kHz
(Ohms)
Max. RIPPLE
100kHz
Irms
(Amps)
0.14
0.14
0.14
0.24
0.24
0.24
0.46
0.47
0.49
0.51
0.77
0.87
0.87
0.91
0.97
0.14
0.14
0.14
0.21
0.21
0.35
0.21
0.40
0.45
0.47
0.48
0.71
0.71
0.77
0.71
0.76
0.71
0.77
0.21
0.27
0.21
0.27
0.21
0.27
0.43
0.50
0.71
0.74
0.50
0.55
0.55
PART NUMBER
25 WVDC @ + 85
°
C, SURGE = 32 V . . . 17 WVDC @ + 125
°
C, SURGE = 20 V
593D105X_025A2_
0.5
4
4.000
593D155X_025A2_
0.5
6
4.000
593D225X_025A2_
0.5
6
4.000
593D225X_025B2_
0.6
6
1.500
593D335X_025B2_
0.8
6
1.500
593D475X_025B2_
1.2
6
1.500
593D475X_025C2_
1.2
6
0.525
593D685X_025C2_
1.7
6
0.500
593D106X_025C2_
2.5
6
0.450
593D156X_025C2_
3.8
6
0.425
593D156X_025D2_
3.8
6
0.250
593D226X_025D2_
5.5
6
0.200
593D336X_025D2_
8.3
6
0.200
593D336X_025E2_
8.3
6
0.200
593D336X_025E2_035
6.6
4
0.175
35 WVDC @ + 85
°
C, SURGE = 46 V . . . 23 WVDC @ + 125
°
C, SURGE = 28 V
A
593D474X_035A2_
0.5
4
4.000
A
593D684X_035A2_
0.5
4
4.000
A
593D105X_035A2_
0.5
4
4.000
B
593D105X_035B2_
0.5
4
2.000
B
593D155X_035B2_
0.5
6
2.000
C
593D155X_035C2_
0.5
6
0.900
B
593D225X_035B2_
0.8
6
2.000
C
593D225X_035C2_
0.8
6
0.900
C
593D335X_035C2_
1.2
6
0.700
C
593D475X_035C2_
1.6
6
0.500
C
593D685X_035C2_
2.4
6
0.475
D
593D685X_035D2_
2.4
6
0.300
D
593D106X_035D2_
3.5
6
0.300
D
593D106X_035D2_035
3.5
6
0.250
D
593D156X_035D2_
5.3
6
0.300
D
593D156X_035D2_035
5.3
6
0.260
D
593D226X_035D2_
7.7
6
0.3
E
593D226X_035E2_
7.7
6
0.275
50 WVDC @ + 85
°
C, SURGE = 65 V . . . 33 WVDC @ + 125
°
C, SURGE = 40 V
B
C
B
C
D
C
D
D
D
E
D
E
E
593D105X_050B2_
593D155X_050C2_
593D155X_050B2_
593D225X_050C2_
593D225X_050D2_
593D335X_050C2_
593D335X_050D2_
593D475X_050D2_
593D475X_050D2_035
593D475X_050E2_044
593D685X_050D2_
593D685X_050E2_
593D106X_050E2_
0.8
0.8
0.8
1.1
1.1
1.7
1.7
2.4
2.4
1.9
3.4
3.4
5.0
6
6
6
6
6
6
6
6
6
4
6
6
6
2.000
1.500
2.000
1.500
2.000
1.500
0.800
0.600
0.300
0.300
0.600
0.550
0.550
• Preliminary values, contact factory for availability. For 10% tolerance, specify “9”; for 20% tolerance, change to “0”.
Extended Ratings in bold print.
Document Number 40005
Revision 01-Mar-04
For technical questions, contact tantalum@vishay.com
www.vishay.com
31
京公网安备 11010802033920号
EEWORLD
