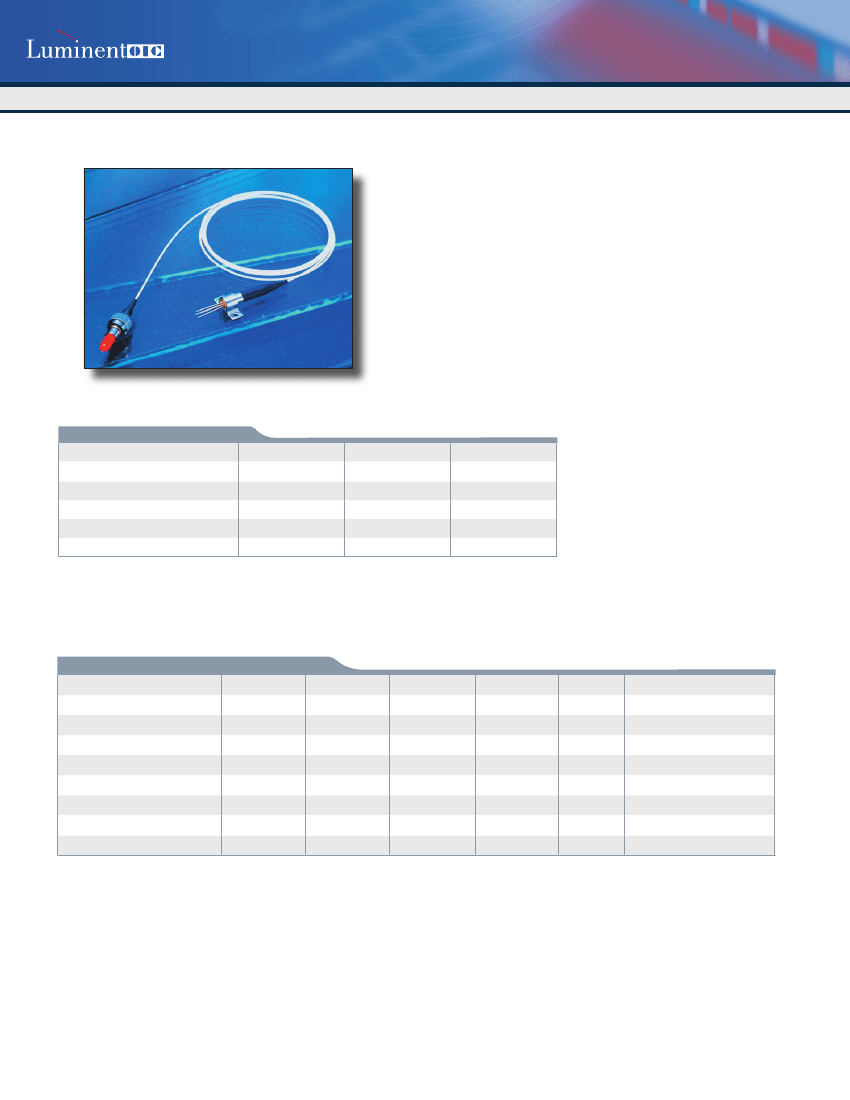

55um InGaAs PIN Photodiode

Modules-pigtailed

R-11-055X-P-SXX/XXX-X-XX

Features

• InGaAs/InP PIN Photodiode

• High responsivity at 1310nm and 1550nm

• Low dark current

• Low intermodulation distortion

• High responsivity

• Hermetically sealed 3-pin metal case

• SM ﬁber pigtailed with optional FC/ST/SC connector

• RoHS Compliant available

Absolute Maximum Ratings (Tc=25ºC)

Parameter

Supply Reverse voltage

Forward Current

Reverse Current

Operating Temperature

Storage Temperature

Symbol

opr

stg

Rating

-40 ~ +85

Unit

ºC

(All optical data refer to a coupled 9/125µm SM ﬁber)

Optical and Electrical Characteristics (Tc=25ºC)

Parameter

Active Area (Dia)

Detection Range

Responsivity

Dark Current

Capacitance

Rise/Fall Time

Bandwidth

Optical Return Loss

Symbol

Min

1100

Typ

1310

0.8

Max

1650

0.8

0.3

Unit

µm

A/W

GHz

Test Conditions

=5V,

λ=1310nm

=5V

=5V, 10%~90%

=5V

λ=1310nm

dark

ORL

0.75

Note: 1.Speciﬁcations subject to change without notice.

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS801-DEC1406

rev. A.1

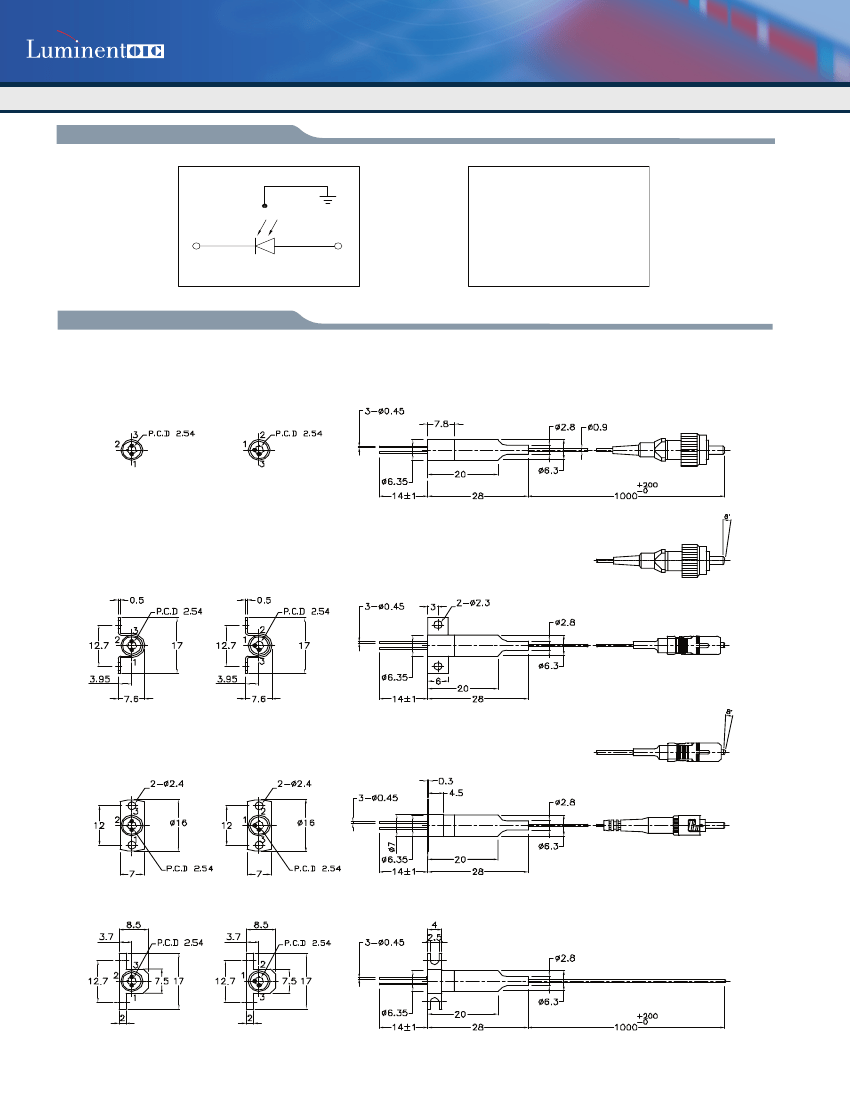

55um InGaAs PIN Photodiode

Modules-pigtailed

R-11-055X-P-SXX/XXX-X-XX

Ordering Information

R-11-055X-P-SXX/XXX-X-XX

Package

P=Pigtail

Connector

FC/ST/SC/-

Face

" - " = PC Fiber

APC = APC Fiber

UPC = UPC Fiber

Flange

"-" : without flange

"O" : O Type flange

"V" : V Type flange

"K" : K Type flange

Pin Aaaignment

" - ": A Type

"B" : B Type

Fiber Application

S=SM 9/125µm

-/G5/GR

Blank = RoHS non-compliant product

G5 = RoHS 5/6-compliant product (lead exemption)

GR = Full RoHS compliant product (no exemption)

RoHS Compliant

Warnings

Handling Precautions:

This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is

highly recommended. Follow guidelines according to proper ESD procedures.

Laser Safety:

Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.

Legal Notice

IMPORTANT NOTICE!

All information contained in this document is subject to change without notice, at Luminent＇s sole and absolute discretion.

Luminent warrants performance of its products to current specifications only in accordance with the company＇s standard one-year war-

ranty; however, specifications designated as “preliminary＂ are given to describe components only, and Luminent expressly disclaims

any and all warranties for said products, including express, implied, and statutory warranties, warranties of merchantability, fit-

ness for a particular purpose, and non-infringement of proprietary rights. Please refer to the company＇s Terms and Conditions of

Sale for further warranty information.

Luminent assumes no liability for applications assistance, customer product design, software performance, or infringement of patents,

services, or intellectual property described herein. No license, either express or implied, is granted under any patent right,

copyright, or intellectual property right, and Luminent makes no representations or warranties that the product(s) described herein

are free from patent, copyright, or intellectual property rights. Products described in this document are NOT intended for use in

implantation or other life support applications where malfunction may result in injury or death to persons. Luminent customers using

or selling products for use in such applications do so at their own risk and agree to fully defend and indemnify Luminent for any

damages resulting from such use or sale.

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS＂ BASIS. Customer agrees that Luminent is not liable for any

actual, consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this

document. Customer must contact Luminent to obtain the latest version of this publication to verify, before placing any order, that

the information contained herein is current.
