306-021-521-104

Description
Card Edge Connector,
CategoryThe connector    The connector
File Size114KB,2 Pages
ManufacturerEDAC
Environmental Compliance
Download Datasheet Parametric View All

306-021-521-104 Online Shopping

Suppliers Part Number Price MOQ In stock
306-021-521-104 - - View Buy Now

306-021-521-104 Overview

Card Edge Connector,

306-021-521-104 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerEDAC
Reach Compliance Codecompli
Mounting Option
104-.156 (3.96) Dia. Mounting Holes
Contact Detail
521-P.C. Tail .037x.015(0.94x0.38) - Tail LG.=.125(3.18)
.156 [3.96] Contact Spacing with Single Centreline Row

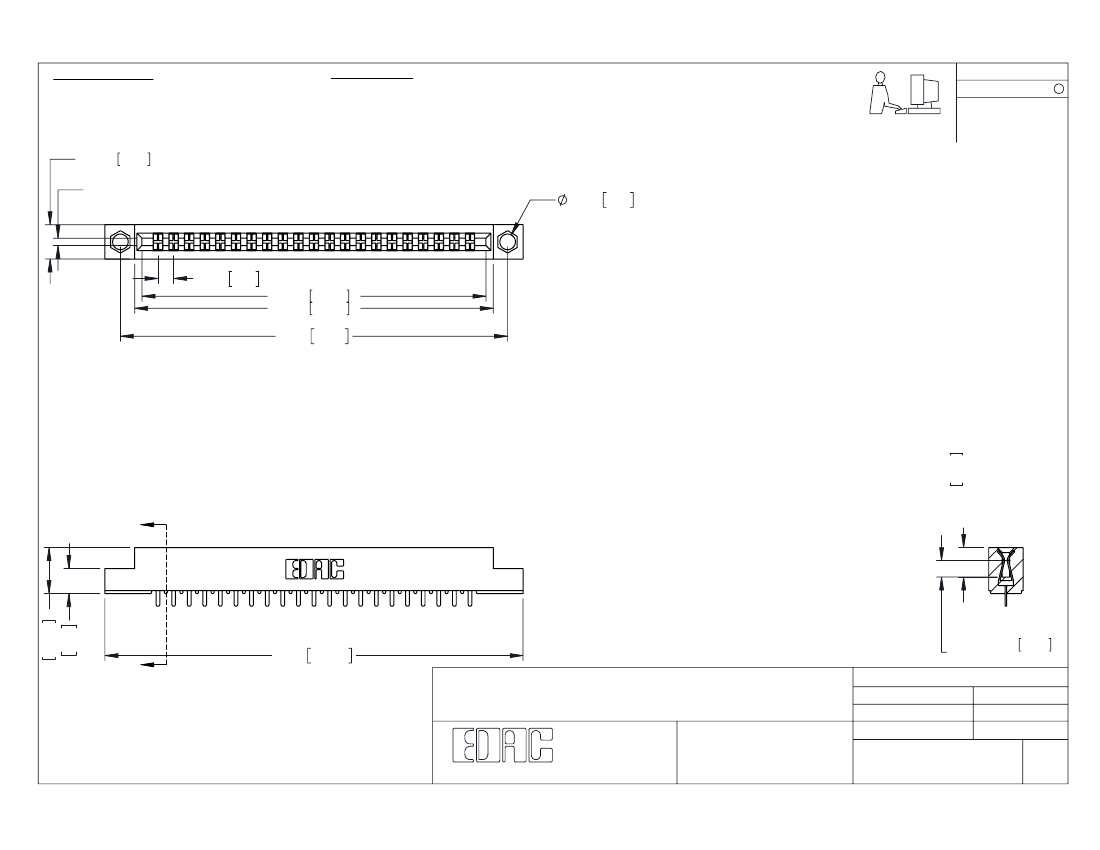

THIS IS A C.A.D. GENERATED DRAWING
DO NOT MAKE MANUAL REVISIONS TO MASTER.
ISSUE NUMBER
ORIGINAL
1
0.343 8.71
Card Slot Accepts
.054 (1.37) to .070 (1.78)
Thick P.C. Board
0.156 3.96
0.156 3.96
3.440 87.38
3.586 91.08
3.872 98.35
0.460 11.68
0.250 6.35
A
4.182 106.22
0.165 4.19
Point of Contact
See Accompanying Pages for:
Mounting Options
Features and Specifications
306 / 316 / 356 Card Edge Connector
Part Number: 306-021-521-104
EDAC INC
TORONTO, ONTARIO
CANADA
YOUR CONNECTION TO QUALITY & SERVICE
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF EDAC INC.,AND
SHALL NOT BE REPRODUCED,OR COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
ACAD REFERENCE NO.
DRAWN:
CHECKED:
SCALE:
NTS
J.LEE
306 ENG MASTER
DATE:
SEPT. 14/09
DATE:
SHEET
1
OF
2
ISSUE
DRAWING NUMBER
306 Assembly
SECTION A-A
1
A
0.295 7.49
Card Slot
