306-023-521-104 Overview

Card Edge Connector,

306-023-521-104 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerEDAC
Reach Compliance Codecompli
Mounting Option
104-.156 (3.96) Dia. Mounting Holes
Contact Detail
521-P.C. Tail .037x.015(0.94x0.38) - Tail LG.=.125(3.18)
.156 [3.96] Contact Spacing with Single Centreline Row

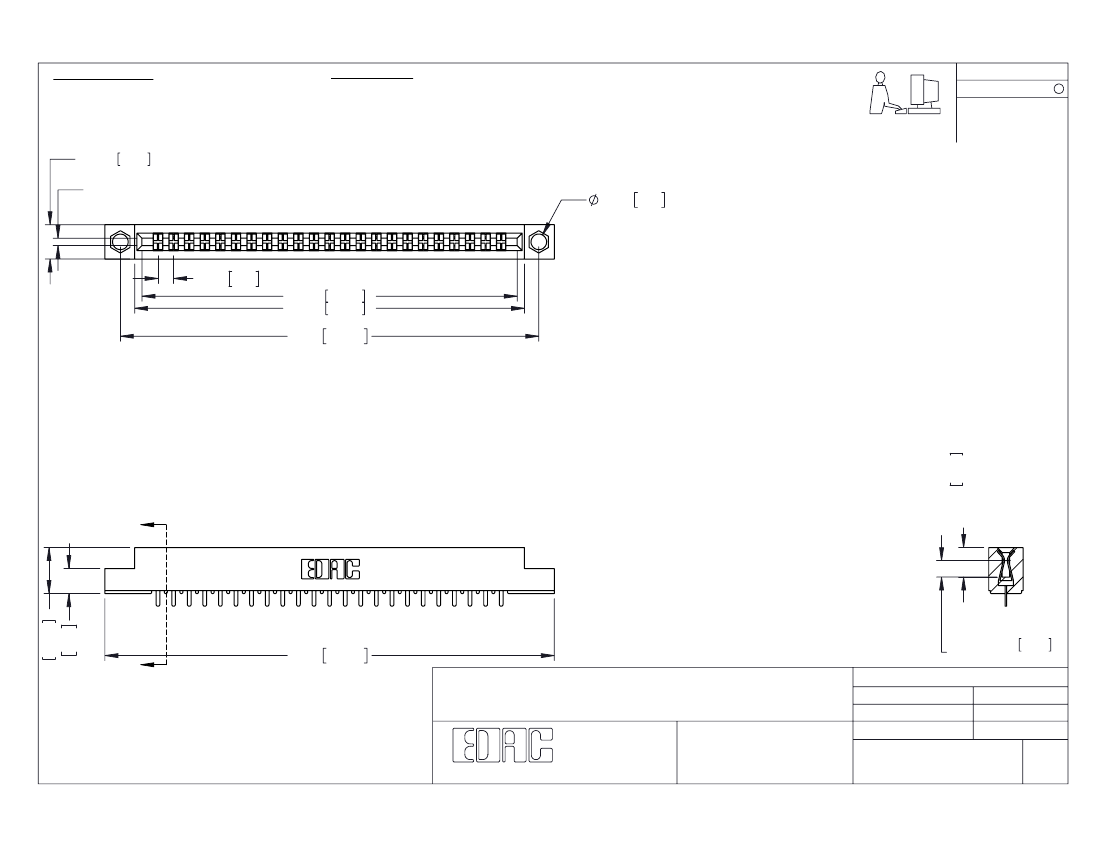

THIS IS A C.A.D. GENERATED DRAWING
DO NOT MAKE MANUAL REVISIONS TO MASTER.
ISSUE NUMBER
ORIGINAL
1
0.343 8.71
Card Slot Accepts
.054 (1.37) to .070 (1.78)
Thick P.C. Board
0.156 3.96
0.156 3.96
3.752 95.30
3.898 99.01
4.184 106.27
0.460 11.68
0.250 6.35
A
4.494 114.15
0.165 4.19
Point of Contact
See Accompanying Pages for:
Mounting Options
Features and Specifications
306 / 316 / 356 Card Edge Connector
Part Number: 306-023-521-104
EDAC INC
TORONTO, ONTARIO
CANADA
YOUR CONNECTION TO QUALITY & SERVICE
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF EDAC INC.,AND
SHALL NOT BE REPRODUCED,OR COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
ACAD REFERENCE NO.
DRAWN:
CHECKED:
SCALE:
NTS
J.LEE
306 ENG MASTER
DATE:
SEPT. 14/09
DATE:
SHEET
1
OF
2
ISSUE
DRAWING NUMBER
306 Assembly
SECTION A-A
1
A
0.295 7.49
Card Slot
