EDI88128V15MI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> EDI88128V15MI

EDI88128V15MI: DescriptionStandard SRAM, 128KX8, 15ns, CMOS, PDSO32,; Categorystorage storage; File Size192KB，5 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

EDI88128V15MI Overview

Standard SRAM, 128KX8, 15ns, CMOS, PDSO32,

EDI88128V15MI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	EDI [Electronic devices inc.]
Reach Compliance Code	unknow
Maximum access time	15 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J32
JESD-609 code	e0
memory density	1048576 bi
Memory IC Type	STANDARD SRAM
memory width	8
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ32,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
power supply	3.3 V
Certification status	Not Qualified
Maximum standby current	0.01 A
Minimum standby current	3 V
Maximum slew rate	0.17 mA
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL

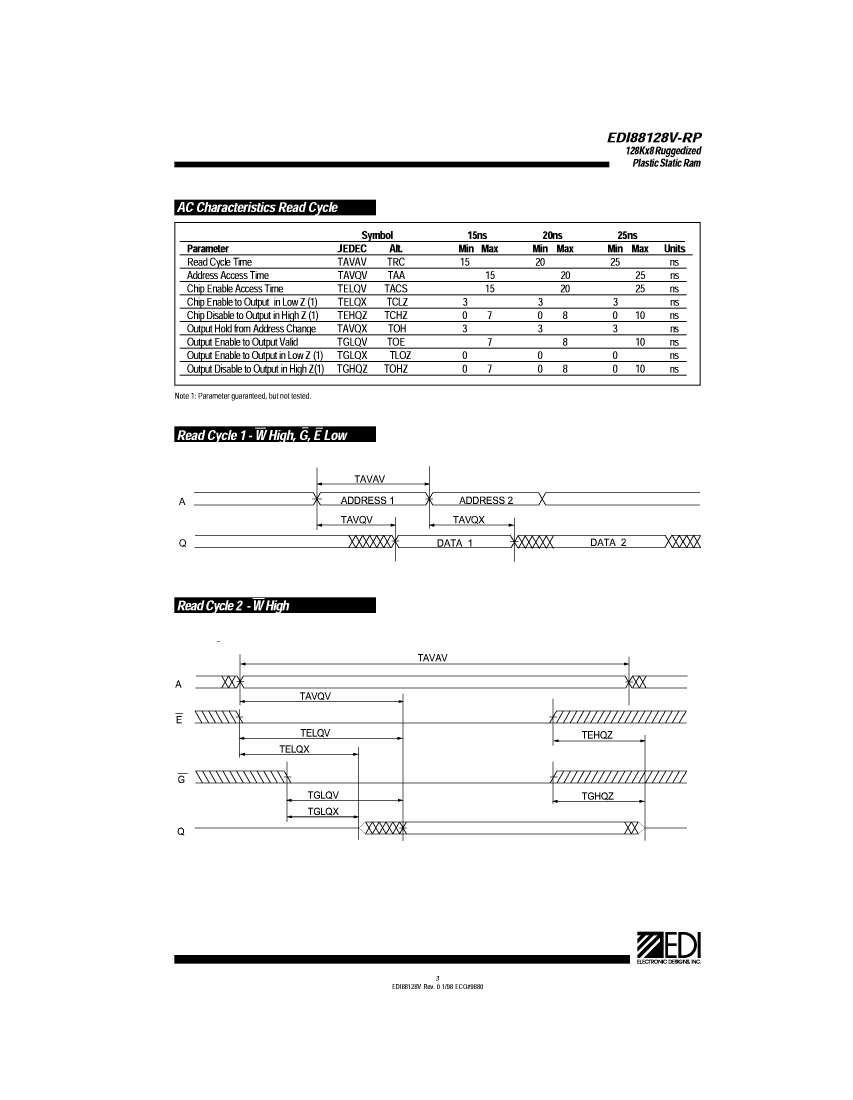

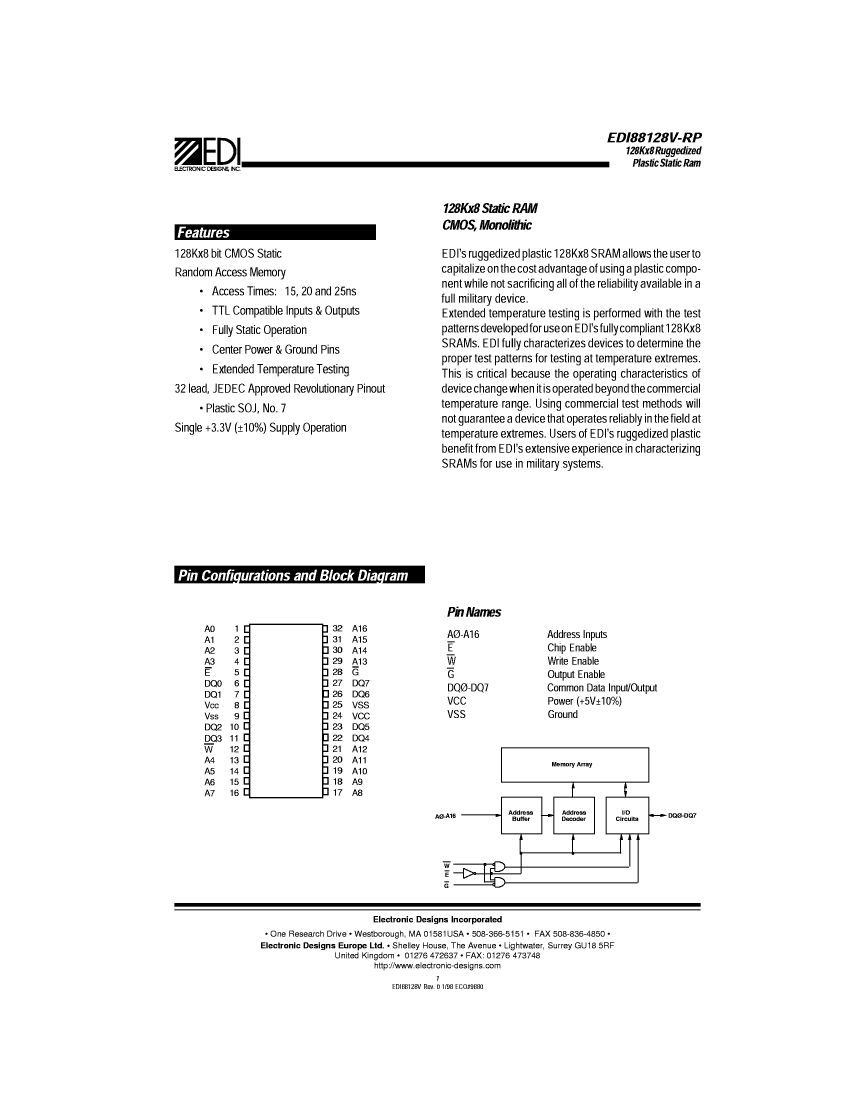

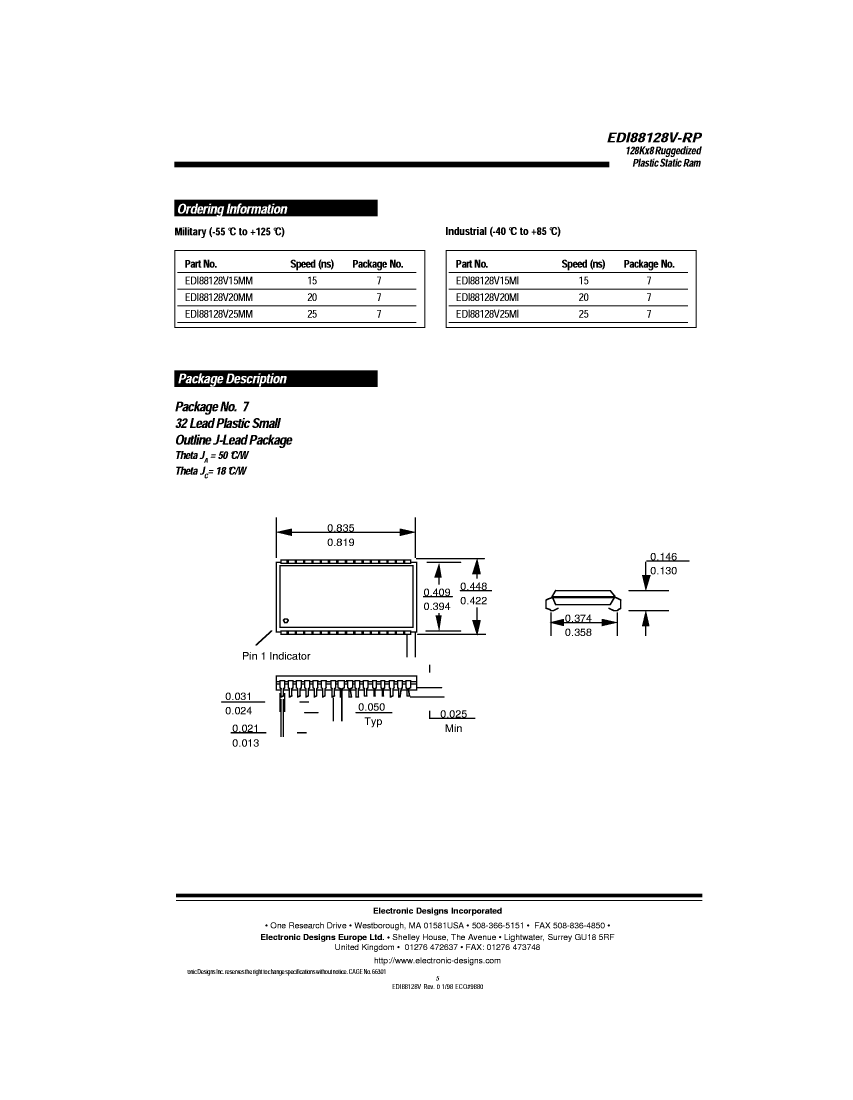

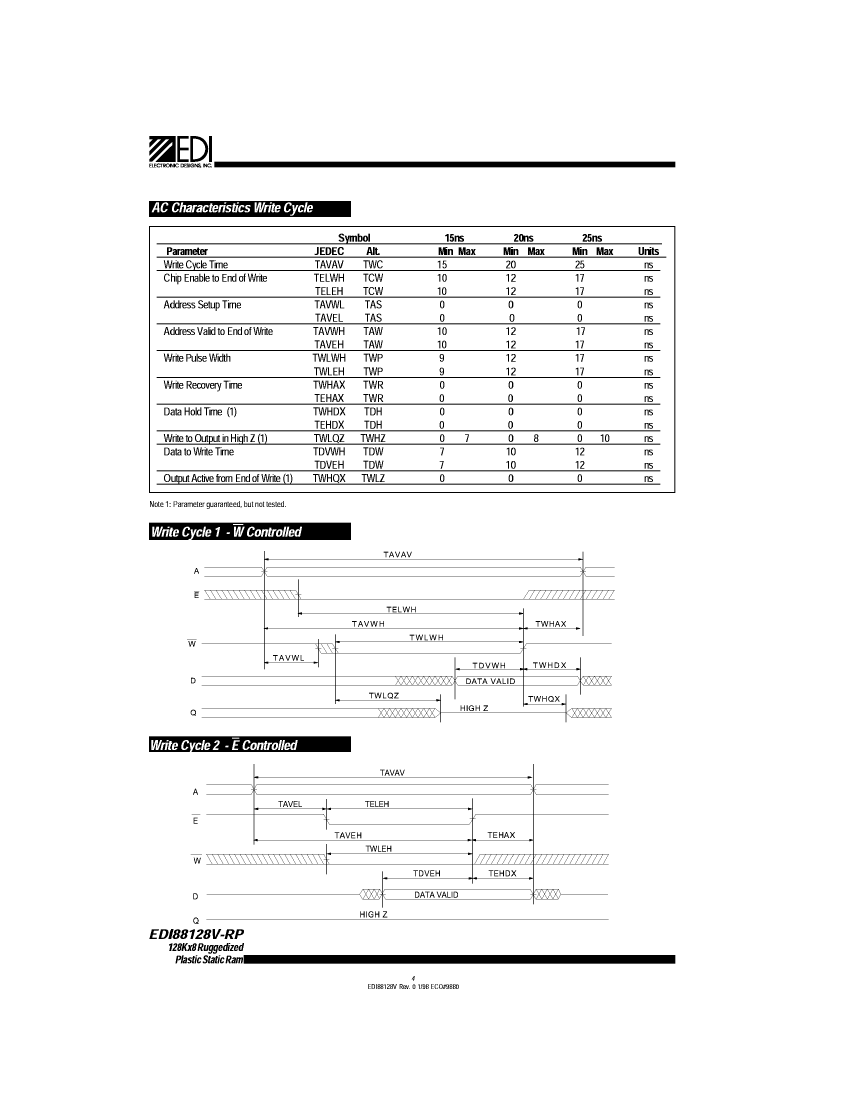

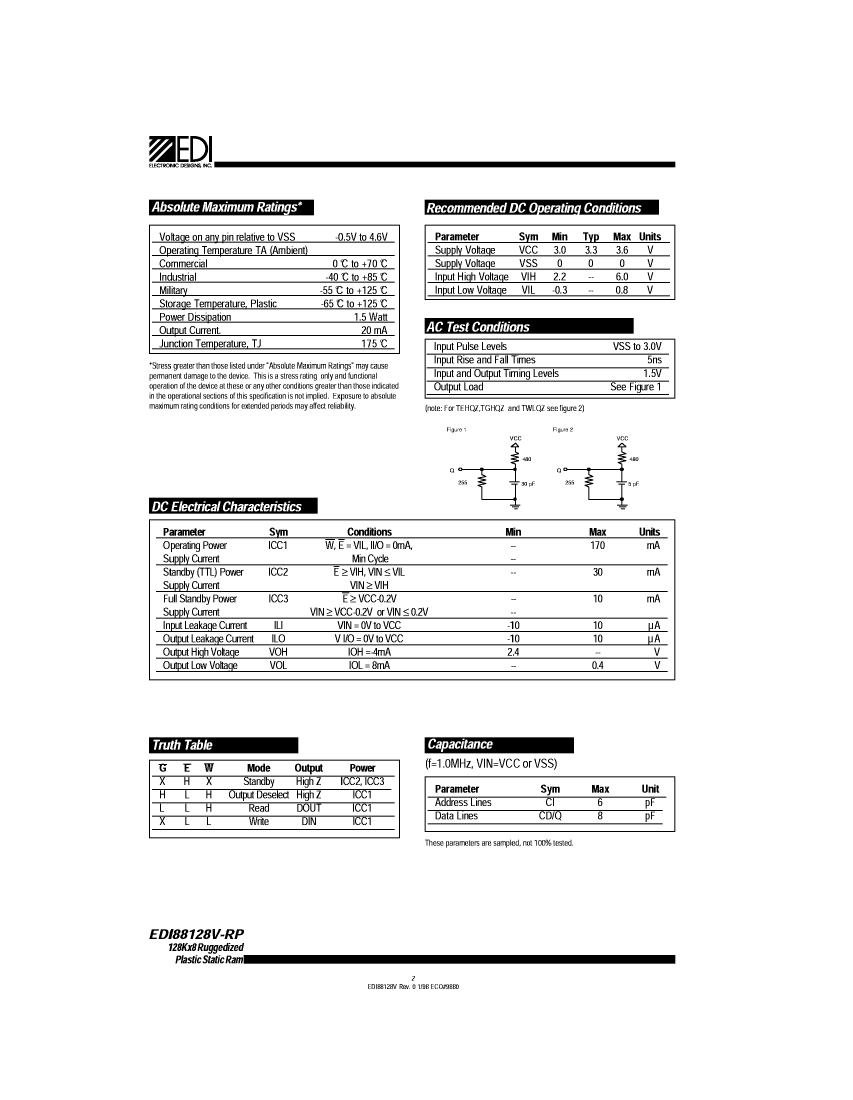

Preview

Download Datasheet

View All

EDI88128V15MI Related Products

	EDI88128V15MI	EDI88128V20MM	EDI88128V15MM	EDI88128V20MI	EDI88128V25MI	EDI88128V25MM
Description	Standard SRAM, 128KX8, 15ns, CMOS, PDSO32,	Standard SRAM, 128KX8, 20ns, CMOS, PDSO32,	Standard SRAM, 128KX8, 15ns, CMOS, PDSO32,	Standard SRAM, 128KX8, 20ns, CMOS, PDSO32,	Standard SRAM, 128KX8, 25ns, CMOS, PDSO32,	Standard SRAM, 128KX8, 25ns, CMOS, PDSO32,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]
Reach Compliance Code	unknow	unknown	unknow	unknow	unknow	unknow
Maximum access time	15 ns	20 ns	15 ns	20 ns	25 ns	25 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	1048576 bi	1048576 bit	1048576 bi	1048576 bi	1048576 bi	1048576 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8
Number of terminals	32	32	32	32	32	32
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	125 °C	125 °C	85 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-40 °C	-40 °C	-55 °C
organize	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ
Encapsulate equivalent code	SOJ32,.44	SOJ32,.44	SOJ32,.44	SOJ32,.44	SOJ32,.44	SOJ32,.44
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A
Minimum standby current	3 V	3 V	3 V	3 V	3 V	3 V
Maximum slew rate	0.17 mA	0.17 mA	0.17 mA	0.17 mA	0.17 mA	0.17 mA
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
