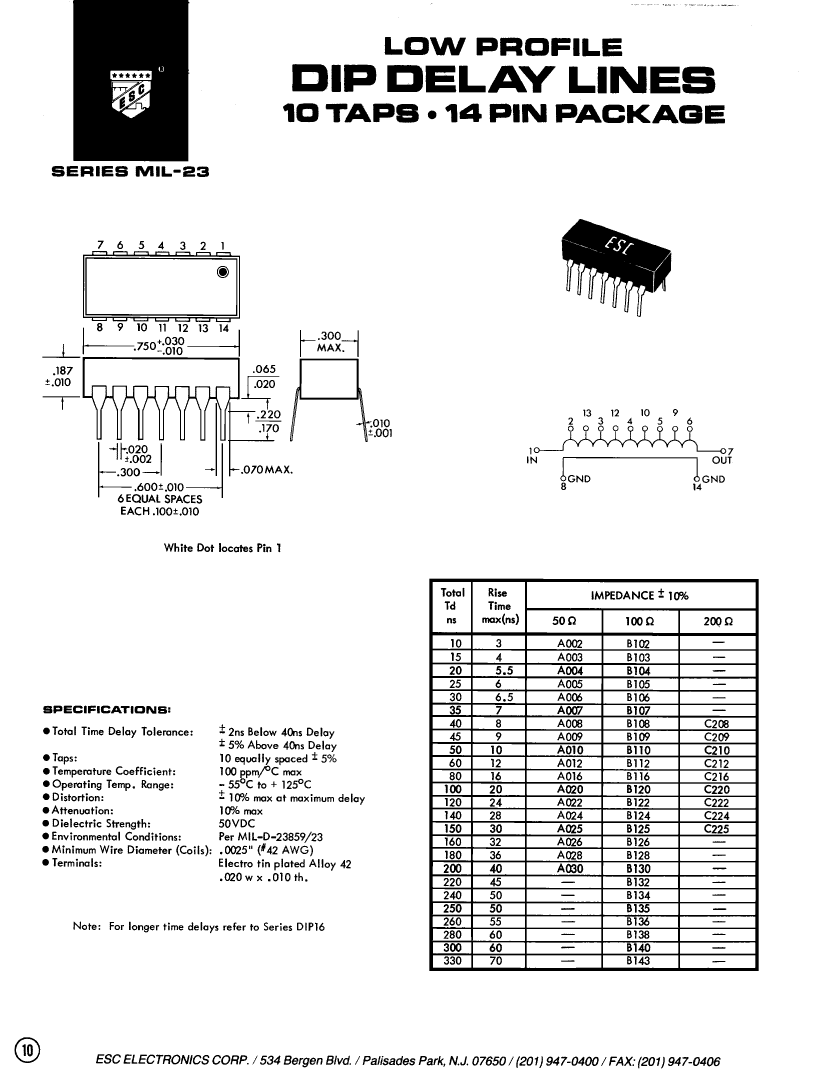

B130: DescriptionPassive Delay Line, 1-Func, 10-Tap, True Output, PDIP14; Categorylogic logic; File Size35KB，1 Pages; ManufacturerEsc Electronics Corp

Download Datasheet Parametric Compare View All

B130 Overview

Passive Delay Line, 1-Func, 10-Tap, True Output, PDIP14

B130 Parametric

Parameter Name	Attribute value
Maker	Esc Electronics Corp
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknow
Other features	MEETS MIL-D-23859/23; MAX DISTORTION 10%; MAX RISE TIME & TEMP. COEFF. CAPTURED
JESD-30 code	R-PDIP-T14
Logic integrated circuit type	PASSIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance nominal value (Z0)	100 Ω
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Prop。Delay @ Nom-Su	210 ns
Certification status	Not Qualified
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	200 ns

Preview

Download Datasheet

View All

B130 Related Products

	B130	B140	A006	C220	C222	B102	B108
Description	Passive Delay Line, 1-Func, 10-Tap, True Output, PDIP14	Passive Delay Line, 1-Func, 10-Tap, True Output, PDIP14	Passive Delay Line, 1-Func, 10-Tap, True Output, PDIP14	Passive Delay Line, 1-Func, 10-Tap, True Output, PDIP14	Passive Delay Line, 1-Func, 10-Tap, True Output, PDIP14	Passive Delay Line, 1-Func, 10-Tap, True Output, PDIP14	Passive Delay Line, 1-Func, 10-Tap, True Output, PDIP14
Maker	Esc Electronics Corp	Esc Electronics Corp	Esc Electronics Corp	Esc Electronics Corp	Esc Electronics Corp	Esc Electronics Corp	Esc Electronics Corp
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Other features	MEETS MIL-D-23859/23; MAX DISTORTION 10%; MAX RISE TIME & TEMP. COEFF. CAPTURED	MEETS MIL-D-23859/23; MAX DISTORTION 10%; MAX RISE TIME & TEMP. COEFF. CAPTURED	MEETS MIL-D-23859/23; MAX DISTORTION 10%; MAX RISE TIME & TEMP. COEFF. CAPTURED	MEETS MIL-D-23859/23; MAX DISTORTION 10%; MAX RISE TIME & TEMP. COEFF. CAPTURED	MEETS MIL-D-23859/23; MAX DISTORTION 10%; MAX RISE TIME & TEMP. COEFF. CAPTURED	MEETS MIL-D-23859/23; MAX DISTORTION 10%; MAX RISE TIME & TEMP. COEFF. CAPTURED	MEETS MIL-D-23859/23; MAX DISTORTION 10%; MAX RISE TIME & TEMP. COEFF. CAPTURED
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14
Logic integrated circuit type	PASSIVE DELAY LINE	PASSIVE DELAY LINE	PASSIVE DELAY LINE	PASSIVE DELAY LINE	PASSIVE DELAY LINE	PASSIVE DELAY LINE	PASSIVE DELAY LINE
Number of functions	1	1	1	1	1	1	1
Number of taps/steps	10	10	10	10	10	10	10
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output impedance nominal value (Z0)	100 Ω	100 Ω	50 Ω	200 Ω	200 Ω	100 Ω	100 Ω
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
programmable delay line	NO	NO	NO	NO	NO	NO	NO
Prop。Delay @ Nom-Su	210 ns	315 ns	32 ns	105 ns	126 ns	12 ns	42 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Total delay nominal (td)	200 ns	300 ns	30 ns	100 ns	120 ns	10 ns	40 ns
