164003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 164003

164003: DescriptionD Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Surface Mount Terminal, M3, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size116KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

164003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	164003	-	-	View	Buy Now

164003 Overview

D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Surface Mount Terminal, M3, Receptacle, LEAD FREE

164003 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
package instruction	LEAD FREE
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.248 inch
body length	2.087 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M3
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	7.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Terminal pitch	2.7686 mm
Termination type	SURFACE MOUNT
Total number of contacts	25
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

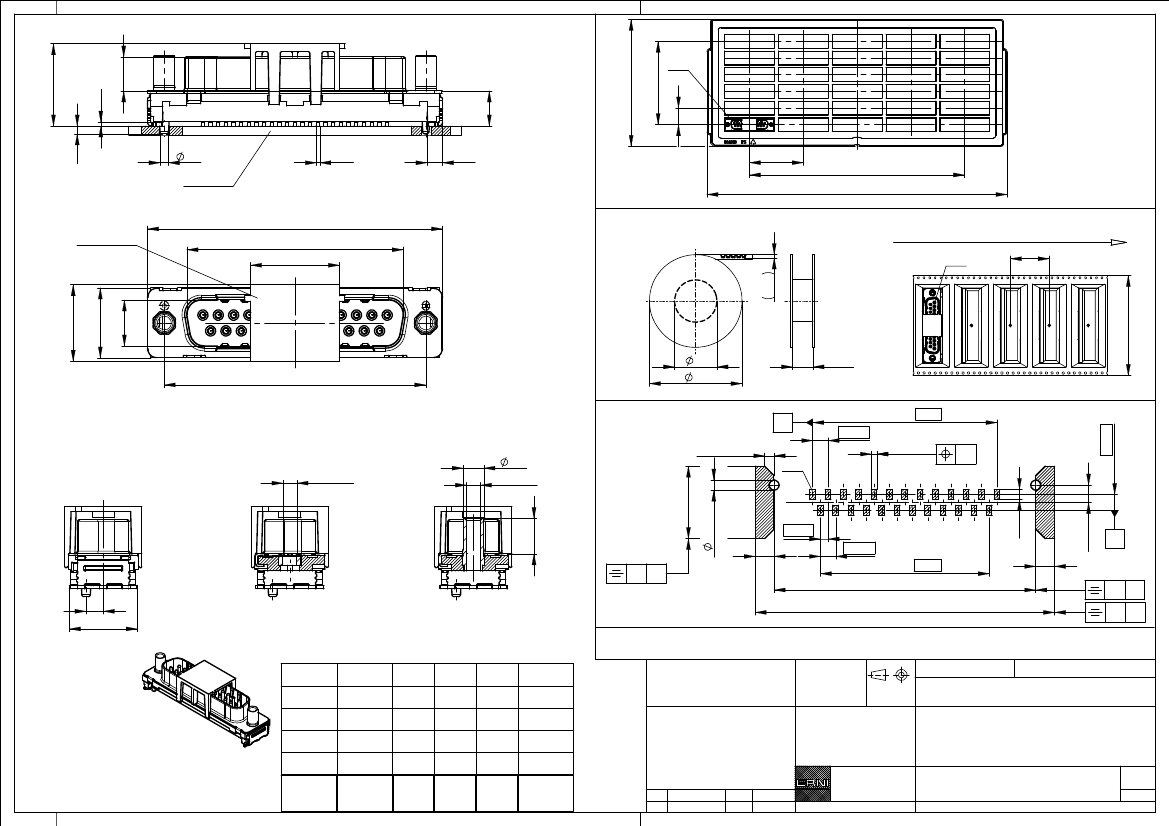

Verpackt in Tray

Verpackungseinheit 30 St.

+0,3

0,7

6,3

5 x 18 = 90

max. 138

Pin 1

tray packaging

packaging unit 30 pcs

14,8

5,8

1,4

1,5

Leiterplatte

0,6

2,8

4 x 58 = 232

max. 325

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

pcb

-0,4

+0,2

hood

Ansaughaube

38,9

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 120 Stück -

Packaging unit: 120 pcs

Abspulrichtung -

Reel off Direction

Pin 1

12,6

±0,3

13,8

+0,2

17,1

8,25

150

±0,1

72,5

330

Sonstige Angaben siehe Zeichnung 204654 /

Additional indications according to drawing 204654

thread depth max. 5,5 mm

3,7

1,7 x 45° (4x)

Pin 1

0,1

Gewinde

/ thread

/ #4-40

Gewinde

/ thread

/ #4-40

Bohrung

/ hole

1,8

±0,05

6,4

1,38

3,4

2,76

11 x 2,76 = 30,36

±0,05

53,8

±0,2

3,1

±0,05

1,8

3,4

0,1

3,1

12,2

Beschriftung nach Bedruckungsvorschrift 174538

M 1:1

Part marking according to specification 174538

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications please see the production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

194260

Anschlussbereich verzinnt

174387

164015

164011

164007

164003

Ident.-Nr.

#4-40

ohne

without

Mutter

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

194261

194262

194263

194264

Ident-Nr.

part-no.

tape &reel

terminal area tin plating

coplanarity area of termination

≤

0,1 mm

Anforderungsstufe: 2

Koplanarität der Anschlüsse

≤

0,1 mm

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

14.04.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-P 25-SMD-6,3-BA8

TMC-P 25-SMD-6,3-type 8

class: 2

part-no.

tray

thread

Bolzen Bemerkung

www.ERNI.com

Class

bolt

remark

144891

TMCP

2,84

ohne /

without

thread depth max. 5,0 mm

max. Einschraubtiefe 5,0 mm

Mutter /

nut

max. Einschraubtiefe 5,5 mm

Bolzen /

bolt

Layoutvorschlag:

recommended layout:

12 x 2,76 = 33,12

2,76

(25x)
