Rectifier Diode, 1 Phase, 2 Element, 10A, 150V V(RRM), Silicon,

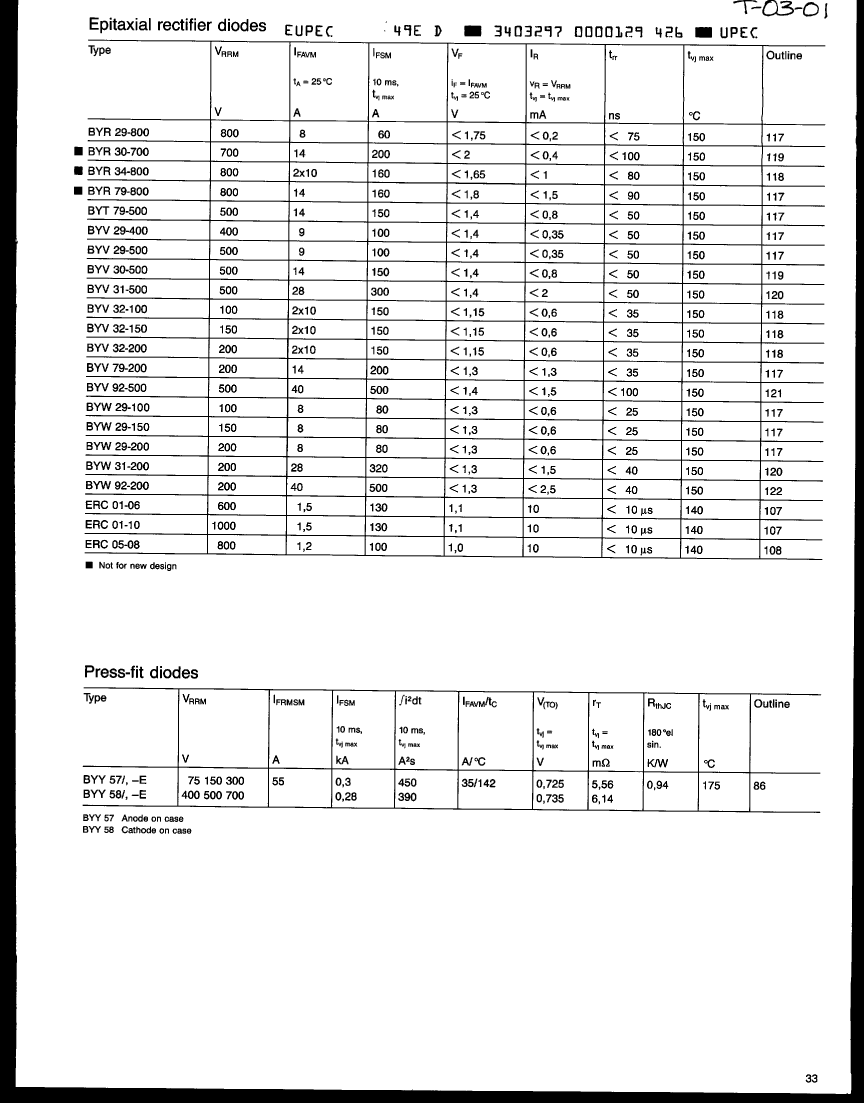

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | EUPEC [eupec GmbH] |
| Reach Compliance Code | unknow |
| Other features | LEAKAGE CURRENT IS NOT AT 25 DEG C |
| application | POWER |
| Shell connection | CATHODE |
| Configuration | COMMON CATHODE, 2 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.15 V |
| JESD-30 code | R-PSFM-T3 |
| JESD-609 code | e0 |
| Maximum non-repetitive peak forward current | 150 A |
| Number of components | 2 |
| Phase | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Maximum output current | 10 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 150 V |
| Maximum reverse current | 600 µA |
| Maximum reverse recovery time | 0.035 µs |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| BYV32-150 | ERC05-08 | BYV32-100 | BYV29-500 | BYV32-200 | ERC01-06 | BYR34-800 | ERC01-10 | |
|---|---|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 2 Element, 10A, 150V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 1.2A, 800V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 2 Element, 10A, 100V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 9A, 500V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 2 Element, 10A, 200V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 1.5A, 600V V(RRM), Silicon, | Rectifier Diode, 20A, 800V V(RRM), | Rectifier Diode, 1 Phase, 1 Element, 1.5A, 1000V V(RRM), Silicon, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | EUPEC [eupec GmbH] | EUPEC [eupec GmbH] | EUPEC [eupec GmbH] | EUPEC [eupec GmbH] | EUPEC [eupec GmbH] | EUPEC [eupec GmbH] | EUPEC [eupec GmbH] | EUPEC [eupec GmbH] |
| Reach Compliance Code | unknow | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.15 V | 1 V | 1.15 V | 1.4 V | 1.15 V | 1.1 V | 1.6 V | 1.1 V |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Maximum non-repetitive peak forward current | 150 A | 100 A | 150 A | 100 A | 150 A | 130 A | 100 A | 130 A |
| Maximum operating temperature | 150 °C | 140 °C | 150 °C | 150 °C | 150 °C | 140 °C | 150 °C | 140 °C |
| Maximum output current | 10 A | 1.2 A | 10 A | 9 A | 10 A | 1.5 A | 20 A | 1.5 A |
| Maximum repetitive peak reverse voltage | 150 V | 800 V | 100 V | 500 V | 200 V | 600 V | 800 V | 1000 V |
| Maximum reverse recovery time | 0.035 µs | 10 µs | 0.035 µs | 0.05 µs | 0.035 µs | 10 µs | 0.08 µs | 10 µs |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Other features | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C | - | LEAKAGE CURRENT IS NOT AT 25 DEG C |
| application | POWER | POWER | POWER | POWER | POWER | POWER | - | POWER |
| Shell connection | CATHODE | ISOLATED | CATHODE | CATHODE | CATHODE | ISOLATED | - | ISOLATED |
| Configuration | COMMON CATHODE, 2 ELEMENTS | SINGLE | COMMON CATHODE, 2 ELEMENTS | SINGLE | COMMON CATHODE, 2 ELEMENTS | SINGLE | - | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | - | SILICON |
| JESD-30 code | R-PSFM-T3 | O-PALF-W2 | R-PSFM-T3 | R-PSFM-T2 | R-PSFM-T3 | O-PALF-W2 | - | O-PALF-W2 |
| Number of components | 2 | 1 | 2 | 1 | 2 | 1 | - | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 |
| Number of terminals | 3 | 2 | 3 | 2 | 3 | 2 | - | 2 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | - | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | ROUND | RECTANGULAR | RECTANGULAR | RECTANGULAR | ROUND | - | ROUND |
| Package form | FLANGE MOUNT | LONG FORM | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | LONG FORM | - | LONG FORM |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified |
| Maximum reverse current | 600 µA | 10000 µA | 600 µA | 350 µA | 600 µA | 10000 µA | - | 10000 µA |
| Terminal form | THROUGH-HOLE | WIRE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | WIRE | - | WIRE |
| Terminal location | SINGLE | AXIAL | SINGLE | SINGLE | SINGLE | AXIAL | - | AXIAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED |
