ZT601-G27-3.3-10.0MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ZT601-G27-3.3-10.0MHZ

ZT601-G27-3.3-10.0MHZ: DescriptionSine Output Oscillator,; CategoryPassive components oscillator; File Size72KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

ZT601-G27-3.3-10.0MHZ Overview

Sine Output Oscillator,

ZT601-G27-3.3-10.0MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Euroquartz
Reach Compliance Code	compli
Oscillator type	SINE

Preview

Download Datasheet

View All

EURO

QUARTZ

Tight Temperature Stability

Tight Stability; Low profile SMT package

Frequency Range: 10MHz - 300MHz

Output Signal: CMOS (ZT600) Sine (ZT601)

Package outline 25.40 x 29.21 x 5.08 mm

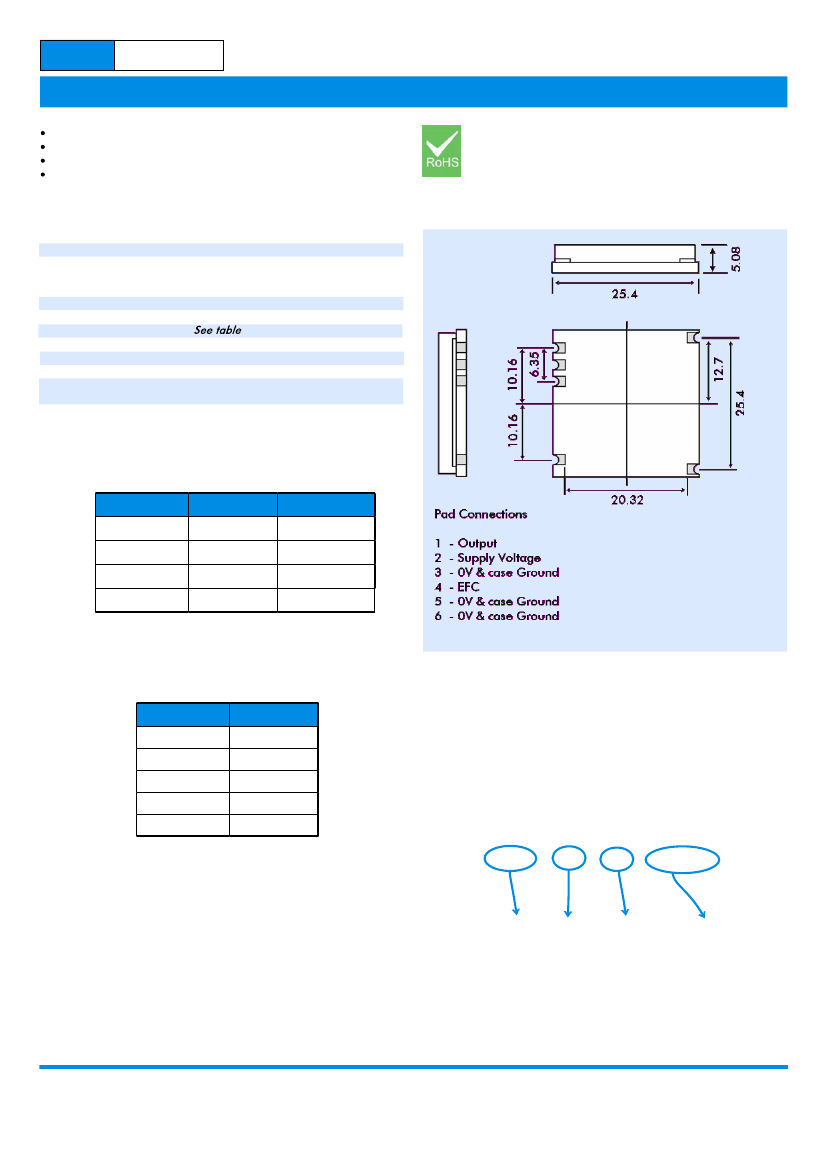

ZT600/601 TCXO

10MHz to 300MHz

ZT600 - OUTLINES AND DIMENSIONS

SPECIFICATIONS

Frequency Range:

Output

Series ZT600:

Series ZT601:

Harmonics:

Symmetry:

Temperature Stability:

Frequency vs. Supply:

Ageing:

Input Voltage:

Frequency Adjust:

10.0MHz to 300.0MHz

CMOS (ACMOS available 10 to 125MHz)

Sine Wave, 0dBm into 50Ω

-20dBc (Sine Wave version)

50%±10%

±1x10

-7

per % change

<1ppm/year

+5.0 V or +3.3VDC

±5.0ppm typical, positive slope

0 to Vdd EFC

STABILITY OVER TEMPERATURE

Temp. Range

-10~+60°C

-20~+70°C

-40~+85°C

Stability

±2x10

-7

±3x10

-7

±5x10

-7

±1x10

-6

Part No. Code

G27

N37

T57

T16

PHASE NOISE

(At 10MHz +5V, Typical)

Offset

10Hz

100Hz

1kHz

10kHz

100kHz

dBc/Hz

-95

-125

-140

-150

-155

Example:

PART NUMBERING

ZT601-T57-3.3-20.0MHz

ZT601 - T57 - 3.3 - 20.0MHz

Model number - Stability - Supply Voltage - Frequency

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
